Raspberry Pi ESP32 0.3mp OV7670 DVP VGA Cmos Sensor Camera Module
Specificaitons
| Product Name | OV2640 Camera Module |
| Array Size | 640 × 480 (VGA) |
| Sensor | CMOS |
| Interface | DVP |
| Distortion | <1.0% |
| Lens Type | Fixed Focus |
| View Angle | 60° |
| Function | Wide Angle, Night Vision, Face Recognition |
| Resolution | 0.3MP |
| Frame Rate | 30fps |
Description

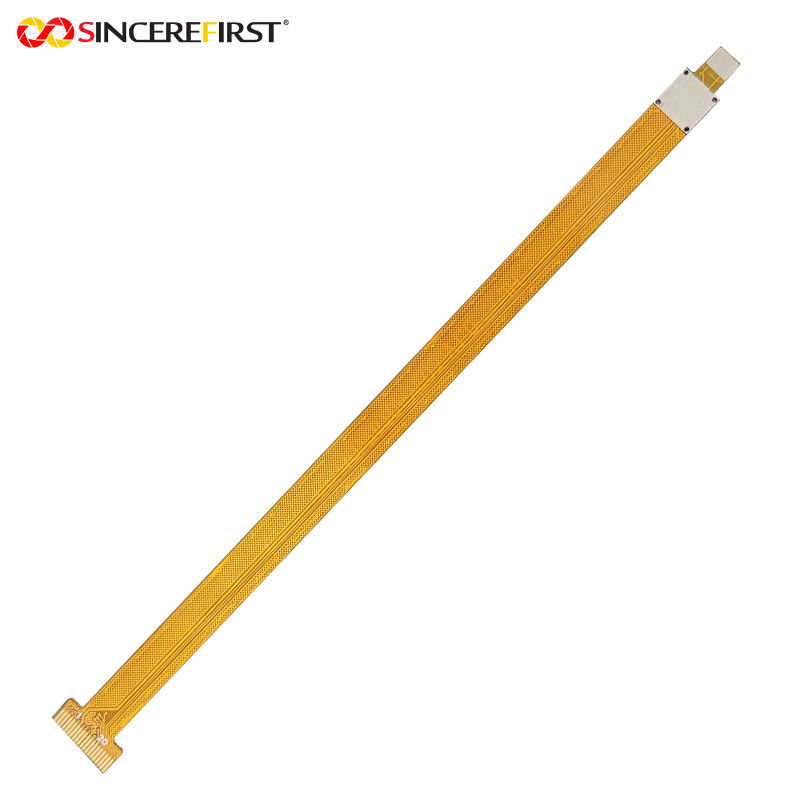

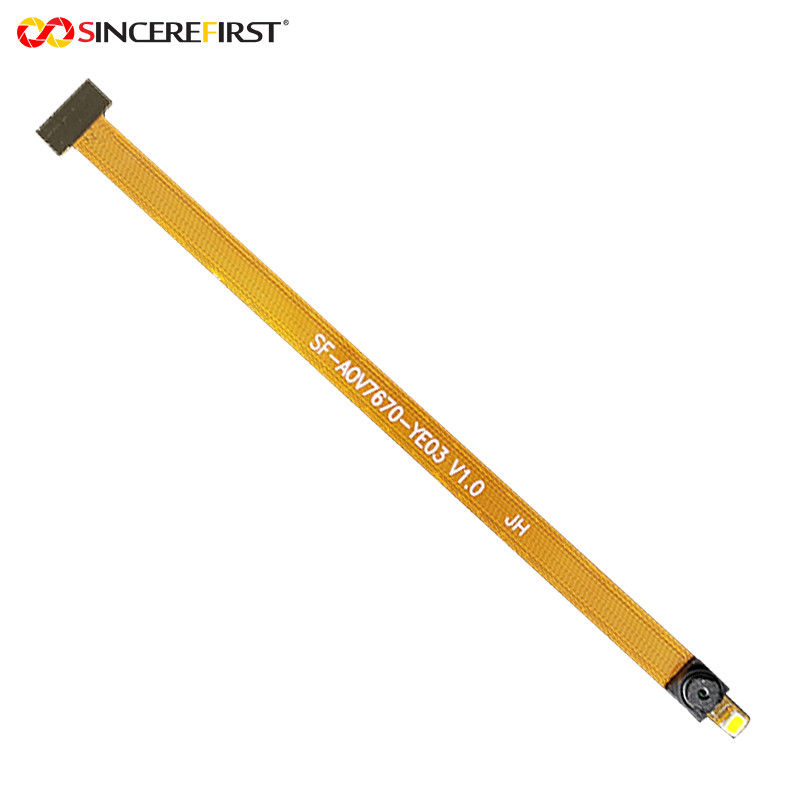

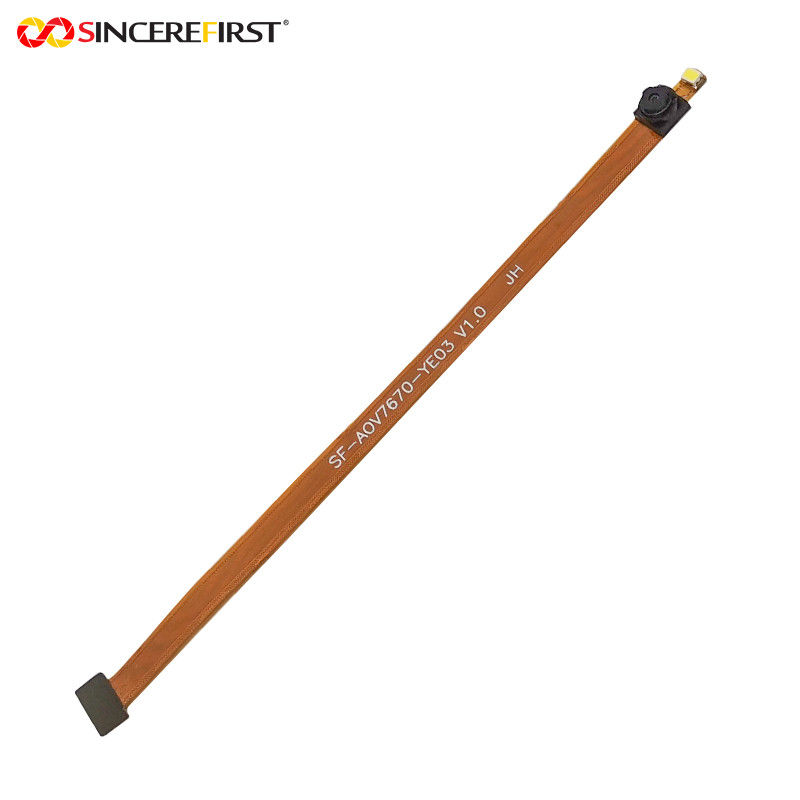

This CCM (compact camera module) based on an OV7670 sensor, constructed with a high quality stock lens and DVP interface.
It has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface.
Features
◆This 0.3MP mini Compact Camera Module is based on the low voltage CMOS image sensor OV7670, which provides the full functionality of a single-chip VGA camera and image processor.
◆The maximum framerate of 30fps at VGA resolutions with complete user control over image quality, formatting and output data transfer through the Serial Camera Control Bus (SCCB).
◆Resolution: 640 x 480 (VGA); Maximum Image Transfer Rate: 30fps@VGA; Output Format(8-bit): YUV/YCbCr 4:2:2, RGB565/555/444, GRB 4:2:2, Raw RGB Data
◆Lens SPEC: Stock lens; 45 degree (D) field of view angle; Integral 650 IR filter, visible light only; Lower than 1% distortion.
◆Recommended for electronic lovers, this CCM is compatible with Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA, and other MCU platforms.
Applicaitons
The camera module is a product used to take photos and videos from mobile devices, such as smartphones, automobile, and smart home appliances. In all areas, a high level of technology is needed that requires high resolution, miniaturization, slimming, low-power, and high stiffness.
