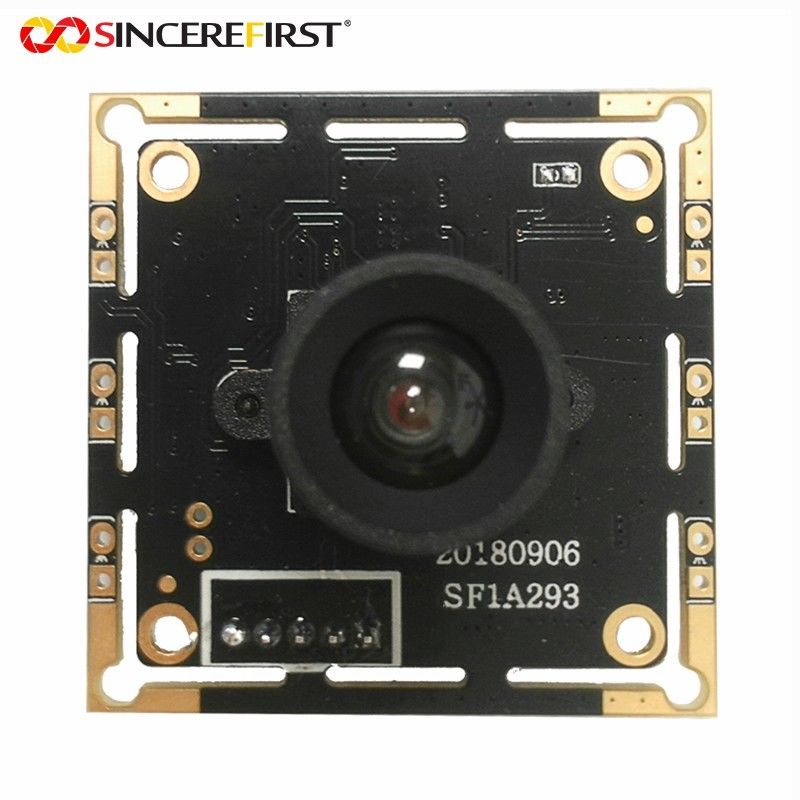

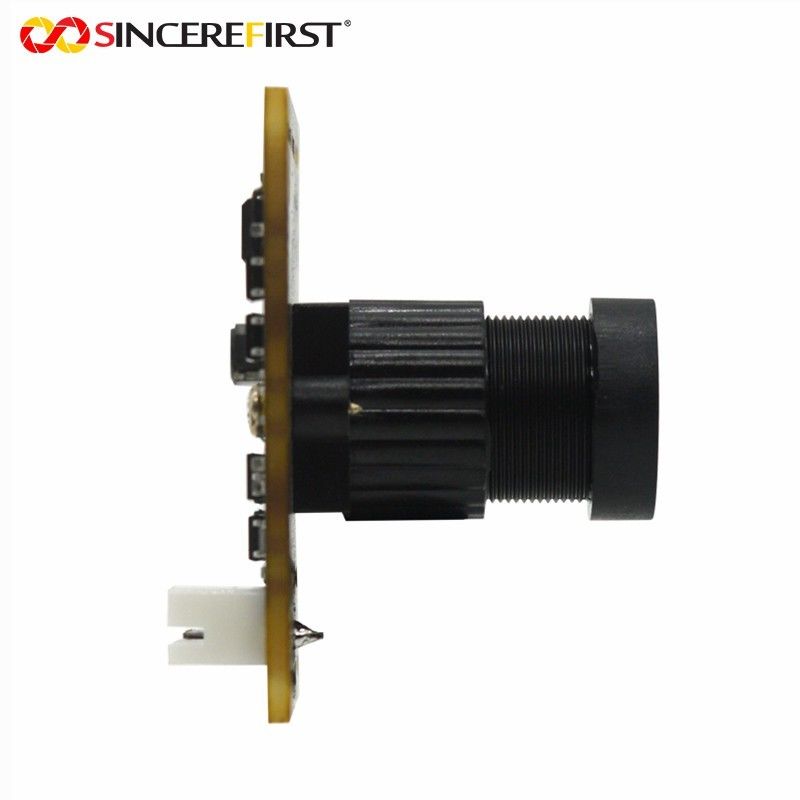

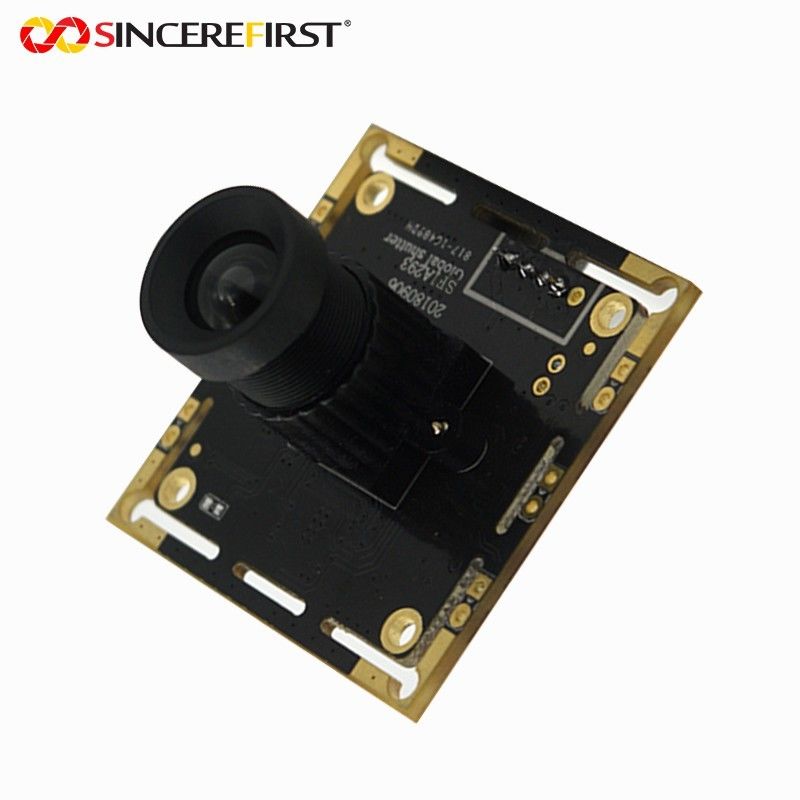

High Speed 1mp Monochrome Image Sensor Global Shutter Camera Module
Specificaitons
| Pixel | 1MP monochrome global shutter camera module |
| Dimension | 38mm×38mm(±1mm) |
| Sensor Size | 1/4" |
| Pixel Size | 3μm X 3μm |
| Drive-free Agreement | USB Video Class(UVC) |
| Operating System | WindowsXP/7/8/10, Linux(supoortUVCprotocol), Android(supoortUVCprotocol),MAC-ios |
| AEC | Support |
| AEB | Support |
| Output Format | MJPG / YUY2 |
| Operating Voltage | DC5V |
Description
A global shutter camera module is a type of camera sensor that captures an entire image at once, rather than scanning the image line by line. This means that the entire image is captured at the same time, which is useful for capturing fast-moving objects without motion blur.
Features
◆Based on 1MP monochrome (black&white) global shutter sensor
◆Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.
◆Resolution: 1MP 1280H x 800V; Frame Rates: MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720. Note: Please change the default frame rate of the software to meet your higher frame rate requirement.

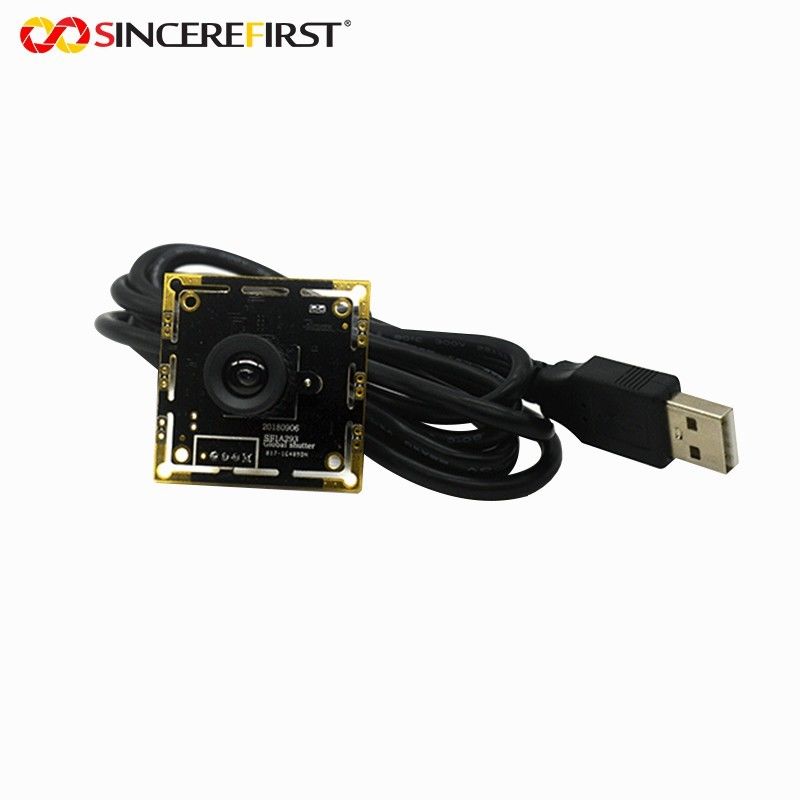

◆Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device with the USB cable without extra drivers to be installed.
Applicaitons
gesture
eye tracking
iris
physiognomy recognition
depth and motion detection.
