12MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor

12MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor

  • Highlight

    USB Zoom Camera Module

    ,

    12MP High Resolution Zoom Camera Module

    ,

    IMX415 Sensor Zoom Camera Module

  • Product Name
    HD 12 Megapixel Camera Module
  • Sensor Model
    Sony IMX415 CMOS
  • Module Size
    38mmX38mm+85mmX40mm
  • Sensor Size
    1/2.8"
  • Pixel Size
    1.45µm X 1.45µm
  • Production Process
    SMT (ROSH)
  • Imaging Distance
    1CM~∞
  • Working Current
    510mA (VGA)
  • Output Format
    MJPG / YUY2
  • Driving Method
    Drive Free
  • Place of Origin
    Guangdong , China
  • Brand Name
    SINCERE FIRST
  • Certification
    CE, FCC, RoHS, REACH, ISO
  • Model Number
    SF13A7499-UZ
  • Minimum Order Quantity
    5 pcs
  • Price
    Negotiable
  • Packaging Details
    Package, Carton Box
  • Delivery Time
    7 - 15 Work Days
  • Payment Terms
    L/C, Western Union, T/T, MoneyGram, Paypal and Others
  • Supply Ability
    350000 pcs / month

12MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor

12MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor

Product Description:

This 4K camera module is based on SONY IMX415 CMOS image sensor. Its low light sensitivity delivers exceptional clear color images even at extremely low light or even no light (nearly 0 lux) conditions. It is capable of streaming high frame rate (30 fps) at 4K (3840 x 2160) resolution. This 4K USB camera is suitable for applications requiring high level of image recognition and detection, making it suitable for intelligent video analytics (IVA) purposes.



Features:

  • 38mmX38mm+85mmX40mm PCB Board
    2. IMX415 CMOS Sensor, 12mp
    3. High sensitivity, low dark current, no smear, excellent anti-blooming characteristic
    4. Fixed Focus
    5. Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
    6. High quality image
    7. UVC compliant, Plug & Play, driver free
    8. Support USB3.0 High Speed


Technical Parameters:

Feature Specifications
Application Smart Industry, Smart Agriculture, Smart Home
Product Name HD 12 megapixel camera
Sensor Model Sony IMX415 CMOS

Sensor Size

1/2.8"
Pixel Size 1.45µm X 1.45µm
Drive Free Protocol USB Video Class(UVC)
AEC Support
AEB Support
Output Format MJPG / YUY2
Driving Method Drive free


Applications:

Video Surveillance

FA cameras

Industrial cameras

DVR

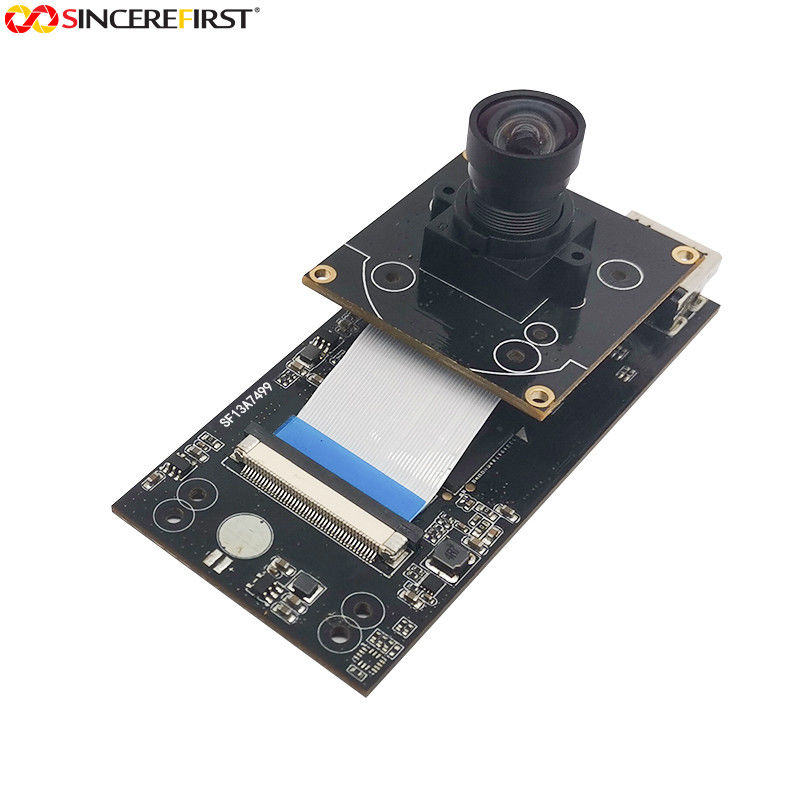

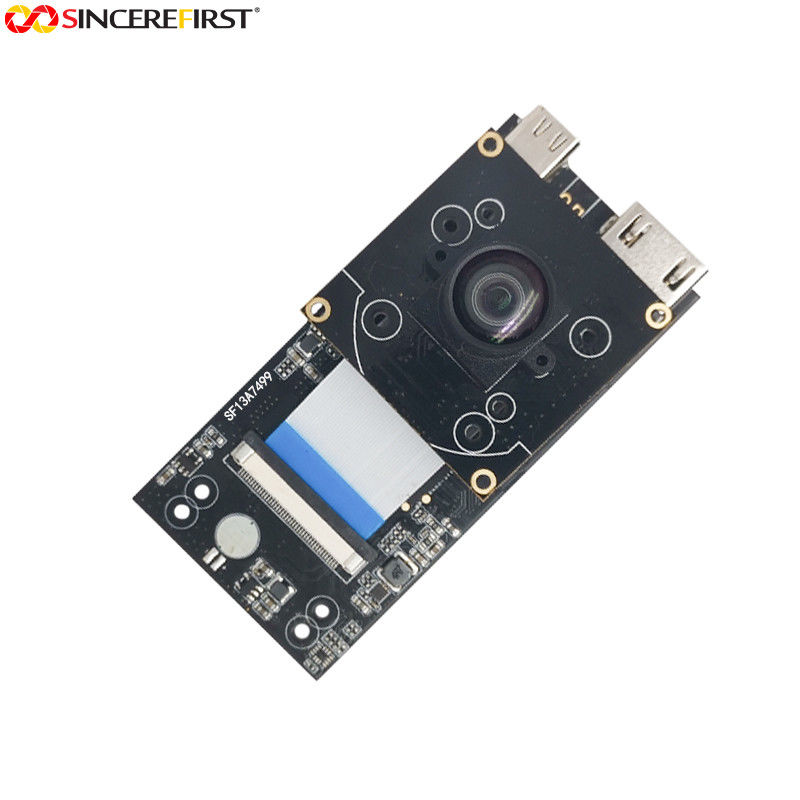

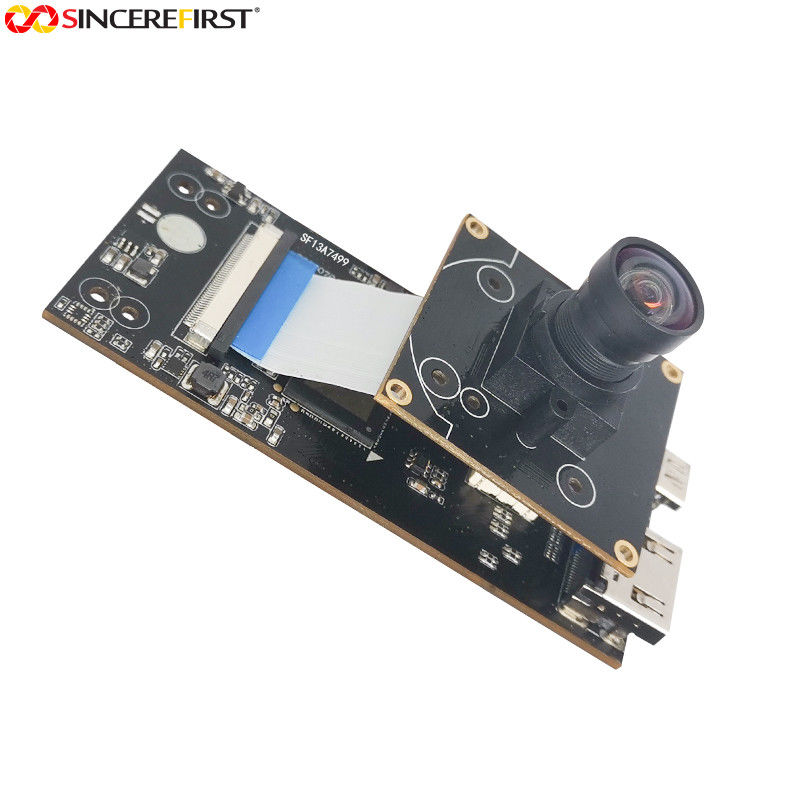

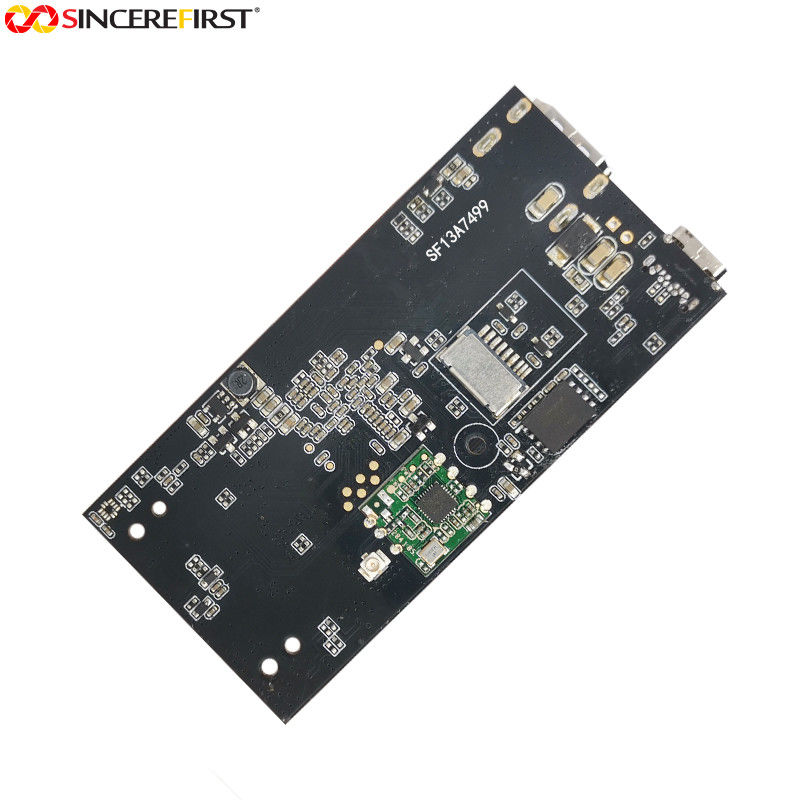

12MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor 012MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor 112MP High Resolution USB Zoom Camera Module With Sony IMX415 Sensor 2
