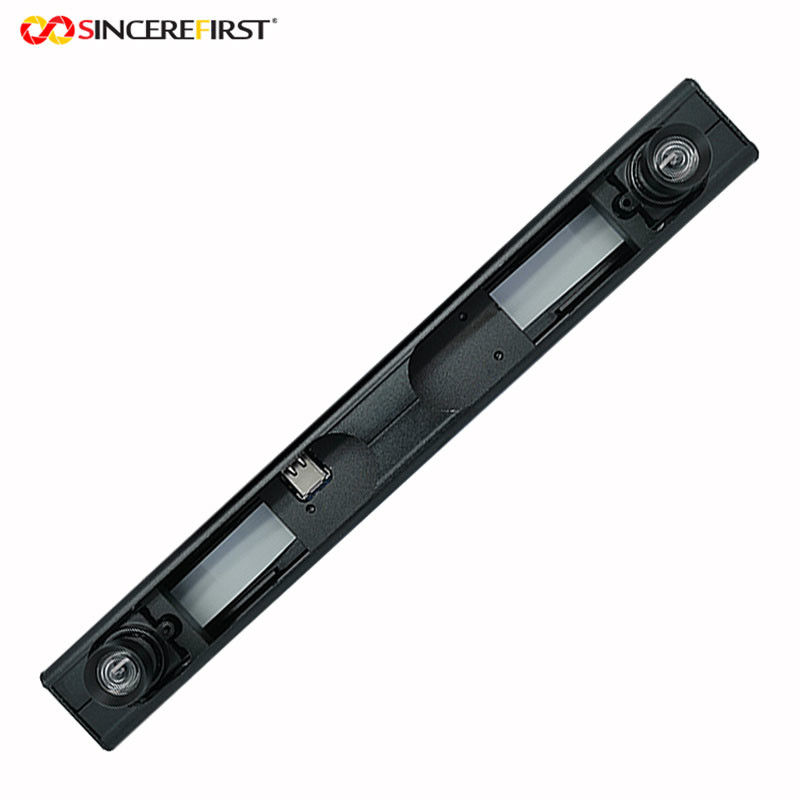

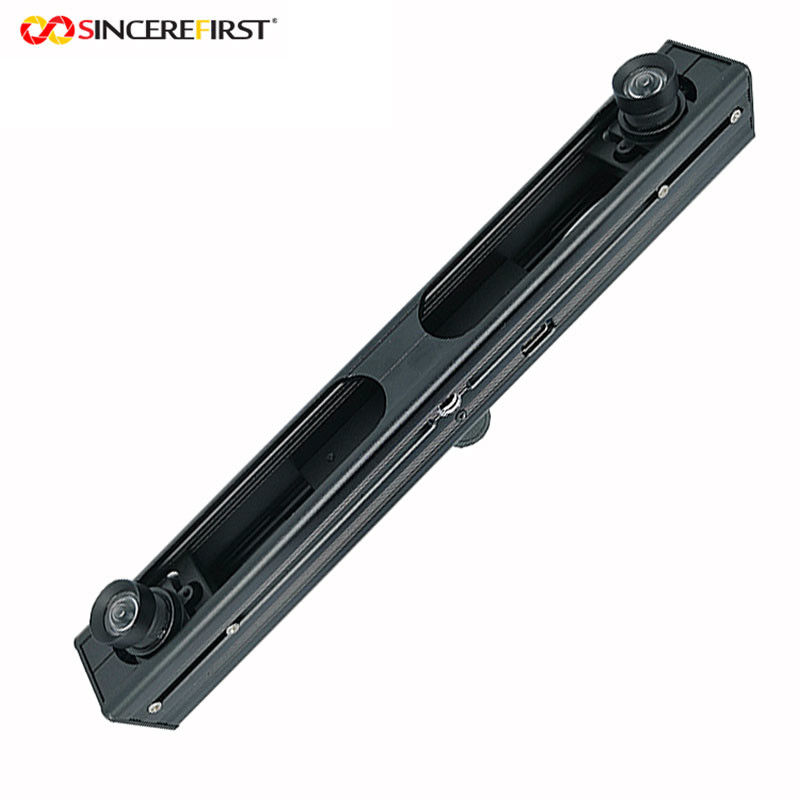

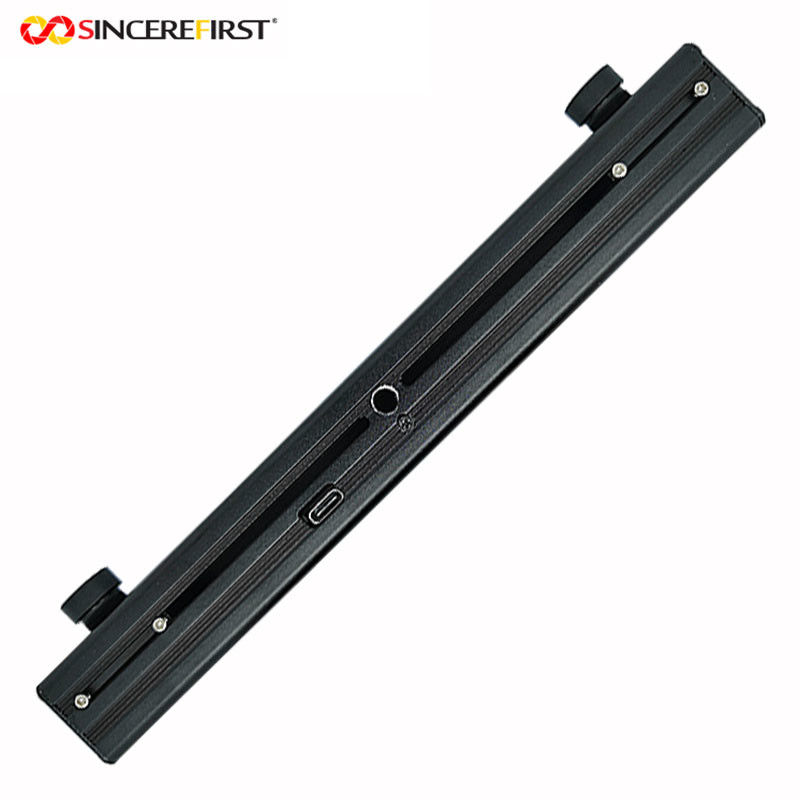

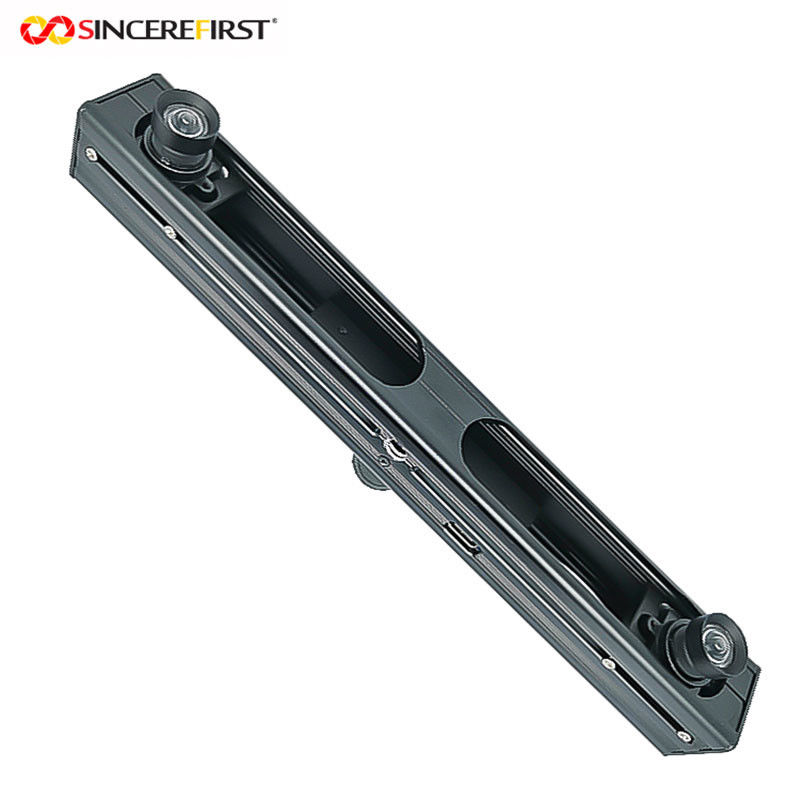

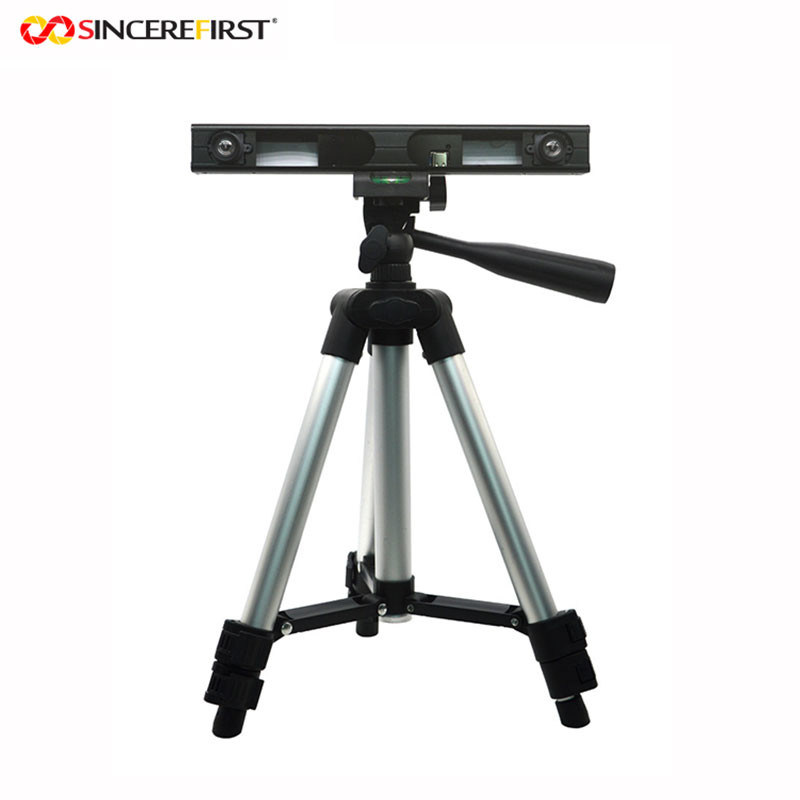

Sony IMX307 3D Stereo Depth 2mp Colour Dual Lens USB Camera Module
Specificaitons
| Model Model | SF2A418-D Dual Camera Module |
| Sensor | Sony IMX307 |
| Camera Pixel | 2mp Colour Dual Camera Module |
| Module Size | 200mm×25mm(±1mm) |
| Sensor Size | 1/2.8"inch |
| Pixel Size | 2.9μmX2.9μm |
| Temperature Operation | -20°C to 70°C |
| Object Distance | 1CM~∞ |
| Interface | USB3.0 |
| Focus Mode | Adjustable, Manual Focus, Fixed Focus |
Description
This camera module adopts 1/2.8” SONY IMX307 sensor for sharp 2MP image, usb3.0 interface, this chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time. (Applications: Surveillance cameras, FA cameras, Industrial cameras)
Features
◆CMOS active pixel type dots
◆Built-in timing adjustment circuit, H/V driver and serial communication circuit
◆Input frequency: 74.25 MHz / 37.125 MHz
◆Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
◆Readout mode: All-pixel scan mode, 720p-HD readout mode, Window cropping mode, Vertical / Horizontal direction-normal / inverted readout mode
◆Readout rate: Maximum frame rate in Full HD 1080p mode: 60 frame/ s
◆High dynamic range (HDR) function: Multiple exposure HDR, Digital overlap HDR
◆Variable-speed shutter function (resolution 1H units)
◆10-bit / 12-bit A/D converter
◆Conversion gain switching (HCG Mode / LCG Mode)
◆CDS / PGA function
◆Recommended exit pupil distance: –30 mm to –∞
◆Lens Size: 1/2.8", 1.8mm, 2.1mm, 2.8mm, 3.6mm, 6mm, 8mm, 12mm
◆Minimum illumination: 0.0001LUX
◆Operating System Request: WindowsXP/7/8/10, Linux(SupportUVCprotocol), Android(Support UVC protocol), MAC-ios
◆Drive-freeagreement: USBVideoClass(UVC)
◆Assembly Technique: SMT(ROHS)
Device Structure
◆CMOS image sensor
◆Image size
Type 1/2.8
◆Total number of pixels
1945 (H) × 1109 (V) approx. 2.16 M pixels
◆Number of effective pixels
1945 (H) × 1097 (V) approx. 2.13 M pixels
◆Number of active pixels
1937 (H) × 1097 (V) approx. 2.12 M pixels
◆Number of recommended recording pixels
1920 (H) × 1080 (V) approx. 2.07 M pixels
◆Unit cell size
2.9 µm (H) × 2.9 µm (V)
◆Optical black
Horizontal (H) direction: Front 0 pixels, rear 0 pixels
Vertical (V) direction: Front 10 pixels, rear 0 pixels
◆Dummy
Horizontal (H) direction: Front 0 pixels, rear 3 pixels
Vertical (V) direction: Front 0 pixels, rear 0 pixels
◆Substrate material
Silicon
Applicaitons
Industrial Camera Module
Surveillance Camera Module
Camera Module For Imaging And Vision Solutions
Integrated Complex And Customized Technology
Machine Vision
Intelligent Systems
Smart Security Solutions
Optical Technology Solutions
Internet Of Things End-to-end Solution
