1MP 1/4" OV9732 Sensor Binocular cam 3D Dual Lens Stereo Camera Module
Specificaitons
PCB printing ink |
black |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.6mm |
| FOV | 72° |
| TV Distortion | <5% |
| RelativeIllumination(Sensor) | 70% |
| IR Filter | 650±10nm |
| S/N Ratio | 39db |
| Max Dynamic Range | 72db |
Description

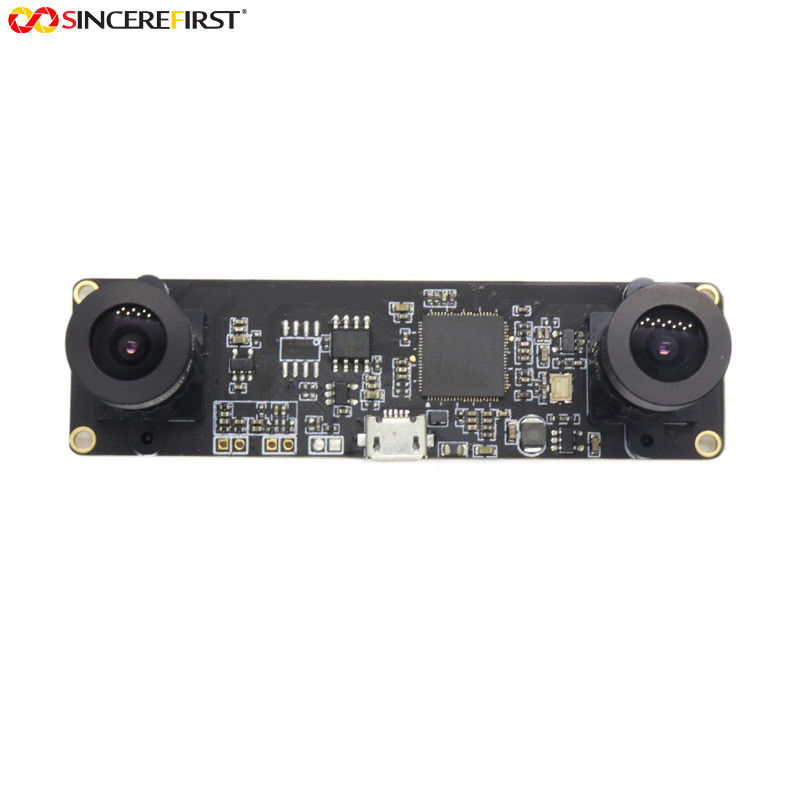

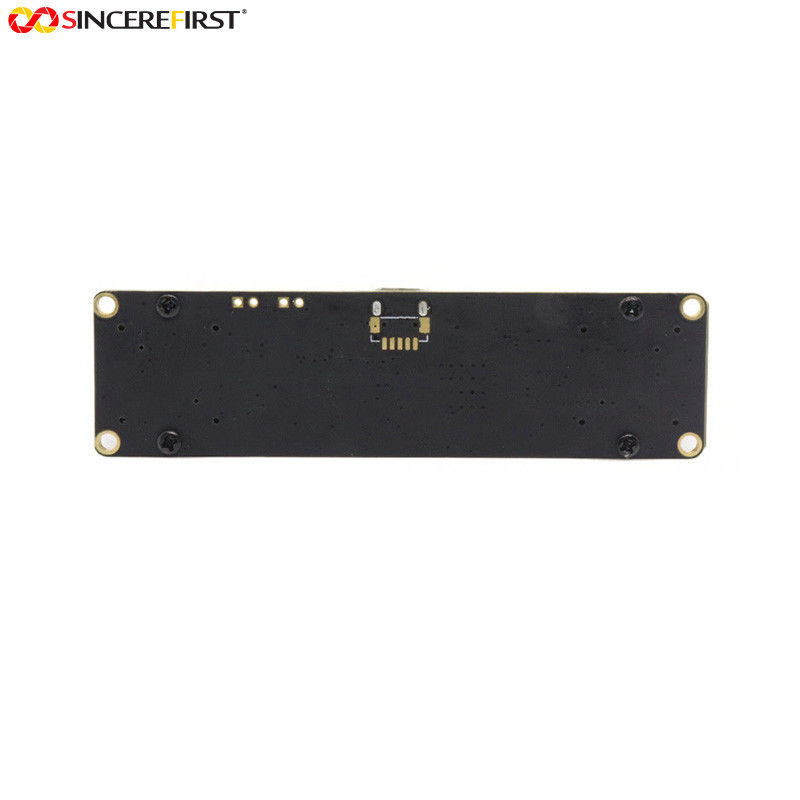

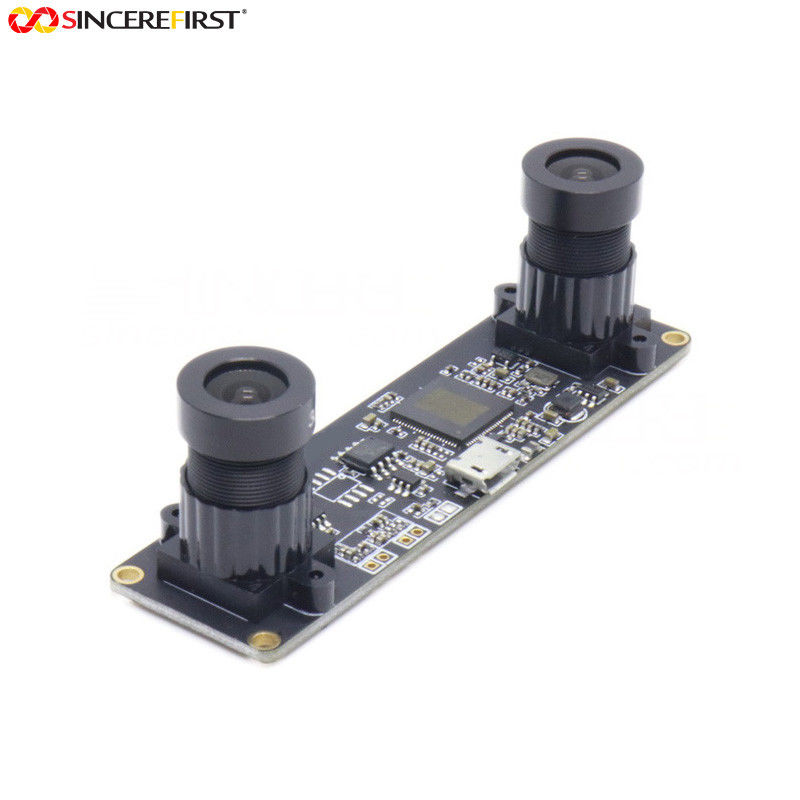

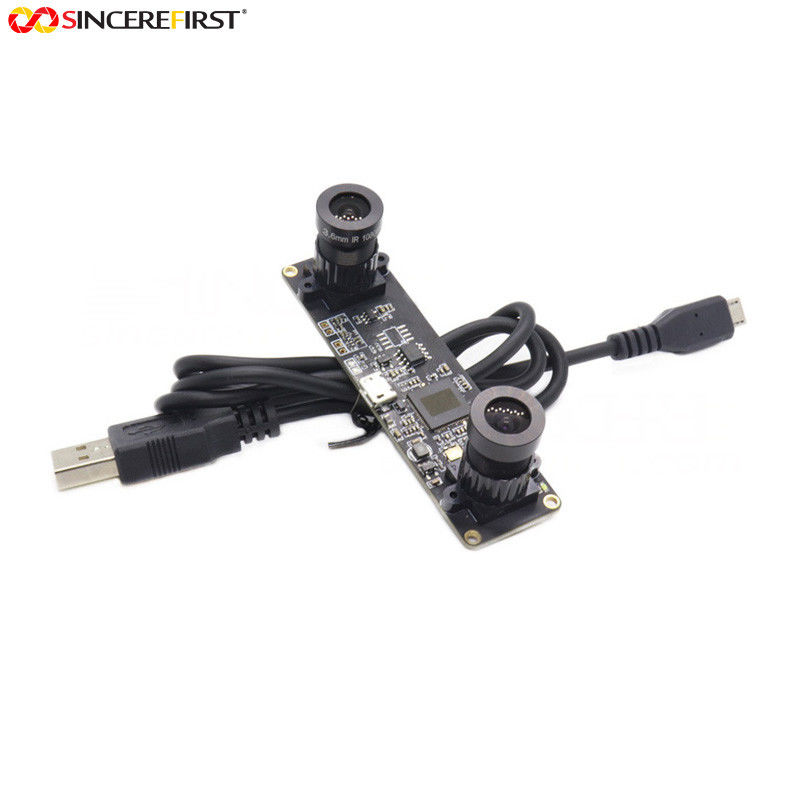

This is one of our hot selling Dual lens Stereo Camera Modules, it is USB 2.0 interface, with 1/4'' Omnivision OV9732 CMOS sensor, image quality is very high and stable. This camera module was designed synchronized technology with 1 DSP, 1 USB cable and 2 sensors, the 2 images come out at the same time, same resolution, same frame rate, and both images are Color.
The biggest difference of this dual lens camera module with others is that, you can either use it as dual lens camera module or you can use it as single lens camera module. When you choose resolutions like 2560x720, 1280x480 and 640x240, it functions as a Dual-lens camera module; When you choose resolutions like 1280x720, 640x480 and 320x240, it functions as a Single-lens camera module, only one sensor/lens works.
Features
◆You can use it both as Dual-lens or Single-lens camera module
◆1 Mega Pixel with 1/4'' Omnivision OV9732 CMOS sensor
◆Synchronized technology with 1 DSP, 1 USB and 2 Sensors
◆2 images showing at the same time with same resolution & same frame rate
◆High quality image
◆UVC compliant, Plug & Play
◆Support Linux, Android, Mac and Windows
◆A wide range of different FOV lens are available
Applicaitons
IP cameras
life style camera
surveillance
motion camera
