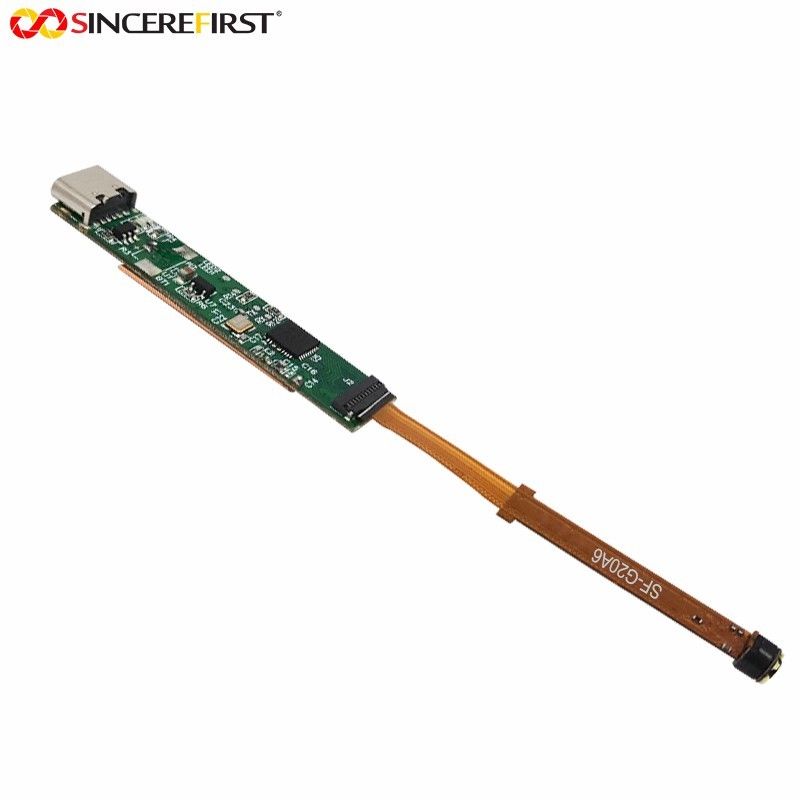

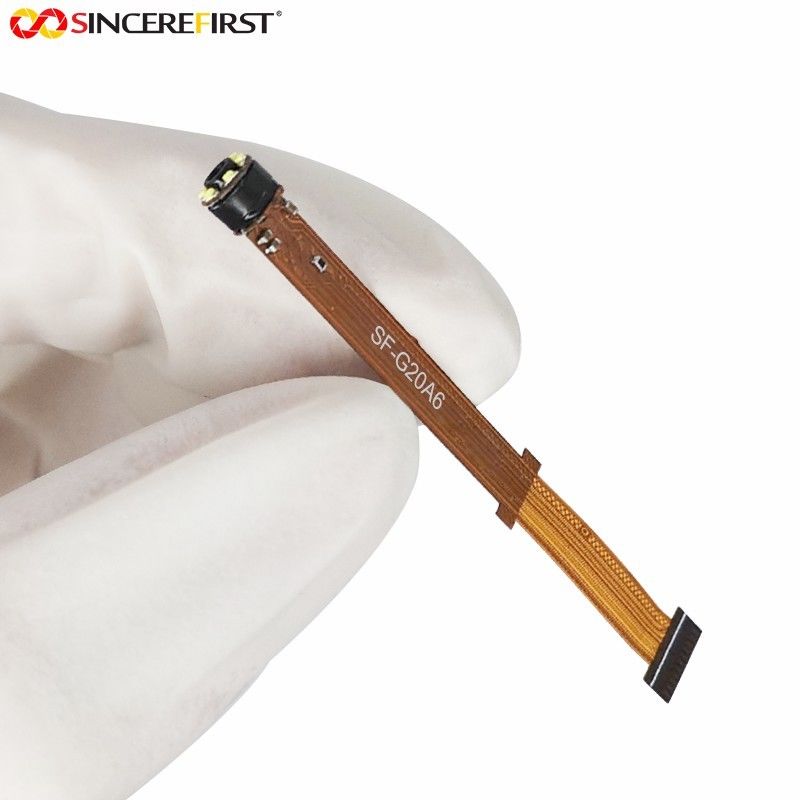

0.3MP Hd Wifi Board Camera BF20A6 Sensor Endoscope Camera Module
Specificaitons
| Image Sensor | BF20A6 |
| Effective Pixel | 640(H)×480(V) |
| Sensor | CMOS |
| Lens | HD/Fixed Focus |
| Support Drive-Free Protocol | UVC |
| Pixel | 0.3MP |

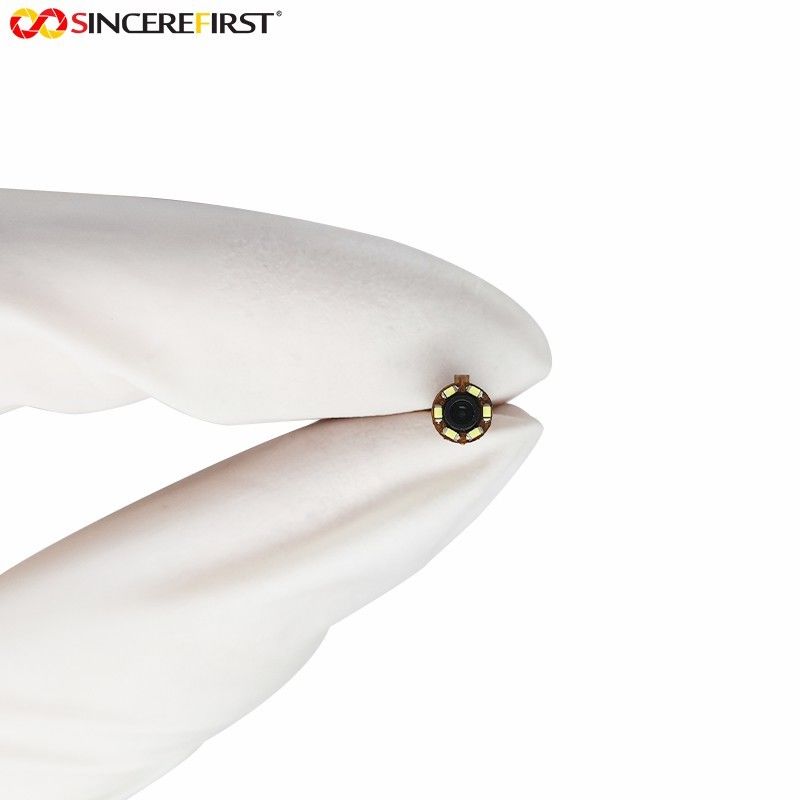

| Led | 6pcs |
| Wireless Link | Support |

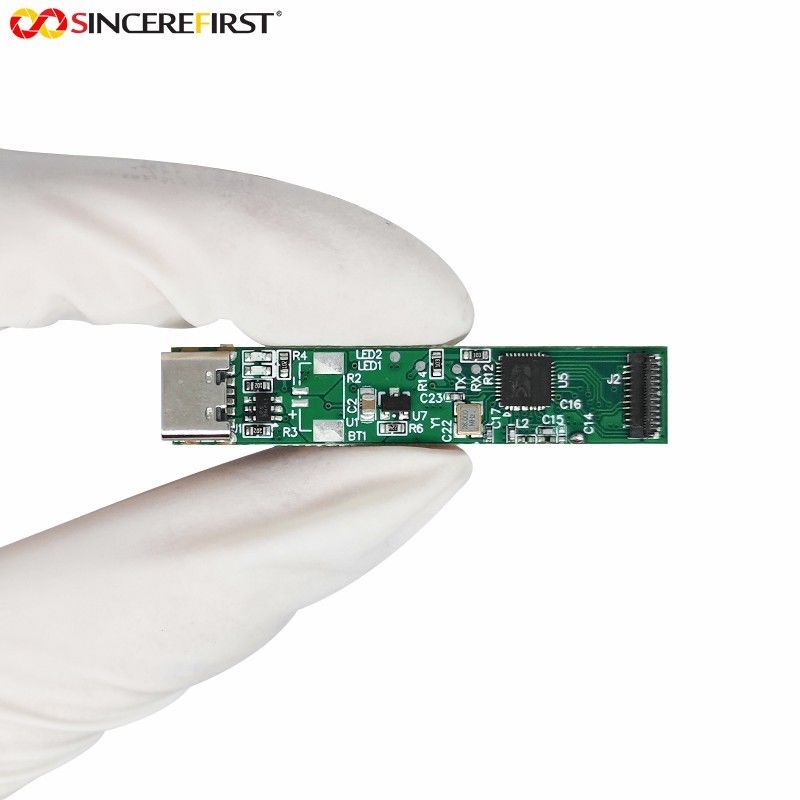

| Module | WIFI Board & Endoscope |
| Audio | No Support |
Description
The BF20A6 is a 1/10-inch VGA CMOS Image Sensor which includes CMOS image sensor (CIS) and ISP. It is fabricated with the world’s most advanced CIS process to realize ultra-low dark noise, high sensitivity, high dynamic range and very low power imaging system. The sensor consists of a 640×480 pixel array which has an optical format of 1/10 inch for VGA.
Features
◆Wireless Connectivity - The endoscope camera module supports wireless connectivity through WiFi.
◆HD Video Quality - The endoscope camera module offers high-definition video quality to capture clear images or videos of the inspection area.
◆Waterproof - The camera module is made waterproof to enable its use in damp or wet areas.
◆Adjustable LED Lights - The endoscope camera module comes with adjustable LED lights to provide illumination in dark environments.
◆Compatibility - The endoscope camera module is compatible with both iOS and Android mobile devices.
◆Storage - The module comes with a microSD card slot to store images or videos captured during the inspection.
◆Battery Life - The camera module has long battery life that allows for prolonged usage of up to five hours.
◆Ease of Use - The endoscope camera module is straightforward to use and requires no additional software or drivers.
◆Extended Cable - The module comes with an extended cable that allows for extended range and access to hard-to-reach areas.
Applicaitons
Intraoral Endoscope
Medical Beauty Instrument
Embedded Medical Device
Industrial Inspection
inspecting vehicles
plumbing systems
industrial equipment
