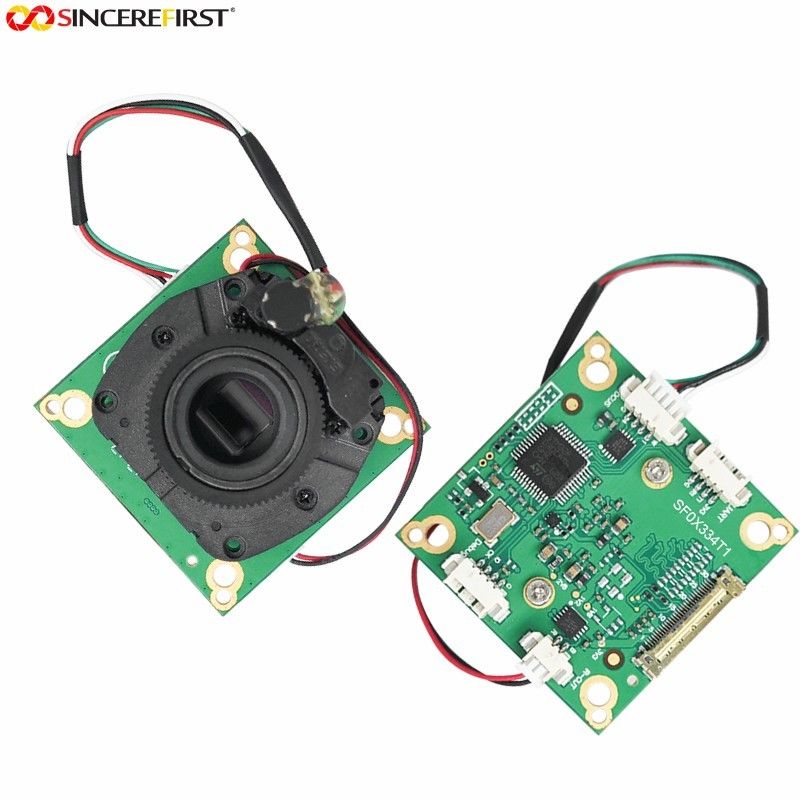

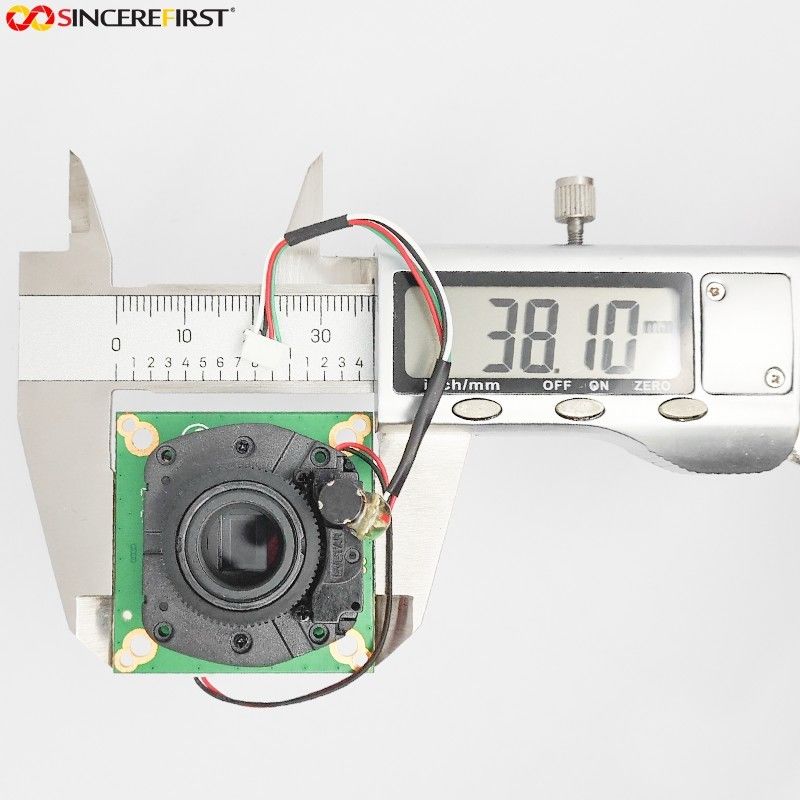

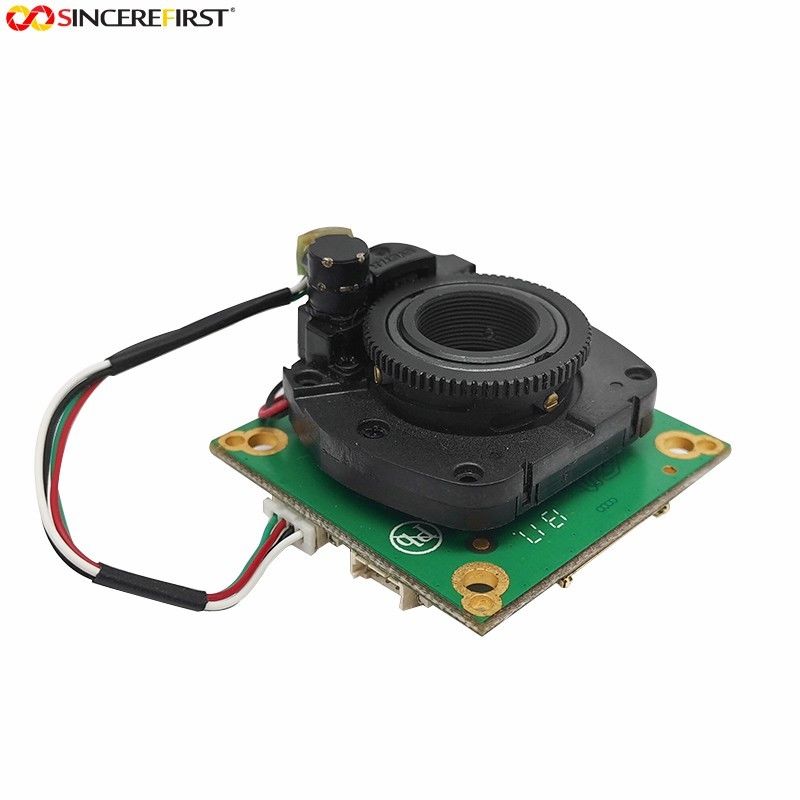

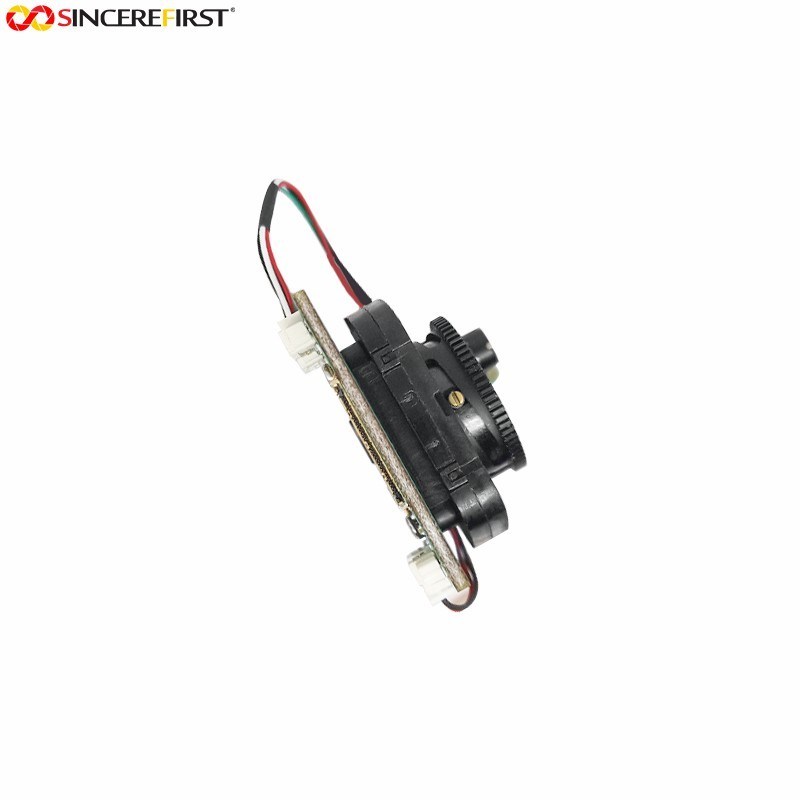

8mp Digital Camera Sensor Types 1/1.8 inch Sony IMX334 Camera Module
Specificaitons
| Interface | USB |
| Resolution | 3840x2160 |
| Frame Rate | 30fps |
| Sensor Type | IMX334 |
| Optical Size | 1/1.8" |
| Shutter Type | Rolling Shutter |
| IR Cut | 650nm |
| Output Formats | 4LANE MIPI |
| Conformity | RoHS, ISO, FCC |
| Software | Windows / Linux / Android |
Description
The lMX334LLR is a diagonal 8.86 mm(Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.42 M effective pixels. This chip operates with analog 29 V.diaital 1.2 V. and interface 1.8 V triple power supply. and has low power consumption. Hiah sensitivity. low dark current and no smear are achieved. This chip features an electronic shutter with variable charge-integration time. (Applications: Surveillance cameras, FA cameras, Industrial cameras)
Features
◆CMOS active pixel type dots
◆Built-in timing adjustment circuit HN driver and serial communication circuit
◆Input frequency: 6 to 27 MHz/37.125 MHz/74.25 MHz
◆Number of recommended recording pixels: 3840(H) x 2160(V) approx. 8.29M pixels
◆Readout mode
All-pixel scan mode
Window cropping mode
Vertical/ Horizontal direction-normal/inverted readout mode
Readout rate
Maximum frame rate in All-pixel scan mode3840(H)*2160(V) AD 12-bit: 60 frame/s
◆High dynamic range(HDR) function
Multiple exposure HDR
Digital overlap HDR
◆Variable-speed shutter function(resolution 1H units
◆10-bit/ 12-bit A/D converter
◆CDS/PGA function
0 dB to 30 dB:Analog Gain 30 dB(step pitch 0.3dB)
30.3 dB to 72 dB:Analog Gain 30 dB+Digital Gain 0.3 to 42 dB(step pitch 0.3 dB
◆Supports I/O
CS1-2 serial data output(4 Lane/8 LaneRAW10/RAW12 output)
◆Recommended exit pupil distance:-100mm to-
Applicaitons
Iris and face recognition
Astrophotography
Gesture and eye tracking
Depth and motion detection
Home video surveillance system
