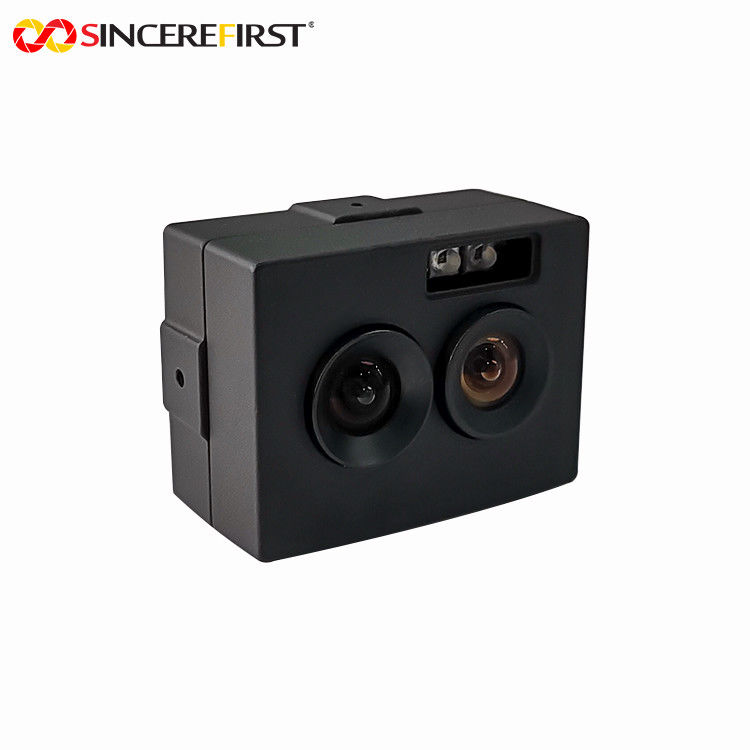

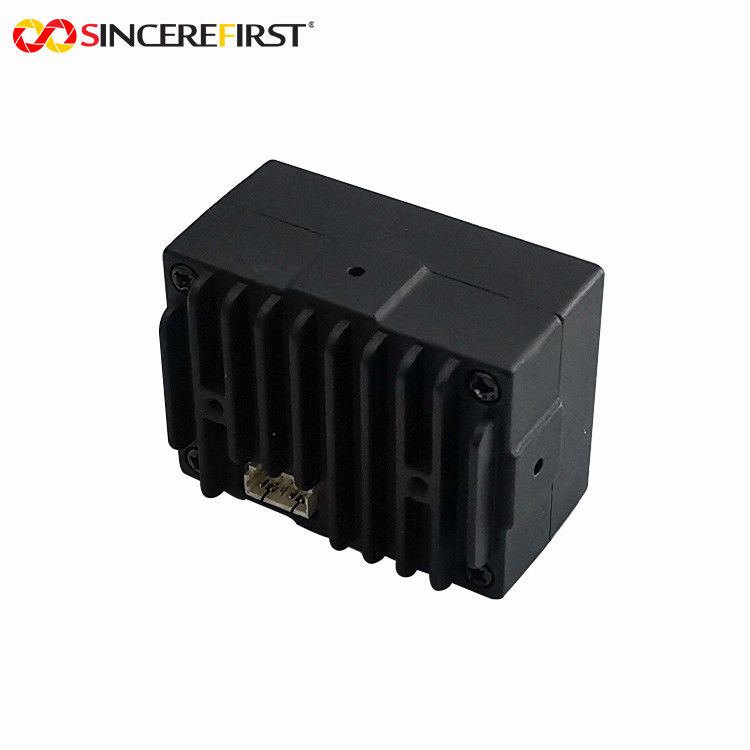

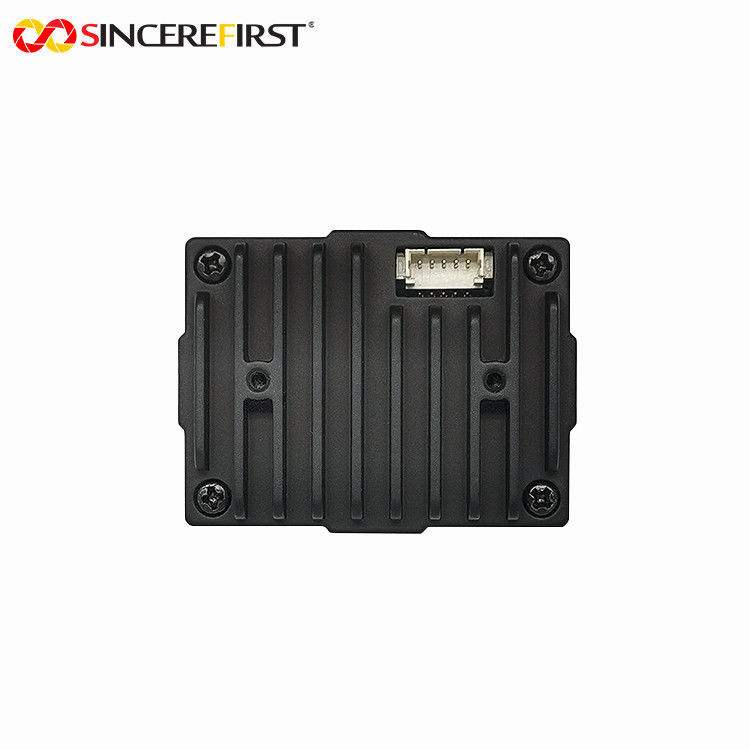

Mini UVC 1/2.7" CMOS Sensor 2MP Dual Eys Lens USB Camera Module
Specificaitons
| Lens Resolution | 3MP |
| EFL | 8mm |
| POV | 52.5(D) / 42.4(H) / 23.1(V) |
| F# | Fixed (1.8) |
| Filter | 650nm IR cut off |
| Component | 6G (all glass) |
| Mount | M12*0.5 |
| Focal Length | Fixed |
| Efective pixel | 1920 x 1080 (2MP) |
| Video format | MJPG |
Description
This camera’s most outstanding feature is the two camera’s video frame is synchronous, just like two human eyes. Which is ideal for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints. Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc. Our customer normally develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video. We can supply SDK and display software to customer for integration. It can work on Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.
Features
◆HD dual lens camera module
◆1/2.7” CMOS sensor for high quality image
◆With 2 pcs HD mini size 52.5 degree lens

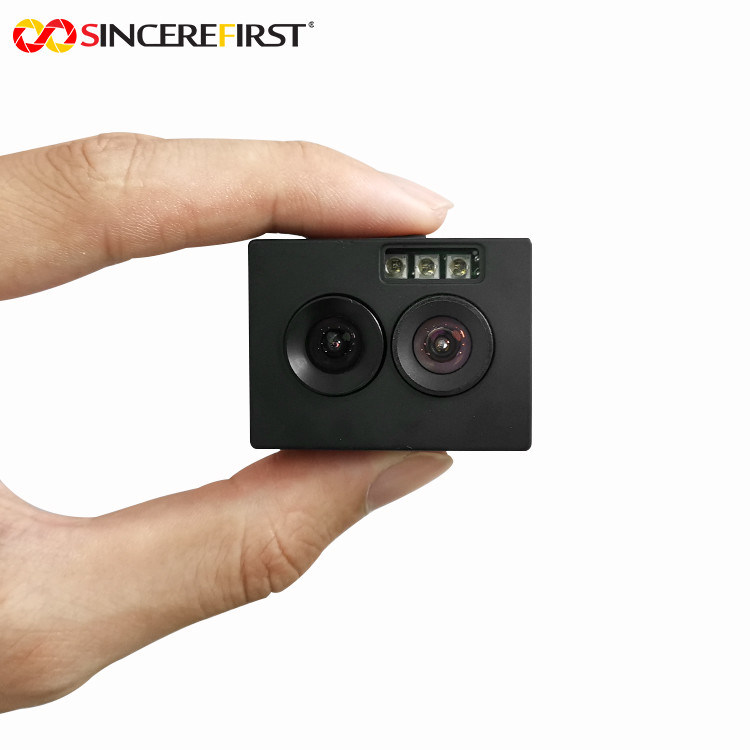

◆Super Mini size 45*50mm*33mm for embedded device
◆Compact industrial camera solution for any PC with USB2.0 port
◆Support Windows, Linux and Android OS with UVC
◆Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
Applicaitons
Robot vision
Virtual reality
Augmented Reality
biometric Retina analyze
3D measurement
Intelligent transportation system
People Counting & Tracking
Astrophotography
