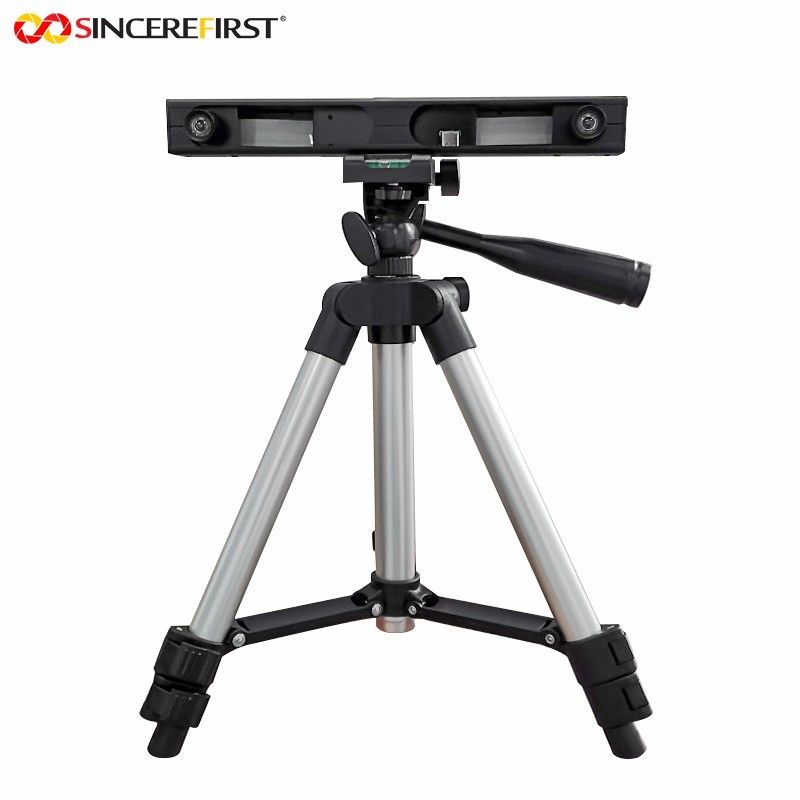

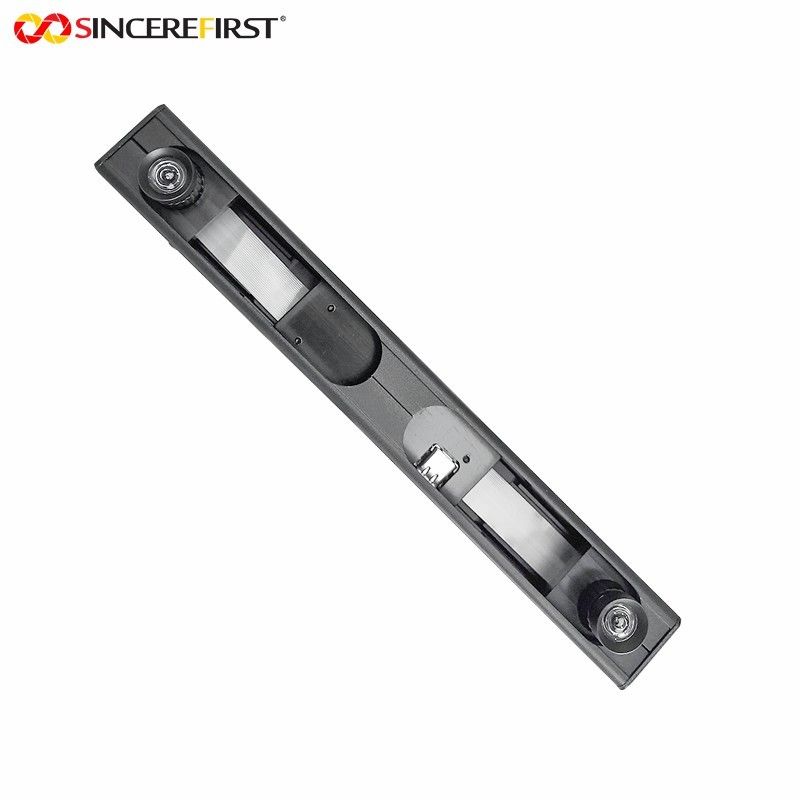

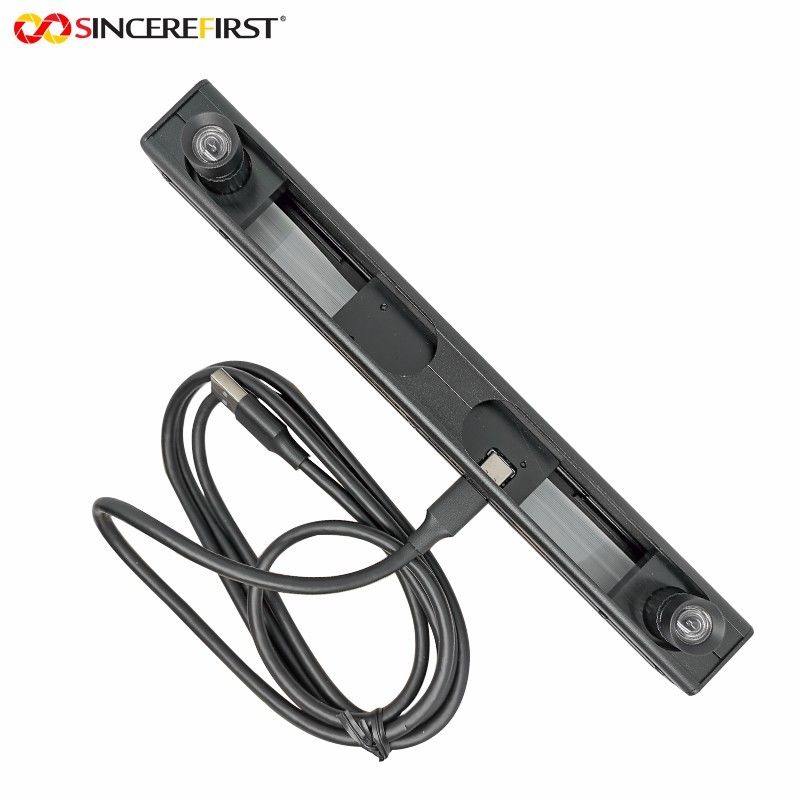

1MP AR0144 Sensor USB3.0 Color Global Shutter Dual Lens Camera Module
Specificaitons
Standard interface |
USB3.0(USB3.0 Type-C) |
| Working current | 160mA(VGA) |
| Operating Voltage | DC5V |
| Free drive agreement | UVC |
| Operating system | WindowsXP/7/8/10, Linux , Android, MAC-Ios |
| AEB | Support |
| AEC | Support |
| Output format | MJPG/YUY2 |
| Focus method | Adjustable, manual focus or fixed focus |
| Shutter type | Global shutter |
Description
The AR0144CS is a 1/4-inch 1.0 Mp CMOS digital image sensorwith an active-pixel array of 1280(H) × 800 (V). It incorporates a newinnovative global shutter pixel design optimized for accurate and fastcapture of moving scenes. The sensor produces clear, low noiseimages in both low-light and bright scenes. It includes sophisticatedcamera functions such as auto exposure control, windowing, row skipmode, column-skip mode, pixel-binning and both video and singleframe modes. It is programmable through a simple two-wire serialinterface. The AR0144CS produces extraordinarily clear, sharp digitalpictures, and its ability to capture both continuous video and singleframes makes it the perfect choice for a wide range of applications,including scanning and industrial inspection.
Features
◆Superior Low-light and IR Performance
◆HD Video (720p60)•1/2−lane MIPI or Parallel Data Interface
◆Automatic Black Level Calibration (ABLC)•Programmable Control for Region OfInterest (ROI)
◆Horizontal and Vertical Mirroring,Windowing and Pixel Binning•On-chip Auto Exposure Control for AnyProgrammable ROI
◆5×5 Statistics Engine for AnyProgrammable ROI
◆Flexible Control for Row and Column SkipMode
◆On-chip Trigger Mode for Synchronization
◆Built in Strobe Control
◆On Chip Phase Lock Loop (PLL)
Applicaitons
Bar Code Scanner
Gesture Recognition
3D Scanning
Positional Tracking
Iris Scanning
Augmented Reality
Virtual Reality
Biometrics
Machine Vision
