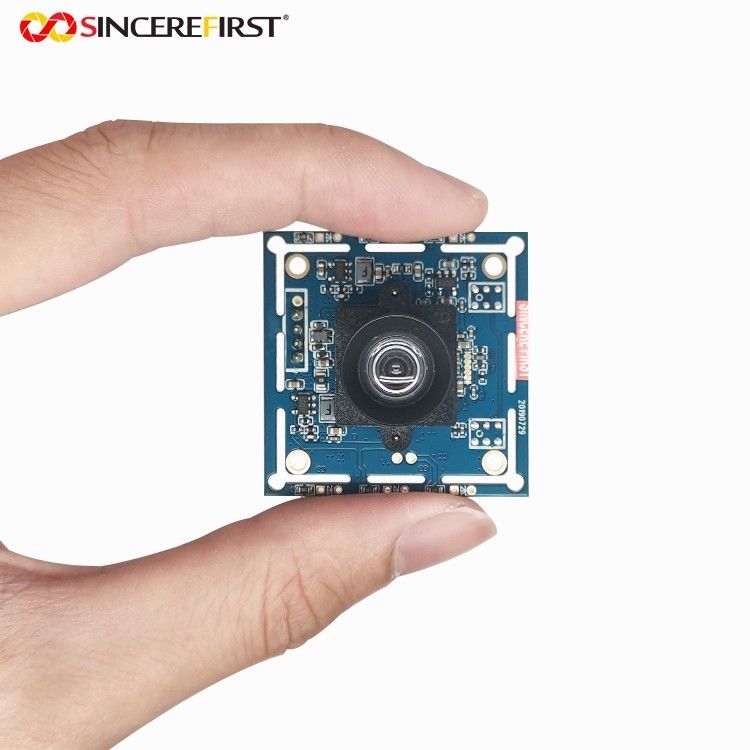

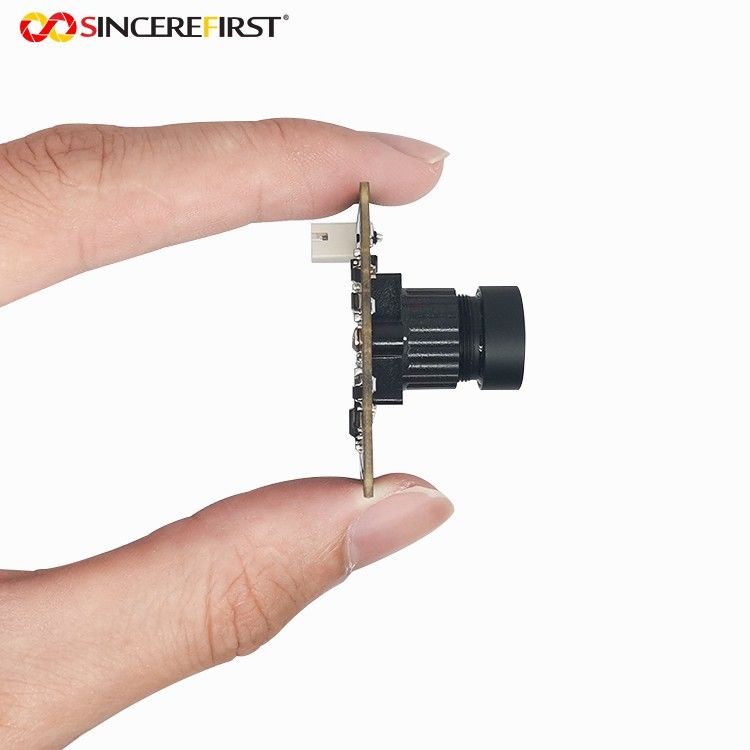

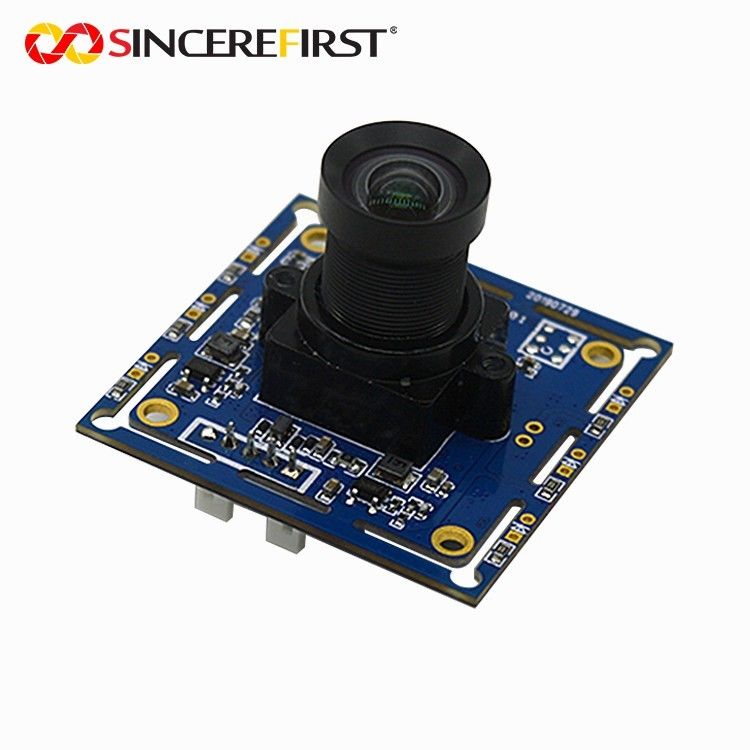

High Speed USB2.0 1/2.5" CMOS Image Sensor AR0251 5mp Camera Module
Specificaitons
| Operating temperature | -20°C to 70°C |
| Stable temperature | 0°C to 50°C |
| Production Process | SMT(ROHS) |
| Output format | MJPG/YUY2 |
| Focus mode | Adjustable,manual focus or fixed focus |
| Video Rate | 30fps |
| Lens | Size:1/2.8",1.8mm,2.1mm,2.8mm,3.6mm,6mm,8mm,12mm,16mm |
| Description | 5MP AR0521 USB Camera Module |
| Mounting Type | USB 2.0 |

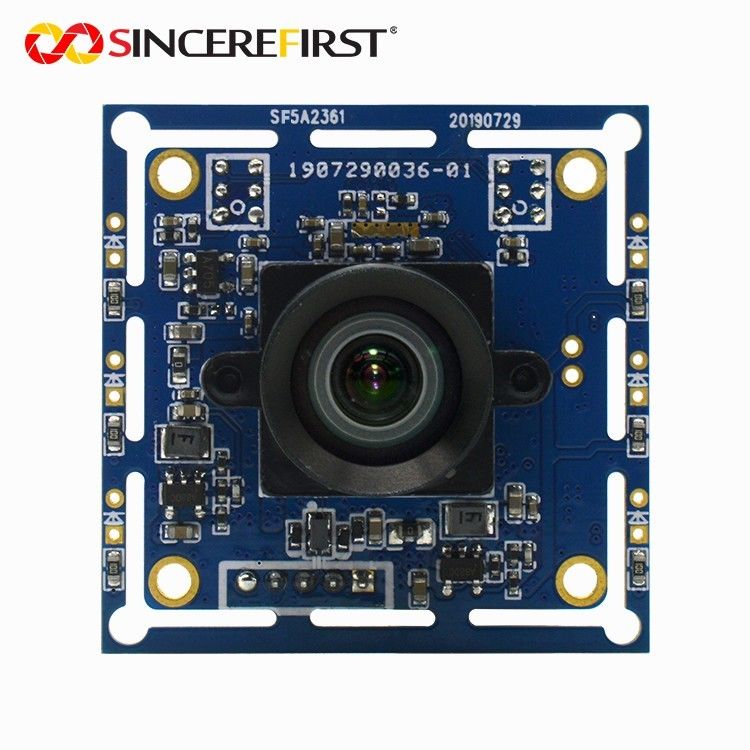

| Model | SF5A2361 |
Description
The AR0521 is a 1/2.5−inch CMOS digital image sensor with anactive−pixel array of 2592 (H) x 1944 (V). It captures images in eitherlinear or high dynamic range modes with a rolling−shutter readout,and includes sophisticated camera functions such as binning,windowing and both video and single frame modes. It is designed forboth low light and high dynamic range performance, with lineinterleaved T1/T2 read out to support off chip HDR in an ISP chip.The AR0521 produces extraordinarily clear, sharp digital pictures, andits ability to capture both continuous video and single frames makes itthe perfect choice for a security applications.
Features
◆5 Mp at 60 fps for Excellent Video Performance
◆Small Optical Format (1/2.5−inch)•1440p Mode for 16:9 Video
◆Superior Low−light Performance•2.2 m Back Side Illuminated Pixel Technology
◆Supports Line Interleaved T1/T2 Readoutto Enable HDR Processing in ISP Chip
◆Support for External Mechanical Shutter
◆On−chip Phase−locked Loop (PLL)Oscillator
◆Integrated Color and Lens Shading Correction
◆Slave Mode for Precise Frame−rate Control
◆Data Interfaces:
◆HiSPi (SLVS) − 4 Lanes
◆MIPI CSI−2 − 4 Lanes
◆Auto Black Level Calibration
◆High−speed Configurable ContextSwitching
◆Temperature Sensor
◆Fast Mode Plus Compatible 2 Wire Interface
SCCB control interface for register programming
Applicaitons
Video Surveillance
High Dynamic Range Imaging
