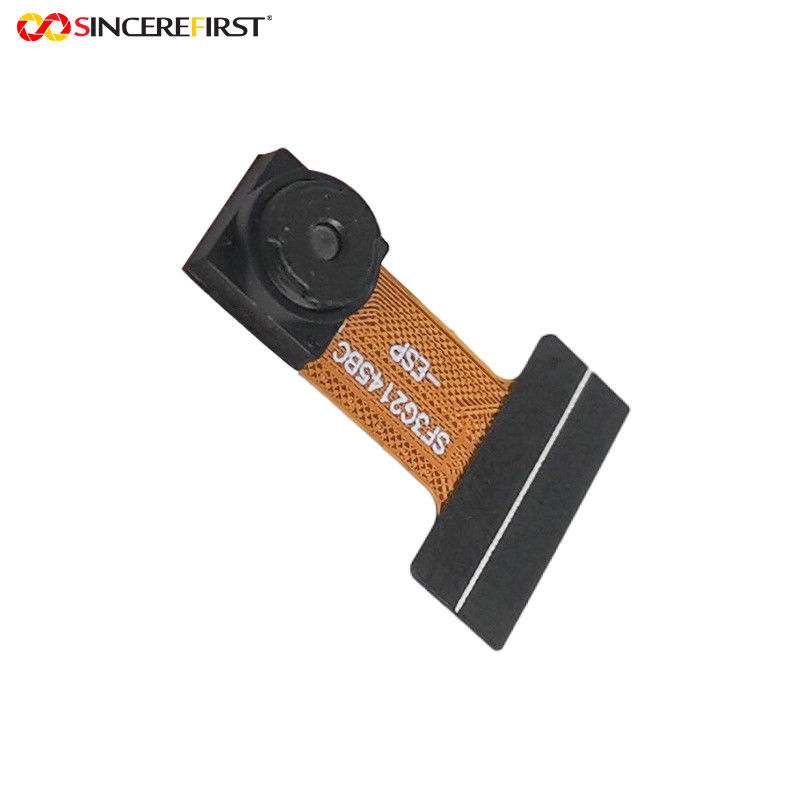

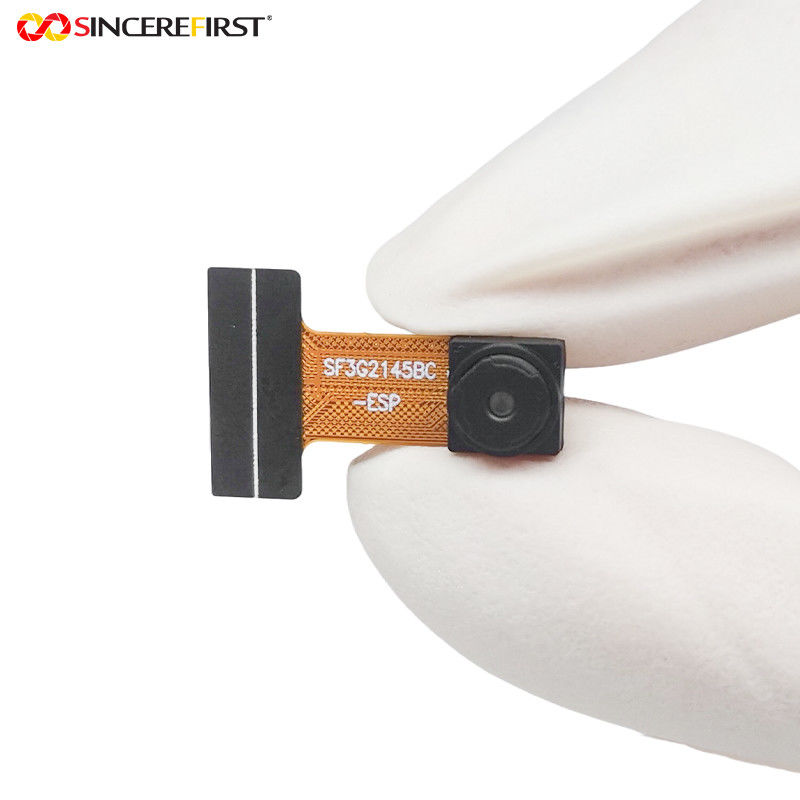

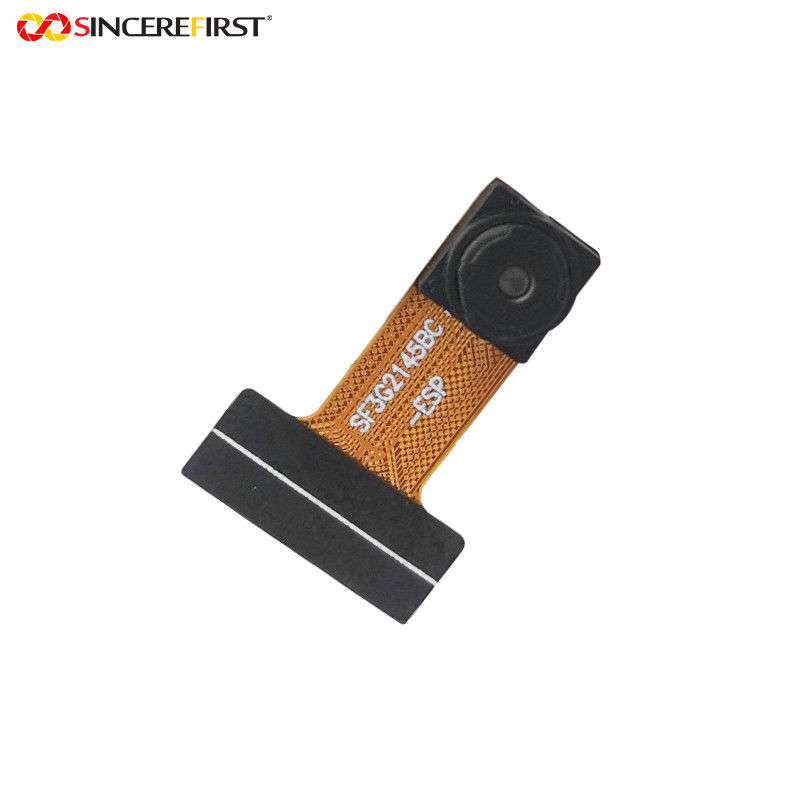

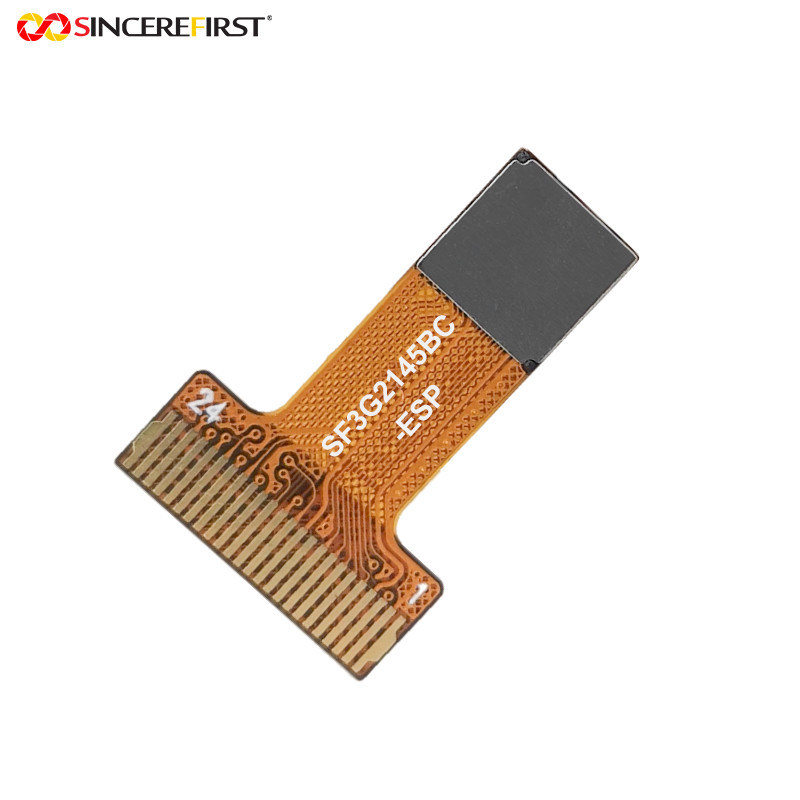

ESP32 camera module is based on GC2415 Color rolling shutter image sensor. The GC2145 incorporates a 1600V x 1200H active pixel array, on-chip 10-bit ADC, and image signal processor. The 2MP GC2145 camera module is equipped with a 73°(DFOV) stock Lens. It supports RGB output format. The standrad operating temperature is between -20~70℃, with the stable Image temp. between 0~50℃.
ESP32 camera module can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
1. Cost-Effective: Affordable solution for implementing visual capabilities in cost-sensitive projects.
2. Compact Size: Compact form factor enables integration into space-constrained applications.
3. Simplify Embedded Vision for All: Easy to set up and operate.
4. Higher Resolution: Captures images with high resolution and detail, allowing for precise visual analysis.
5. Low Power Consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications.
| Image Sensor | GC2145 |
| Resolution | 2MP |
| Optical Size | 1/5" |
| Number of effective pixels | 1600(H) × 1200(V) |
| Certification | Rohs, Reach, ISO |
| Shutter Type | Rolling Shutter |
| Focus Type | Fixed Focus |
| Field of View(FOV) | D73° |
| Keywords | ESP32 Camera Module |
| Lens | TR301-H211 |
Machine
Computer Vision
Robotics
IoT
