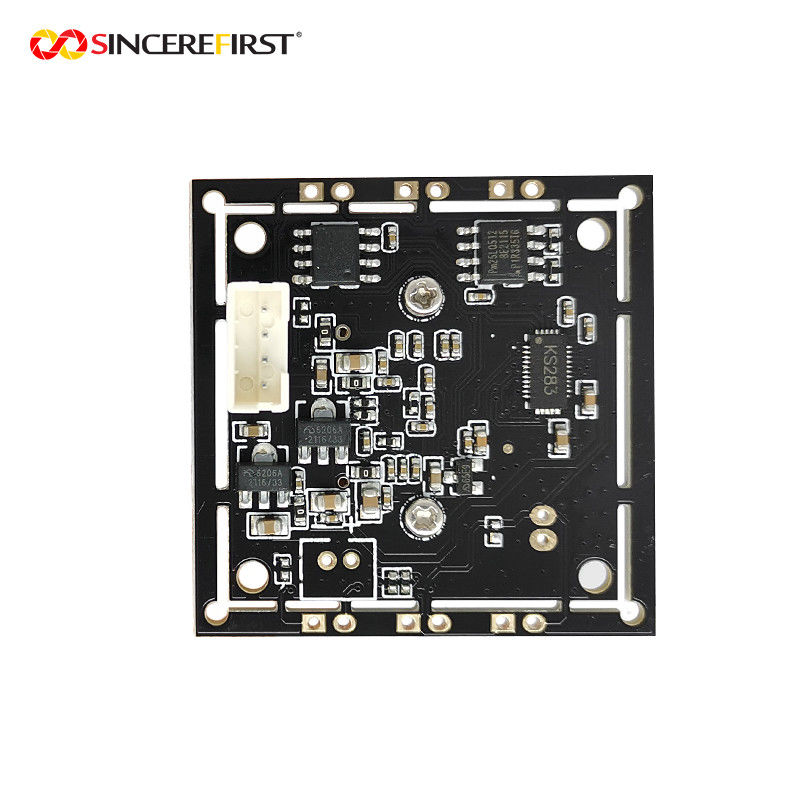

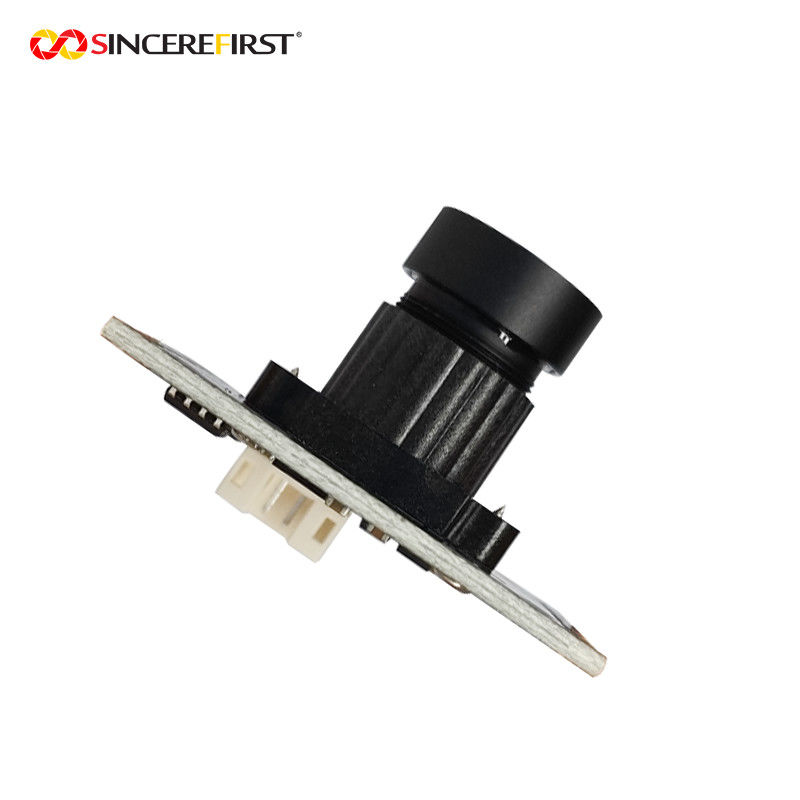

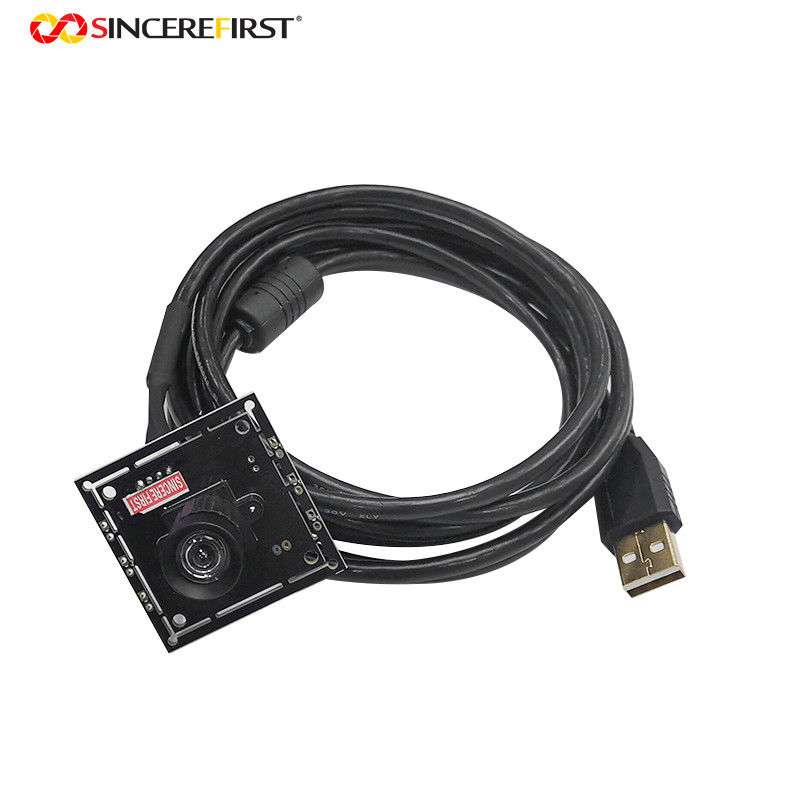

2MP 1/2.7" CMOS Sensor OV2710 1080P HD USB2.0 38×38 USB Camera Module
Specificaitons
| Image Sensor | OV2710 1/2.7" CMOS |
| Sensor Resolution | 1920x1080 |
| Output Interface | USB |
| Focus | Fixed Focus |
| Frame Rate | 1080P 30fps |
| Module Size | 38mm*38mm |
| Interface | USB2.0 |
| Certification | CE, FCC, RoHS, ISO |
| Pixel | 2MP |
| Sensor | CMOS Sensor |
Description
SF2A17 is an HD CMOS image camera designed with a superior 3.0μm pixel with excellent low-light sensitivity and low dark current performance. It features a 1080p @ 30fps, cropped 720p @ 60 fps, and VGA @ 120fps. SF2A17consists of a 1920x1080 active pixel sensor array with an on-chip10 bit ADC, program mable gain control, and correlated double sampling to significantly reduce fixed pattern noise.
The camera module is 38mm*38mm, we can change module size, shape and thickness as per your requirement.
Features
◆2 megapixel OV2710 sensor
◆1920x1080 resolution
◆USB interface, UVC protocol, driver-free, plug-and-play
◆Supports Raspberry Pi and Jetson Nano
◆DSP
Automatic white balance (AWB)
Automatic exposure (AEC)
Automatic gain control (AGC)
◆Camera specifications
CCD size: 1/2.7inch
Aperture (F): 2.8
Focal Length: 2.9mm
Field of View (Diagonal): 145°
Dynamic range: 69dB
◆Interface: USB2.0
◆Image formats: MJPEG, YUY2
◆Operating temperature: 0°C ~ 50°C
◆Dimension: 38mmx38mm
◆Supported OS: Windows, Linux
Applicaitons
ATM Machine
QR Code
Scanner
Video Conference
Payment Machine
Vending Machine
