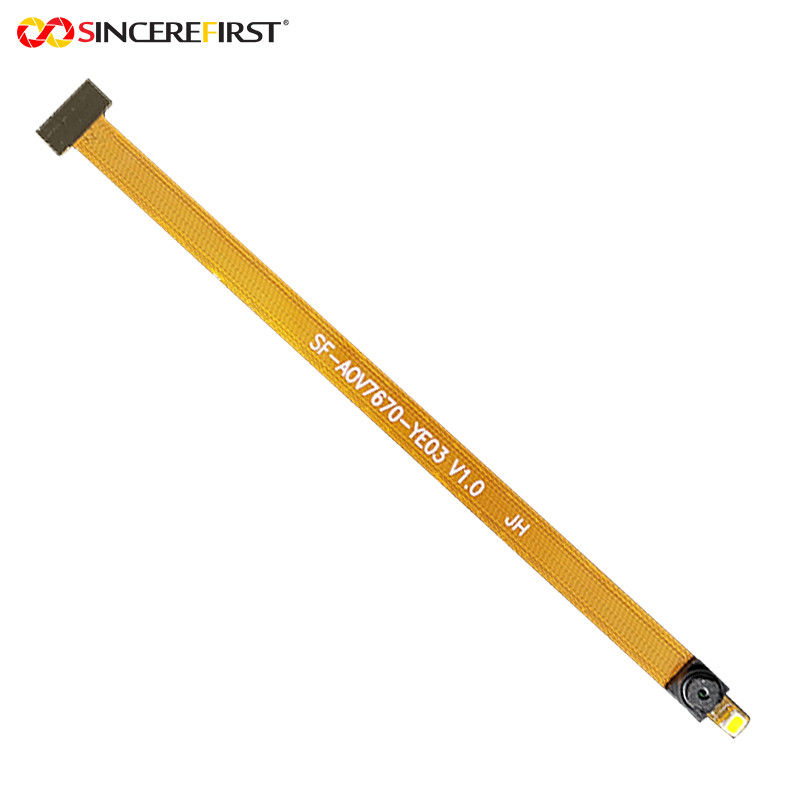

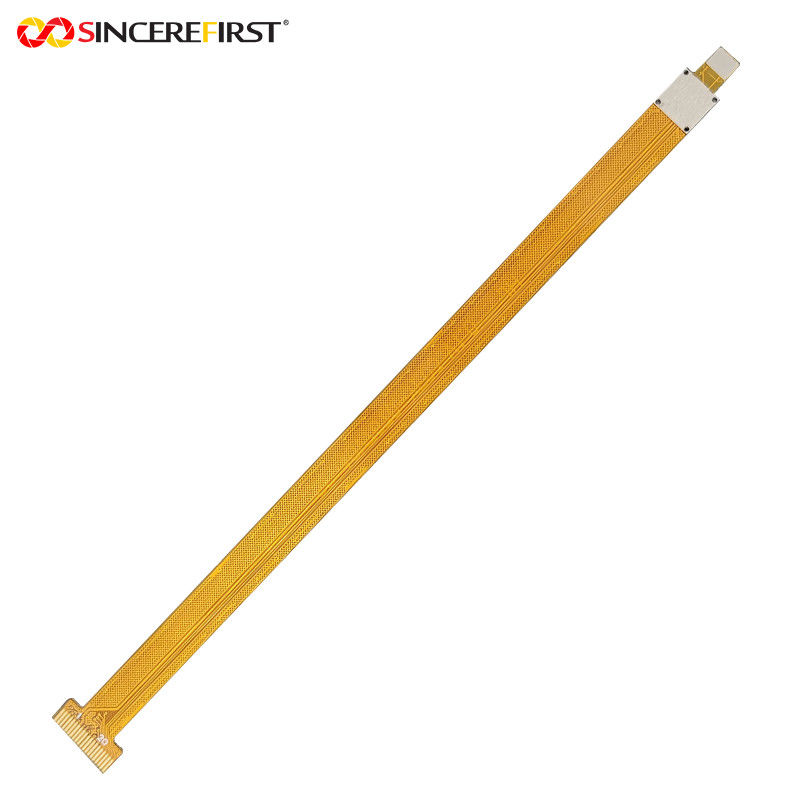

0.3MP OV7670 ESP32 Camera Module Raspberry Pi CMOS VGA Sensor

0.3MP OV7670 Raspberry Pi CMOS VGA Sensor Esp32 Camera Module

Specificaitons

Description

The OV7670 is a popular CMOS camera module widely used in microcontroller-based systems such as Arduino, Raspberry Pi, and other embedded systems.
The OV7670 supports a VGA (640x480) resolution and can capture up to 30 frames per second. It has an on-chip image sensor that captures RGB data, and an analogue processor that provides full-frame, window, and sub-sampled image acquisition modes.
The OV7670 is capable of producing both raw and compressed image formats, and has a JPEG hardware compression engine for fast and efficient image processing. Additionally, it has a built-in 10-bit analogue-to-digital converter (ADC) that converts the analogue signal from the sensor to a digital signal for easier processing.
The module also features a programmable clock generator, which allows for flexibility in image capture timings and the ability to fine-tune image characteristics such as brightness, contrast, saturation, and hue.
Overall, the OV7670 is a reliable and easy-to-use camera module suitable for various applications in the field of computer vision and robotics.

Features

◆This 0.3MP mini Compact Camera Module is based on the low voltage CMOS image sensor OV7670, which provides the full functionality of a single-chip VGA camera and image processor.
◆The maximum framerate of 30fps at VGA resolutions with complete user control over image quality, formatting and output data transfer through the Serial Camera Control Bus (SCCB).
◆Resolution: 640 x 480 (VGA); Maximum Image Transfer Rate: 30fps@VGA; Output Format(8-bit): YUV/YCbCr 4:2:2, RGB565/555/444, GRB 4:2:2, Raw RGB Data
◆Lens SPEC: Stock lens; 45 degree (D) field of view angle; Integral 650 IR filter, visible light only; Lower than 1% distortion.
◆Recommended for electronic lovers, this CCM is compatible with Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA, and other MCU platforms.
◆Adjustable color saturation, brightness, contrast, and sharpness
◆Full automatic exposure control, including automatic gain control (AGC) and automatic white balance (AWB)

Applicaitons

The OV7670 is a CMOS image sensor designed for use in various applications. Some common applications of the OV7670 include:

1. Digital cameras: The OV7670 can be used as a low-cost camera sensor in digital cameras.

2. Security systems: The high-resolution images provided by the OV7670 make it ideal for use in security and surveillance systems.

3. Medical imaging: The OV7670 can be used in medical imaging equipment such as endoscopes and microscopes.

4. Robotics: The OV7670 is used in robotics to provide vision capabilities to robots, such as object detection and tracking.

5. Gaming: The OV7670 can be used in gaming applications to provide real-time video input for interactive gaming.

6. Automotive applications: The OV7670 can be used in automotive applications such as rear-view cameras and driver-assist systems.

7. Industrial automation: The OV7670 is used in industrial automation for monitoring and inspection purposes.

8. Virtual reality: The OV7670 can be used in virtual reality applications to provide immersive visual experiences.
