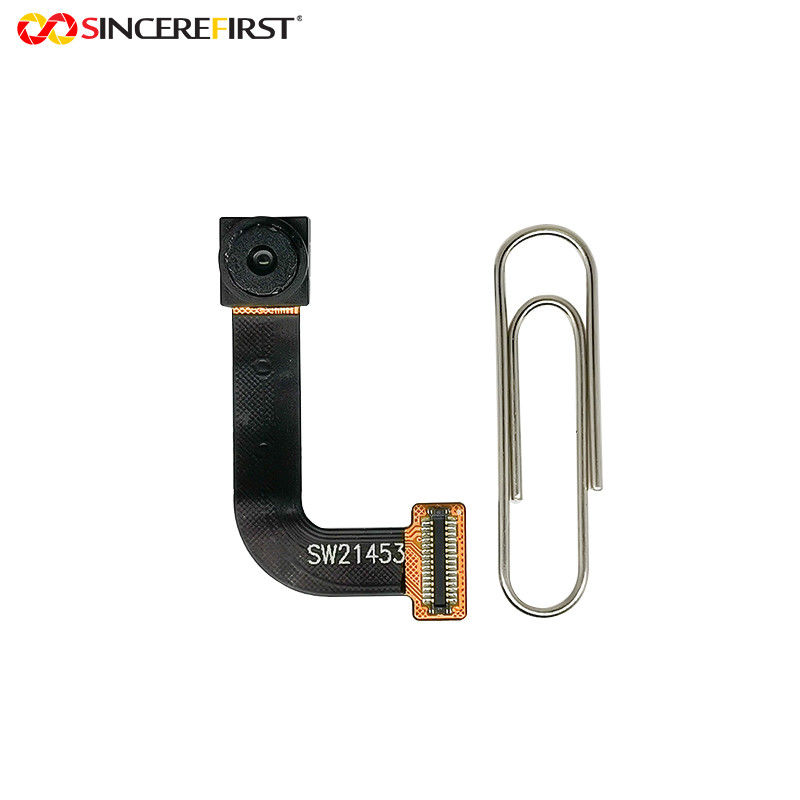

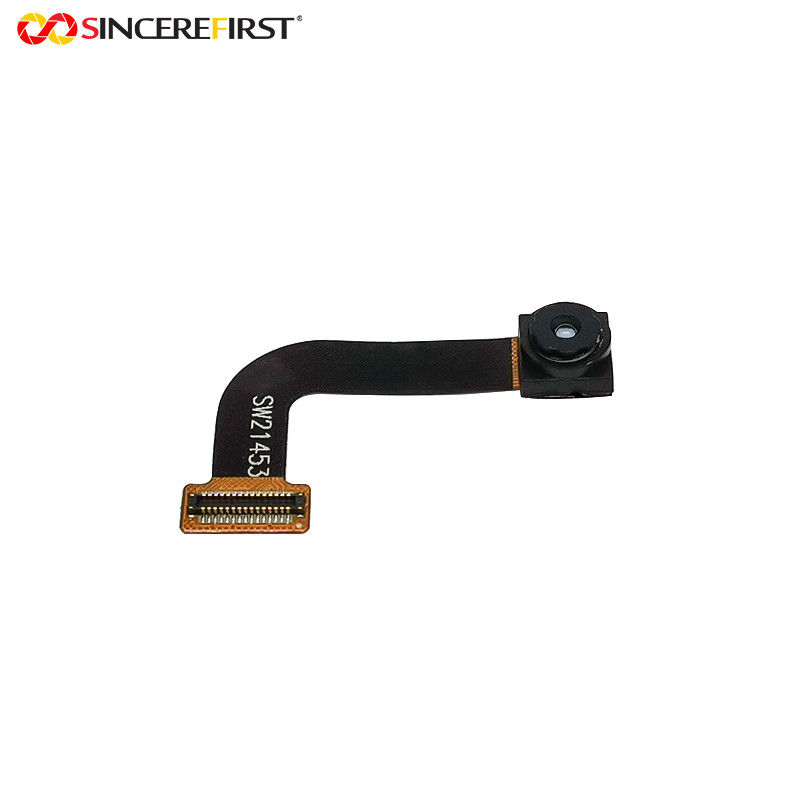

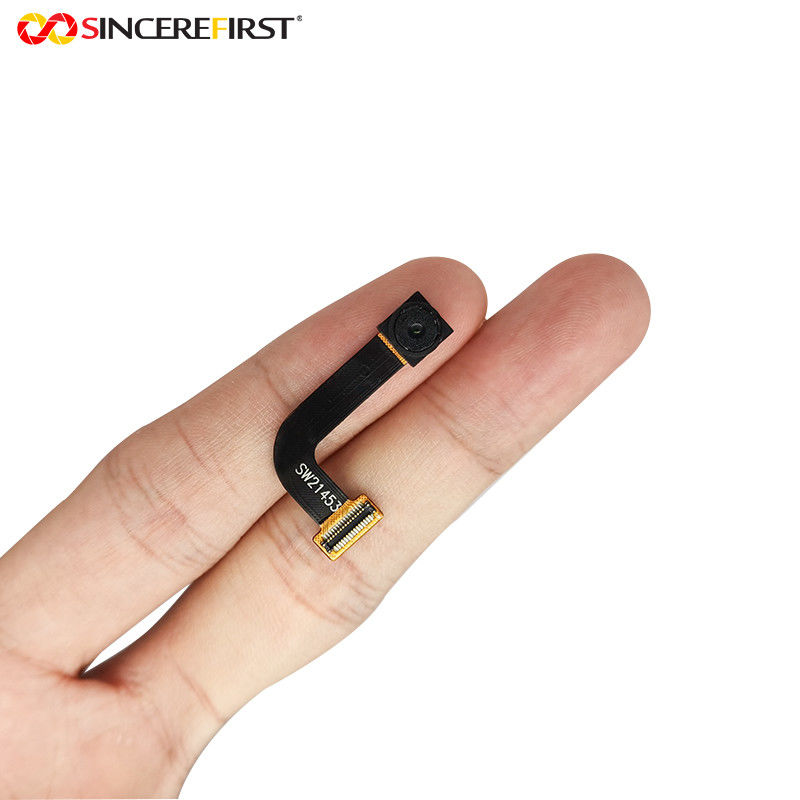

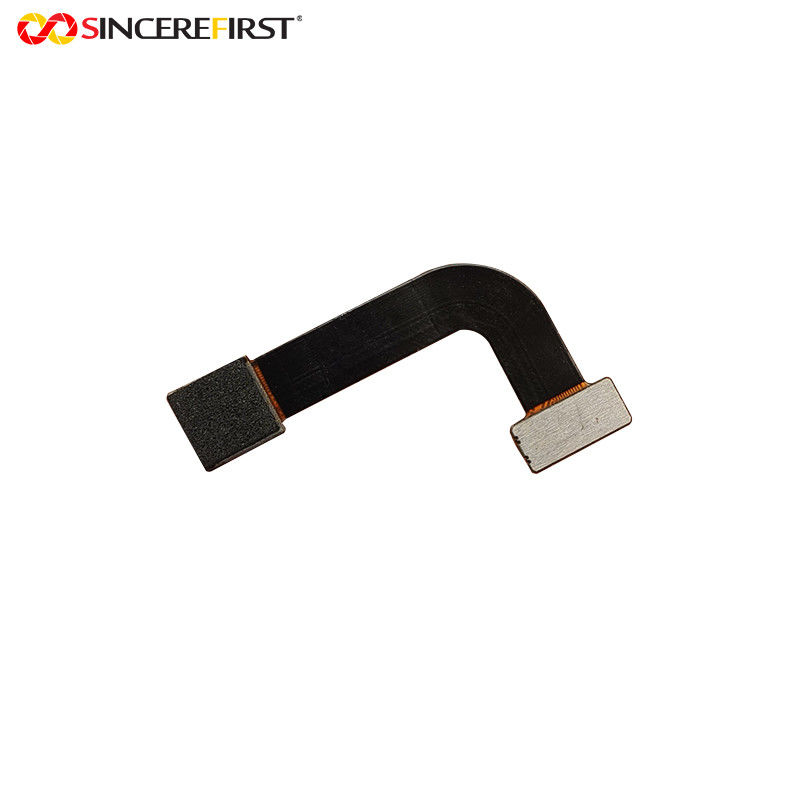

Mini Size Arducam 2mp GC2145 CMOS Image Sesor Camera Module
Specificaitons
| Origin | China |
| Focus Type | Fixed Focus |
| Pixel | 2MP |
| Sensor Size | 1/4 |
| Focus | FF |
| CMOS Sensor | GC2145 |
| View Angle | 64° |
| Pixel Array | 1616 x 1232 |
| Place of Origin | Guangdong, China |
| Production Capacity | 350000 PCS Per Month |
Description
GC2145 is a high quaity 2 Mega CMOS image sensor, for mobile phone camera applications and digitalcamera products .GC2145 incorporates a1616Vx1232H active pixel array, on-chip 10-bit ADC, and image signal processor. According to different light condi ions, The on-chip ISP provides avery smooth AE(Auto Exposure) and accurate AWB(Auto WhiteBalance) control.Besides, interpolation, de-noise, and color correction, gamma correction are supported, which can revert the real scene better. The sensor also provides various data formats, such as Bayer RGB, RGB 565,YCbCr4:2:2.All sensor parameters and features are controlled through a standard 2-wire serial interface. Inte mal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator.
Features
Standard optical format of 1/5inch
Various output formats:YCbCr 4:2: 2, RGB 565, Raw Bayer
Power supply requirement:AVDD:2.7~3.0V
DVDD:1.7~1.9V
IOVDD:1.7~3.0V
PLL support
Windowing support
MIPI interface support:Singlelane/Doublelane(CSI-2V1.0/PHY-1.0)
Horizontal/Vertical mirror
Image processing module
Package:CSP/wafer
Applications
laptops
all-in-one computers
advertising machines
high-speed cameras
face recognition teaching equipment
monitoring equipment
