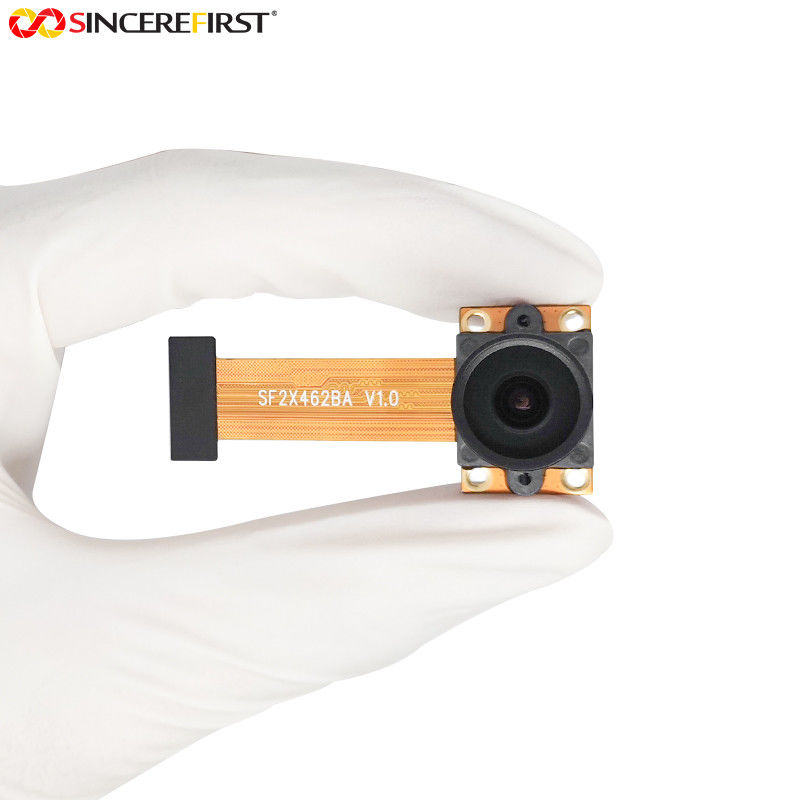

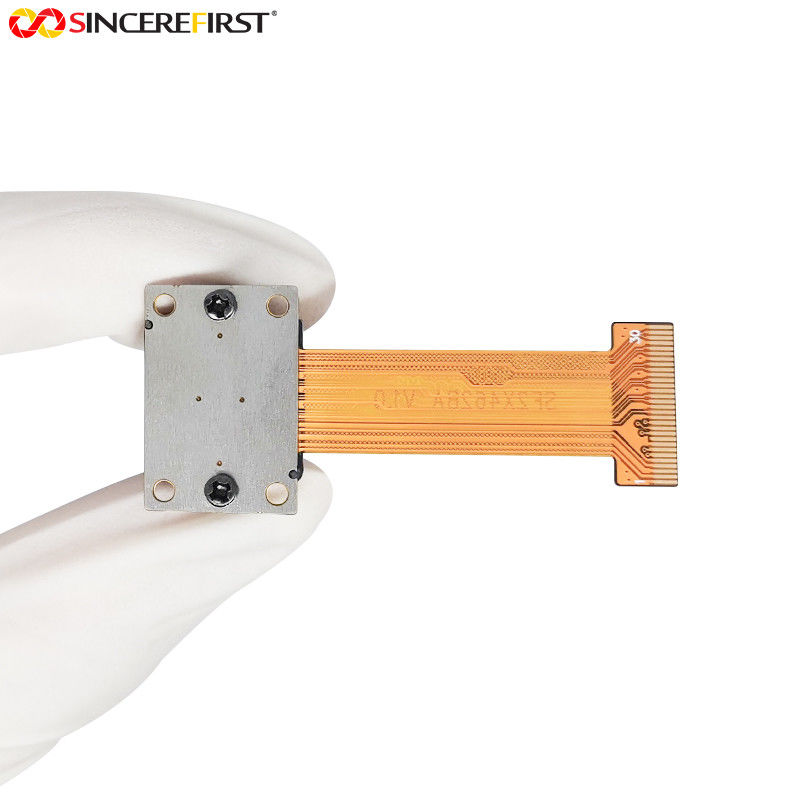

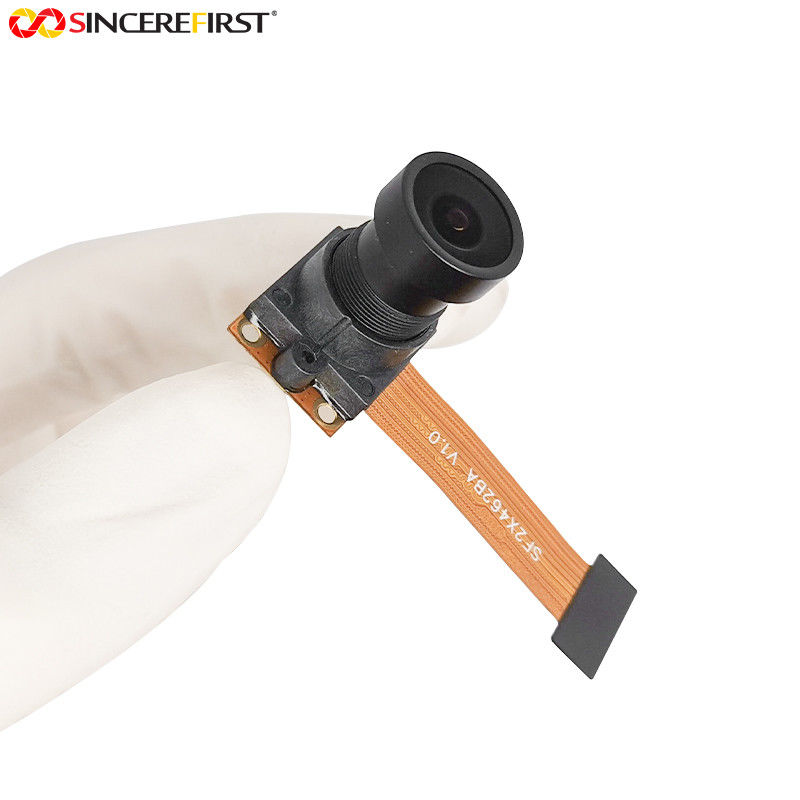

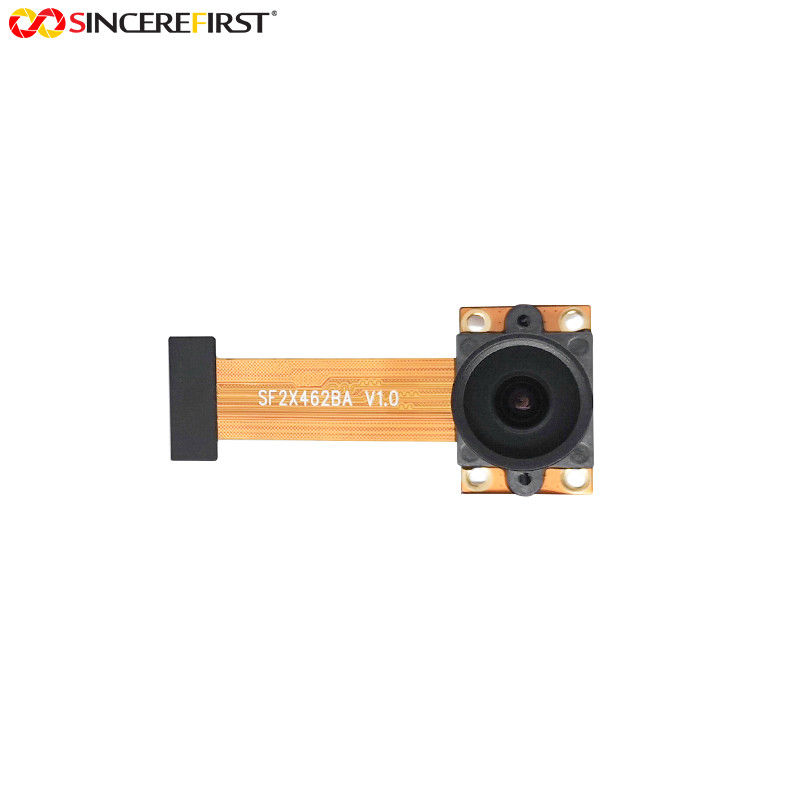

2mp Low Resolution Sony IMX462 Image Sensor Wide Angle Lens Camera Module
Specificaitons
| Output formats | 10-bit/ 12-bit RAW |
| View Angle | D100°, H83°, V43.5° |
| Pixel Array | 1937-1097V |
| Interface | MIPI |
| Frame rate | 120fps |
| Lens angle | M12 DFOV 100 degrees |
| Focus | Fixed focus |
| Description | HDR IMX462 sensor camera module |
| DVDD | 1.2±0.1V |
| AVDD | 2.9±0.1V |
Description
This camera is based on the SONY IMX462 STARVIS Ultra low light image sensor. The sensor has very high Gravity sensitivity and NIR sensitivity for better image quality in low-light environments.
The camera is equipped with a 100°(HFOV) . A manual focus camera allows you to use it in situations such as macro photographs, low light conditions, etc.
Features
◆programmable controls: frame rate, mirror and flip, cropping, and windowing
◆supports 2x2 color binning function
◆supports output formats: 12-bit/10-bit RAW RGB
◆SCCB control interface for register programming
◆supports MIPI 2-lane serial output interface
◆supports DVP 12-bit output interface
◆supports image sizes:1920 x 1080 @ 30 fps
◆supports automatic black level calibration
◆supports multi-camera synchronous function
Applicaitons
Astrophotography
Surveillance cameras
FA cameras
Industrial/Agricultural cameras
Autonomous mobile robots
UGV/UAV
ADAS
