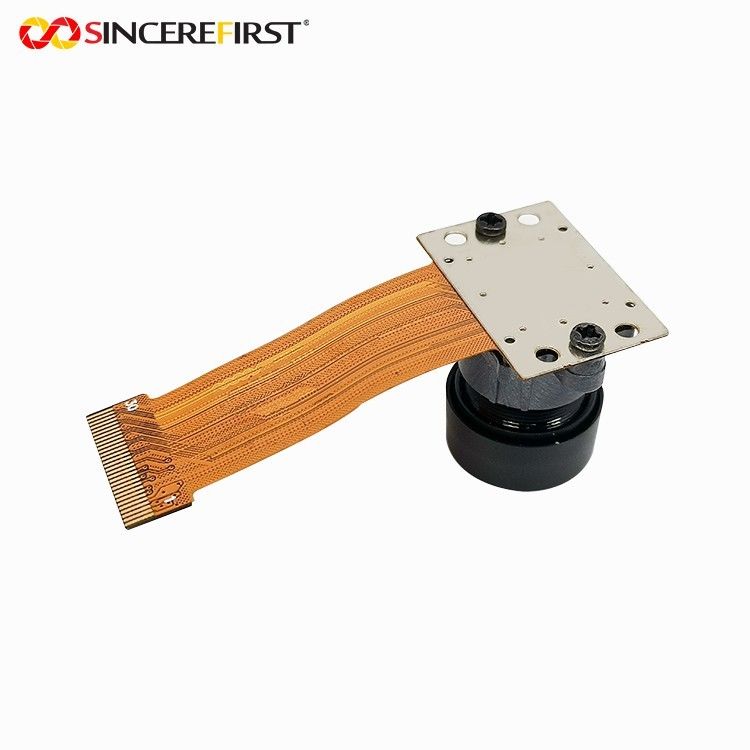

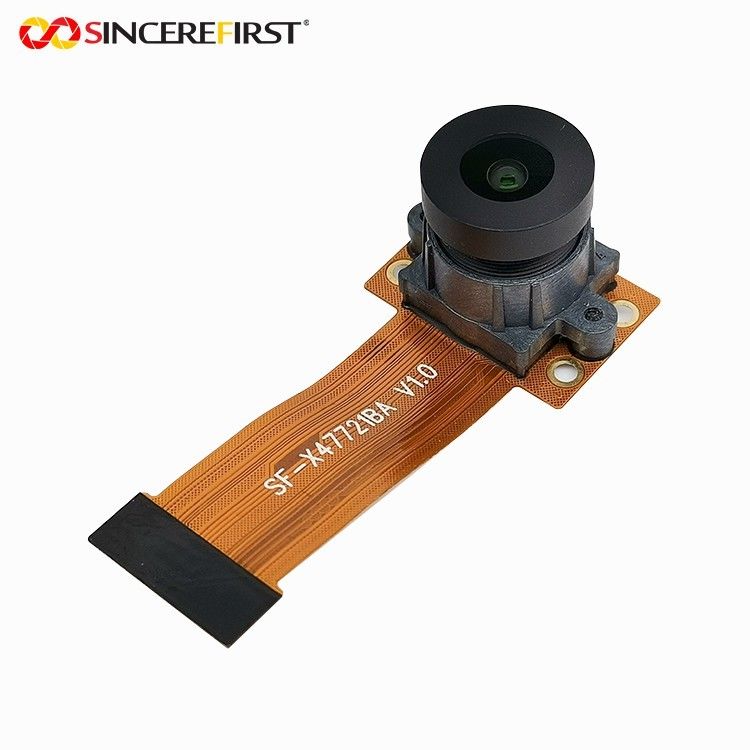

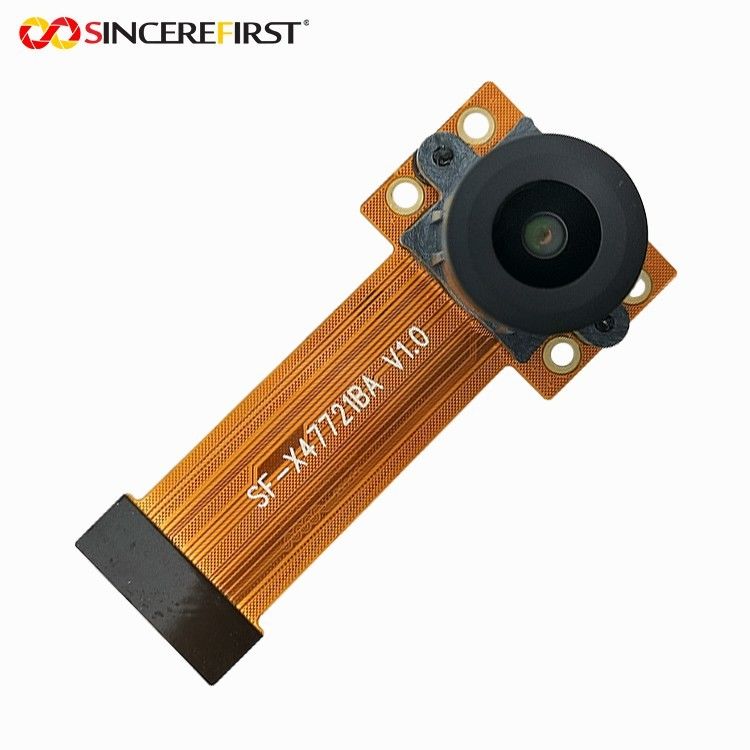

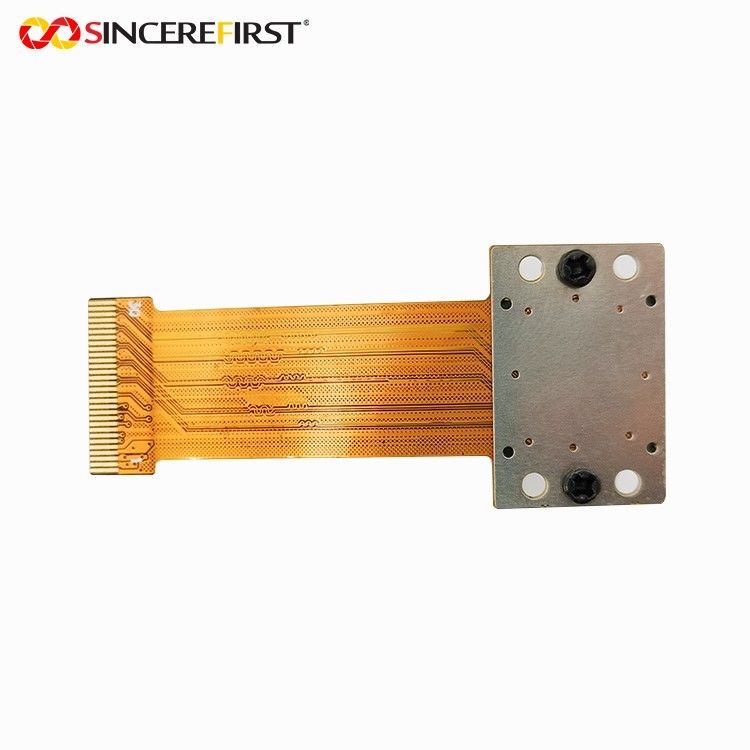

12mp IMX477 Sensor Arducam Raspberry Pi Wide Angle Camera Module
Specificaitons
| Image Sensor | IMX477 CMOS Sensor from Sony |
| Focus Type | Fixed Focus |
| Pixel | 12.3MP |
| Optical Format | 1/2.3-inch |
| Pixel Size | 1.55 µm (H) x 1.55 µm (V) |
| Interface | MIPI 2-lane/4-lane, D-PHY V1.2 |
| Resolution | 4056 (H) x 3040 (V) |
| Focusing Range | 1m~Infinity |
| Focal Length | 3.65mm |
| Fov(H) | 105° |
Description
The IMX477 is a 12.3MP Type 1/2.3” Sony Exmor RS CMOS image sensor, mainly designed for consumer cameras, especially for consumer-use camcorders. It features back-illuminated and stacked CMOS image sensor Digital Overlap High Dynamic Range (DOL-HDR) mode with raw data output. It has a high signal-to-noise ratio (SNR) and supports full resolution @60 frame/s (Normal), 4K2K @60 frame/s (Normal), 1080p @240 frame/s Full resolution @40 frame/s (12 bit Normal), Full resolution @30 frame/s (DOL-HDR, 2 frame).
Features
◆Back-illuminated and stacked CMOS image sensor Exmor RS
◆Digital Overlap High Dynamic Range (DOL-HDR) mode with raw data output.
◆High signal to noise ratio (SNR).
◆Full resolution @60 frame/s (Normal), 4K2K @60 frame/s (Normal), 1080p @240 frame/s Full resolution @40 frame/s (12 bit Normal), Full resolution @30 frame/s (DOL-HDR, 2 frame)
◆Output video format of RAW12/10/8, COMP8.
◆Power Save Mode
◆Pixel binning readout and V sub-sampling function.
◆Independent flipping and mirroring.
◆Input clock frequency 6 to 27 MHz
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.1 Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication.
◆Two PLLs for independent clock generation for pixel control and data output interface.
◆Ambient Light Sensor (ALS)
◆Fast mode transition. (on the fly)
◆Dual sensor synchronization operation (Multi camera compatible)
◆7 K bit of OTP ROM for users.
◆Built-in temperature sensor
◆10-bit/12-bit A/D conversion on chip
◆92-pin high-precision ceramic package
Device Structure
◆CMOS image sensor
◆Image size : Diagonal 7.857 mm (Type 1/2.3)
◆Total number of pixels : 4072 (H) × 3176 (V) approx. 12.93 M pixels
◆Number of effective pixels : 4072 (H) × 3064 (V) approx. 12.47 M pixels
◆Number of active pixels : 4056 (H) × 3040 (V) approx. 12.33 M pixels
◆Chip size : 7.564 mm (H) × 5.476 mm (V)
◆Unit cell size : 1.55 μm (H) × 1.55 μm (V)
◆Substrate material : Silicon
Applicaitons
UAV/Drones/FPV camera
Machine Vision
Robotics
Face Recognition
Defect Detection, etc.
