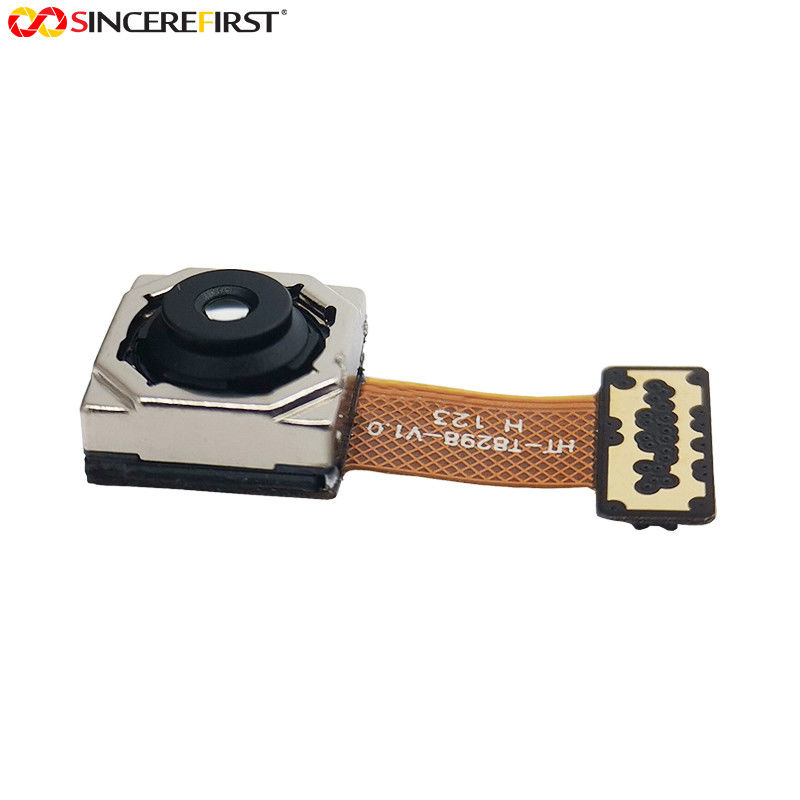

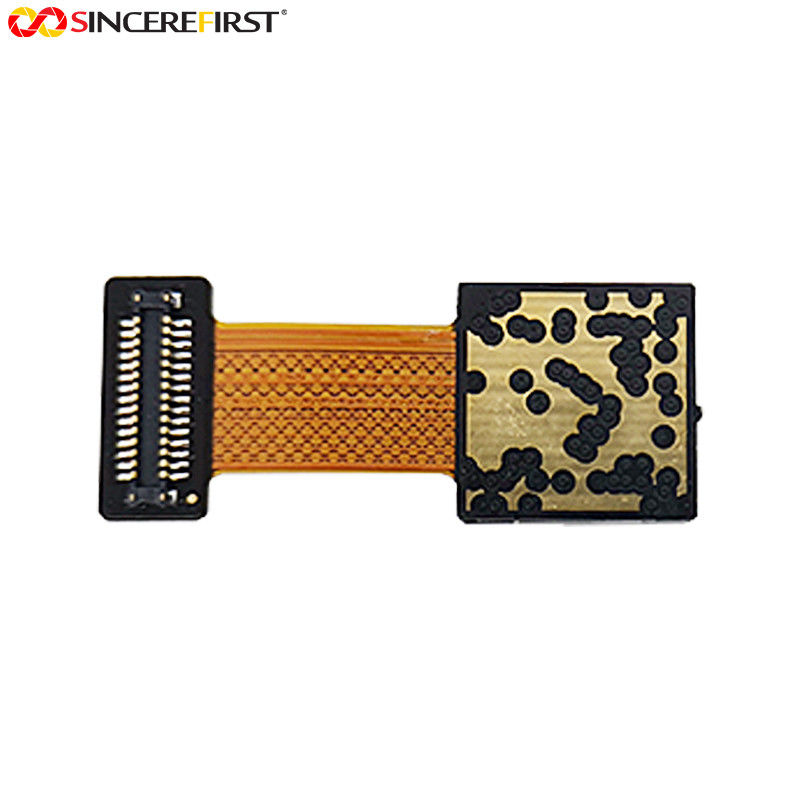

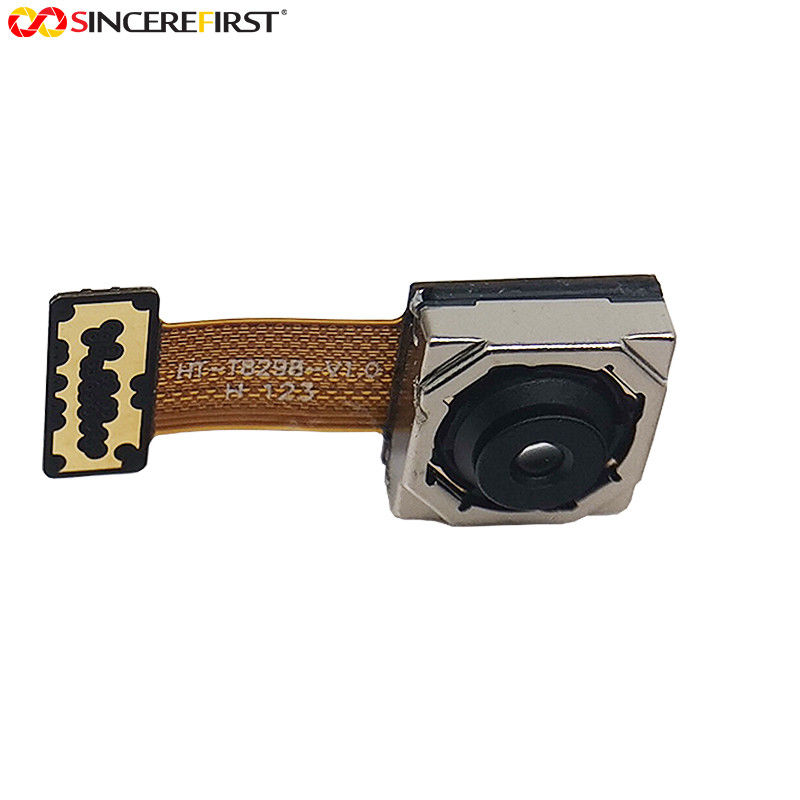

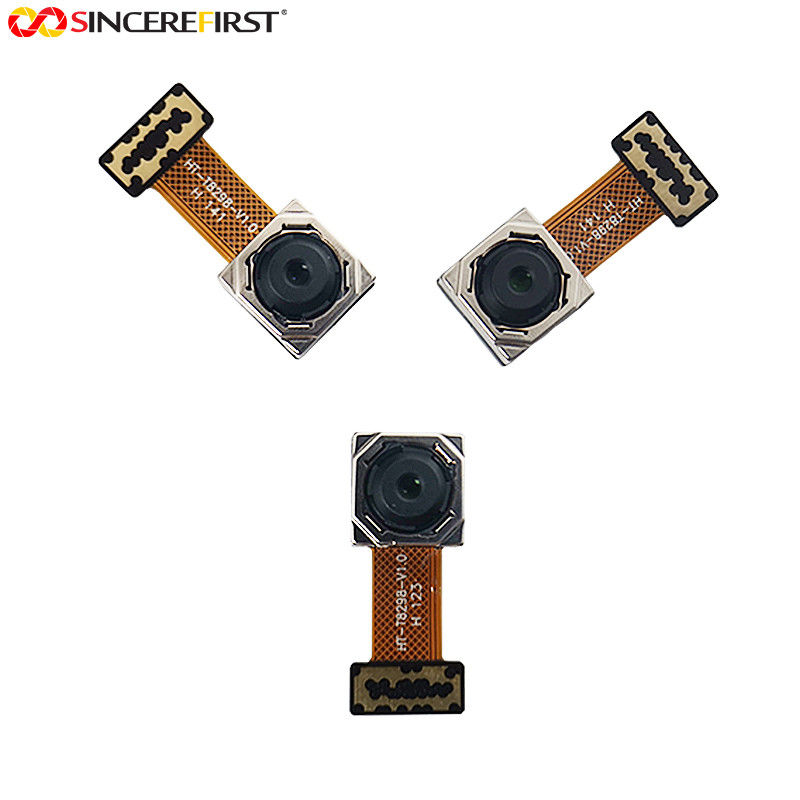

16mp Sony IMX298 Auto Focus Laser Distance Measuring Sensor Module
Specificaitons
| Focus Range | 10cm-Infinity |
| Distortion | -7.05% |
| DVDD | 1.1V |
| DOVDD | 1.8V |
| Pixel | 16MP |
| Support | OEM |
| Connecter | 30PIN |
| Certification | Rohs |
| Focus | AF |
| Customized support | Online technical support, Customized logo, Software engineering, OEM, ODM |
Description
The sensor has a 1/2.8″ optical format, which combined with the pixel size of 1.12 µm x 1.12 µm, provides the 16.0 MP 4656 x 3496 image. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously. The sensor compiles the image by scanning across (or down).
Features
◆Optical format: 1/3.06−inch
◆Active pixels: 4656 H × 3496 V
◆Pixel size: 1.12um x 1.12um
◆Color filter array: RGBW Bayer pattern
◆ADC resolution: 10−bit, on−chip
◆Output Interface: 2-Lane / 4-Lane MIPI
◆Frame Rate: 16MP full resolution at 30fps
◆Wide Angle: 117°
SCCB control interface for register programming
Applicaitons
PDAs
Toys
Automotive
