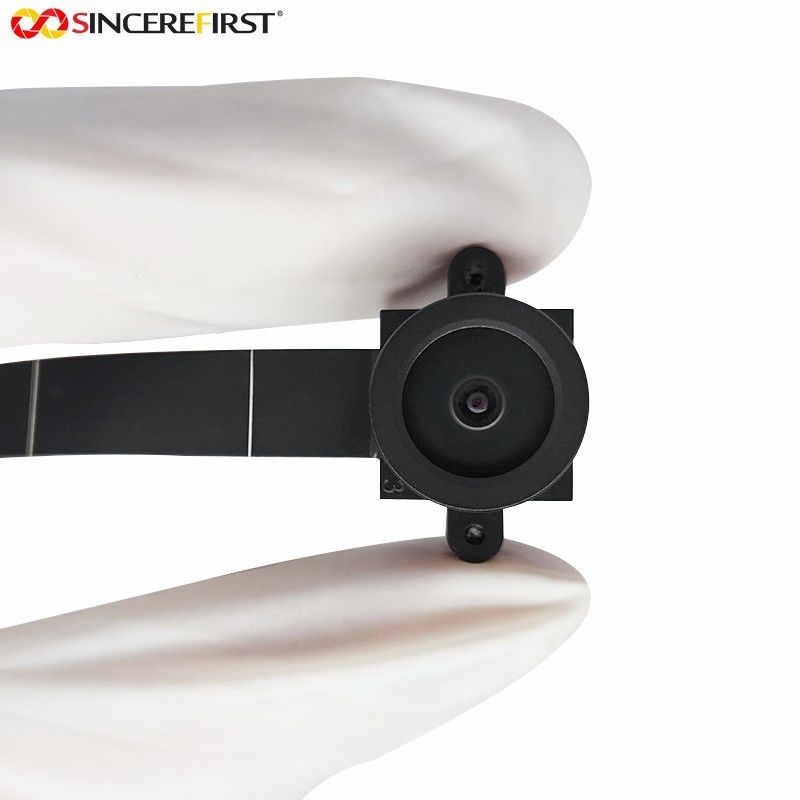

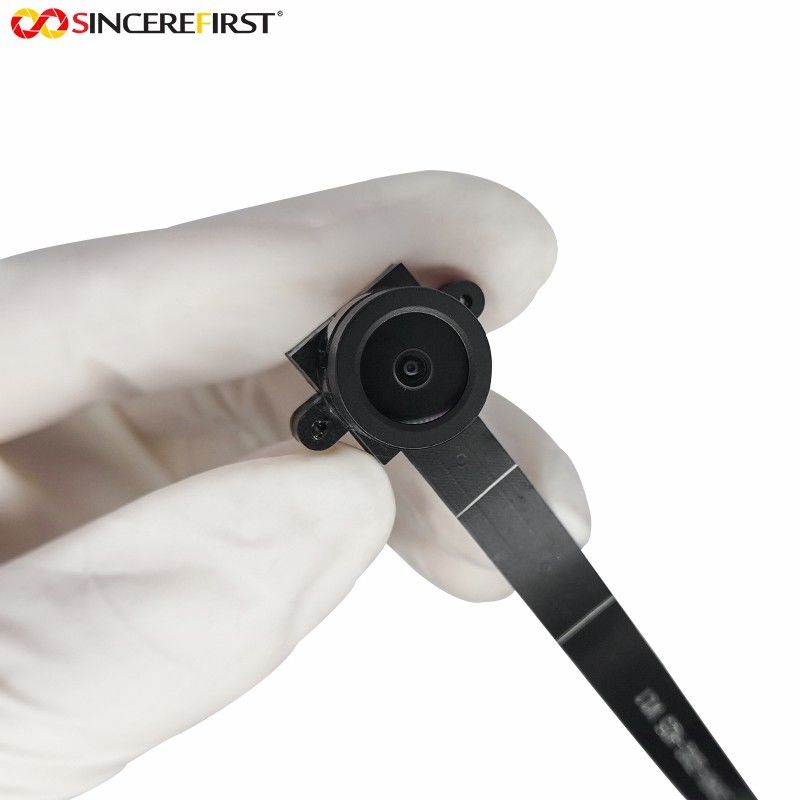

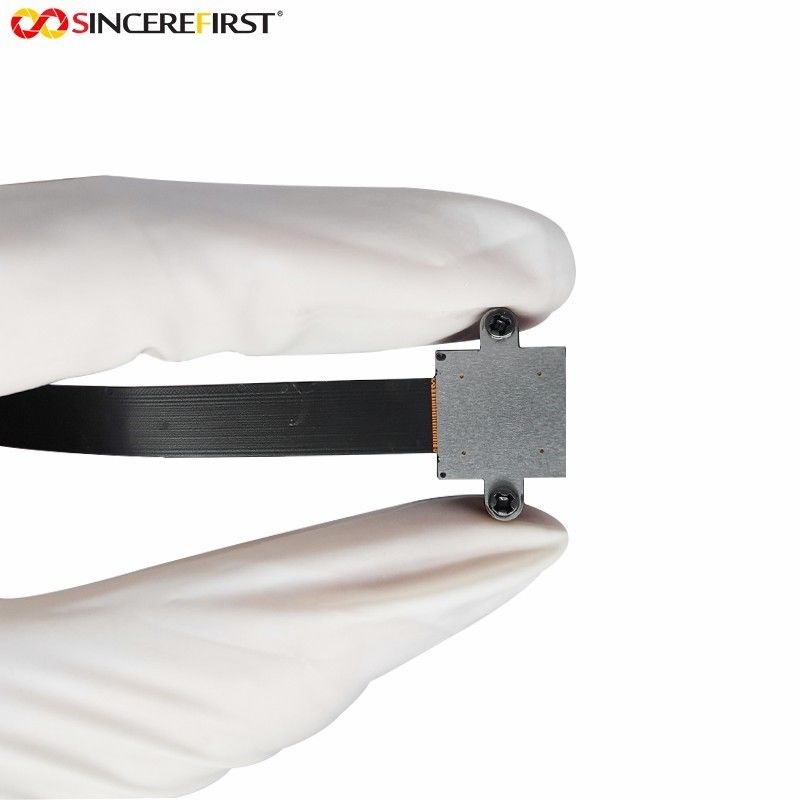

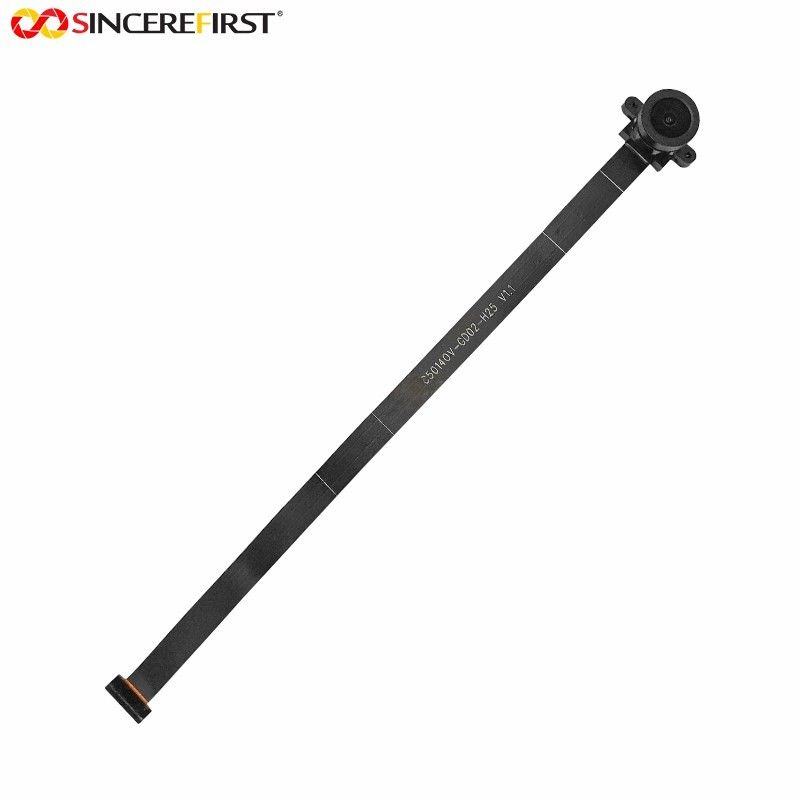

5MP 25 Degree Lens OV5640 CMOS Image Sensor 24pin FPC Camera Module
Specificaitons
| Sensor | 1/4’’ Omnivision OV5640 |
| Pixel | 5 Mega Pixel |
| Most Effective Pixels | 2592 (H) x 1944 (V) |
| Pixel Size | 1.4µm x 1.4µm |
| Compression Format | YUYV/MJPEG |
| Focus Type | Fixed Focus |
| Object Distance | 1M-infinity |
| Interface Type | MIPI |
| FOV | 25° |
| Support OS | Support Linux, Android and Windows |
Description
This camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.
Features
◆5MP resolution with Omnivision OV5640 CMOS image sensor
◆Fixed Focus/Manually adjustable
◆High quality image sensor, high sensitivity
◆Support Linux, Android and Windows
◆Flexible and adjustable, fits well with any of your products
◆2592*1944 resolution
◆MIPI Interface
◆Electronic Rolling Shutter
◆Fully Customizable
Applicaitons
security industry, home and entertainment, medical devices, smartphones, tablets, PC multimedia, embedded system, robotics, drones, medical equipment, artificial intelligence, and more.
Our products are sold all over the world, you can rest assured.
