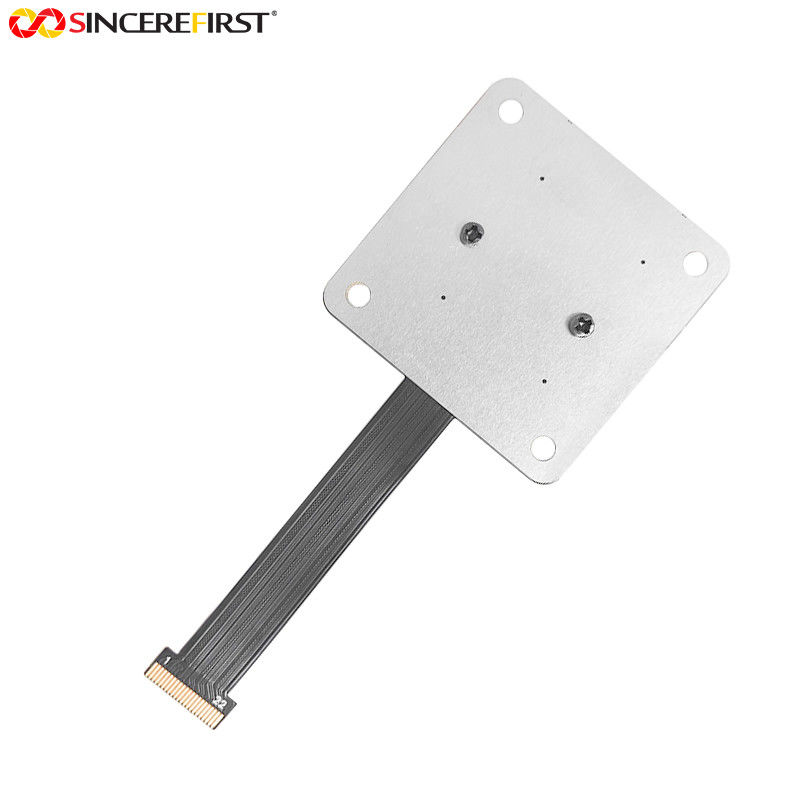

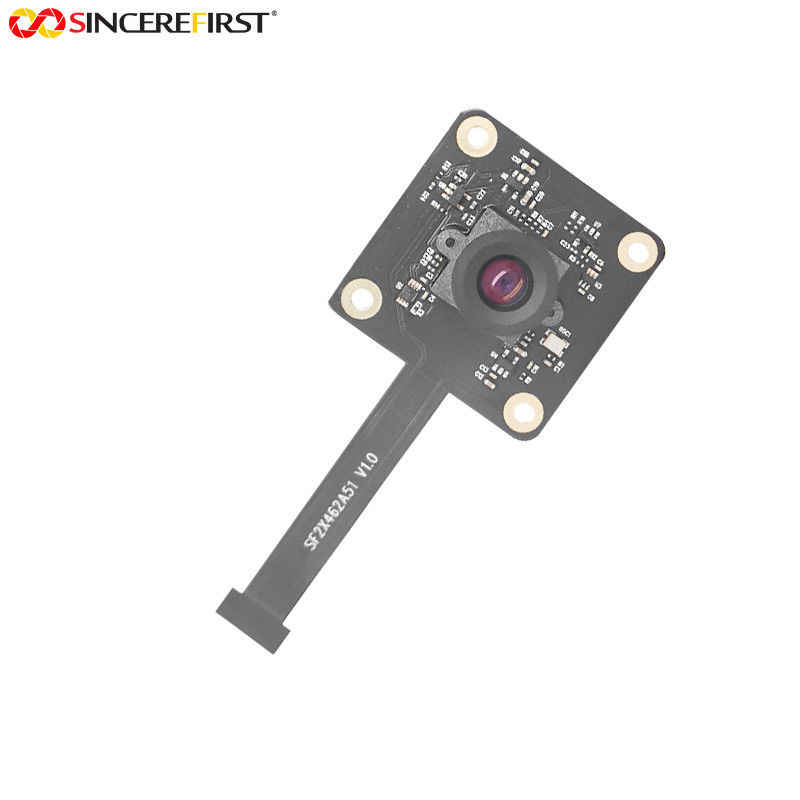

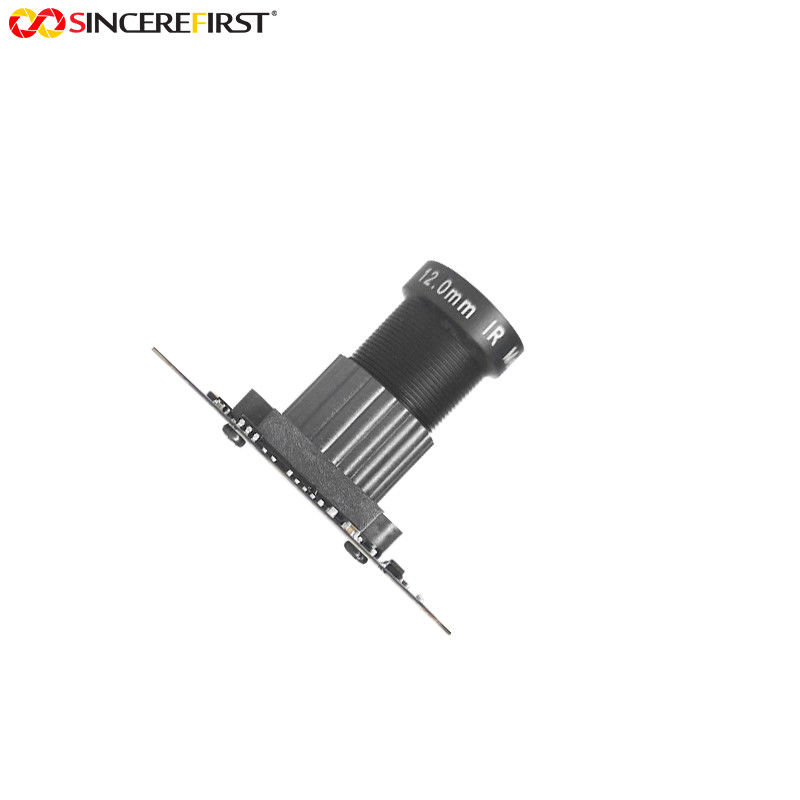

Arducam Ultra Low Light 2MP IMX462 Raspberry Pi Compact Camera Module
Specificaitons
| Sensor | SONY IMX462 |
| Optical Size | Type 1/2.8” |
| Pixel Size | 2.9μm×2.9μm |
| Max Sensor Resolution | 1920 x 1080 |
| Focus Type | Manual |
| FOV(Field of View) | D47°*H38°*V22° |
| Shutter Type | Rolling Shutter |
| Output Format | RAW10/RAW12 |
| Warranty | 10 Years |
| Replacement | 1 Year |
Description
The IMX462LQR-C is a diagonal 6.46mm(Type 1/2.8)CMOS active pixel type sollid-state image sensor with a square pixel array and 2.13 M effective pixels. This chip operates with analoo 2.9 V, diaital 1.2V and interface 1.8V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved throuah the adoption of R.G and B primary color mosaic filters.This chip features an electronic shutter with variable charge-integration time.
Features
◆CMOS active pixel type dots
◆Built-in timing adjustment circuitH/driver and serial communication circuit
◆Input frequency:7425MHz/37125MHz
◆Number of recommended recordingpixels:1920(H)x1080()approx.2.07Mpixel
◆Readout mode
All-pixel scan mode
720p-HDreadout mode
Windowcropping mode
Vertical /Horizontal direction-normal/inverted readout mode
◆Readout rate
Maximum frame rate in Full HD1080pmode:120frame/s
◆High dynamic range(HDR)function
Multiple exposure HDR
Digital overlap HDR
◆Variable-speed shutterfunction(resolution 1Hunits
◆10-bit/12-bit A/D converter
◆Conversion gain switching(HCG Mode/LCG Mode)
◆CDS / PGA function
0 dB to 29.4 dB: Analog Gain 29.4 dB(step pitch 0.3 dB)
29.7 dB to 71.4 dB:Analog Gain 29.4 dB+Digital Gain 0.3to42 dB(steppitch 0.3dB
◆Supports I/O switching
cMoS logic parallel SDR output
Low voltage LVDS(150mVp-p)serial(2ch/4ch/8ch switching)DDR output
CS1-2 serial data output(2 Lane/4 LaneRAW10/RAW12output)
◆Recommended exit pupil distance:-30mmto-
Applicaitons
Surveillance cameras
FA cameras
Industrial cameras
Autonomous mobile robots, UGV/UAV, ADAS, etc.
