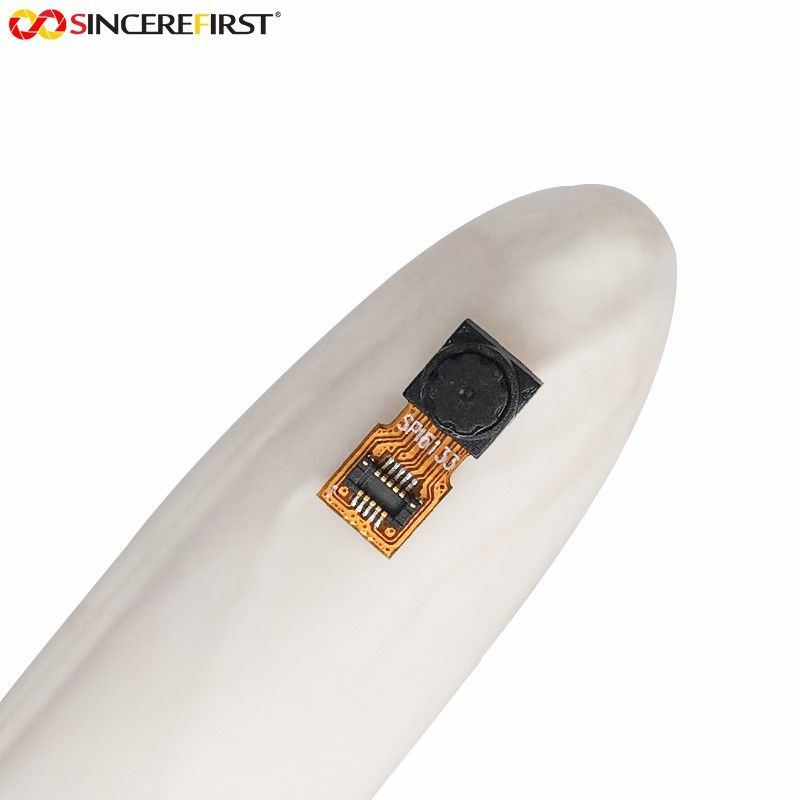

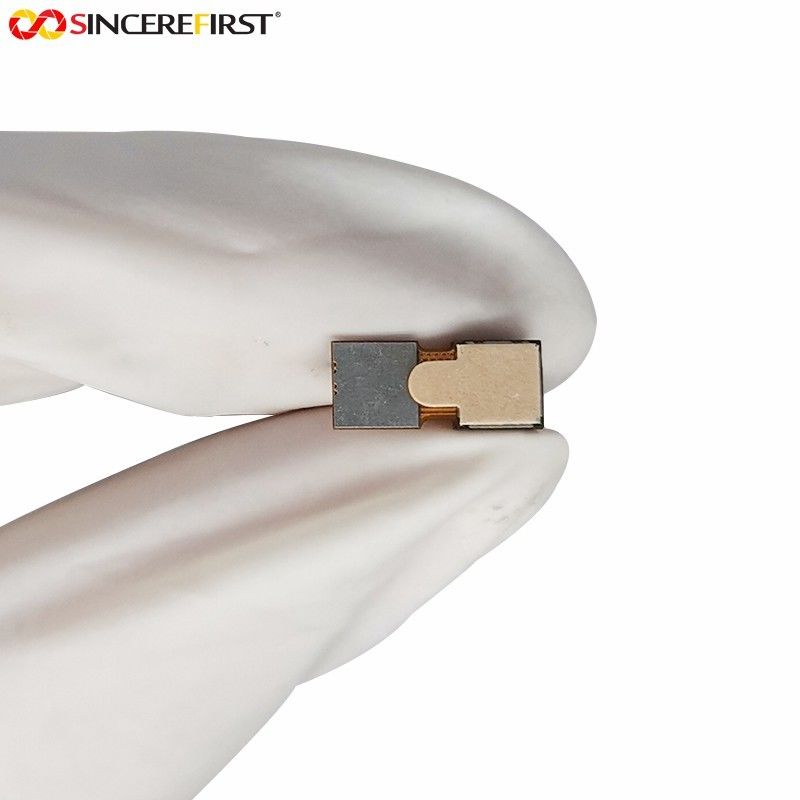

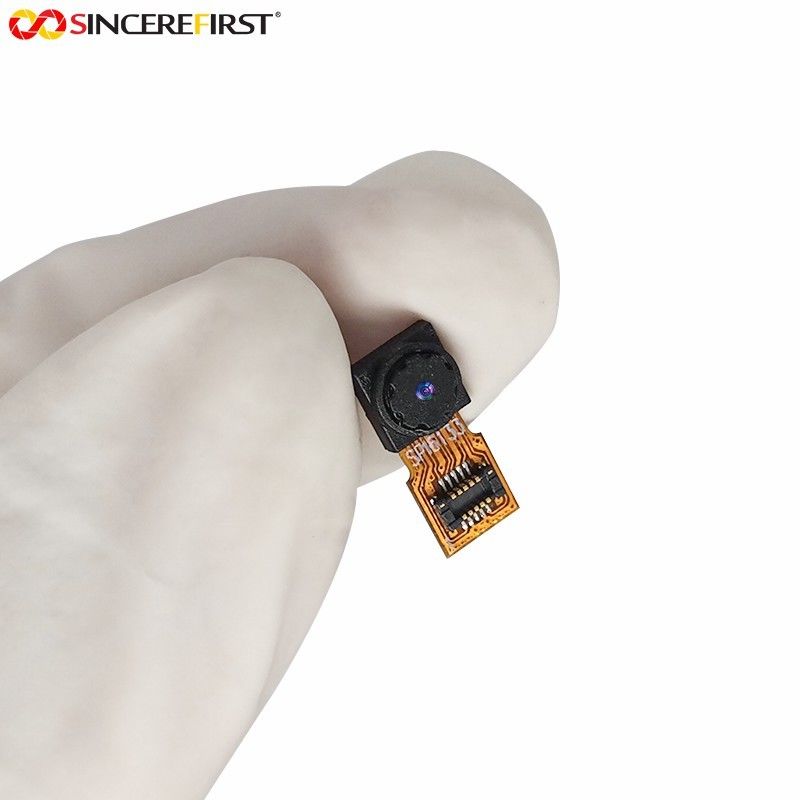

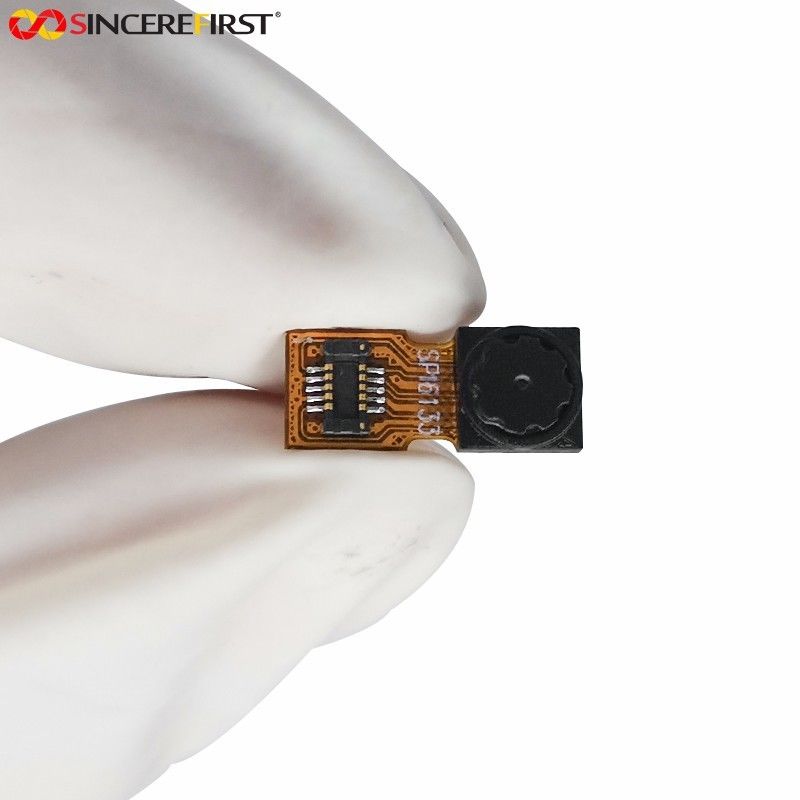

Small Size Spi Camera Interface CMOS Sensor GC6133 Camera Module
Specificaitons
| Optical Format | 1/13 inch |
| Pixel Size | 2.5um x 2.5um |
| Active Pixel Array | 240 x 320 |
| ADC Resolution | 11 bit ADC |
| Max Frame Rate | QVGA : 30fps |
| Power Supply | AVDD28: 2.7~3.0V(Typ.2.8V) |
| SNR | 39.2 dB |
| Dynamic Range | 65.7dB |
| Operating Temperature | -20~70°C |
| Package Type | CSP |
Description
The GC6133 is a highly integrated CMOS image sensor, active pixel is 240 x 320. GC6133 outputs YUV/YCrCb 4:2:2 or RGB 565 data through the serial data bus. GC6133 supports SPI interface. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.
Features
◆Standard optical format of 1/13 inch
◆Various output formats: YCbCr4:2:2 / RGB565 / Raw Bayer
◆Windowing support
◆SPI interface: 1-wire, 2-wire
◆Horizontal/Vertical mirror
◆Image processing module
◆Package: CSP
Applicaitons
Notebook and desktop PC cameras
PDAs
Toys
Digital still cameras and camcorders
Video telephony and conferencing equipment
