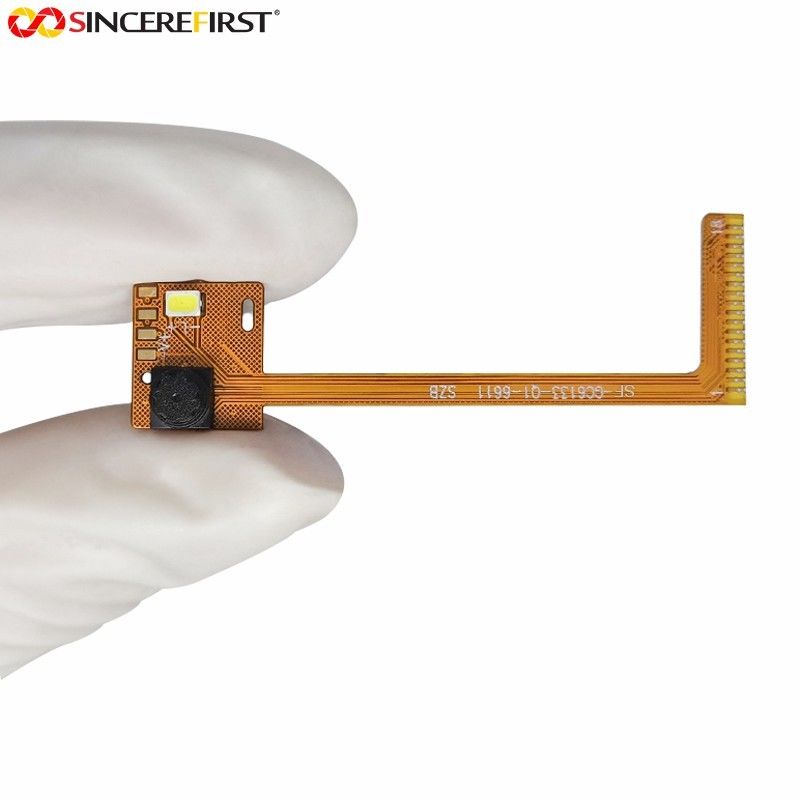

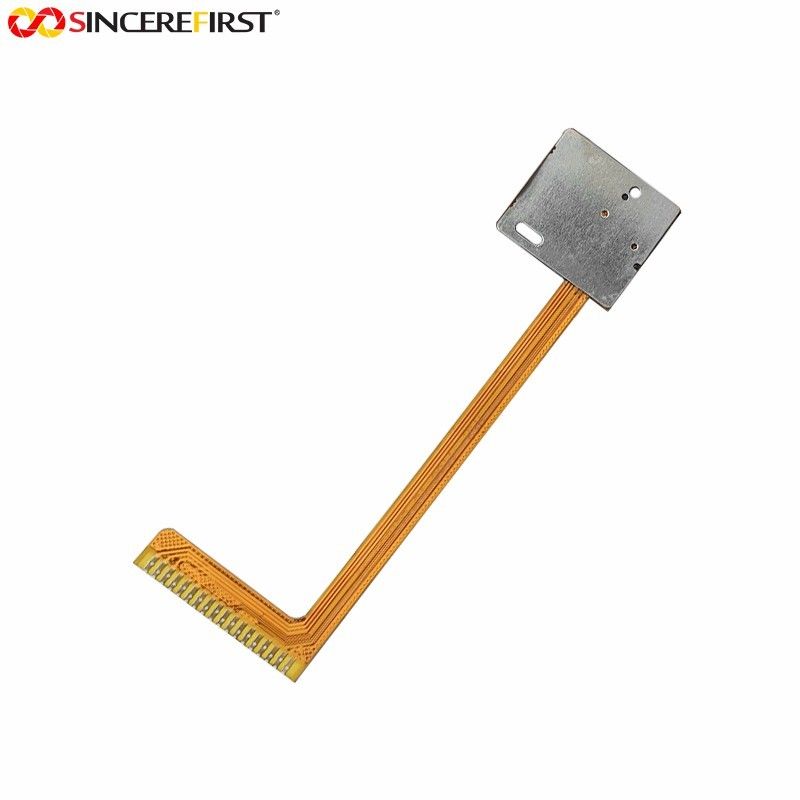

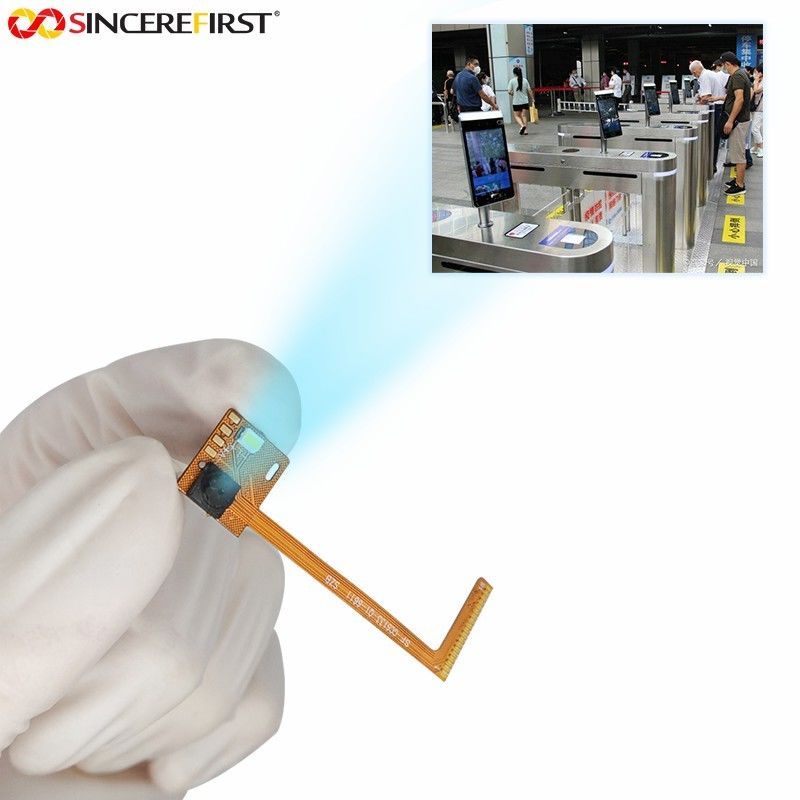

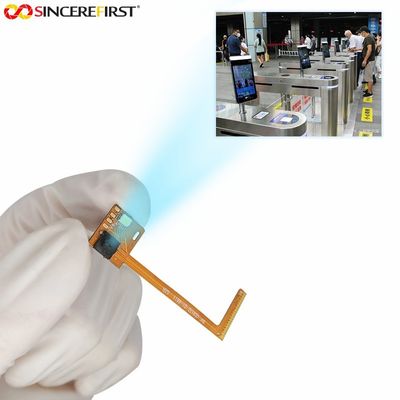

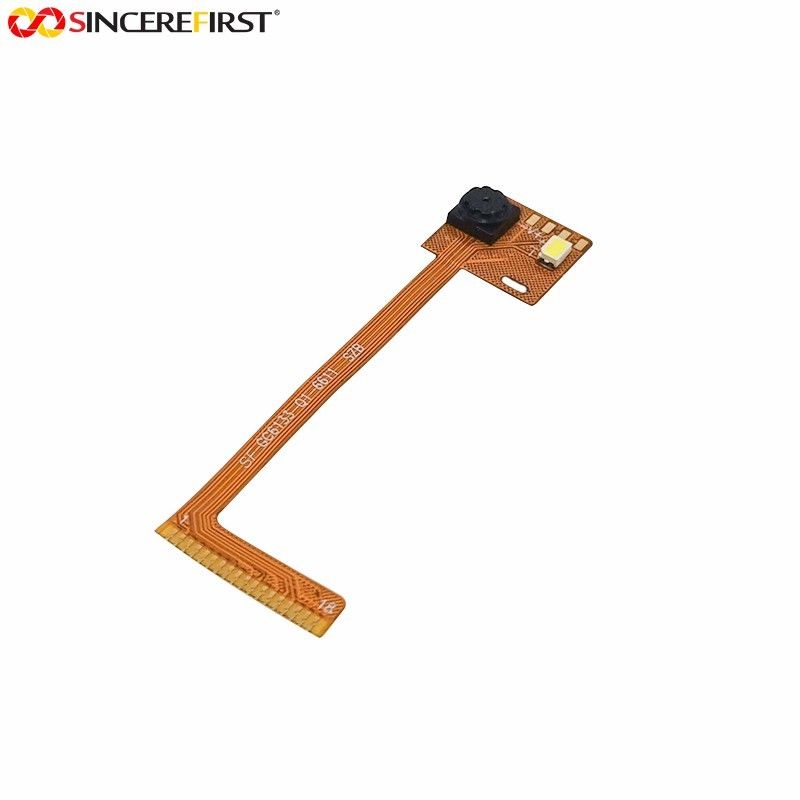

GC6133 Spi 0.07 Mega Pixel Image Camera Sensor Ai Camera Module
Specificaitons
| Optical Format | 1/13 inch |
| Pixel Size | 2.5um x 2.5um |
| Active Pixel Array | 240 x 320 |
| ADC Resolution | 11 bit ADC |
| Max Frame Rate | QVGA : 30fps |
| Power Supply | AVDD28: 2.7~3.0V(Typ.2.8V) |
| Chroma | color |
| Interface | SPI |
| Pixel | 0.07MP |
| Sensor | GC6133 |
Description
The GC6133 is a highly integrated CMOS image sensor, active pixel is 240 x 320. GC6133 outputs YUV/YCrCb 4:2:2 or RGB 565 data through the serial data bus. GC6133 supports SPI interface. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.
The GC6133 camera module is capable of capturing sharp and detailed images and videos with rich colors and rich contrast. In addition, it has a wide field of view and supports customization.
Features
◆Standard optical format of 1/13 inch
◆CMOS Image Sensor
◆Various output formats: YCbCr4:2:2 / RGB565 / Raw Bayer
◆Windowing support
◆SPI interface: 1-wire, 2-wire
◆Horizontal/Vertical mirror
◆Image processing module
◆Package: CSP
Applicaitons
Traffic Control Inspection Camera Module
High Speed Motion Tracking Camera Module
Holographic Data Storage Camera Module
Motion Analysis Industrial Imaging Camera Module
Biometric Finger Scanner Camera Module
Palm Scanner Camera Module
High Resolution Consumer Cameras Camera Module
Digital Video Camcorders Camera Module
Commercial Security Consumer Applications Camera Module
