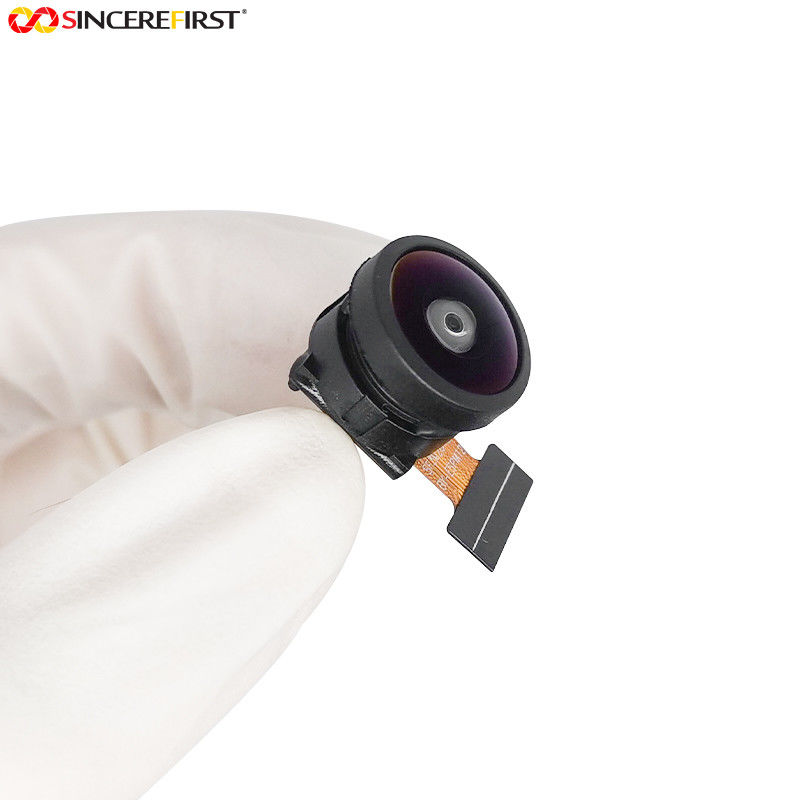

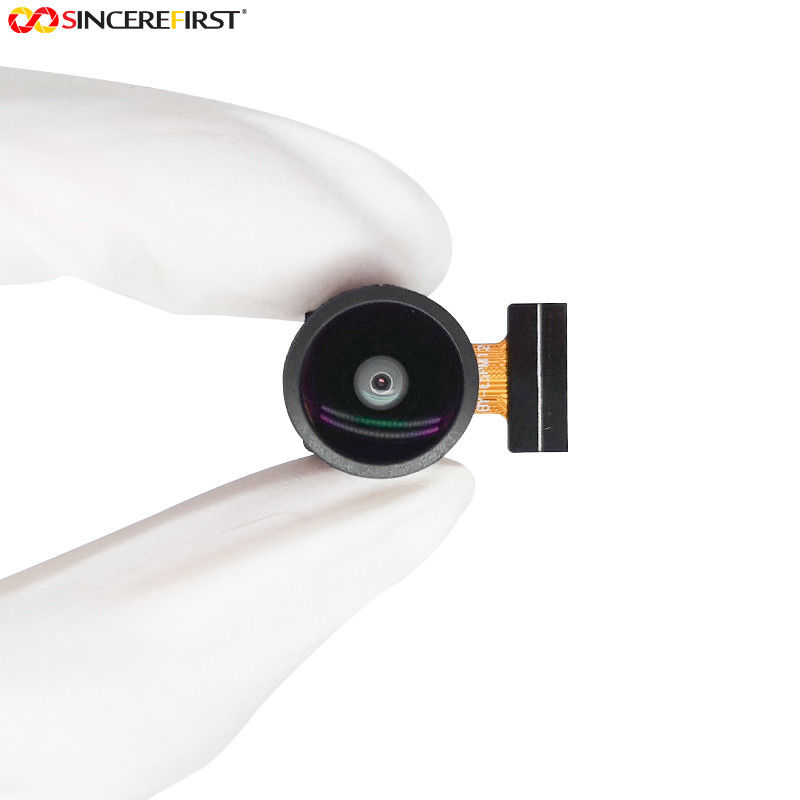

Cmos Sensor OV2640 M12 2MP Fisheye Wide Angle Lens Camera Module
Specificaitons
| Array Size | 1600 x 1200 |
| Image Sensor Format | Type 1/4″ |
| Pixel | 2 Mega Pixel |
| View Angle | D194°；H194°；V142° |
| Distortion | ＜14% |
| Chip Type | OV2640 Sensor |
| Pinout | 24pin |
| Focus Type | Fixed Focus |
| Shutter Type | Rolling Shutter |
| EFL | 1.05±5%mm |
Description
OV2640 is a camera module that uses the OV2640 sensor from OmniVision. The sensor has a 1/4.0″ optical format, which combined with the pixel size of 2.2 µm x 2.2 µm, results in the 2.0 MP 1600 x 1200 UXGA image1. It is based on the color OV2640 sensor from OmniVision1. It is used in electronic image devices like camera phones, digital cameras, etc.
Features
◆Scaling ability
◆Standard SCCB interface
◆Variable frame rate
◆Embedded microcontroller
◆Snapshot and video operation
◆Picture quality controls such as edge enhancement, noise cancellation, and color saturation
◆High sensitivity
◆Windowing functions
◆Compression, flash strobe, and LED capabilities
◆External and internal frame synchronization
◆The OV2640 promises automatic control functions such as AGC, ABLC, AWB, and AEC

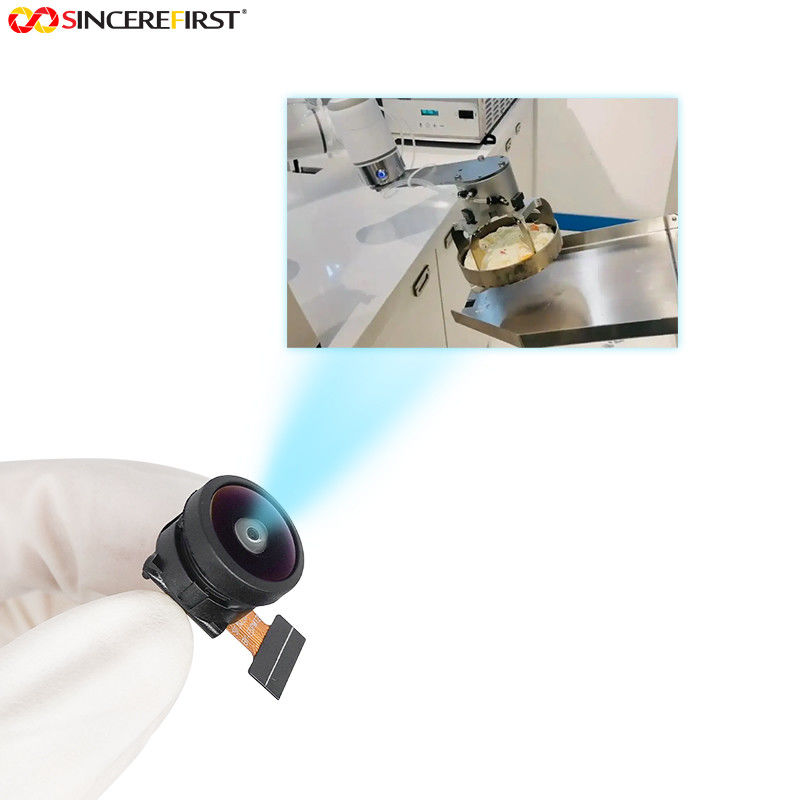

Applicaitons
smart home devices
industrial wireless control
wireless monitoring
QR wireless identification
wireless positioning system signals
other IoT
