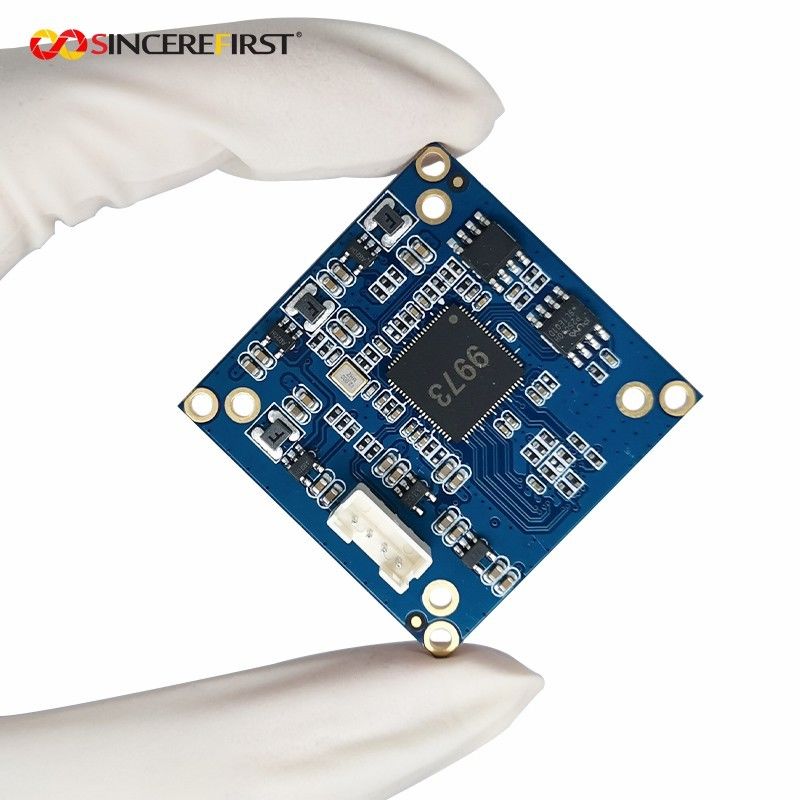

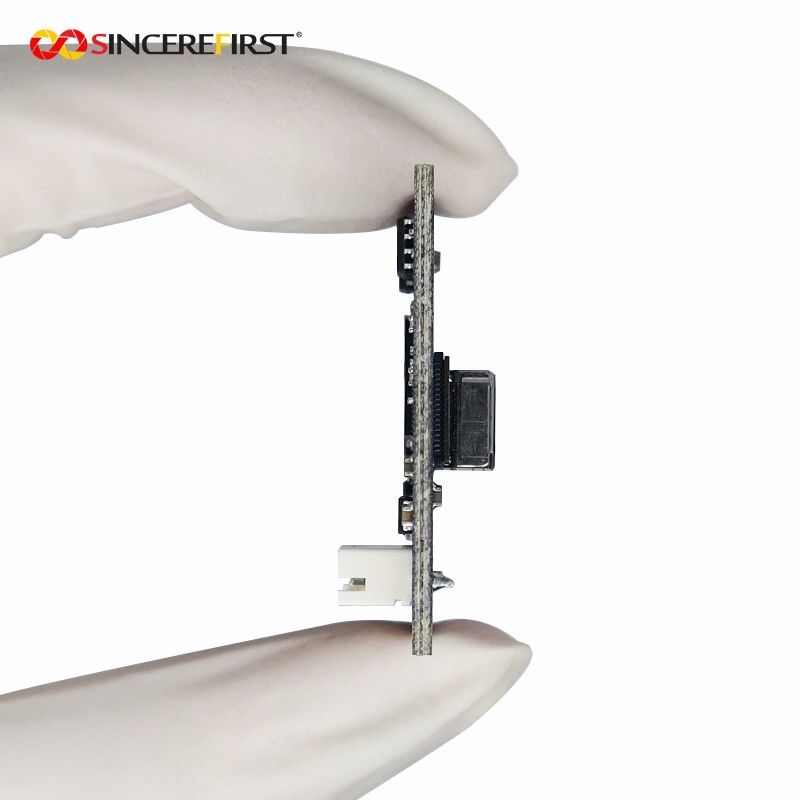

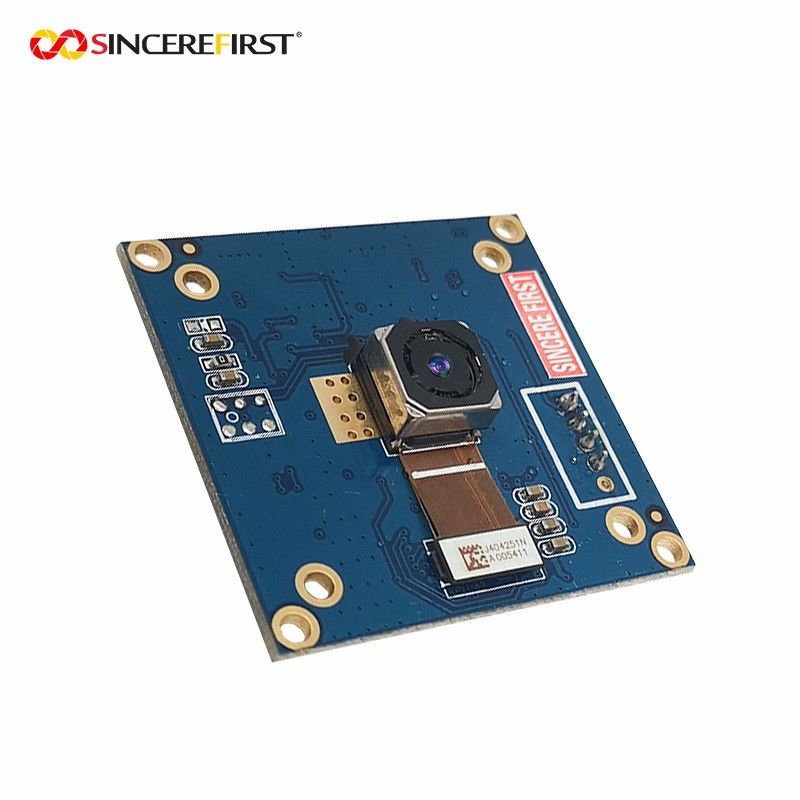

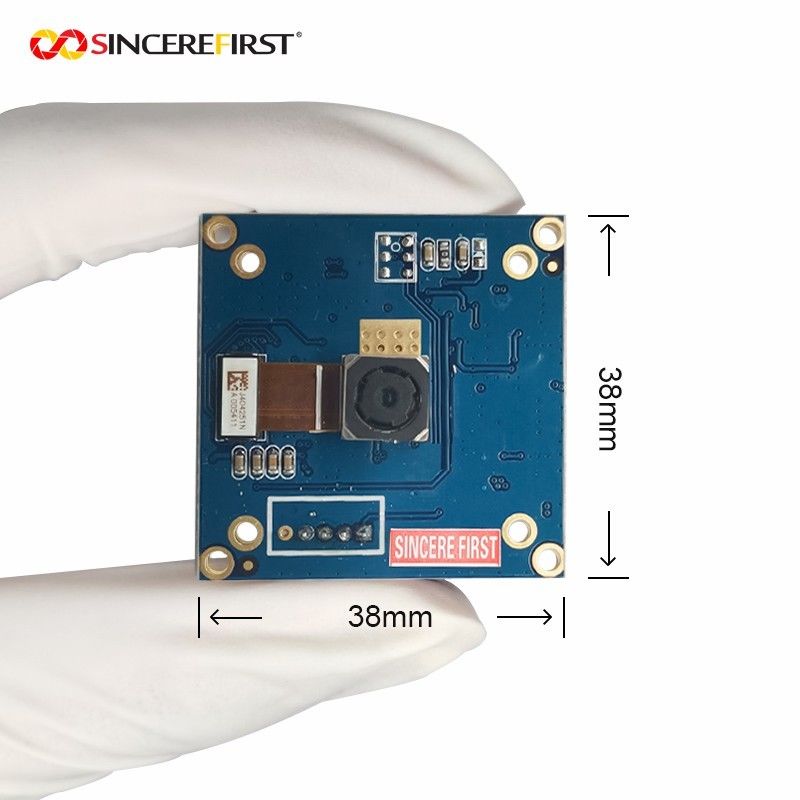

Oem 13mp Autofocus Sony IMX214 Night Vision IoT USB Camera Module
Specificaitons
| Sensor | IMX214 |
| Optical Size | Type 1/3.06” |
| Pixel Size | 1.12μm×1.12μm |
| Shutter Type | Rolling Shutter |
| Max Sensor Resolution | 4208 x 3120 |
| Focus Type | Auto Focus |
| Output Format | MJPG/YUY2 |
| Resolution | 640X480 |
| Frame Rate | 20fps |
| AEC | Support |
Description
This is 13 Mega Pixel with high quality SONY IMX214 CMOS image sensor, also it is auto focus, and can be used for high-technology, high-end applications, such as cellphones, tablets, drones, robotics, medical device, and others.
Features
◆13MP resolution with SONY IMX214 CMOS image sensor
◆Auto focus and object distance range is 1CM-∞
◆High quality image, high sensitivity
◆UVC compliant, Plug & Play
◆Support Linux, Android and Windows
◆Back illuminated and stacked CMOS image sensor Exmor RS
◆Single Frame High Dynamic Range(HDR)with equivalent full pixels.
◆High signal to noise ratio (SNR).
◆Full resolution @30fps(Nornmal/HDR.4K2K @30fps(Normal/HDR)1080p @60fps(Normal/HDR
◆Output video format ofRAW10/8.COMP8/6
◆Pixel binning readout and HN sub samplingfunction
◆Advanced Noise Reduction (Chroma noise reduction and luminance noise reduction)
◆Independent flipping and mirroring.
◆CS1 2 serial data output(MIPI 2lane/4lane,Max.1.2Gbps/lane,DPHY spec.ver. 1.1 compliant
◆2wire serial communication
◆Two PLLs for independent clock generation for pixel control and data output interface.
◆Advanced Noise Reduction.
◆Dynamic Defect Pixel Correction.
◆Zero shutter lag
◆Power on reset function
◆Dual sensor synchronization operation.
◆8K bit of OTP ROM for users
◆Built in temperature sensor
Applicaitons
IoT Camera Module
AI
Scaner
Machine Vision
Inspection Tester
Video Conference System
