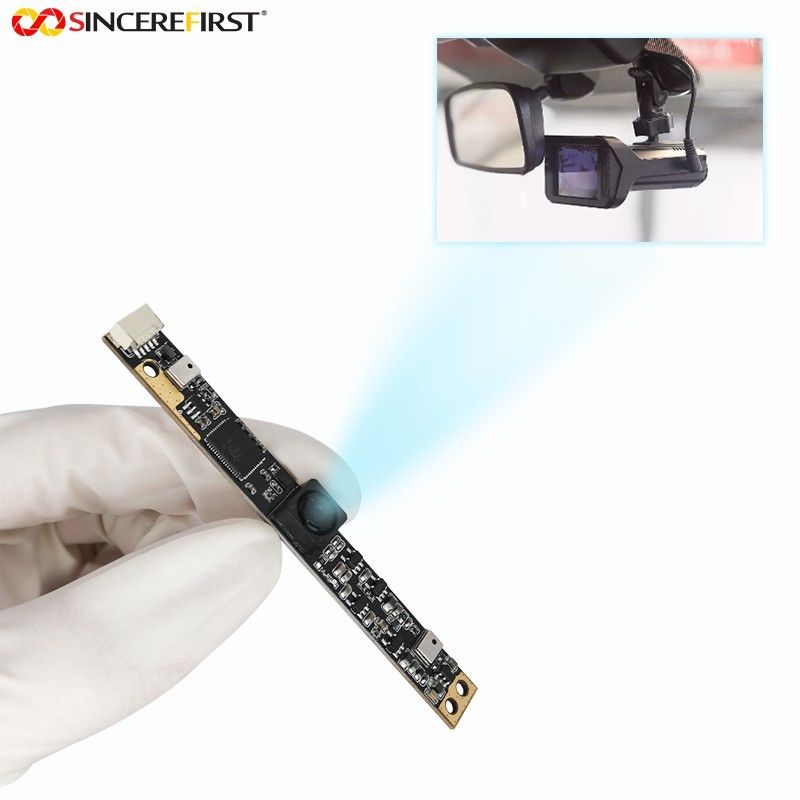

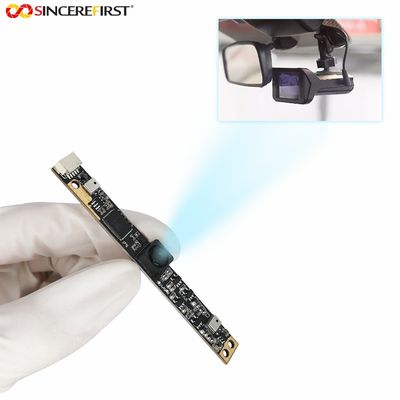

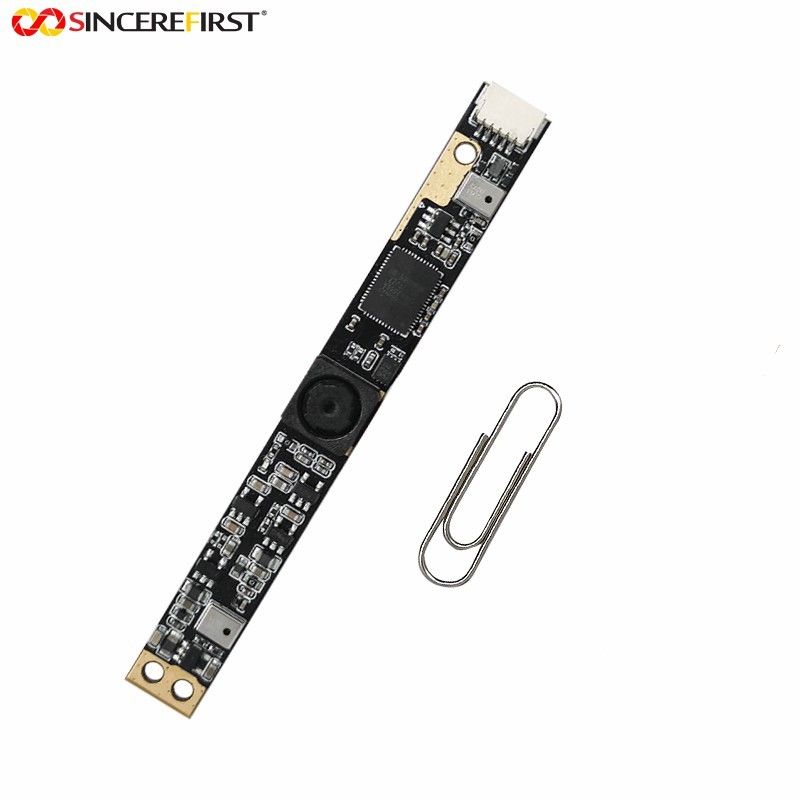

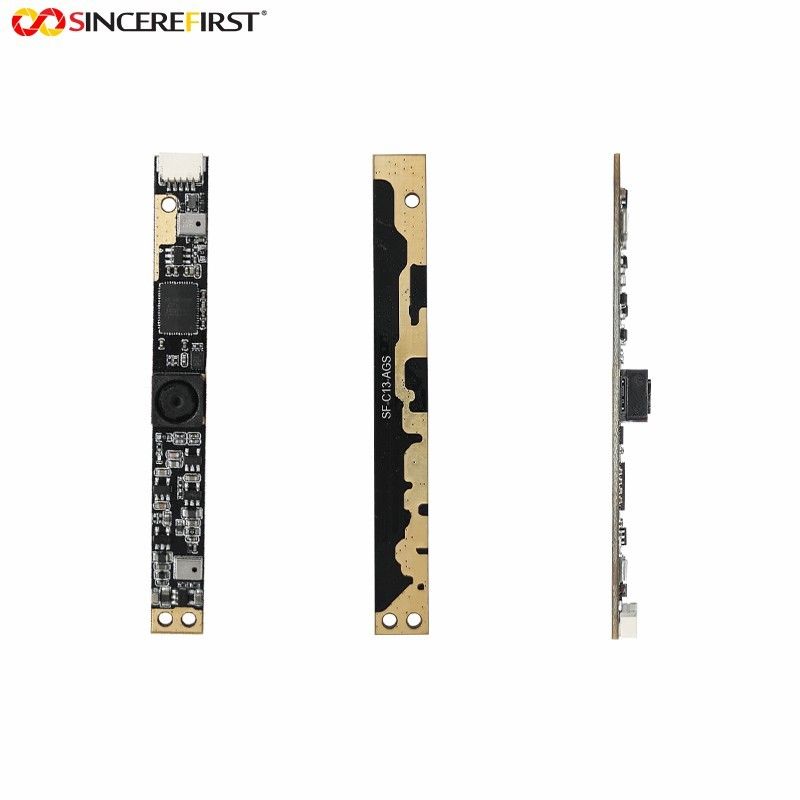

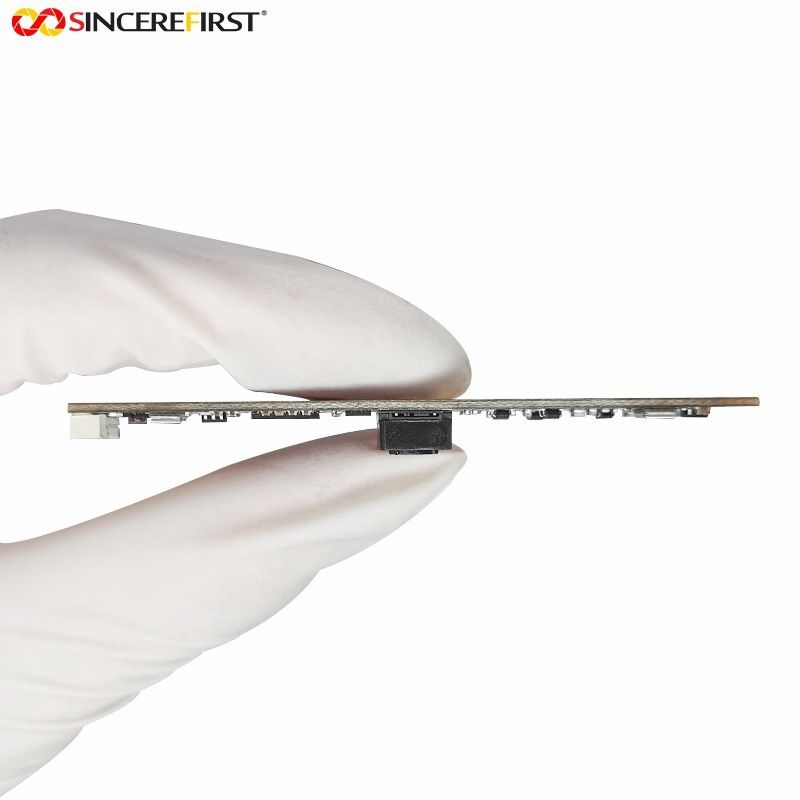

4k Sony IMX 258 USB Camera Sensor Module 13mp High Resolution
Specificaitons
| Sensor | 1/3.06’’ SONY IMX258 Sensor |
| Pixel | 13 Mega Pixel |
| Optical Format | 1/3.06" |
| Compression Format | MJPG / YUY2 |
| OS Support | Windows, Linux, MacOS |
| Interface | USB2.0 |
| Field of View (FOV) | 72° |
| Fixed Focus | Focus Type |
| F.NO | 2.8 |
| Connector | USB 5PIN |
Description
This is our 4K camera module development, it is Fixed Focus, 13MP resolution with SONY IMX258 sensor, image quality is very excellent.
IMX258 is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.8 V, digital 1.2 V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application, Sony does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet pc. Consult your Sony sales representative if you have any question.
.
Features
◆Back-illuminated and stacked CMOS image sensor Exmor RSTM
◆Phase Detection pixel data output for Phase Detection Auto Focus
◆High Dynamic Range (HDR) mode with raw data output.
◆High signal to noise ratio (SNR).
◆Full resolution @30fps (Normal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal / HDR)
◆Output video format of RAW10/8.
◆Pixel binning readout and V sub-sampling function.
◆Independent flipping and mirroring.
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 1.3Gbps/lane, D-PHY spec. ver. 1.1 compliant)
◆2-wire serial communication.
◆Two PLLs for independent clock generation for pixel control and data output interface.
◆Dynamic Defect Pixel Correction.
◆Fast mode transition. (on the fly)
◆Dual sensor synchronization operation.
◆4K bit of OTP ROM for users.
◆Built-in temperature sensor
Applicaitons
AI
Kiosk
Machine Vision
Document scanner
Inspection tester
Video Conference System
