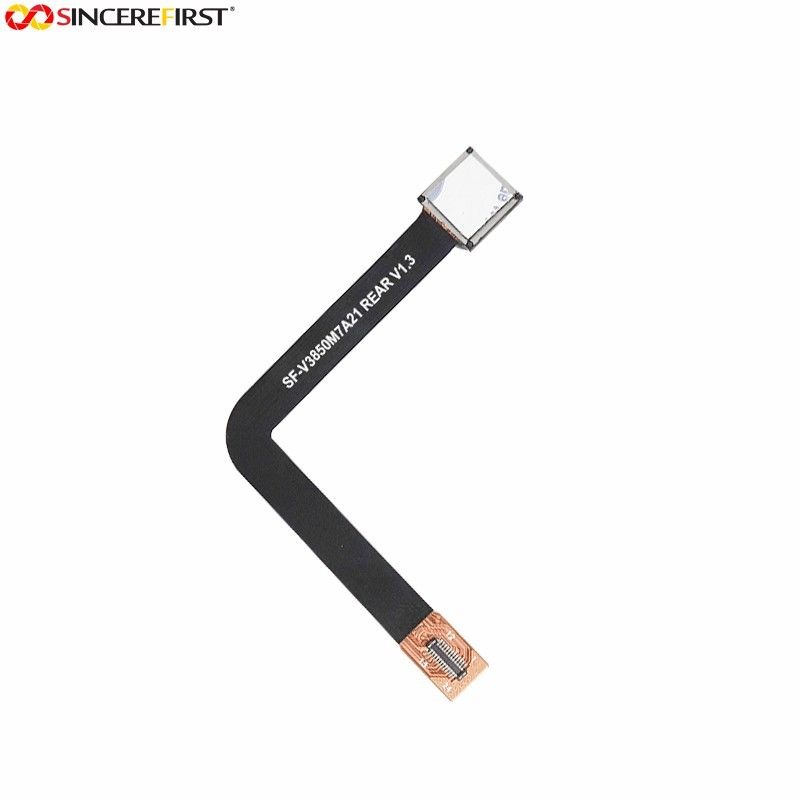

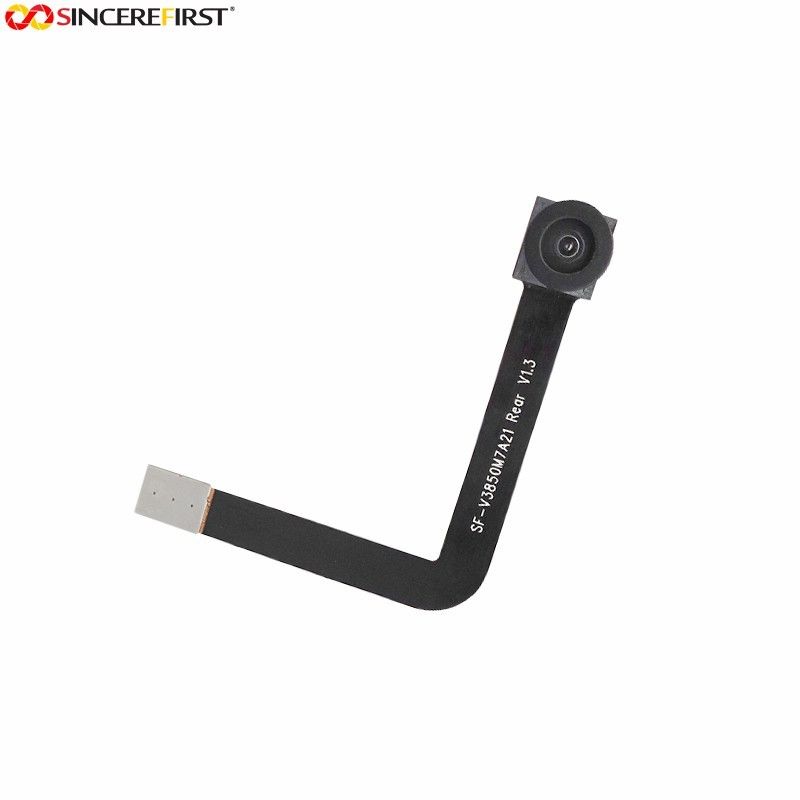

Low Cost 13MP OV13850 Cmos Digital Image Camera Sensor Types
Specificaitons
| Base Product Number | LI-OV13850 |
| Supplier Device Package | Module |
| Pixel Size | 2µm x 2µm |
| Interface | Serial |
| Type | CMOS |
| Lens Mount | M12 |
| Frames per Second | 100 |
| Resolution | 4416 x 1242 |
| Color | RGB |
| Product Status | Active |
Description
OV13850 is a 13-megapixel camera sensor produced by OmniVision Technologies. It is a high-performance PureCel™ 13-megapixel CameraChip™ sensor that delivers best-in-class high- and low-light performance, as well as dramatically reduced power consumption for smartphones and tablets. It has a 1/3.06-inch optical format and a pixel size of 1.12 microns.
Features
◆1.12 um x 1.12 um pixel with OmniBSI-3M technology
◆optical size of 1/3.06"
◆31.2°CRA for <6mm z-height
◆programmable controls for frame rate, mirror and flip,
cropping,and windowing
◆support for image sizes:13.2MP(4224x3136)
10MP(16:9-4224x2376)4K2K(3840x2160)
EIS 1080p(2112x1188),EIS 720p(1408x792),and
more
◆13.2MP at 30 fps
◆two-wire serial bus control(SCCB)
◆strobe output to control flash
◆8kbits of embedded one-time programmable(OTP)
memory
◆two on-chip phase lock loops(PLLs)
◆frame exposure mode for still image (with mechanical shutter)
◆programmable controls: gain,exposure,frame rate image size, horizontal mirror, vertical flip,cropping, and panning
◆image quality controls: defect pixel correction, automatic black level calibration,lens shading correction,and alternate row HDR
◆built-in temperature sensor

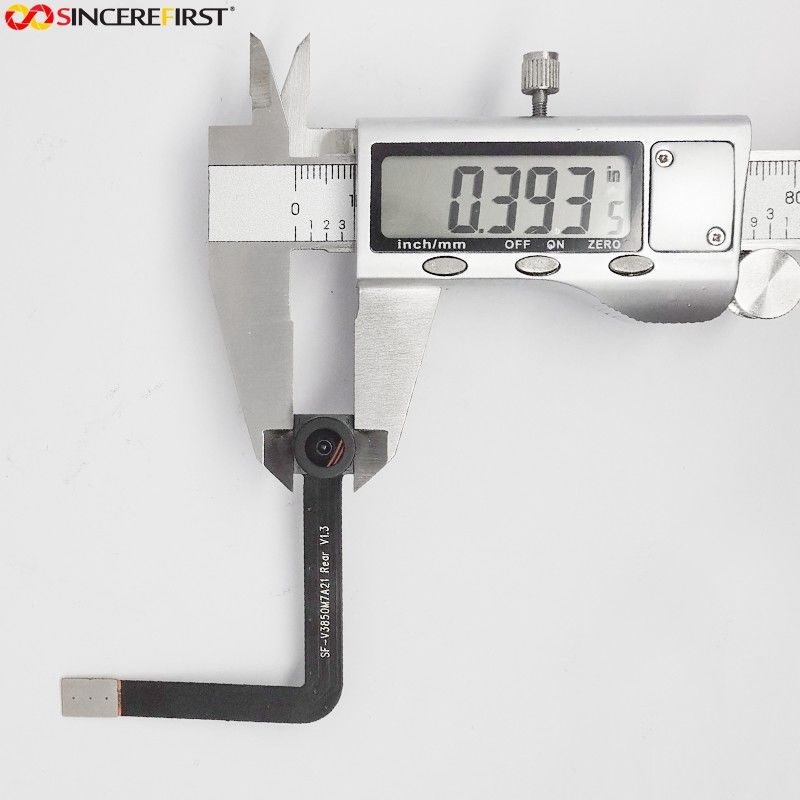

◆suitable for module size of 8.5 mm x 8.5 mm x < 6mm

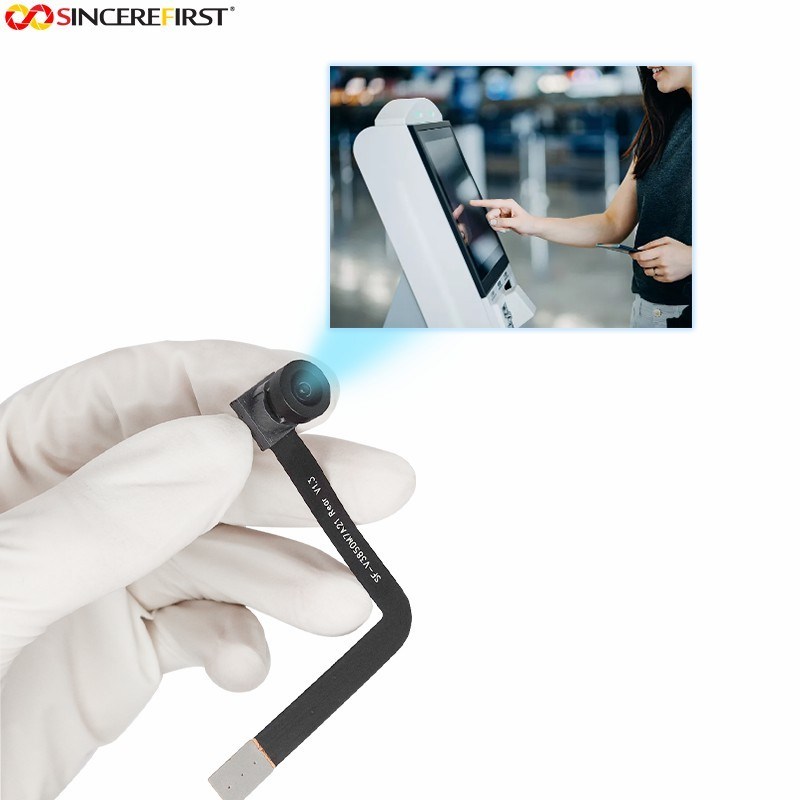

Applicaitons
PC Multimedia
Tablets
Smart Medical
