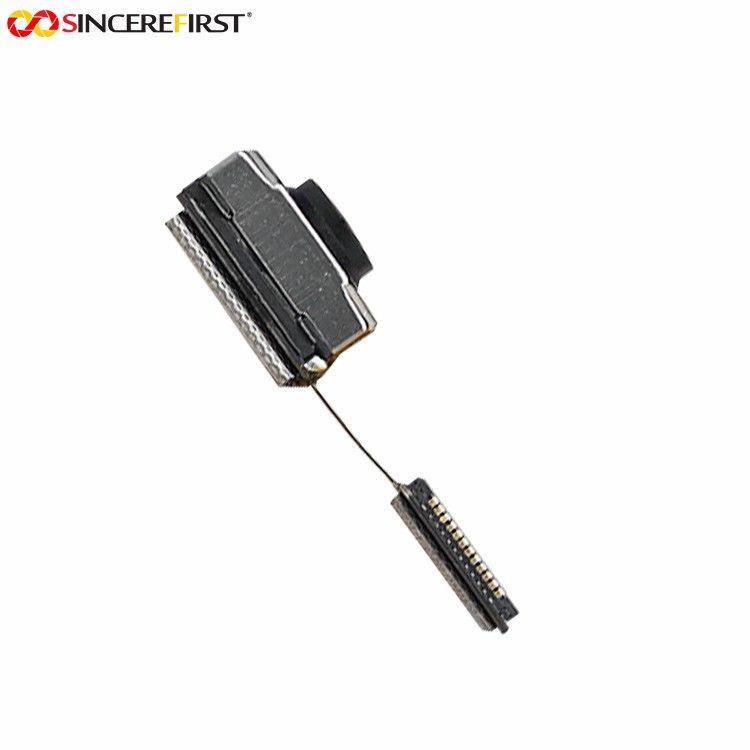

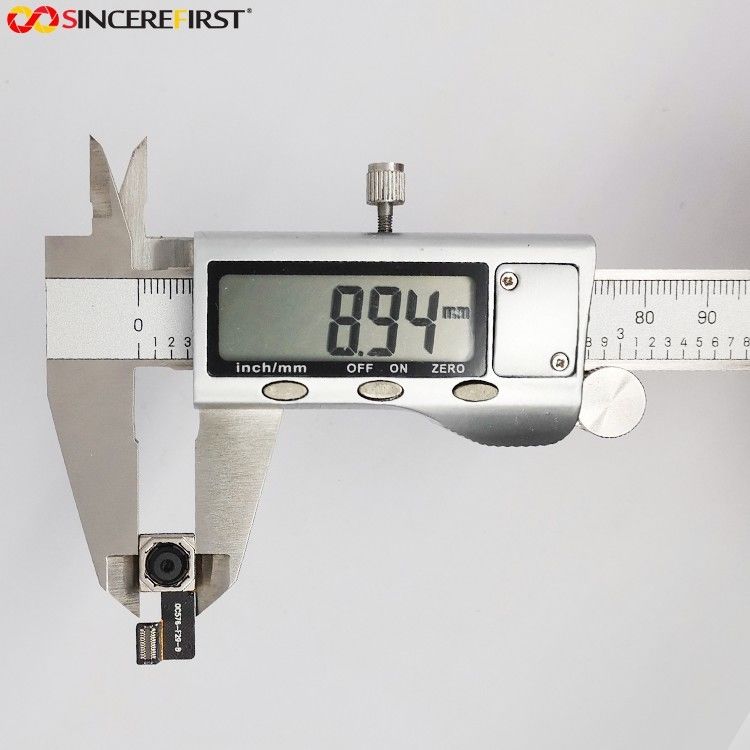

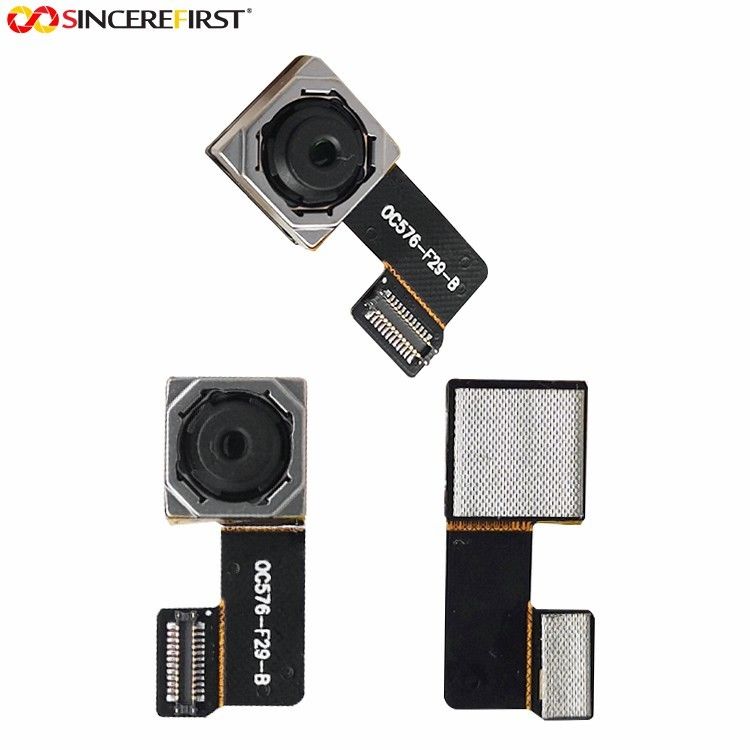

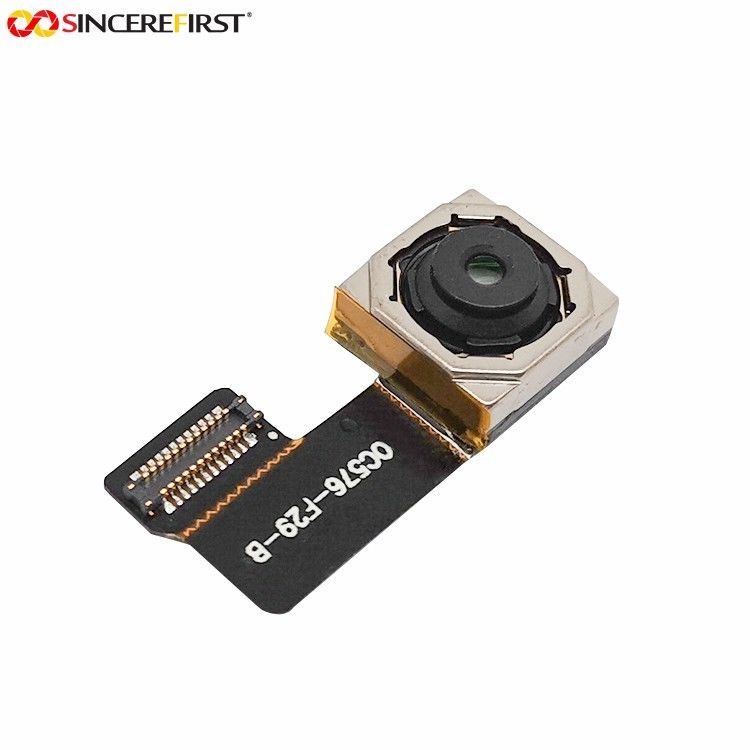

High Resolution 1/2.7inch IMX576 CMOS Image Sensor Camera Module Companies
Specificaitons
| Image Sensor | IMX576 |
| Array Size | 5792*4464 |
| Focusing Range | 10cm to infinity |
| Type | Camera Module, CMOS sensor camera module |
| Features | Mini Camera Module |
| Pixe | 24MP |
| F.NO | 1.8 |
| Description | Mini Camera Module |
| Model Number | SF-T900B V1.2 IMX576 |
| Series | MIPI Camera Module |
Description
IMX576-AAKH5-C is a diagonal 6.475 mm (Type 1/2.78) 24.8 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Sony's back-illuminated and stacked CMOS image sensor to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It operates with three power supply: analog 2.8 V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application, Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of product. Therefore, don't use this for applications other than cellular phone and tablet pc. Consult your Sony Semiconductor Solutions Corporation sales representative if you have any questions.
Features
◆Back-illuminated and stacked CMOS image sensor
◆Quad Bayer Coding color filter arrangement
◆High Frame Rate 30fps@Full resolution(QBC Re-mosaic) / 30fps@QBC-HDR / 120fps@2x2 Adjacent Pixel Binning (4:3)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆QBC Re-mosaic function
◆QBC HDR function
◆2x2 Adjacent Pixel Binning function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.3Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication (Supports I2C "Fast mode" and "Fast-mode Plus")
◆9.0 Kbit of OTP ROM for users
Applicaitons
automobile
smart home appliances
smart security
smart industry
