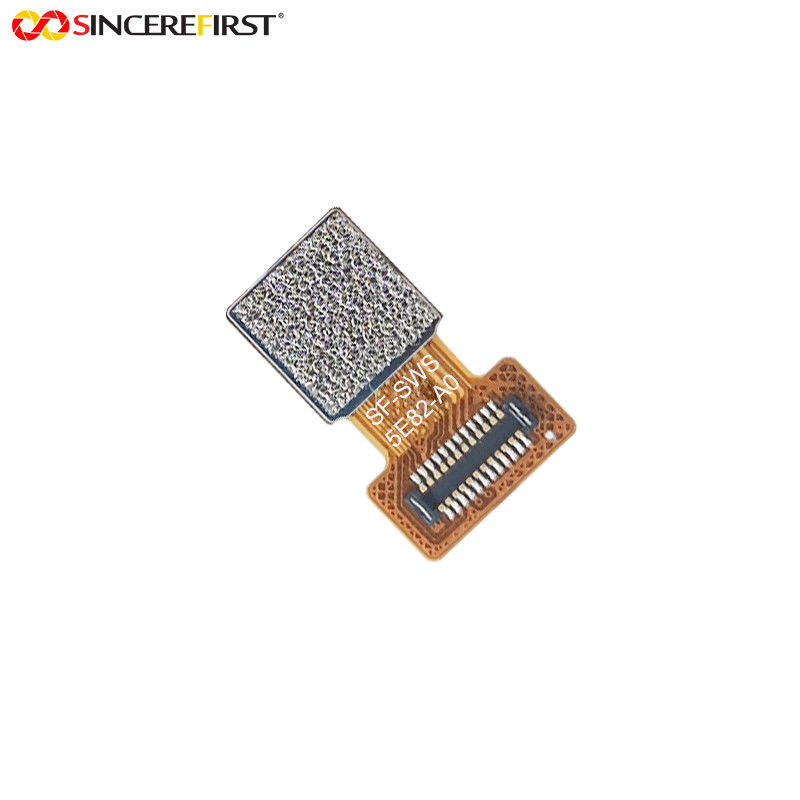

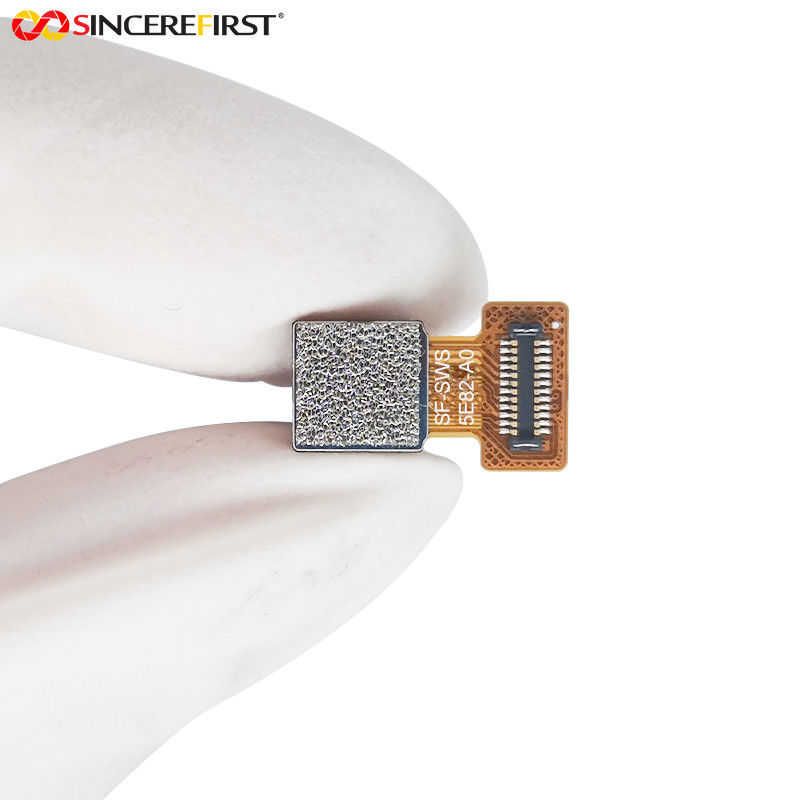

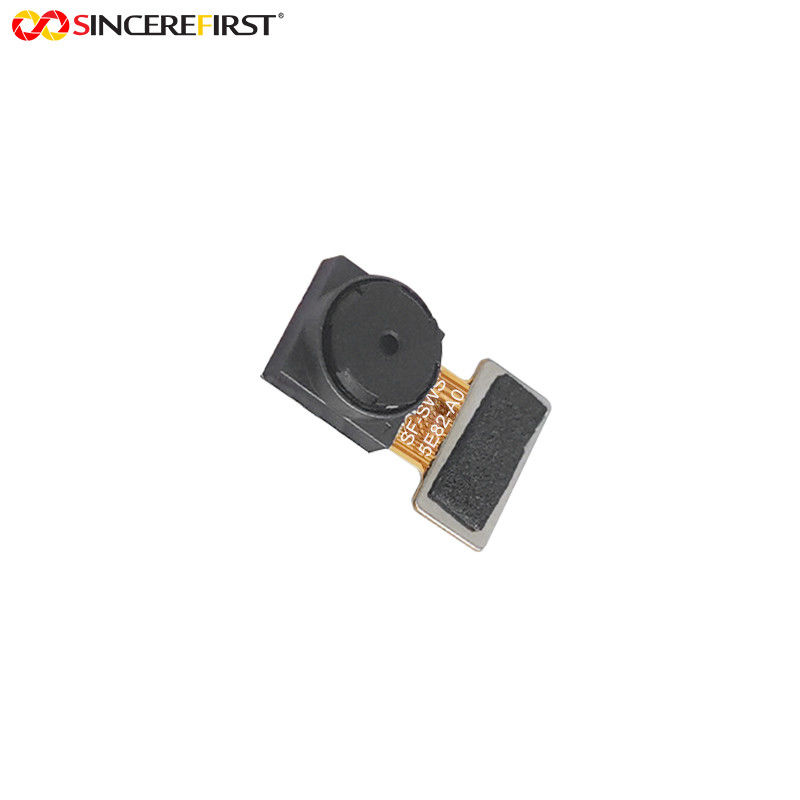

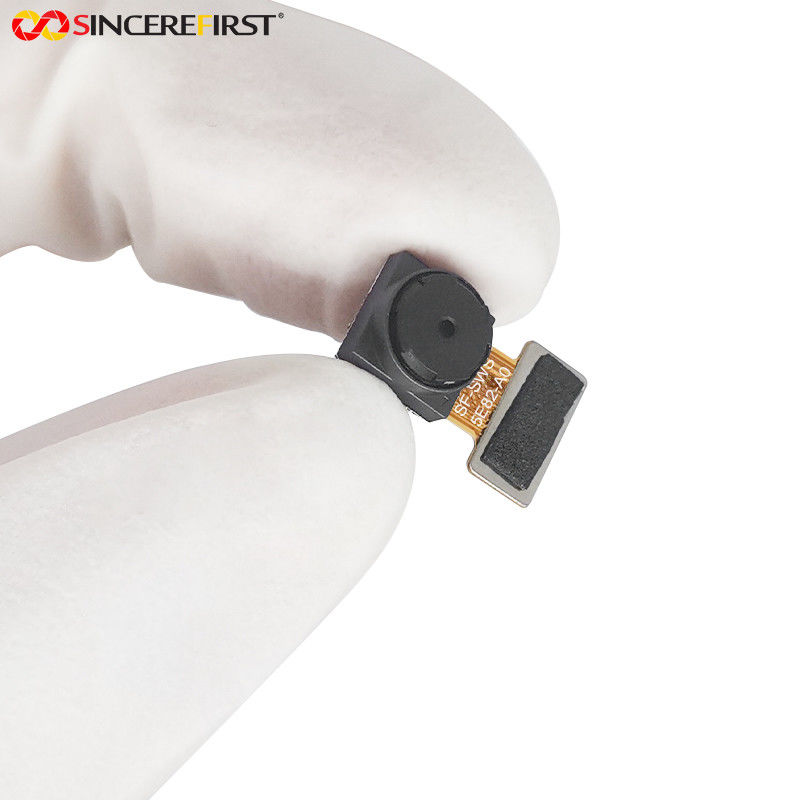

5 Megapixel S5K5E8 Image CMOS Sensor Samsung Mipi Camera Module
Specificaitons
| Interface | MIPI |
| Model Number | SDS5E8 |
| Pixel size | 1.133 μm |
| VCM | SFA2925A01M |
| Image Sensor | Samsung S5K5E8 Chip |
| Manufacturer | Samsung |
| Matrix size | 2.9 mm x 2.15 mm, Diagonal |
| Technology | CMOS BSI |
| Place of Origin | Guangdong, China |
| Lens | M5221(4P) |
Description
S5K5E8 is a high quality 5 Mega CMOS image sensor, for mobilephone camera applications and digitalcamera products .S5K5E8 incorporates a 2608Hx1960V pixel array, on-chip 10-bit ADC, and image signal processor. The full-scale integration of high-performance and low-power functions makes the S5K5E8 fit the design, reduce implementation process, and extend the battery life of cellphones, PDAs, and a wide variety of mobile applications. It provides RAW10andRAW 8 data formats with MIP I interface.It has a commonly used two-wire serial interface for host to control the operation of the whole sensor
.
Features
◆Standard optical format of 1/5inch
◆1.12umx 1.12um BSI pixel
◆Outputformats:Raw Bayer 10bit/8bit
◆Powersupplyrequirement:AVDD28:2.7~3.0V
◆DVDD:1.15~1.3V
◆IOVDD:1.7~3.0V
◆PLL support
◆Binning mode support
◆MIP I(2_lane) interface support
◆Horizontal/Vertical mirror
◆Image processing module
◆OTP support(4K for customers) :Module information/WB
◆Package:COB/CSP/COM
SCCB control interface for register programming
Applicaitons
digital cameras
camera modules
optical mouse devices
medical imaging equipment
night vision equipment
