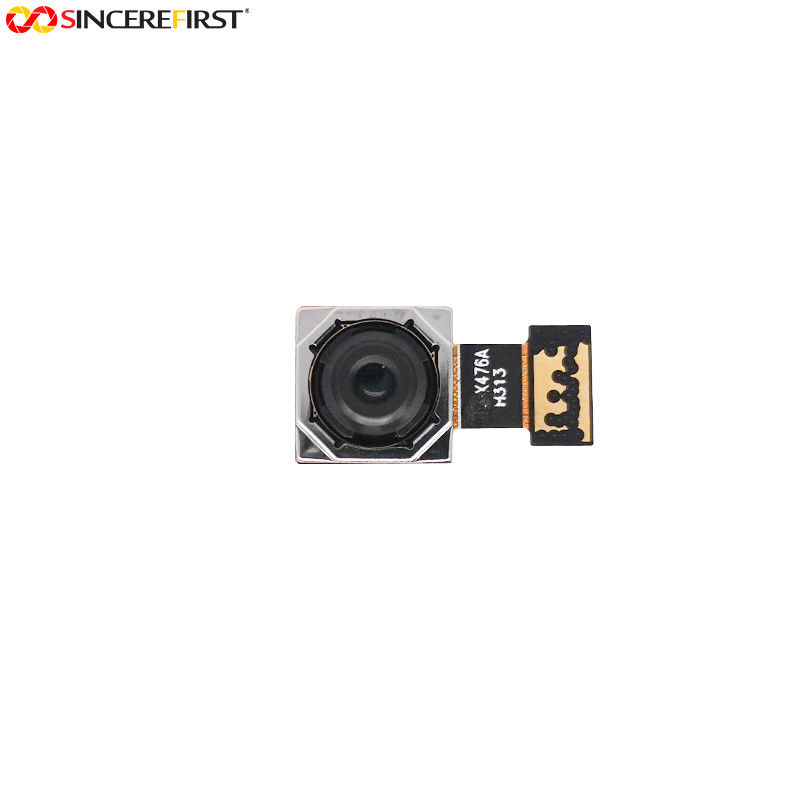

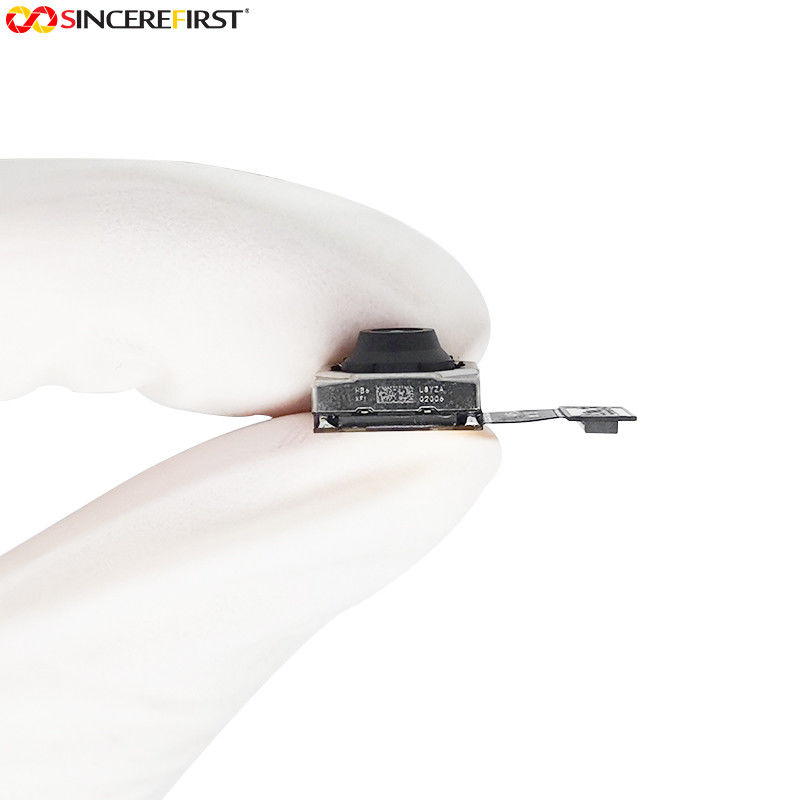

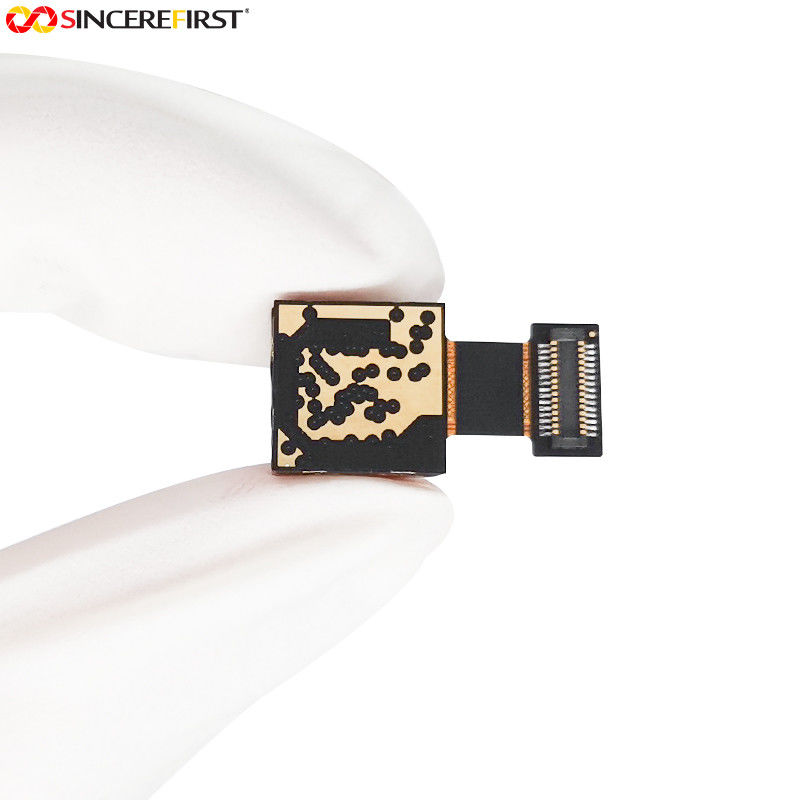

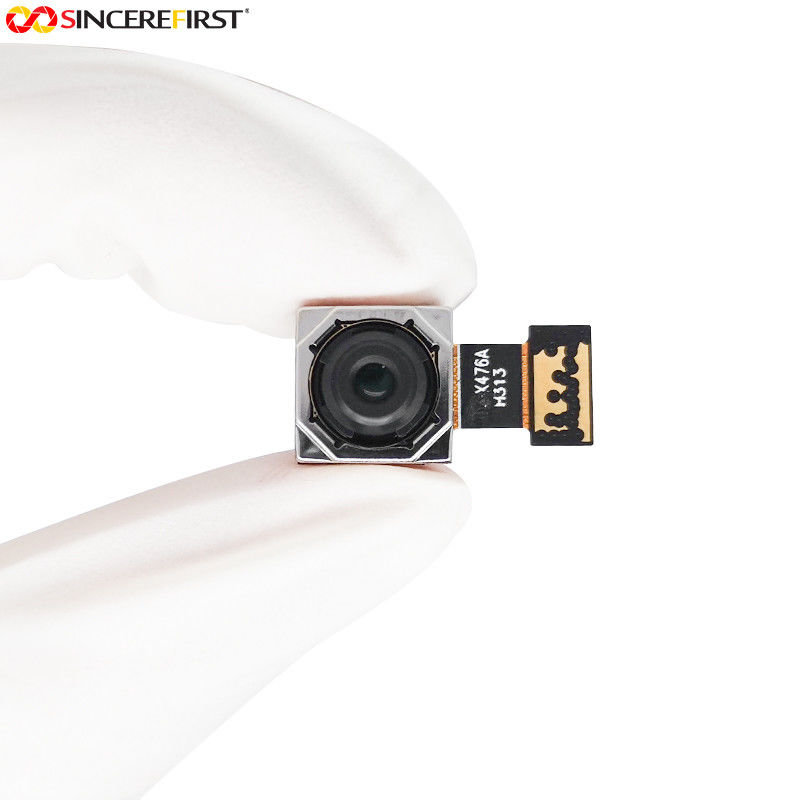

20mp IMX476 Auto Focus CMOS Image Sensor Mipi Csi Camera Module
Specificaitons
| Image Sensor | IMX476 |
| Features | High Definition, Mini Size |
| Sensor Size | 3/4 |
| Focus | Af |
| Interface Support | Mipi |
| Pixel Array | 5216 X 4032 |
| Origin | China |
| Focus Type | Auto Focus |
| Shutter Type | Rolling Shutter |
| Certification | RoHS |
Description
The IMX476 is a CMOS sensor with Sony's unique technology, which has high-performance image capture capabilities. It adopts Sony's "Stacked CMOS Image Sensor" technology, which enables IMX476 to achieve seamless pixel distribution and higher image quality. At the same time, IMX476 also has a highly integrated design, which supports faster data processing and lower power consumption, so as to achieve the purpose of energy saving and emission reduction.
IMX476 also has good low-light performance and low-noise performance. With high-speed shutter and high sensitivity, it can also get excellent imaging effects when shooting in low-light environments. In addition, in order to meet different shooting needs, IMX476 also supports multiple resolution shooting modes, and can shoot very delicate high-definition images by adjusting digital gain and HDR technology.
In addition, IMX476 has another important advantage, that is, the ability of fast autofocus when shooting moving objects. Its fast focusing technology not only allows you to quickly lock the focus, but also supports a variety of autofocus modes and focus area selection to meet the needs of different scenarios.
In general, IMX476 is a very good image sensor, its high performance and low power consumption make it an important part of image processing in various high-end electronic products. Whether it is a digital camera, video camera, or mobile devices such as smart phones and tablet PCs, IMX476 can be used to achieve higher quality and higher efficiency image processing. I believe that with the continuous advancement of technology, IMX476 will continue to upgrade and improve, bringing us a better and better visual experience.
Features
Back-ilumin ated and stacked CMOS image sensor
Quad Bayer Coding color filter arrangement
High FrameRate 30fps@Full resolution(Quad Bayer Coding Re-mosaic) /30fps@Quad Bayer Coding HDR/
60fps@2x 2 Adjacent Pixel Binning(4:3) /120fps@2x 2 Adjacent Pixel Binning(4:3)
High signal to noise ratio(SNR)
Dual sensor synchronization operation
Buit-in2D Dynamic Defect Pixel Correction
Lens Shading Correction(LSC)
Built-in temperature sensor
lOutput video format of RAW 10/8, COMP 8
Quad Bayer Coding Re-mosaic function
Quad Bayer Coding HDR function
2x2 Adjacent Pixel Binning function
Two PLLs for independent clock generation for pixel control and data output interface
CSI-2 serial data output(MIPI2lane/4lane, Max.2.3Gbps/lane, D-PHY spec.ver.1.2 compliant)
2-wire serial communication(Support sFc"Fast mode"and"Fast-mode Plus")
9.0KbitofOTPROM for users
Applicaitons
analog & digital type electronic imaging devices
digital cameras
imaging tools used in medical
camera modules
night vision tools like radar
thermal imaging devices
sonar
