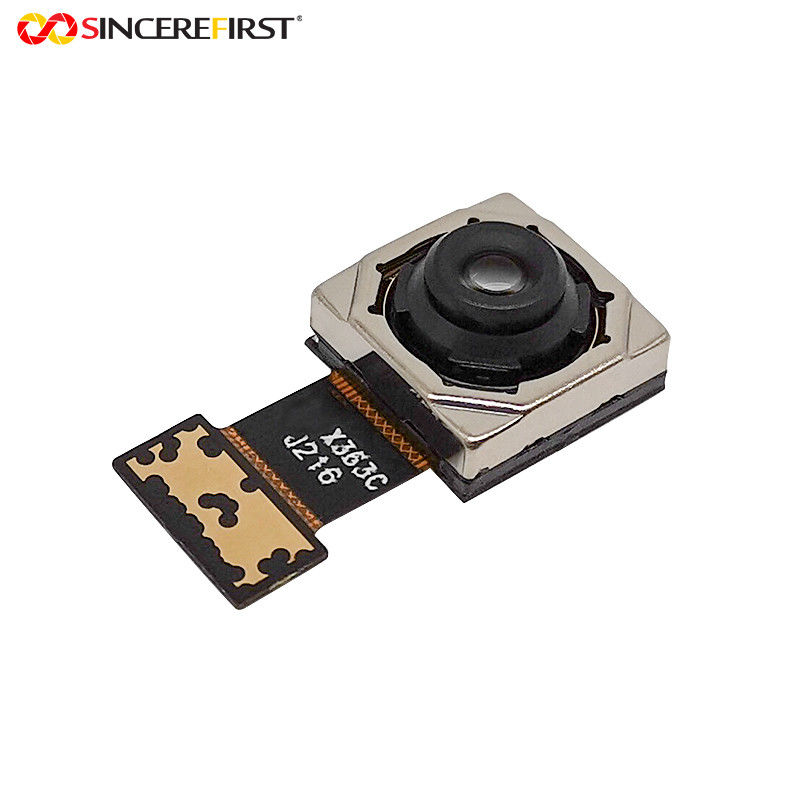

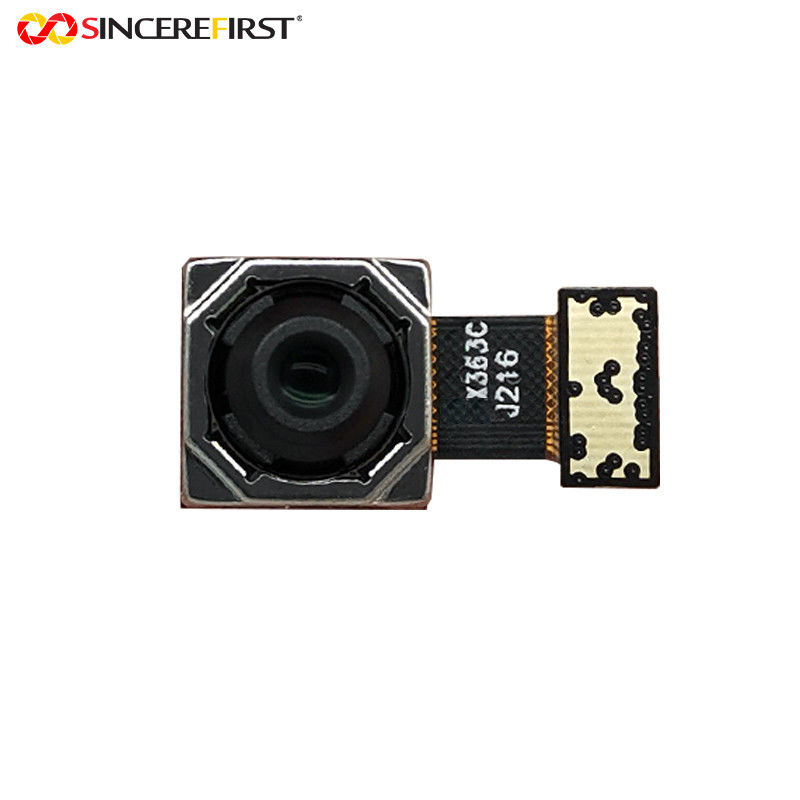

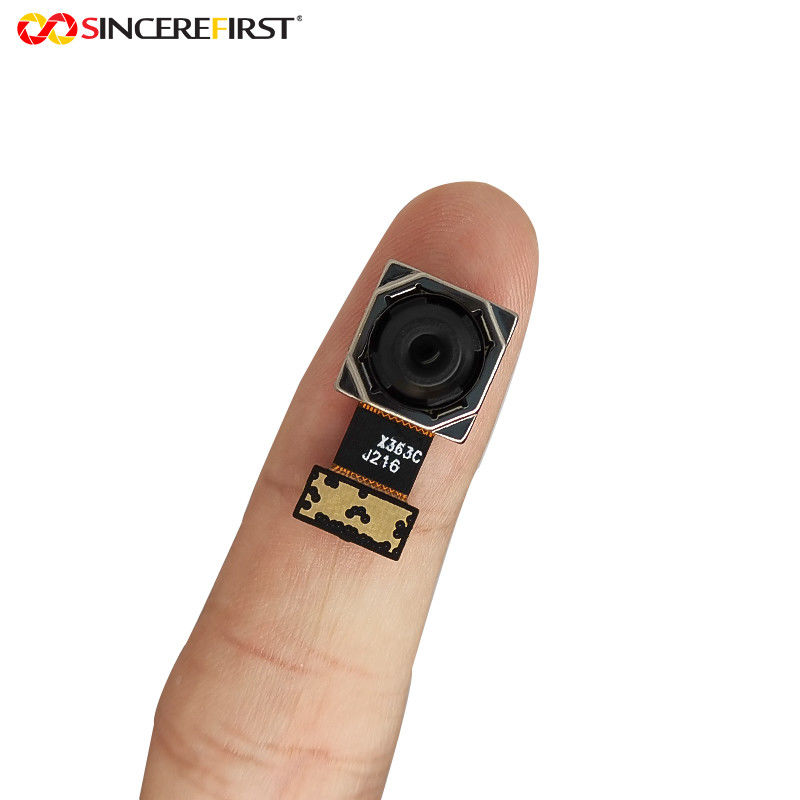

Micro CMOS Sensor FPC Camera Module 12MP ​Sony IMX363 4032*3204 Resolution

Micro CMOS Sensor FPC Camera Module 12MP ​Sony IMX363 4032*3204 Resolution

Specificaitons

Description

IMX363-AAQH5-C is a diagonal 7.05mm (Type 1/2.55) 12 Mega-pixel CMOS active pixel type stacked image sensor with square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. Each pixel is divided into right and left sub-pixel that can be driven independently or simultaneously. By introducing spatially multiplexed exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with four power supply voltages: analog 2.8 V and 1.8V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application, Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet pc. Consult your Sony Semiconductor Solutions Corporation sales representative if you have any questions.

Features

◆Back-illuminated and stacked CMOS image sensor Exmor RS

◆Single Frame High Dynamic Range (HDR) with equivalent full pixels.

◆High signal to noise ratio (SNR).

◆ Various output frame rate from Full resolution @30fps to WVGA @480fps

◆Output video format of RAW10.

◆Pixel binning readout and V sub-sampling function.

◆Independent flipping and mirroring.

◆CSI-2 serial data output (MIPI 2lane/4lane selectable, Max. 2.15Gbps/lane)

◆2-wire serial communication (Supports I2C “Fast-mode” and “Fast-mode Plus”).

◆Two PLLs for independent clock generation for pixel control and data output interface.

◆Dynamic Defect Pixel Correction.

◆Zero shutter lag.

◆29K bit of OTP ROM for users.

◆Dual PD(Photo Diode)

◆Phase difference pixel data output for Phase Detection Auto Focus(PDAF)

Applicaitons

scanners

barcode readers
