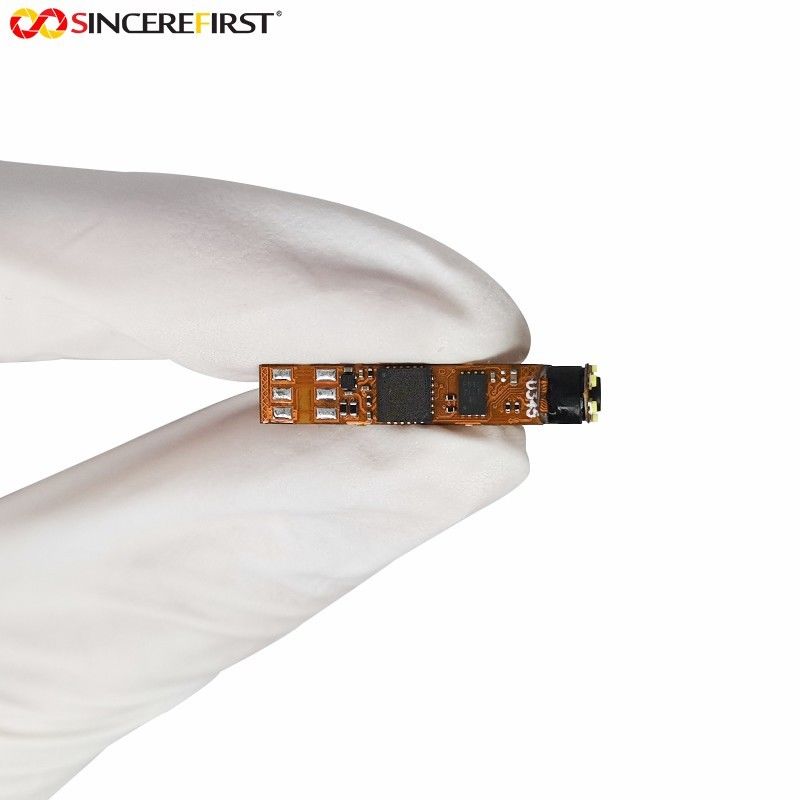

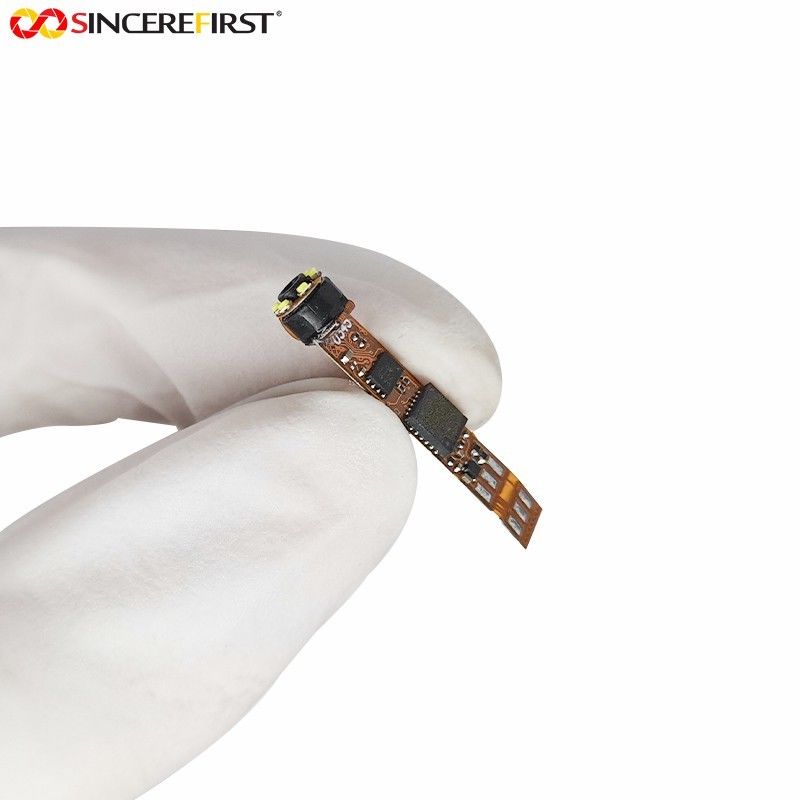

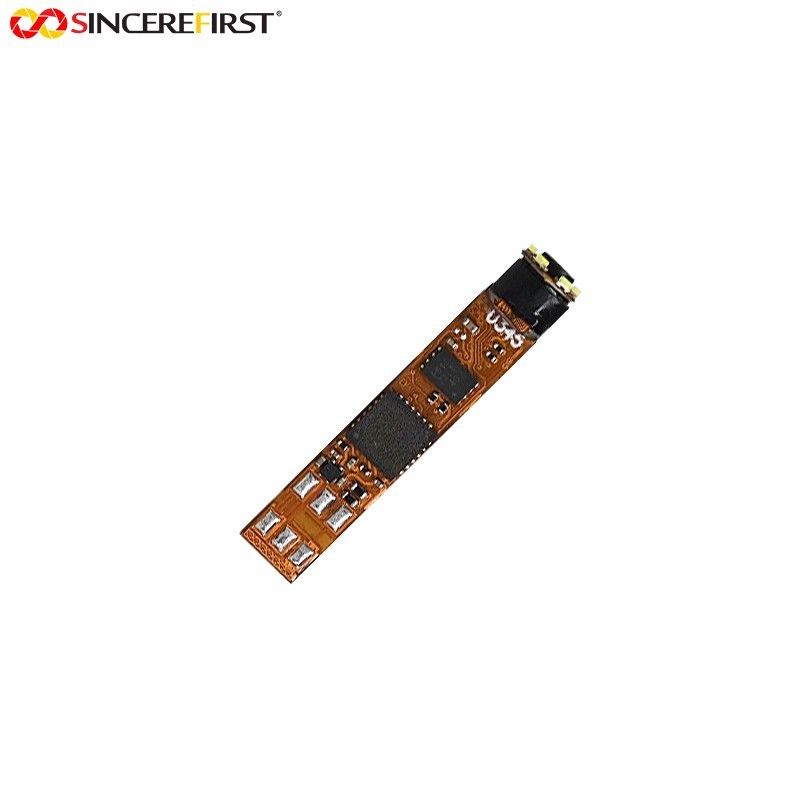

4.5mm Medical Endoscope Camera Module 0.3MP BF20A6 Sensor

0.3MP BF20A6 Gastric Endoscopy 4.5mm Medical Endoscope Camera Module Price

Specificaitons

Description

The BF20A6 is a 1/10-inch VGA CMOS Image Sensor which includes CMOS image sensor (CIS) andISP. It is fabricated with the world’s most advanced CIS process to realize ultra-low dark noise, high sensitivity, high dynamic range and very low power imaging system. The sensor consists of a 640×480 pixel arraywhichhas an optical format of 1/10 inch for VGA. It has integrated noise canceling CDS circuits, analog global gainand separated R/G/B gain controller, automatic black level compensation and on-chip 10-bit ADC. Theon-chip ISP provides a very smoothAE and accurate AWB control. It provides various data formats, suchasBayer RGB, YCbCr 4:2:2. It has a commonly used two-wire serial interface for host to control the operationof
the whole sensor. The product is capable of operating at up to 30 frames per second at 12MHz master clock in VGAmode, with complete user control over image quality and data format. All required image processing functionsarealso programmable through the two-wire serial bus.

Features

◆Standard optical format of 1/10 inch forVGA
◆30 frames/secVGAmode.  Ultra-low dark noise at high temperature.  Ultra-Low power consumption
◆≤70 mW@30fpsVGA
◆≤180 uA@power down
◆Output formats: YUV422/Raw/ OnlyY
◆Power supply: 1.8/ 2.8VforI/O, 2.8V forVDD3A/VDD3D
◆Horizontal /Vertical mirror.

◆Auto black level control.

◆Image processing function: Gamma Correction, Bad Pixel Correction, Color Interpolation, Low Pass Filter, Color Space Conversion, Color Correction, Edge Enhancement, Auto exposure, AutoWhiteBalance, Color Saturation, Contrast, Skin Detection, and Data Format Conversion. Exposurecontrol, Gain control,Test pattern, Image size control, Lens shading,Gamma and so on.

◆Package: CSP

Applicaitons

CellularPhone Cameras
Notebook PC cameras
PDAs
MP4
Digital still cameras and camcorders
Video telephony and conferencing equipment
