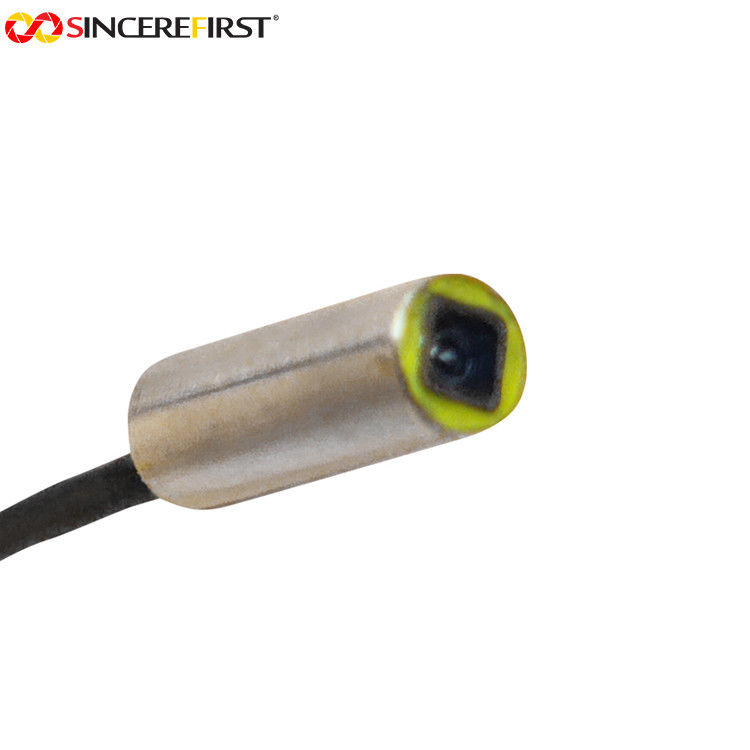

Diameter 1.6mm 400*400 HD USB Medical Endoscope Camera Module
Specificaitons
| Focusing range | 5mm~50mm |
| Output Interface | USB |
| TV Distortion | <-11% @ 0.95Field |
| Sensitivity | 1000mV/Lux-sec |
| Minimum Illuminance | 0 lux(LED On) |
| AGC | on |
| Lens | Fov(DxH)120°*87.5° |
| Light Source | 4pcs Hi-brightnesswhiteLED(Optinal) |
| Power Consumption | Approx ≈ 0.6W |
| Power Supply | 4.8~5.2V |
Description
This endoscope camera modules which have 400*400 resolution, our module image quality is very clear and stable.There are 4 built-in LED lights, you can control them with a scroll button on the cable, you can choose to turn them on or turn them off, and you can control their brightness depending on the light conditions and applications.
Features
◆Module size is very small
◆HD CMOS image sensor
◆High quality images, low power consumption
◆Night vision is supported
◆4 high quality built-in LED lights

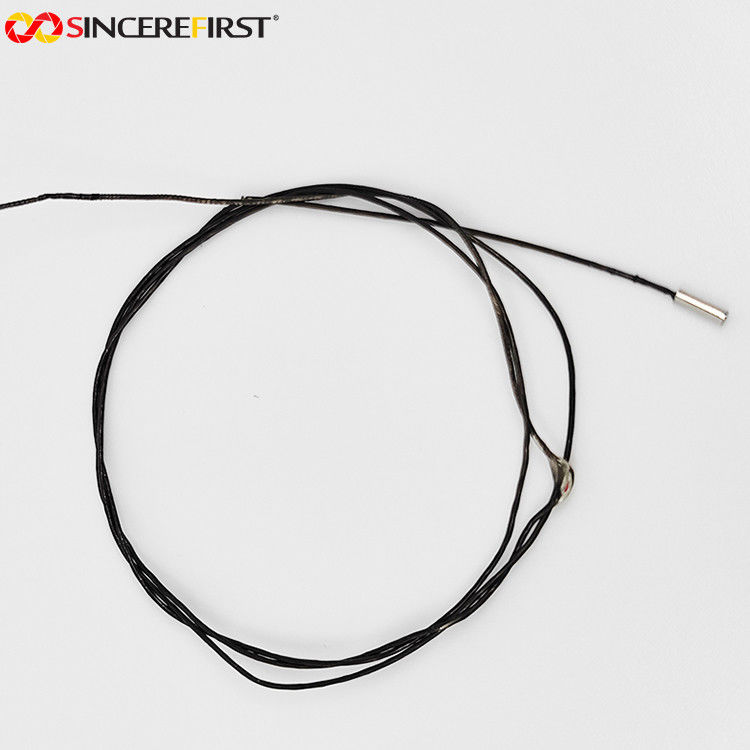

◆2 Meters cable
◆Main board size is 45*14mm
Applicaitons
medical and industrial
medical imaging of the stomach and intestine
