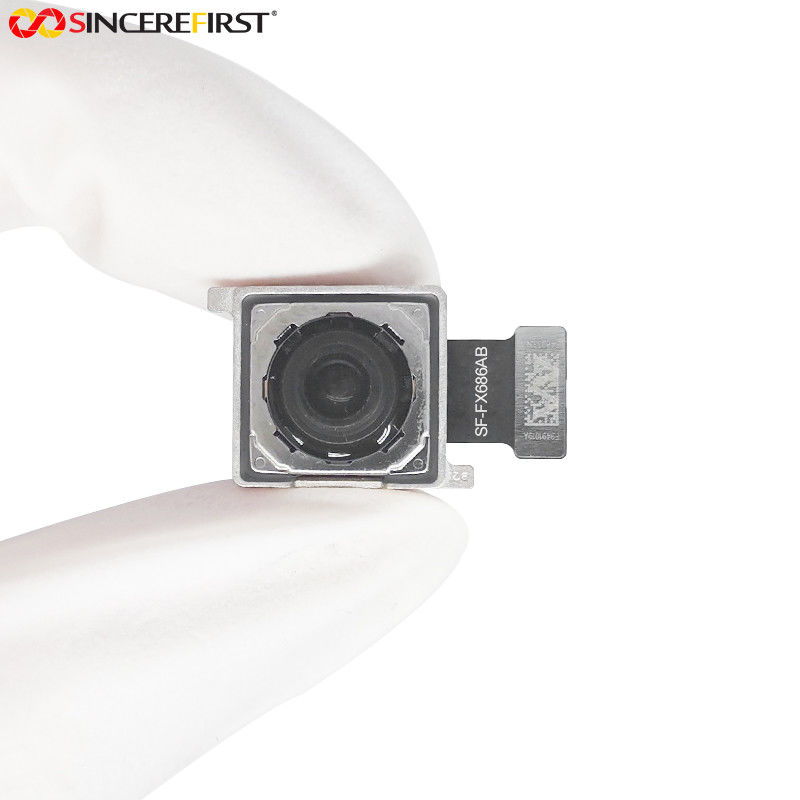

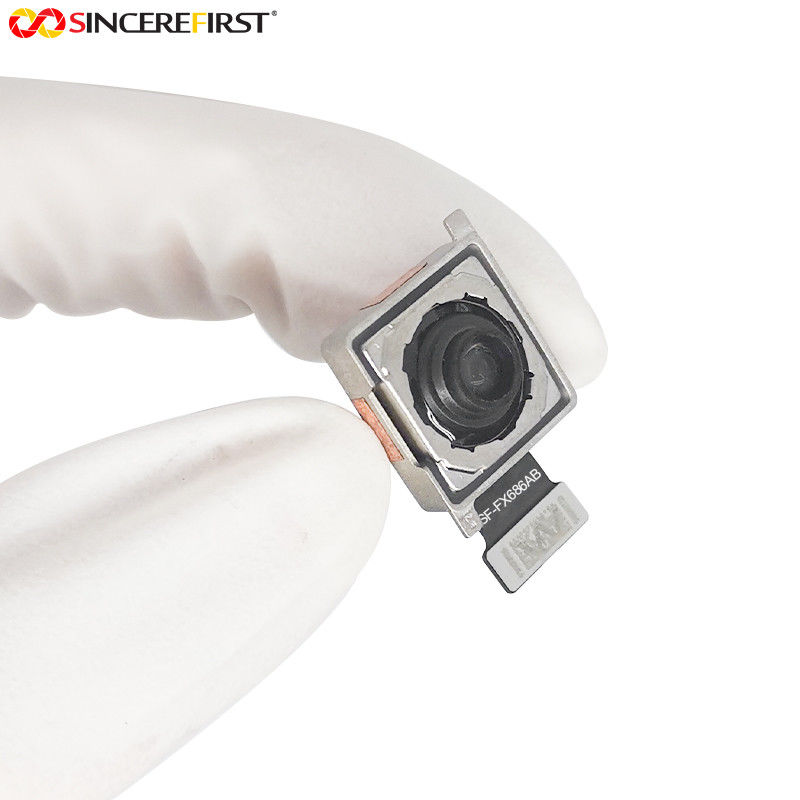

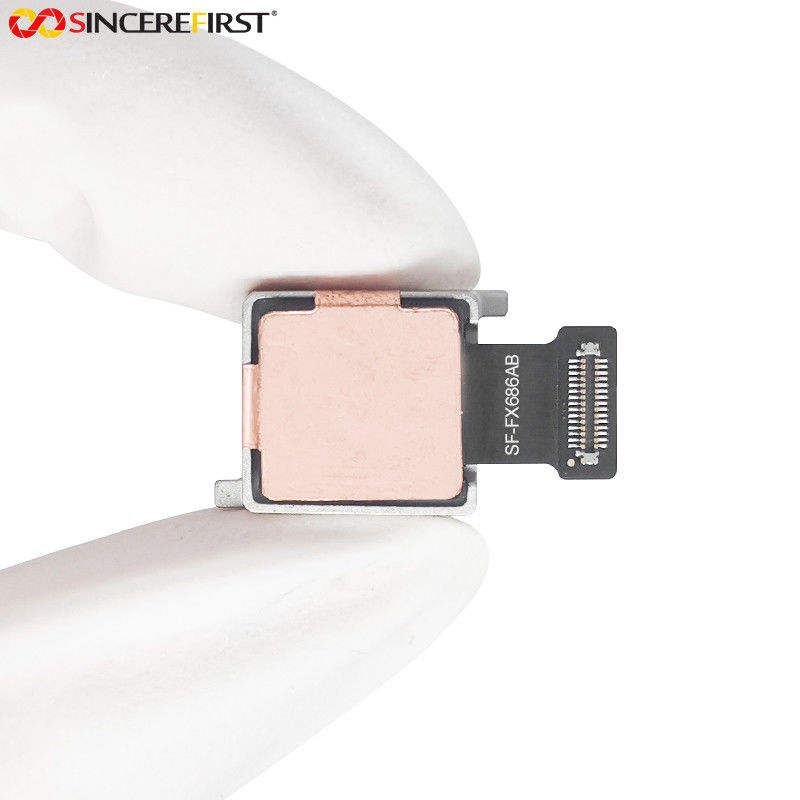

Best Sony IMX686 Automotive Image Camera Sensor Auto Focus Camera Module
Specificaitons
| VCM | DW9800W |
| DVDD | 1.2V |
| Function | Waterproof / Weatherproof |
| Video Compression Format | H.264 |
| VCM | LSDO3-YM |
| Type | Sensor CMOS Camera Module |
| Resolution | 9248 x 6944 |
| DOVDD | 1.8V |
| Data Storage Options | Cloud, Full HD |
| Application | Automotive |
Description
IMX686 is a diagonal 9.251 mm (Type 1/1.73) 64 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Sony's back-illuminated and stacked CMOS image sensor to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It operates with four power supply voltages: analog 2.9 V and 1.8V, digital 1.1 V and 1.8 V for input/output interface and achieves low power consumption. In addition, this product is designed for use in cellular phone and tablet PC. When using this for another application, Sony Semiconductor Solutions Corporation does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet PC. Consult your Sony Semiconductor Solutions Corporation sales representative if you have any questions.
Features
◆Back-illuminated and stacked CMOS image sensor
◆Quad Bayer Coding (QBC) color filter arrangement
◆Phase Detection Auto Focus (PDAF)
◆High Frame Rate
30fps@Full resolution (QBC Re-mosaic)
30fps@QBC-HDR
30fps@V2H2 QBC-HDR
120fps@2x2 Adjacent Pixel Binning (16:9)
240fps@2x2 Adjacent Pixel Binning V2H2(16:9)
◆High signal to noise ratio (SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction (DPC)
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW 10, RAW 8, RAW14(QBC HDR without Local Tone Mapping)
◆QBC Re-mosaic function
◆Super Night Mode
◆QBC HDR function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output
MIPI D-PHY 2lane/4laneMax2.5Gbps/laneD-PHY specver.1.2 compliant
MIPI C-PHY 1/2/3trio.Max 4.5Gsps/TrioC-PHYspecver1.2 compliant
◆2-wire serial communication(SupportsIC"Fast mode"Fastmode Plus" and I3C)
◆5K bit of OTP ROM for users
Applicaitons
industrial, medical, machine vision, for access control, for microscopes, for smart traffic, education, for research and development, for retail, for metrology, for embedded devices, for the automotive industry, agriculture, for UAVs, for electronics, for robotics, for traffic monitoring
