Fixed Focus Raspberry Pi Camera Module 5MP Omnivision OV5640 Resolution
Specificaitons
| Output format | YUV output |
| IR filter | 650nm |
| Basic tolerance | ±0.1mm |
| shutter | rolling shutter / frame exposure |
| dynamic range | 68 dB @ 8x gain |
| max S/N ratio | 36 dB |
| sensitivity | 600 mV/Lux-sec |
| I/O | 1.8V / 2.8V |
| power requirements(active) | 140 mA |
| power requirements(standby) | 20 µA |
Description

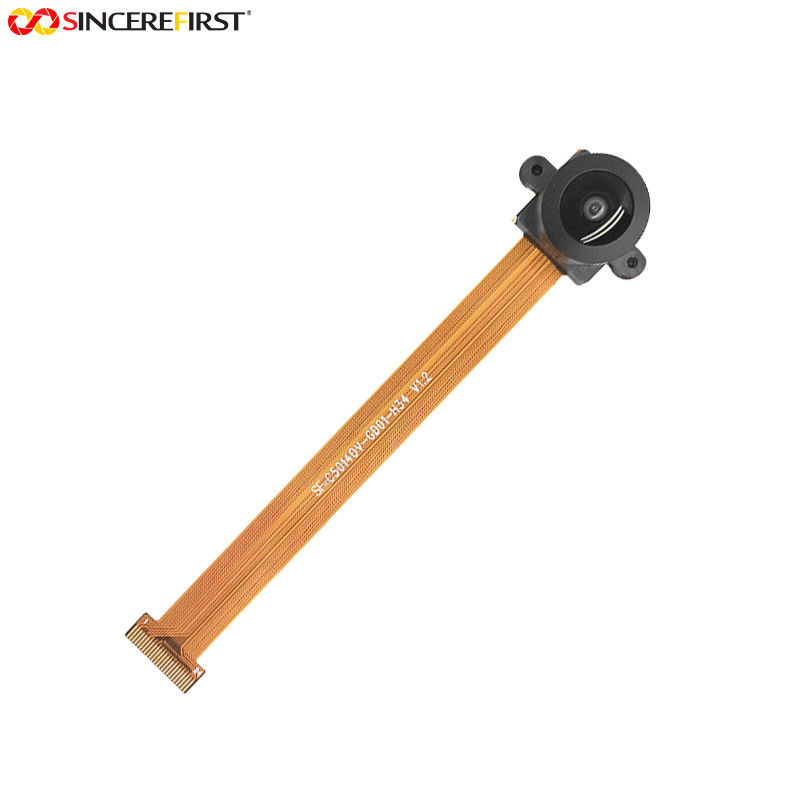

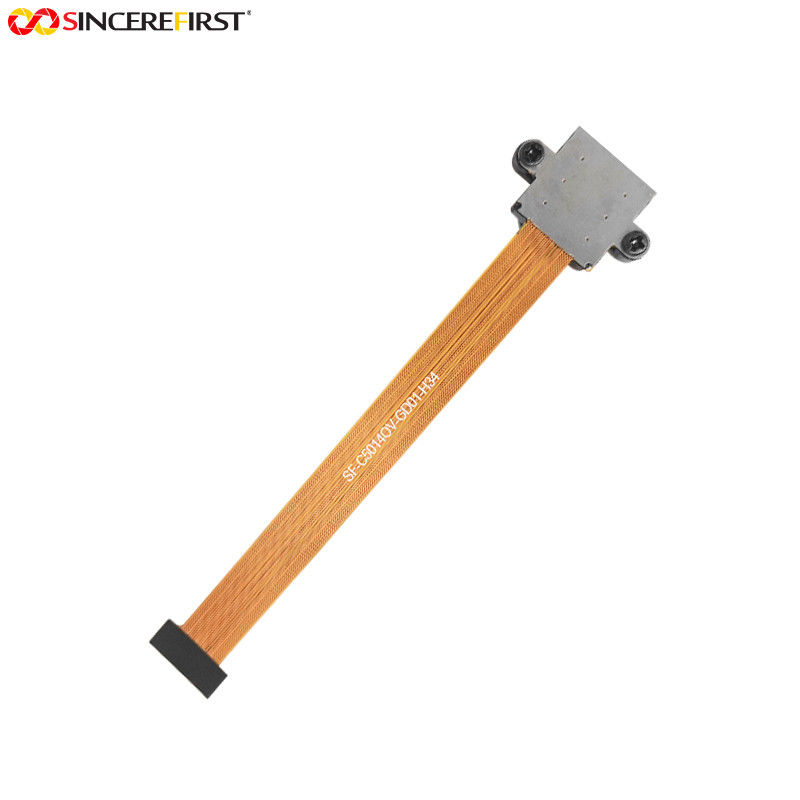

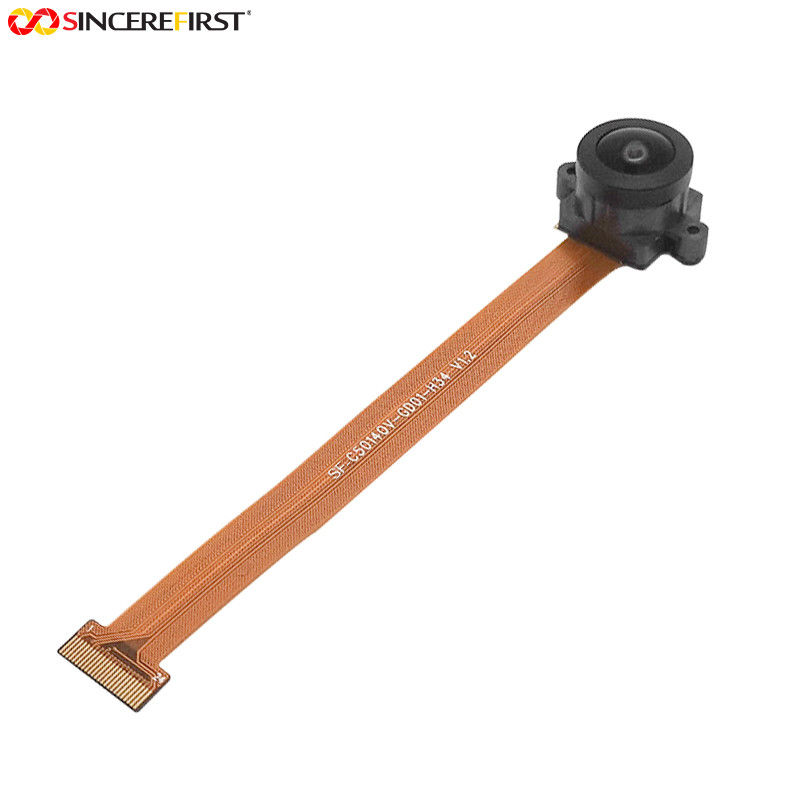

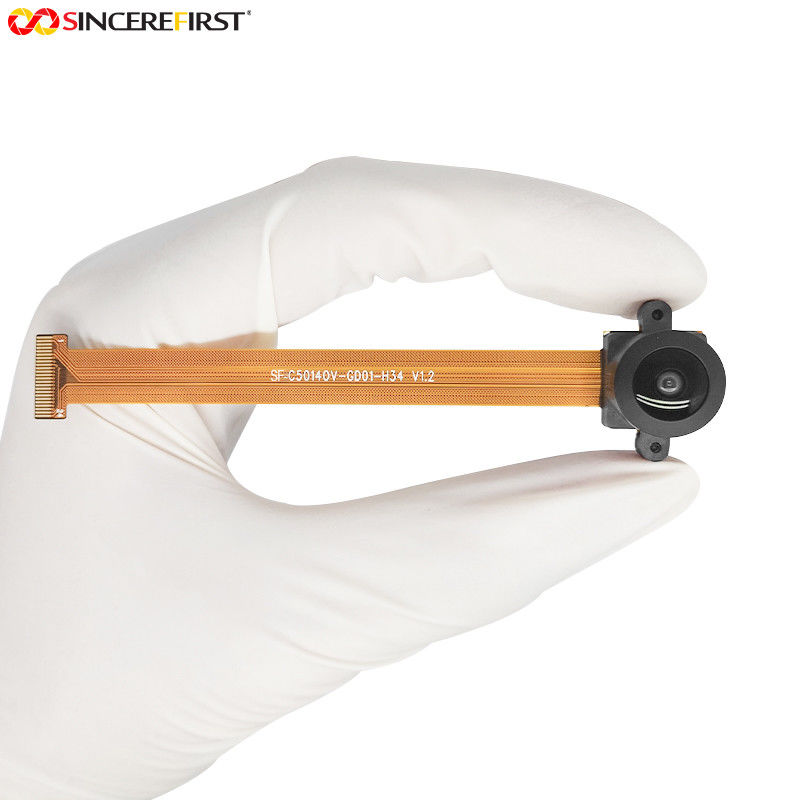

This camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.
Features
◆2592*1944 resolution, high quality image sensor
◆DVP / MIPI interface
◆Electronic rolling shutter
◆Fixed Focus
◆Fully customizable
SCCB control interface for register programming
Applicaitons
Camera for handhelds
Tablets
Biometrics
IRIS Scan
Low VisionElectronic Microscope
Surveillance
OCR readers
