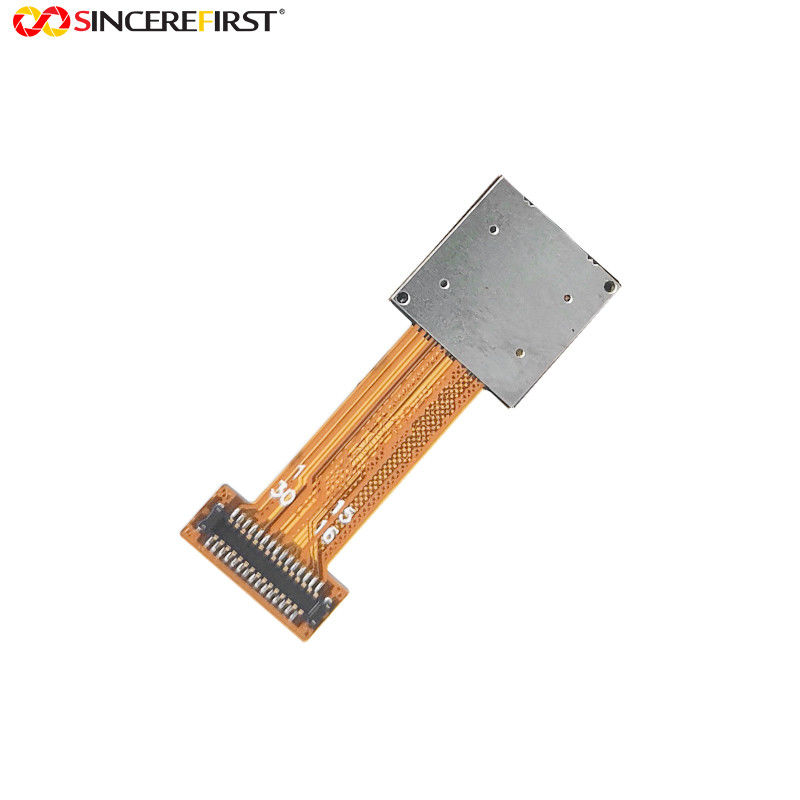

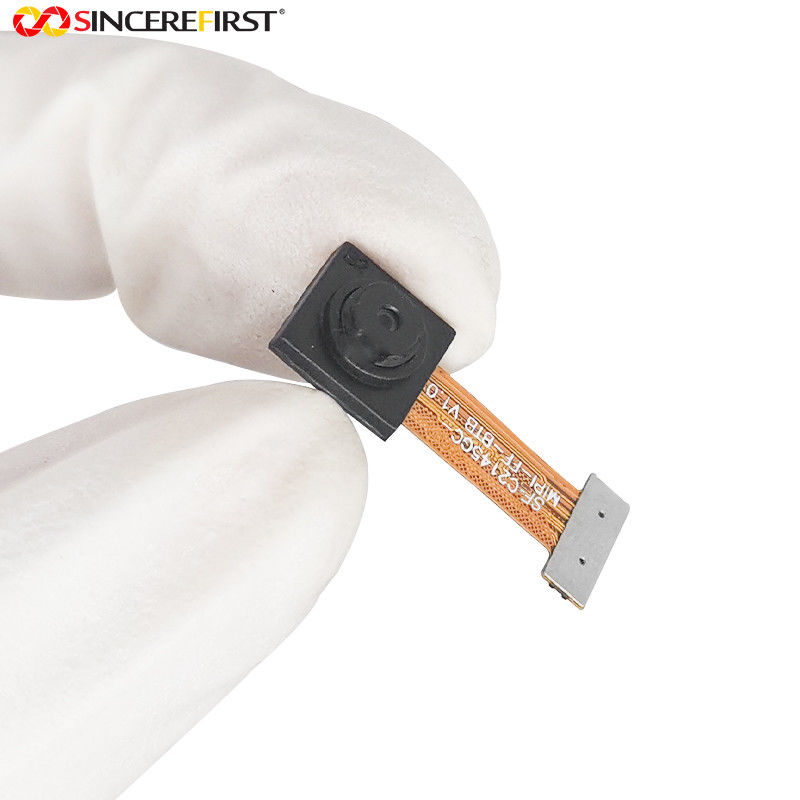

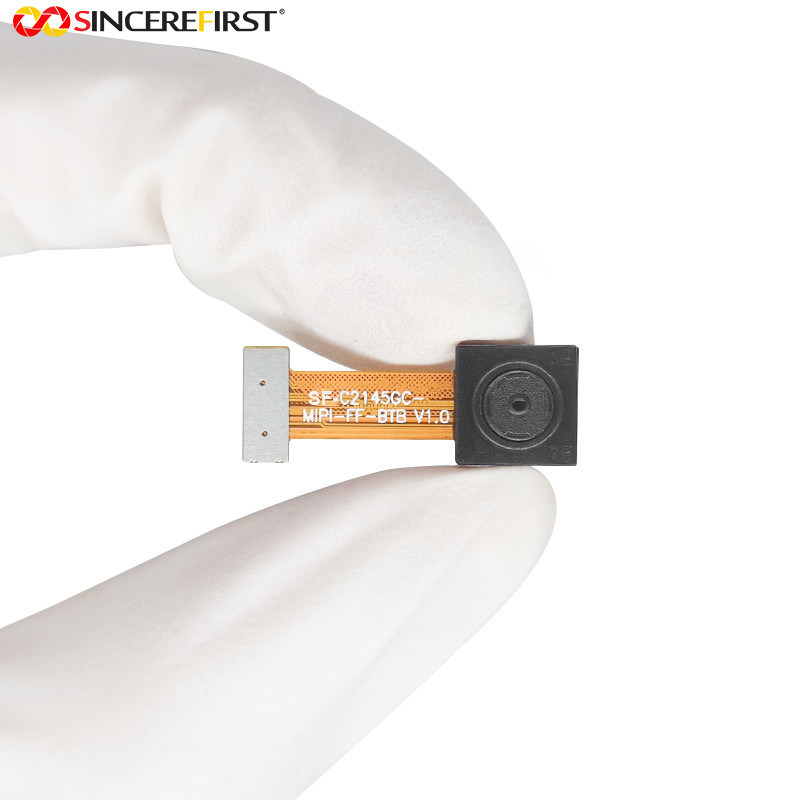

GC2145 is a high quality 2Mega CMOS image sensor, for mobile phone camera applications and digital camera products. GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor. According to different light conditions , The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control .Besides , interpolation, de-noise, and color correction, gamma correction are supported, which can revert the real scene better. The sensor also provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. All sensor parameters and features are controlled through a standard 2-wire serial interface. Internal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator.
Standard optical format of 1/5 inch
Various output formats: YCbCr4:2:2, RGB565,Raw Bayer
Power supply requirement : AVDD: 2.7~3.0V DVDD: 1.7~1.9V IOVDD:1.7~3.0V
PLL support
CORE
Windowing support
MIPI interface support: Single lane Double lane(CSI-2 V1.0/PHY-1.0)
Horizontal /Vertical mirror
Image processing module
Package:CSP/COB/wafer
Digital still cameras and camcorders
Video telephony and conferencing equipment
Security systems

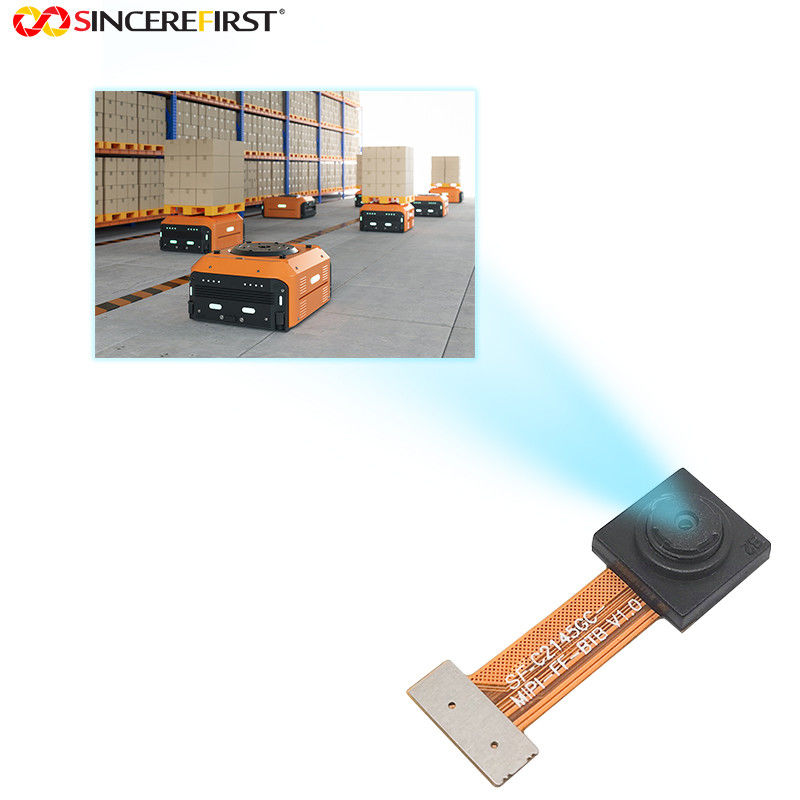

Industrial and environmental systems
