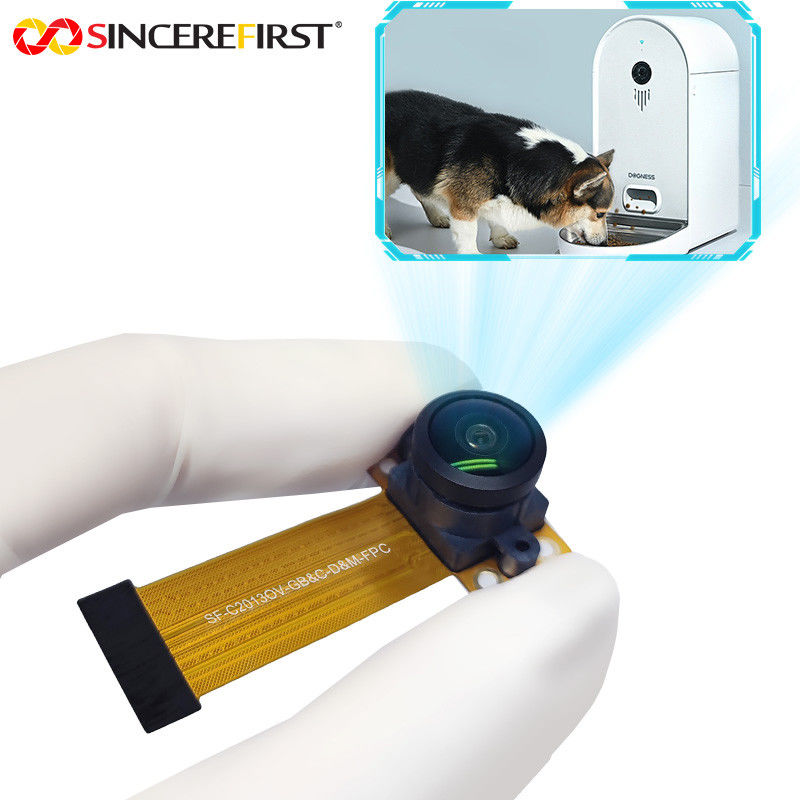

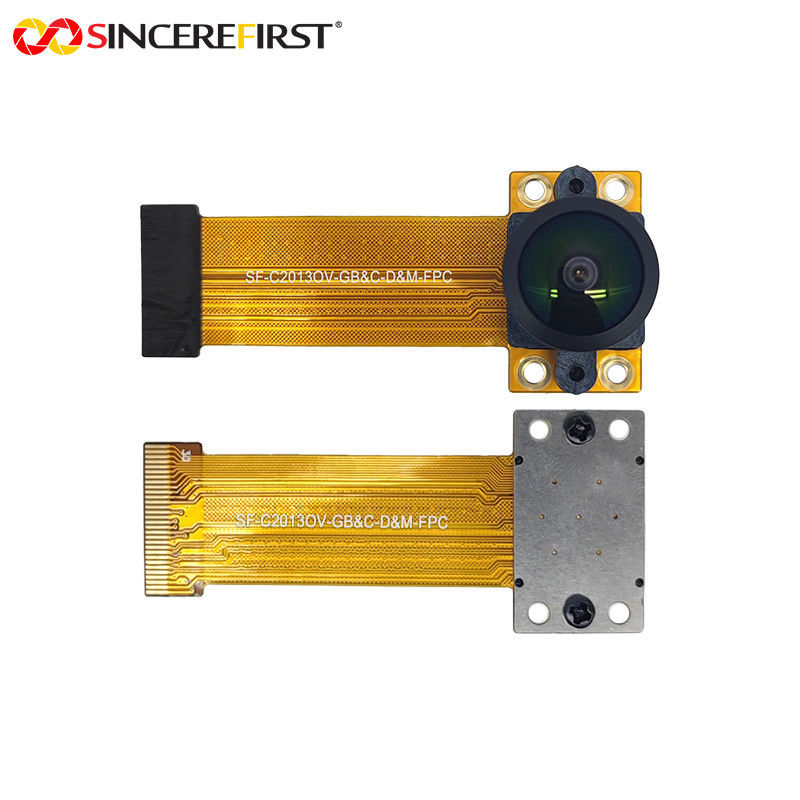

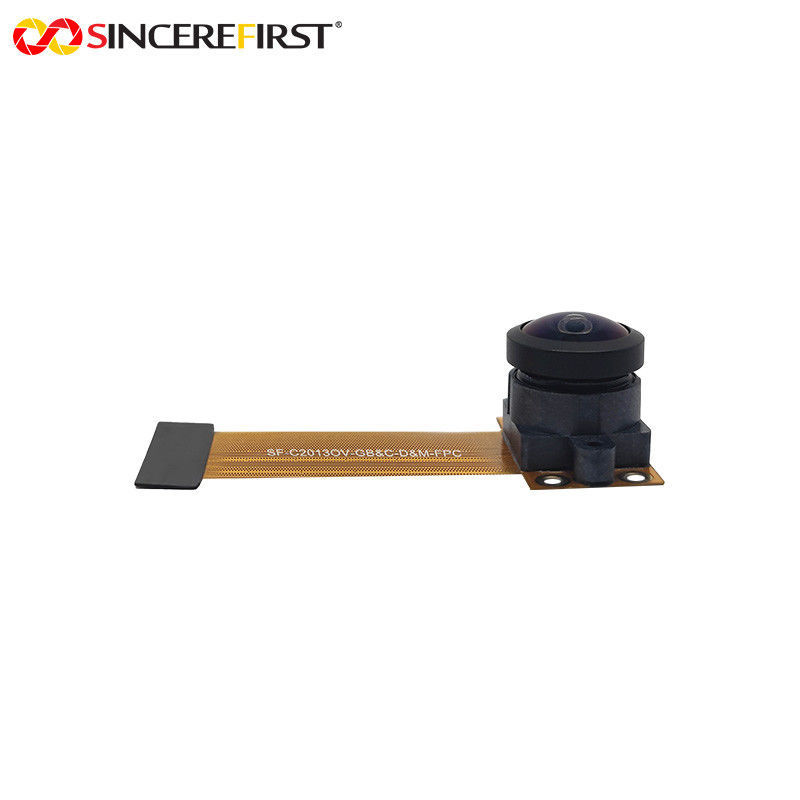

This is used 1/2.9 inch high speed global shutter image sensors Omnivision OG02B10 global shutter MIPI camera module. Auto Focus or Fixed Focus can be supported. The max resolution is 1600×1300@60FPS. Support 2-lane MIPI serial output or DVP parallel output.
This is 2MP global shutter camera module with Omnivision OG02B10 cmos sensor mipi interface.
Multiple application with different lenses. Mainly application for AR/VR headsets and accessories, industrial automation, robotics, machine vision and so on.
◆3 μm x 3 μm pixel with OmniPixel3-GS technology
◆automatic black level calibration(ABLC)
◆programmable controls for frame rate, mirror and flip, cropping and windowing
◆support output formats:8/10-bit RAW
◆fast mode switching
◆supports 2x2 monochrome binning
◆two-lane MIPI serial output interface
◆DVP parallel output interface9. supports horizontal and vertical 2:1monochrome subsampling
◆support for image sizes: 1600 x1300,1280x720, 640 x 480
◆embedded 128 bytes of one-time programmable(OTP) memory
◆two on-chip phase lock loops (PLLs)
◆LED PWM
◆temperature sensor
◆built-in strobe control
| Sensor | 1/2.9’’ OG02B10 |
| Resolution | 1600*1300 |
| FOV(D) | 166° |
| Features | Global Shutter, Wide Angle |
| Focusing Range | 45cm~Infinity |
| Focal Length | 1.96mm |
| TV Distortion | ＜-30% |
| Pinout | 30Pin |
| Focus Range | 10cm-∞ |
| Optical Format Size | 1/2.9″ |
Augmented and virtual reality
Drones
3D imaging
Machine vision
Industrial bar code scanning
Industrial automation
