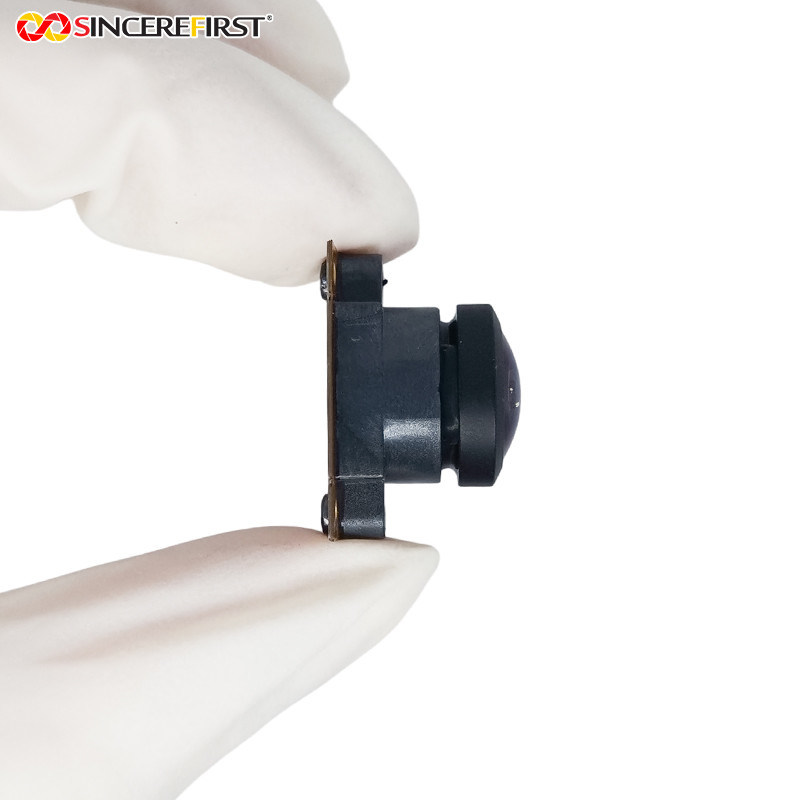

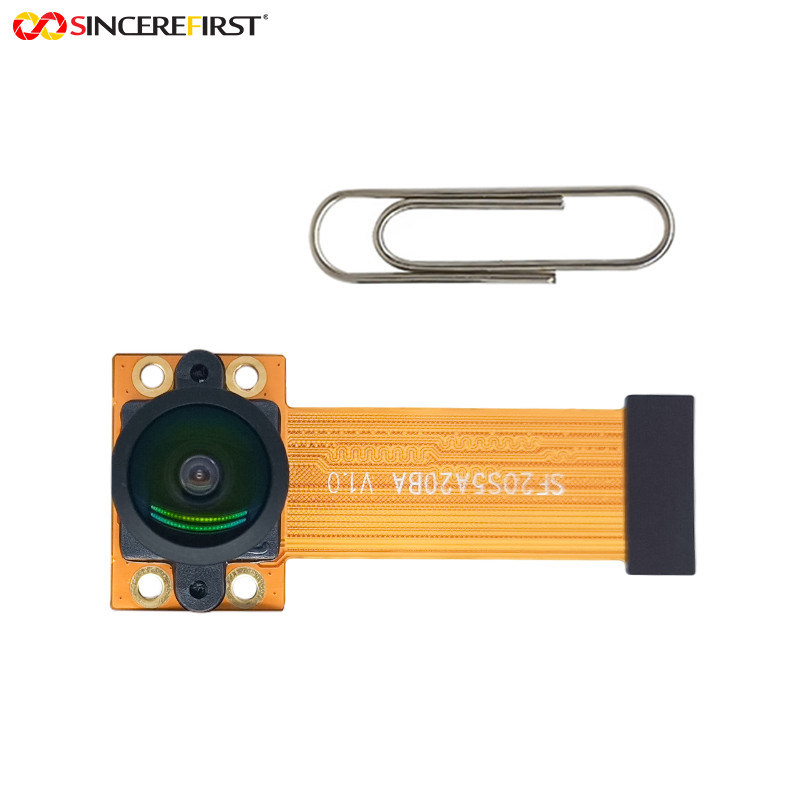

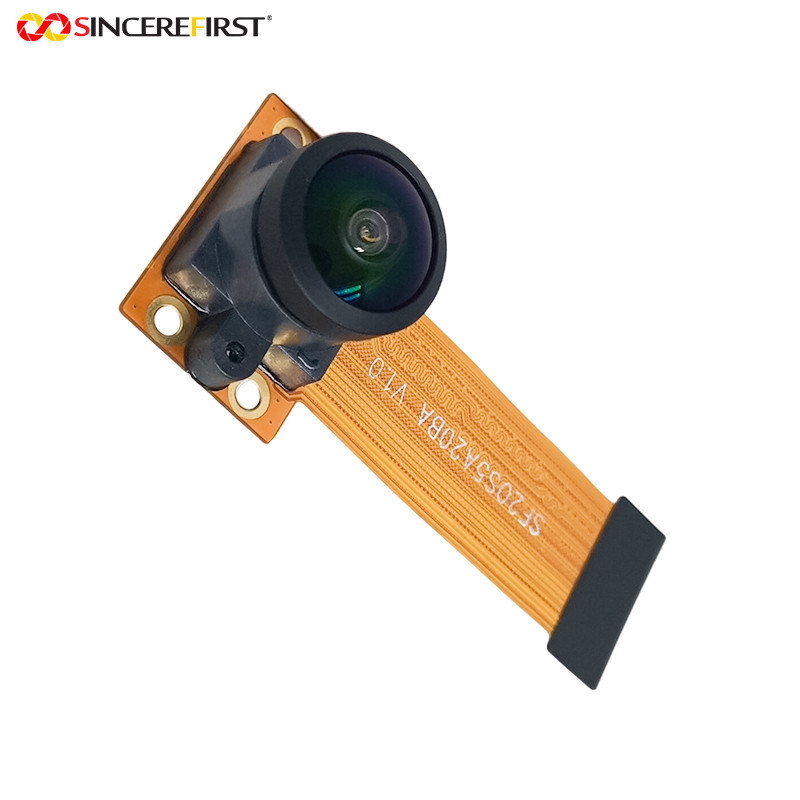

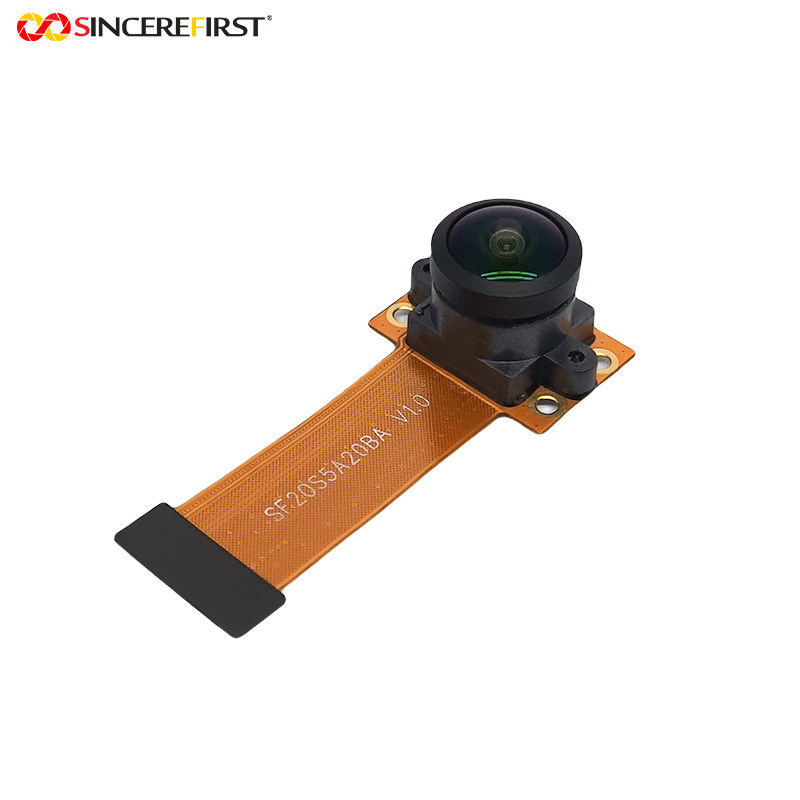

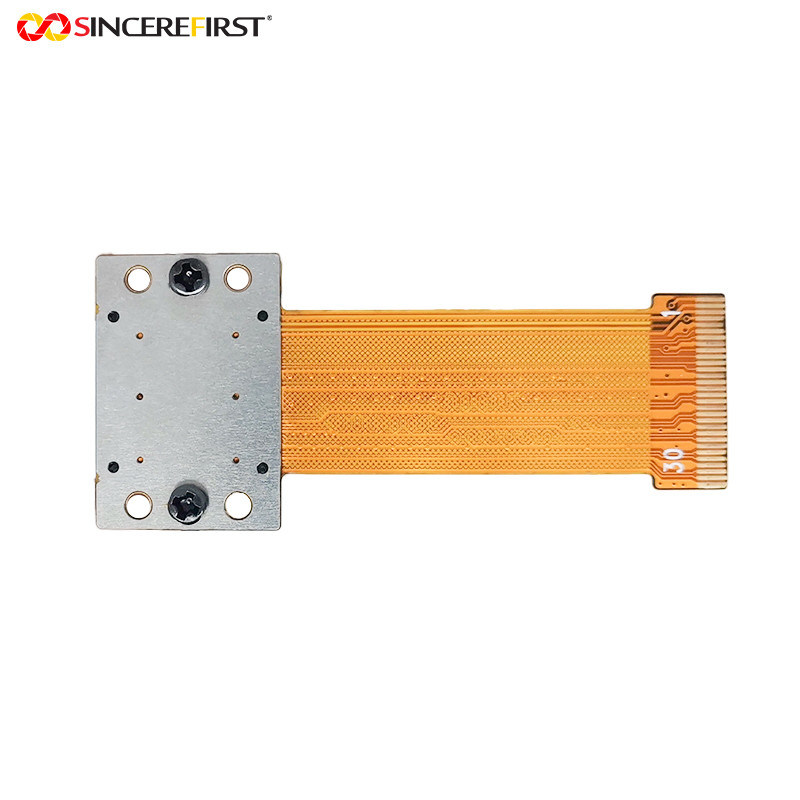

This OS05A20 CMOS Sensor 5MP HD Image MIPI CSI-2 Interface Wide Angle and Fixed Focus Camera Module,is a camera module based on the OS05A20 sensor, specially designed for large-field, medium-to-long distance embedded machine vision scenarios, providing RAW high-definition digital image output. Its 175° diagonal ultra-wide angle (D175°/H157°/V96°) covers an extremely wide field of view with minimal blind spots, ideal for capturing large-scale scenes. With 5MP resolution (2688×1944), it delivers strong detail performance, meeting medium-to-high precision recognition needs. Equipped with a MIPI CSI-2 interface (10/12bit RAW), it enables high-speed digital parallel transmission with sufficient bandwidth and low latency, perfectly adapting to embedded main controllers. The fixed focus design supports 30cm to infinity, realizing maintenance-free operation for medium-to-long distance use, with stable installation and simple maintenance. It adopts a 2G+4P+IR lens (EFL:1.96mm), M12 interface and FH12 connector, supports 2.8V AVDD power supply, complies with RoHS and Reach standards, and balances wide field of view, high definition and easy integration, perfectly fitting various embedded machine vision and wide-angle imaging scenarios.
1. 175° Ultra-Wide Angle: 175° diagonal field of view, ultra-wide coverage with minimal blind spots for large-scale scene capture.
2. 5MP HD Resolution: 2688×1944 output, strong detail performance for medium-to-high precision recognition.
3. MIPI High-Speed Interface: Digital parallel transmission, sufficient bandwidth and low latency, adapting to embedded main controllers.
4. 30cm~∞ Fixed Focus: Maintenance-free for medium-to-long distance, stable installation and simple maintenance.
| Sensor | OS05A20 |
| Focus Range | 30cm-∞ |
| EFL | 30fps |
| F. NO | 1.8 |
| Distortion | <-30% |
| View Angle | D175°,H157°,V96° |
| Lens Type | 1/2.7'' |
| Pixel Array | 2688*1944 |
| Lens Elements | 2G+4P+ 1IR |
| Certification | Rohs, Reach, ISO |
| Brand | SincereFirst |
1. Wide-Angle Machine Vision: Can be used for large-scale production line monitoring and warehouse panoramic recording, thanks to its ultra-wide angle.
2. Embedded Intelligent Devices: Can serve as a wide-angle vision module for robots and intelligent terminals with its MIPI interface and easy integration.
3. Panoramic Monitoring Acquisition: Can be used for wide-angle imaging of entrances, passages and parks with its 175° large field of view.
4. Automotive/Surround View Imaging: Can be used for large-field recording around the vehicle and inside the car, utilizing its ultra-wide coverage.
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
