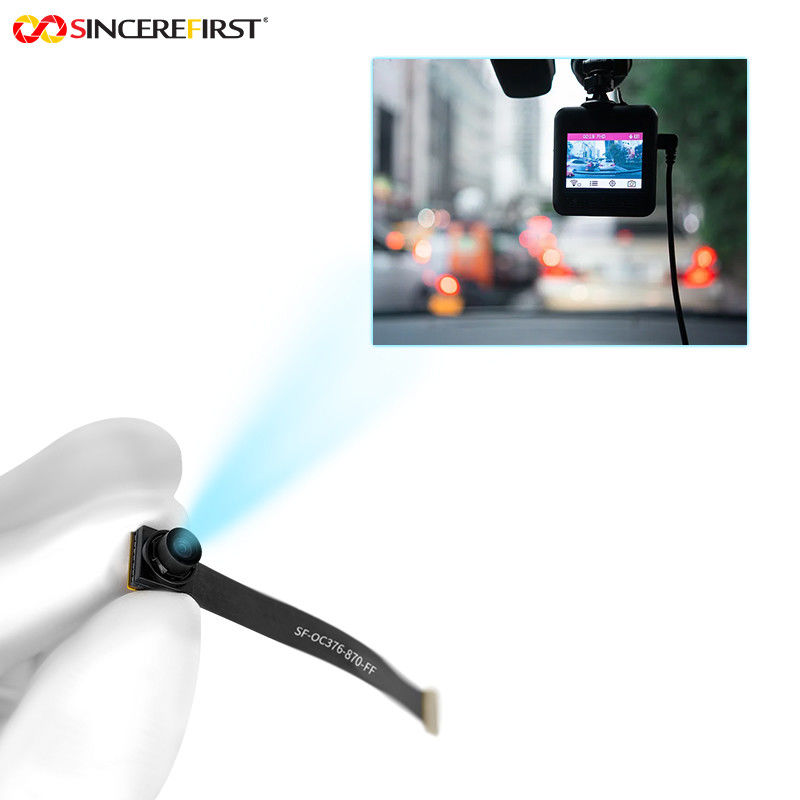

The IMX376 camera module adopts a 20 megapixel photosensitive element, with a single pixel size of 1 micron and a photosensitive element size of 1/2.8 inch. By using a special "RGB" pixel arrangement, every 4 pixels are merged into one pixel for sensitivity, making the IMX376's sensitivity more than 300% higher than typical sensors, ensuring higher imaging quality in complex lighting conditions. The IMX376 image sensor is widely used in fields such as cameras, security monitoring, autonomous driving, and machine vision.
1. Back-illuminated and stacked CMOS image sensor Exmor RS
2. High Frame Rate 30fps@Full resolution / 120fps@2x2 Adjacent Pixel Binning (4:3) / 150fps@2x2 Adjacent Pixel Binning (16:9)
3. Electronic Image Stabilization (EIS)
4. High signal to noise ratio(SNR)
5. Dual sensor synchronization operation
6. Built-in 2D Dynamic Defect Pixel Correction
7. Lens Shading Correction (LSC)
8. Built-in temperature sensor
9. Output video format of RAW10/8,COMP8
10. Pixel binning readout function
11. Two PLLs for independent clock generation for pixel control and data output interface
12. CSI-2 serial data output (MIPI 2lane/4lane,Max.2.3Gbps/lane,D-PHY spec. ver. 1.2 compliant)
13. 2-wire serial communication
14. Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
15. 12K bit of OTP ROM for users
16. Quad Bayer Coding color filter arrangement

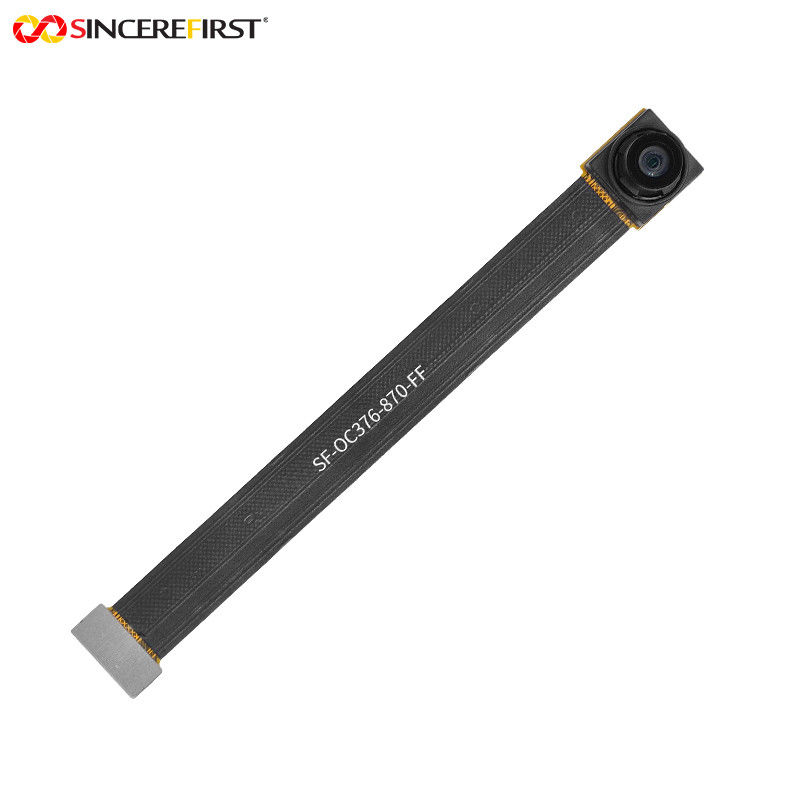

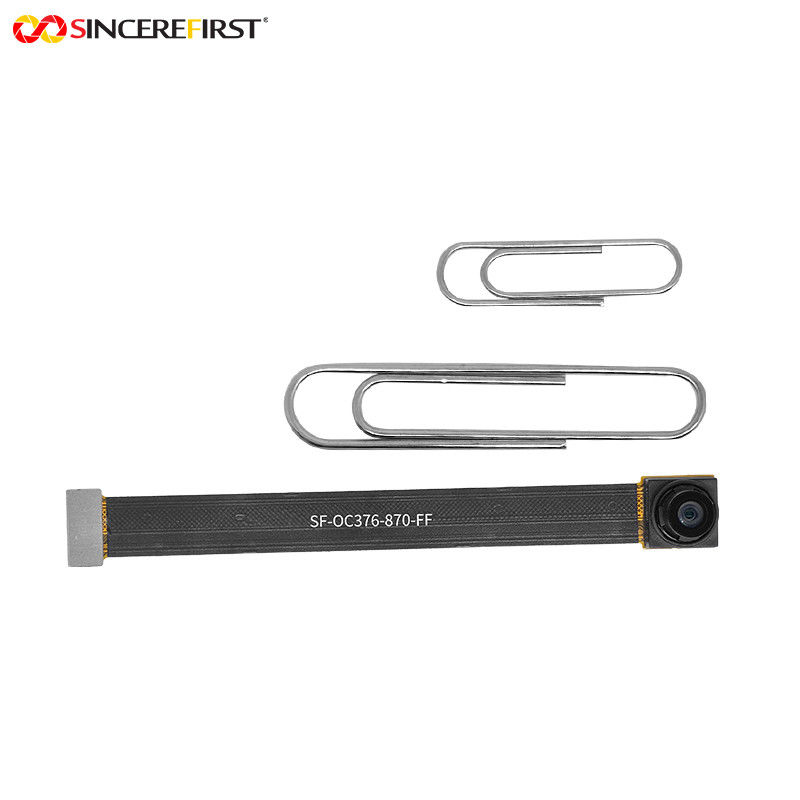

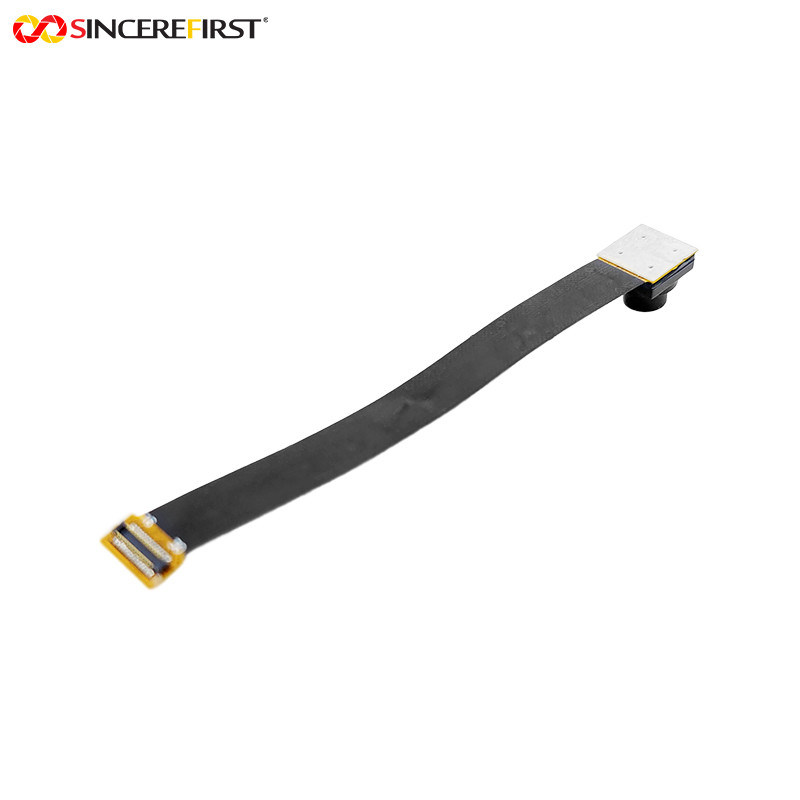

| Product Name | FPC Camera Module |
| Pixel | 20MP |
| Image Sensor | IMX376 |
| Interface | MIPI |
| Sensor Type | CMOS |
| View Angle | 117.3° |
| Distortion | ＜9.6% |
| Lens Size | 1/2.8inch |
| Focusing Range | 20cm-0.6m |
| F.NO | 2.2 |
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
