MIPI 4K SONY IMX989 Image Sensor Micro Camera Module

MIPI 4K SONY IMX989 Image Sensor Micro Camera Module

Product Description:

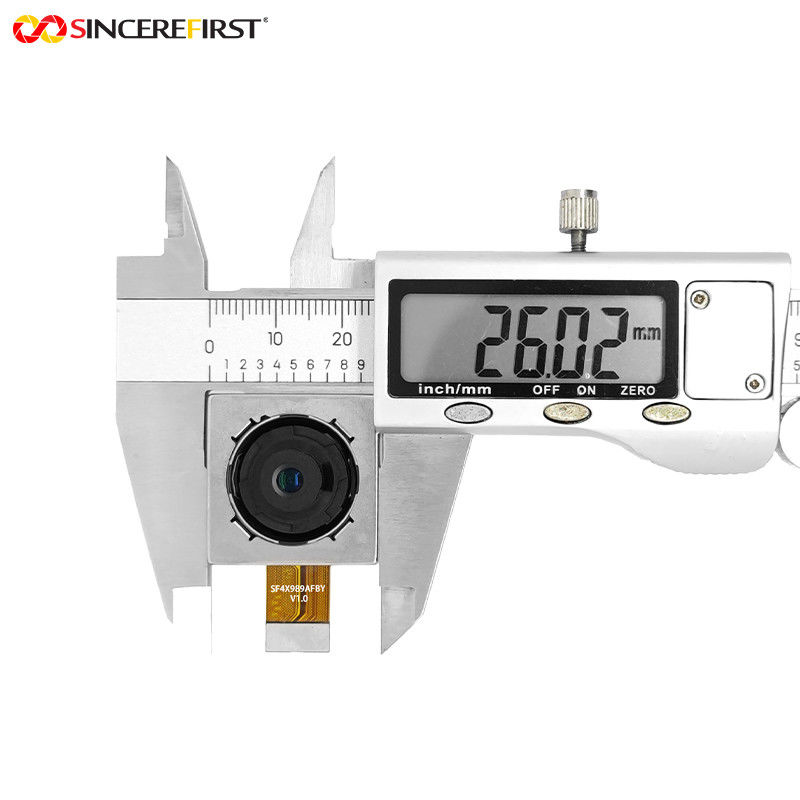

The MIPI 4K SONY IMX989 image sensor micro camera module adopts a large-sized 1/0.98-inch image sensor, supports ultra-high resolution shooting up to 50MP pixels, and can output 4K high-quality images. Equipped with an f/2.0 large aperture design, it significantly increases the amount of light entering in low-light conditions. Combined with an 8P+IR lens group and autofocus function, it ensures clear and sharp images. Its compact module size (26×26×9.4mm) and MIPI interface make it easy to integrate into various smart devices.

Features:

1. Ultra-High Resolution: With a 50MP pixel output capability, it can capture extremely delicate details, meeting the needs of professional photography and high-definition post-processing.
   2. Advantages of Large Aperture: The f/2.0 aperture significantly enhances low-light performance. Combined with a 1/0.98-inch large sensor, it achieves excellent low-light imaging results.
   3. Outstanding Optical Performance: The 8P lens group and IR filter (650nm) effectively suppress Distortion (TV Distortion < -1%) and stray light, and the 98° wide viewing Angle covers the shooting needs of multiple scenes.
   4. High-Efficiency Focusing: Supports an autofocus range from 10cm to infinity, with rapid and accurate response.

Technical Parameters:

Applications:

Archaeological Scan: 50MP macro capture details of artifacts, f/2.0 aperture for undamaged low-light recording.
Deep Sea Observation: Wide-angle and large aperture adapted submersible for tracking hot spring life.
Aerospace inspection: High-Resolution identification of cracks in solar panels, low distortion assisted robotic arm operation.
Aurora Research: Large aperture for capturing low-light aurora dynamics, 98° wide-angle for covering transient phenomena in the sky.
Industrial flaw detection: Macro mode detection of metal fatigue cracks, TV distortion < -1% to ensure measurement accuracy.
Entomology: 10cm close-range tracking of compound eye movement in insects, 4K video recording of group interaction.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
