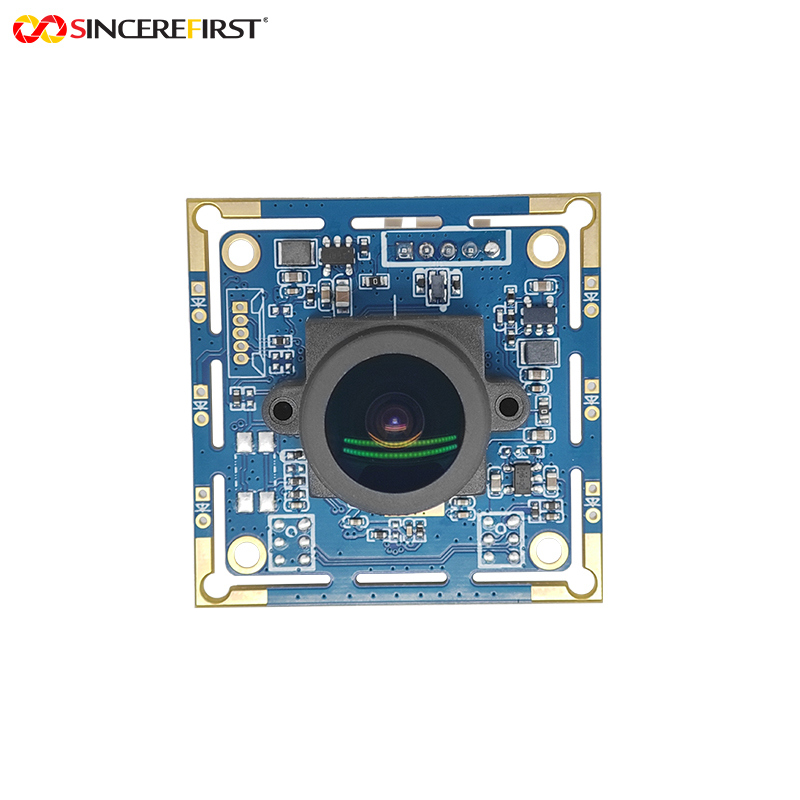

This is a 100FPS High-Frame-Rate Global Shutter Monochrome Sensor Industrial Camera Module, a professional-grade USB camera module designed for high-speed dynamic imaging needs. It is equipped with a CMOS monochrome image sensor, featuring 2MP effective pixels and capable of stably outputting high-definition, high-frame-rate images at 1080P resolution and 100FPS, providing hardware support for capturing details in fast-changing scenarios. In terms of sensor specifications, it adopts a 1/2.6-inch size design, paired with a large pixel size of 3μm×3μm to optimize the light-receiving efficiency of individual pixels; it also has a built-in global shutter technology to solve the motion blur issue in imaging of fast-moving objects at the hardware level. The output formats cover two mainstream types: MJPG and YUY2, which can be flexibly switched according to transmission bandwidth and image quality requirements—MJPG format is suitable for scenarios pursuing high frame rates, while YUY2 format is applicable for scenarios with higher requirements for color reproduction. The focusing system uses a manual adjustment mode, with a wide focus range from 1cm to infinity, which can not only meet close-range microscopic dynamic shooting but also adapt to long-distance high-speed scene recording; the manual focusing design can also avoid false triggers of auto-focus in complex dynamic environments, ensuring precise control of the focusing position. In terms of the interface, it uses a USB 4Pin-2.0mm terminal, supports USB 2.0 transmission speed, and can meet the real-time transmission needs of 1080P@100FPS images; it is also compatible with the UVC universal video protocol, allowing direct adaptation to mainstream operating systems such as Windows, Linux, and macOS without additional driver installation, lowering the usage threshold. The overall size of the module is controlled at a compact 38mm×38mm, facilitating embedding into various small devices or integrated systems; the production process adopts SMT (ROHS) environmental protection process and AA (Active Alignment) process—the former ensures the product complies with EU environmental standards, while the latter guarantees precise alignment between the lens and the sensor to stabilize imaging quality; in addition, the product has passed multiple international authoritative tests and certifications such as FCC, CE, Reach, and RoSH, meeting the compliance requirements for use in different regions.
1. High-Speed Dynamic Capture Without Motion Blur: The 1080P@100FPS frame rate is more than 3 times faster than that of conventional modules, avoiding "frame skipping" in imaging of fast-moving objects; the global shutter realizes simultaneous exposure of the entire frame, completely eliminating "distortion blur" caused by rolling shutters, and achieving high restoration of transient details.
2. High Frame Rate & Low Noise in Low-Light Environments: The 3μm×3μm large pixels combined with the no-filter light loss feature of the monochrome sensor enable the module to still maintain 1080P@100FPS output in low-light environments, with significantly reduced noise, eliminating the need to lower the frame rate to maintain image quality.

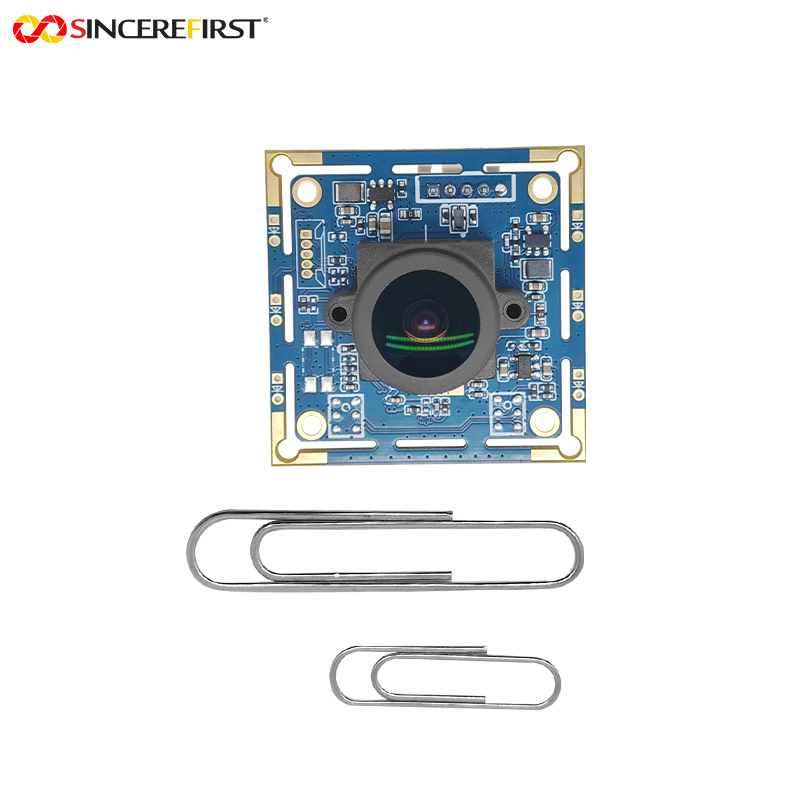

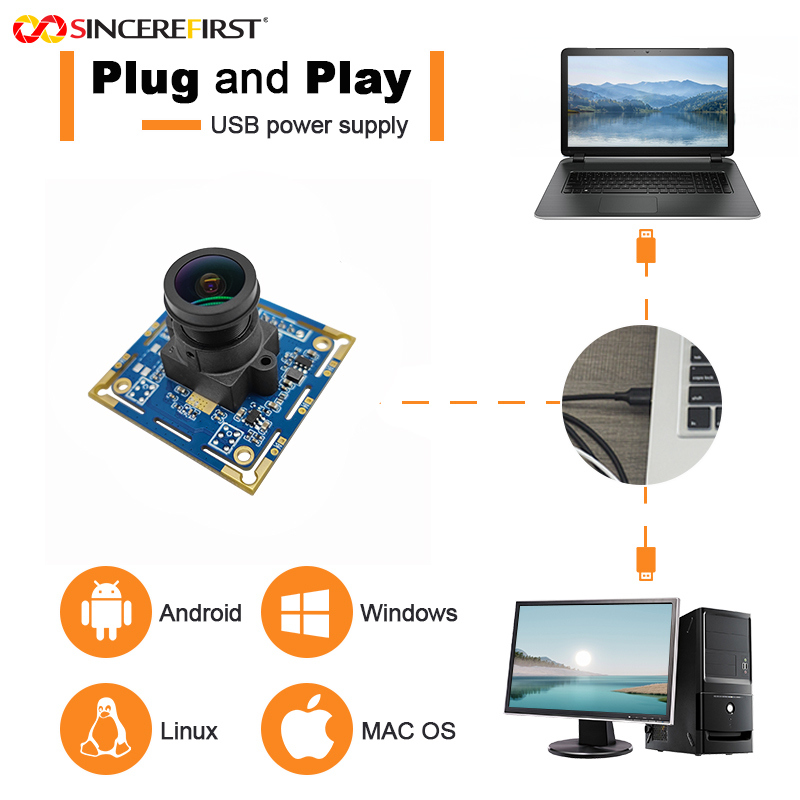

3. Flexible Adaptation & High Reliability: The UVC protocol supports plug-and-play, and the compact 38mm×38mm size allows easy integration; the SMT (ROHS) process and AA process ensure stability, and multiple certifications avoid cross-regional compliance risks.
| Product Name |
Machine Vision Camera Module |
|
Sensor |
Monochrome CMOS Sensor |
| Piexl | 2MP |
|
Focusing Range |
1cm~Infinity |
|
Output Interface |
USB2.0, USB 4Pin |
|
Sensor Size |
1/2.6 Inch |
|
Keywords |
Full HD 2MP Camera Module |
|
Warranty |
10 Years |
|
Pixel Size |
3μm |
|
Brand Name |
SINCEREFIRST |
High-Speed Material Sorting: Suitable for automated production lines, it captures fast-moving materials on conveyor belts in real time with high frame rates, and the global shutter eliminates motion blur, assisting robotic arms in precise grabbing to improve sorting efficiency and accuracy.
Motion Capture: Used in sports training or rehabilitation medicine, it records transient details of human movements with high frame rates without imaging distortion, facilitating slow-motion playback analysis to optimize plans.
Online Print Quality Inspection: Matched with high-speed printing machine inspection systems, it quickly captures moving printed patterns, eliminates motion blur, and identifies defects such as missing prints and color registration deviations in real time to reduce defective products.
Microscopic Traffic Flow Monitoring: Monitors urban roads/highway traffic, captures dynamic details of vehicle tires and license plates with high frame rates, eliminates motion blur, and assists in analyzing vehicle status and identifying violations.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
