OMNIVISION’s OG02B1B (monochrome) and OG02B10 (color) are global shutter image sensors designed to cost-effectively enable a wide range of consumer and industrial machine vision applications such as AR/VR headsets and accessories, industrial automation, robotics, agricultural drones and 3D modeling. These sensors provide designers with best-in-class resolution and the option for full-color imaging, and both have a 15 degree chief ray angle (CRA) to support wide field-of-view lens designs. This combination of color imaging and CRA is excellent for applications such as agricultural drones that must capture high-resolution color images for crop and field monitoring.
Available in a 1/2.9 inch optical format, the OG02B1B and OG02B10 capture 2 megapixel or 1600 x 1300 resolution images and video at 60 frames per second (fps) using advanced 3 x 3 micron OmniPixel®3-GS pixel technology. This global shutter technology eliminates motion artifacts and blurring, and dramatically improves low-light sensitivity. Additionally, both sensors’ excellent near infrared (NIR) sensitivity at 850 nm and 940 nm helps reduce device power consumption to extend battery life.
OMNIVISION Announces Cost-Effective, High-Resolution Global Shutter Image Sensors for Machine Vision Applications.
3 µm x 3 µm pixel with OmniPixel®3-GS technology
Automatic black level calibration (ABLC)
Programmable controls for:
– Frame rate
– Mirror and flip
– Cropping
– Windowing
Support output formats: 8/10-bit RAW
Fast mode switching
Supports 2×2 monochrome binning
Two-lane MIPI serial output interface
DVP parallel output interface
Supports horizontal and vertical 2:1 monochrome subsampling
Support for image sizes:
– 1600 x 1300
– 1280 x 720
– 640 x 480
Embedded 128 bytes of one-time programmable (OTP) memory
Two on-chip phase lock loops (PLLs)
LED PWM
Temperature sensor
Built-in strobe control

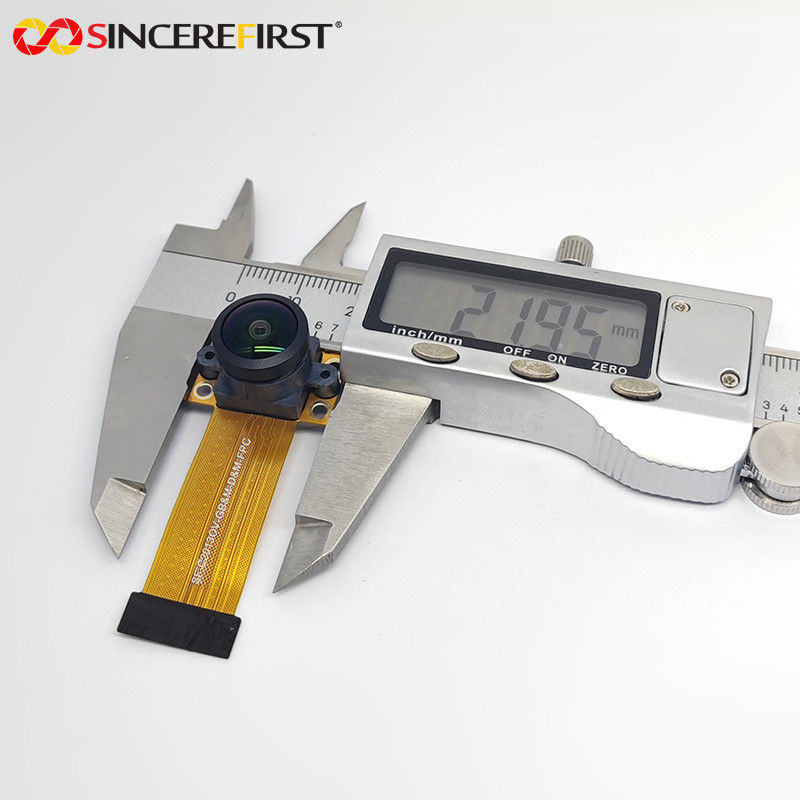

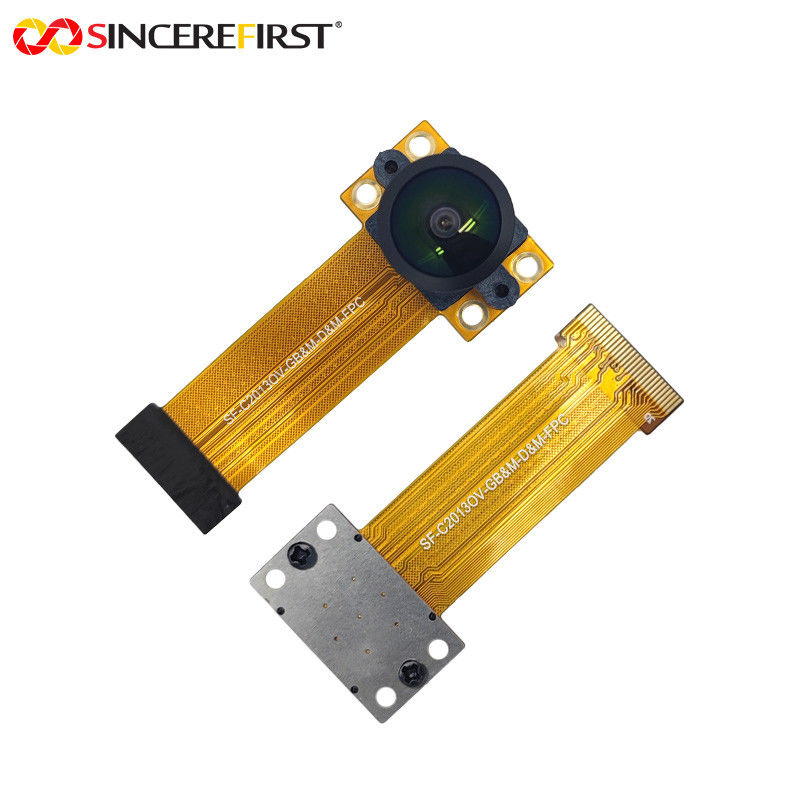

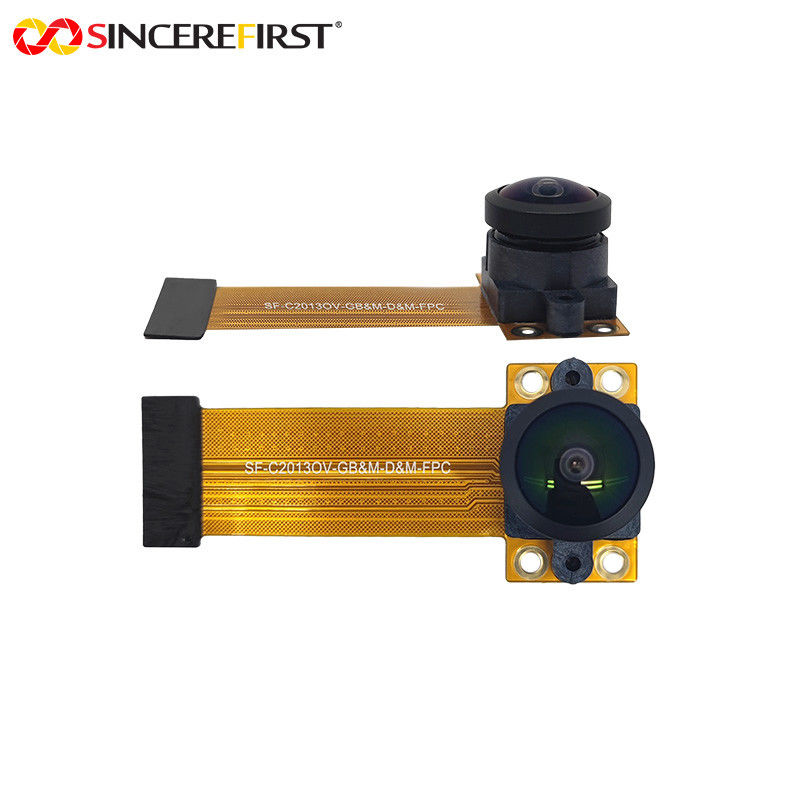

| Attribute | Value |
|---|---|
| Sensor Size | 1/2.9" |
| Image Sensor | OG02B1B |
| View Angle | 166°*149°*90° |
| Certification | Rohs, Reach, ISO |
| F. NO | 1.8 |
| Distortion | <-30% |
| Pinout | 30pin |
| Focus Range | 45cm-∞ |
| Shutter Type | Global Shutter |
| Pixel | 2MP |
Virtual Reality/Augmented Reality
Drones
3D Imaging
Machine Vision
Barcode Scanning
Factory Automation
