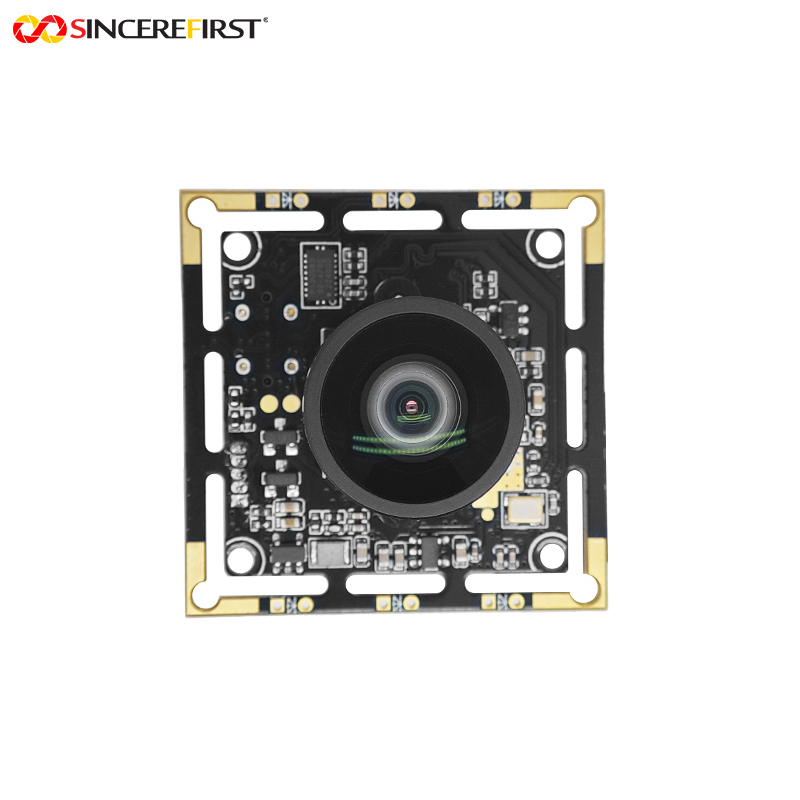

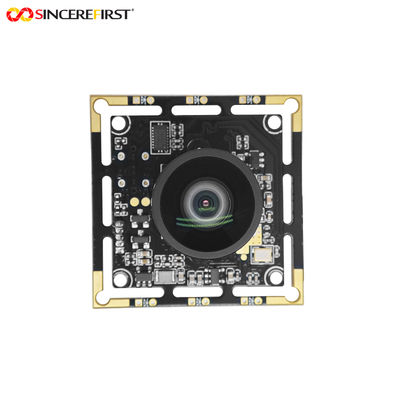

This is a Global Shutter Global Exposure 2MP CMOS Sensor USB-C Camera Module, a professional optical component focused on high-definition dynamic image capture. It is equipped with a customizable and replaceable CMOS color or monochrome image sensor, featuring 2MP effective pixels that stably output 1080P@60FPS high-definition dynamic images. With a sensor size of 1/2.6 inch and a pixel size of 3μm x 3μm, it provides a hardware foundation for detailed image reproduction. The module supports global exposure, global shutter, and external trigger functions simultaneously, enabling flexible adaptation to shooting needs of objects in different motion states. Its output formats cover two mainstream formats (MJPG and YUY2), suitable for diverse data processing scenarios. For focusing, it adopts a manual adjustment design, with a focusing range from 1cm (macro) to infinity, catering to both close-range microscopic capture and long-distance scene collection. It uses a Type-C interface, supports USB 3.0 high-speed transmission rate, and is compatible with the UVC (Universal Video Class) protocol, allowing direct adaptation to mainstream operating systems such as Windows, Linux, and Mac without additional driver development. The module measures only 38mm x 38mm, facilitating integration into various devices. It is manufactured using SMT (ROHS-compliant) environmentally friendly processes and AA (Active Alignment) technology, ensuring product consistency and stability. Moreover, it has passed multiple international authoritative certifications including FCC, CE, Reach, and RoSH, meeting usage standards across global regions.
1. Exceptional Dynamic Capture Performance
The global shutter ensures simultaneous exposure of all pixels, completely eliminating the rolling shutter effect during high-speed shooting. Combined with the high light-sensitivity of the 3μm large pixels, clear images with no distortion or low noise can be obtained even in fast-moving scenarios, providing accurate visual data for motion analysis.
2. Excellent Low-Light Imaging Performance
The 3μm x 3μm large pixel size increases the light-receiving area by more than 2.5 times compared to conventional small pixels. When paired with global exposure technology, it enables uniform capture of the entire image frame. Even in low-illumination environments, it maintains an excellent signal-to-noise ratio, ensuring true reproduction of image details.
3. Accurate Detail Resolution Capability
The large-pixel structure effectively enhances isolation between pixels, reducing electro-optical crosstalk. Combined with global exposure to avoid local overexposure, the module can clearly distinguish subtle texture differences in microscopic observation scenarios, providing reliable support for precision measurement.
4. Flexible Adaptability to Multiple Scenarios
It supports a collaborative working mode of global shutter and global exposure, allowing the selection of the optimal imaging solution based on different application scenarios. Additionally, it offers a customized monochrome sensor option, further enhancing imaging performance under specific spectral conditions.
| Product Name |
2MP IoT Camera Module |
|
Sensor |
CMOS Sensor |
| Piexl | 2MP |
|
Focusing Range |
1cm~Infinity |
|
Output Interface |
USB3.0, Type-C |
|
Sensor Size |
1/2.6 Inch |
|
Keywords |
1080P 60FPSCamera Module |
|
Warranty |
10 Years |
|
Pixel Size |
3μm |
|
Brand Name |
SINCEREFIRST |
Industrial Machine Vision Inspection
In the inspection of high-speed moving lithium battery pole pieces, the global shutter eliminates image distortion caused by high-speed motion. The 3μm large pixels ensure clear capture of micron-level defects even under limited lighting conditions, providing a reliable basis for product quality control.
Intelligent Traffic Surveillance Systems
When used for vehicle capture on highways, the global shutter effectively prevents distortion of license plate images. The large-pixel feature improves license plate recognition rates in backlit environments, ensuring clear, recognizable images under varying lighting conditions.
Scientific Research Experiment Recording
In fluid dynamics research, the global shutter accurately freezes the moment of high-speed fluid flow. The large pixels ensure sufficient photon collection during short exposure times, providing high-quality image sequences for flow trajectory analysis.
Biomedical Imaging
In skin detection applications, global exposure ensures uniform lighting across the entire observation area. The 3μm pixels provide sufficient spatial resolution to distinguish microscopic structures such as pores and wrinkles, while the monochrome mode further enhances the contrast of specific lesions.
Modern Agricultural Monitoring
During drone-based farm inspections, the global shutter overcomes image blurriness caused by flight vibrations. The large-pixel feature enables clear capture of crop growth status even during weak-light periods (dawn and dusk), providing stable visual data for precision agriculture.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
