Plastic Lens OmniVision OCHFA10 Separated USB2.0 Endoscope Camera Module With Steel Shell

Plastic Lens OmniVision OCHFA10 Separated USB2.0 Endoscope Camera Module With Steel Shell

Product Description:

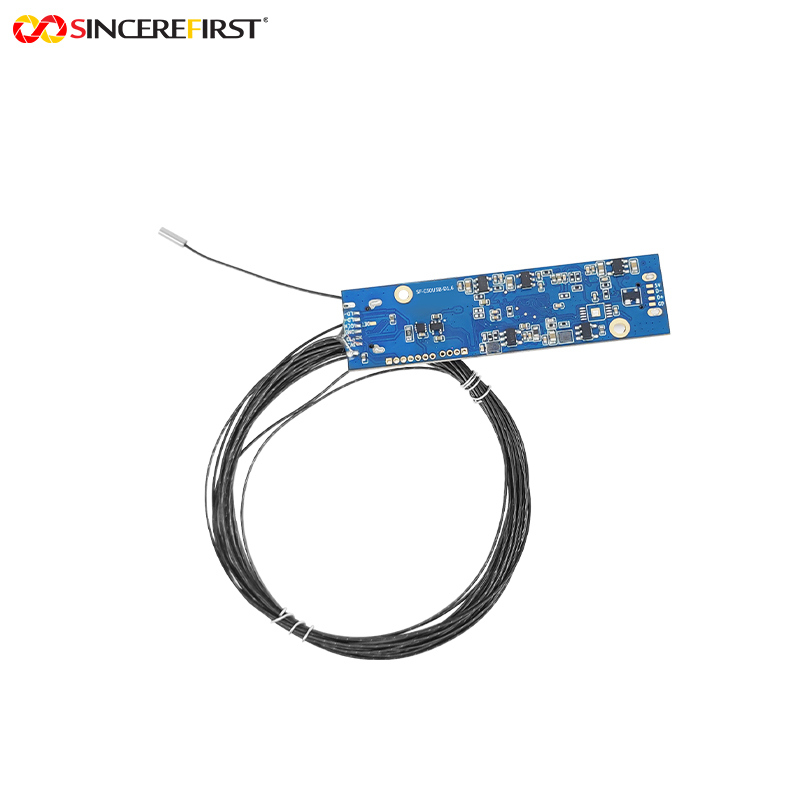

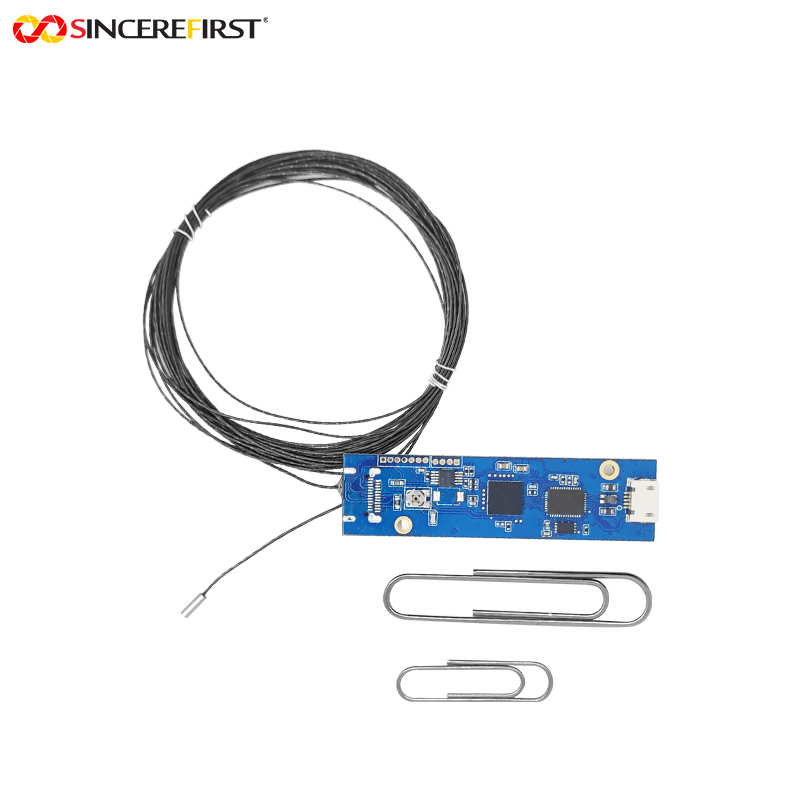

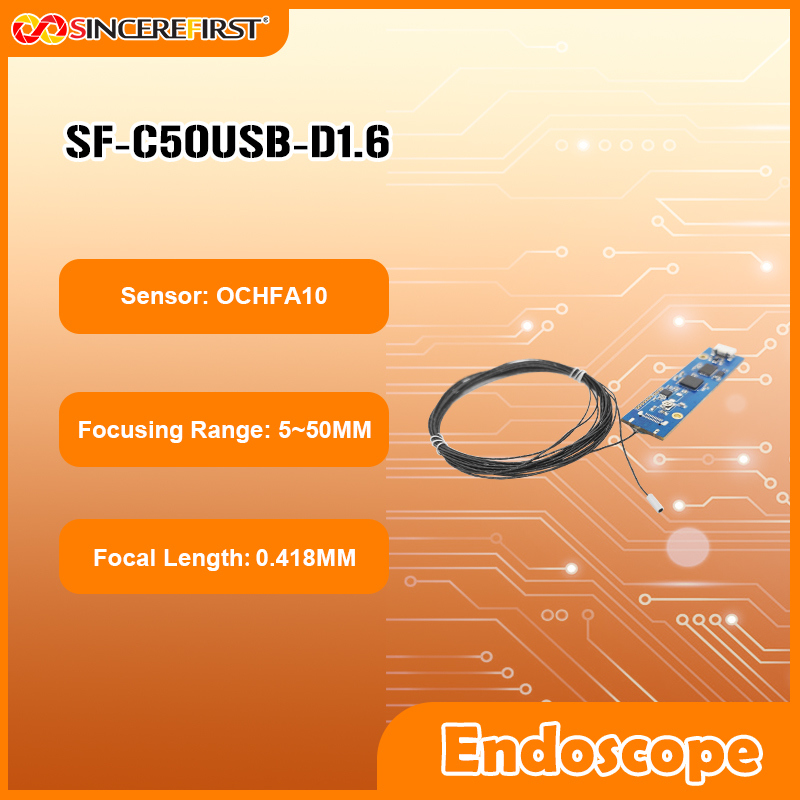

• This is a plastic lens OmniVision OCHFA10 separated USB2.0 endoscope camera module with steel shell. It takes the OmniVision OCHFA10 CMOS sensor as its core and builds a high-precision imaging system suitable for both medical and industrial scenarios. Equipped with 0.5MP pixels and 700x700 resolution, paired with a maximum frame rate of 30FPS, it can deliver smooth display of dynamic images. The combination of a 1/17.5-inch sensor size and 1.008μm×1.008μm high-precision pixels enhances the ability to capture tiny details. In terms of optical configuration, the F5.0 aperture and 0.418mm focal length ensure clear close-range imaging; the wide field of view (D105°*H86°*V86°) combined with TV distortion < -11% reduces image deformation and expands the observation range. In terms of operational design, it supports manual focus and direct-view imaging; combined with a separated structure, it allows flexible adjustment of the positions of the lens and host to adapt to complex observation environments. At the interface end, it adopts a Micro USB interface, outputs data at USB2.0 speed, and is compatible with the UVC protocol to realize plug-and-play functionality. The lens part features a 1.6mm-diameter design with a steel shell, balancing miniaturization and structural strength; it also integrates 4 01005-sized LED beads to provide uniform illumination, paired with chemical corrosion-resistant plastic lenses. In the production process, precision is guaranteed through SMT technology and AA (Active Alignment) process. It not only supports IP67-rated dustproof and waterproof performance to cope with humid and dusty environments but also has passed international testing and certifications such as CE, FCC, RoHS, and REACH, fully meeting the requirements of medical compliance and industrial reliability.
•

Features:

• Dual Advantages of Imaging Precision and Environmental Resistance: The 1.008μm×1.008μm pixels paired with 700x700 resolution can reproduce 0.1mm-level tiny features. At the same time, the IP67-rated dustproof and waterproof performance can resist medical disinfection and industrial wet/dusty environments, solving the core pain point that "high-precision imaging equipment is vulnerable to environmental damage".​

• Adaptation to Miniaturization and Operational Convenience: The 1.6mm-diameter lens with a steel shell can penetrate into tiny human lumens or gaps of industrial precision components. The separated design reduces interference from cable dragging; the manual focus and direct-view imaging functions require no complex debugging, lowering the operational threshold for medical staff or inspectors.​

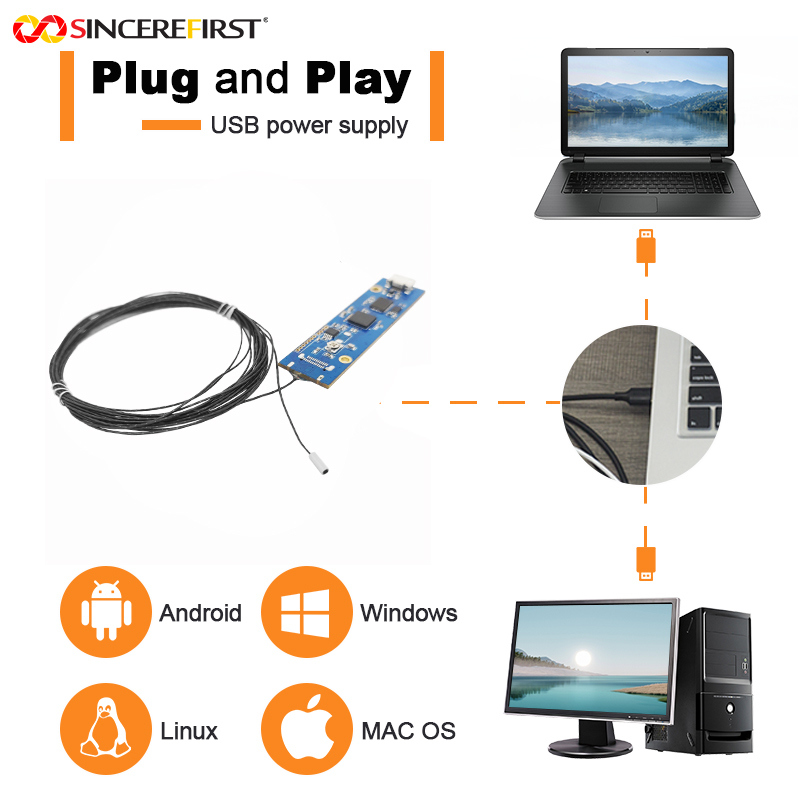

• Output Compatibility for Multiple Scenarios and Process Guarantee: It supports dual output formats (YUY/MJEPG), which can adapt to real-time observation (YUY) and image storage (MJEPG) needs respectively. The UVC protocol ensures compatibility with mainstream systems such as Android and Windows; the SMT+AA process and international certifications guarantee the consistency of mass production and stability in long-term use.

Technical Parameters:

Applications:

1. Auxiliary for Polyp Resection Under Digestive Endoscopy: The IP67-rated dustproof and waterproof performance can withstand intraoperative normal saline irrigation; the 1.008μm pixels clearly display the boundary of the polyp base; 4 01005-sized LED beads prevent the impact of irrigation fluid reflection on the field of view, assisting doctors in accurately operating resection instruments.​
2. Post-Dental Implant Inspection: The 1.6mm lens can penetrate into the gingival sulcus around the implant; the 700x700 resolution enables observation of the osseointegration status at the implant edge; the IP67-rated dustproof and waterproof performance tolerates the post-operative disinfection process, reducing the risk of cross-infection.​
3. Internal Inspection of Industrial Hydraulic Valve Blocks: For wear detection of oil passages and valve cores inside hydraulic valve blocks, the IP67-rated dustproof and waterproof performance resists erosion from residual hydraulic oil; the 0.418mm focal length combined with a 105° field of view allows complete observation of the internal structure without disassembling the valve block.​
4. Maintenance of Outdoor Communication Equipment Cabinets: The separated design facilitates adjusting the lens angle in the narrow space of outdoor cabinets; the IP67-rated dustproof and waterproof performance resists rainwater and dust; the USB2.0 speed supports connecting to portable devices to check the aging status of internal circuits and interfaces of the cabinet in real time.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
