Monochrome Global Shutter Camera for Compact Tracking Devices

0.16MP Monochrome Global Shutter MIPI Camera Module for Compact Tracking Devices

Features:

1. Monochrome Global Shutter: Captures moving subjects without the line-by-line timing difference of a rolling shutter.

2. 400×400@30fps Output: Provides image input for compact tracking and sensing tasks where 0.16MP resolution is sufficient.

3. Wide D114° Field of View: Covers movement across a nearby area from one camera position.

4. NIR Enhancement: Supports evaluation with near-infrared illumination.

5. 8-bit / 10-bit RAW Output: Allows the host system to process image data according to the application.

6. 24-pin Gold-Finger MIPI Connection: Supports integration into devices with limited internal space.

Technical Parameters:

Applications:

1. Compact Tracking Devices: The wide viewing angle supports nearby movement capture. Target size and tracking performance should be checked at the actual working distance.

2. Gesture Input Devices: The monochrome global shutter image can be evaluated for devices that capture hand movement during operation.

3. Small Robot Sensing: The compact module provides image input for robots with limited camera installation space.

4. NIR-Assisted Sensing Devices: NIR enhancement supports projects using near-infrared illumination. The illuminator, exposure and host processing should be tested together.

Customized Process:

1. Provide the device requirements, host platform, target size, working distance and lighting conditions.
2. Review the field of view, focus setting, FPC layout and MIPI connection requirements.
3. Confirm the sample configuration.
4. Test the sample in the actual device and provide image or tracking results.
5. Adjust the configuration if the test results require changes.
6. Confirm the final design for production.

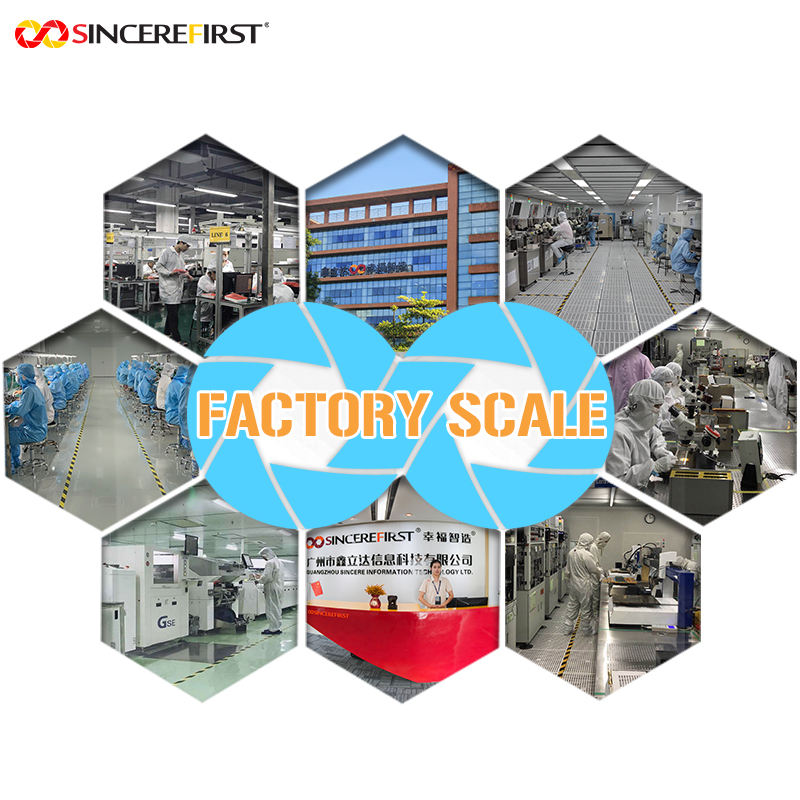

About US:

Cooperative Brands & Customers:

Why Chooes US:

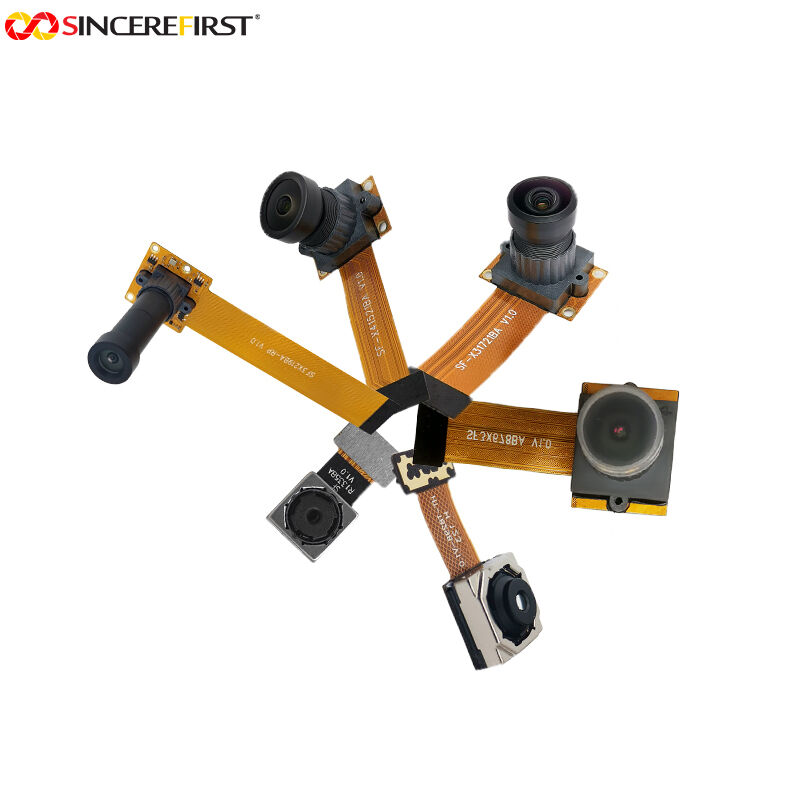

Detail Pictures:
