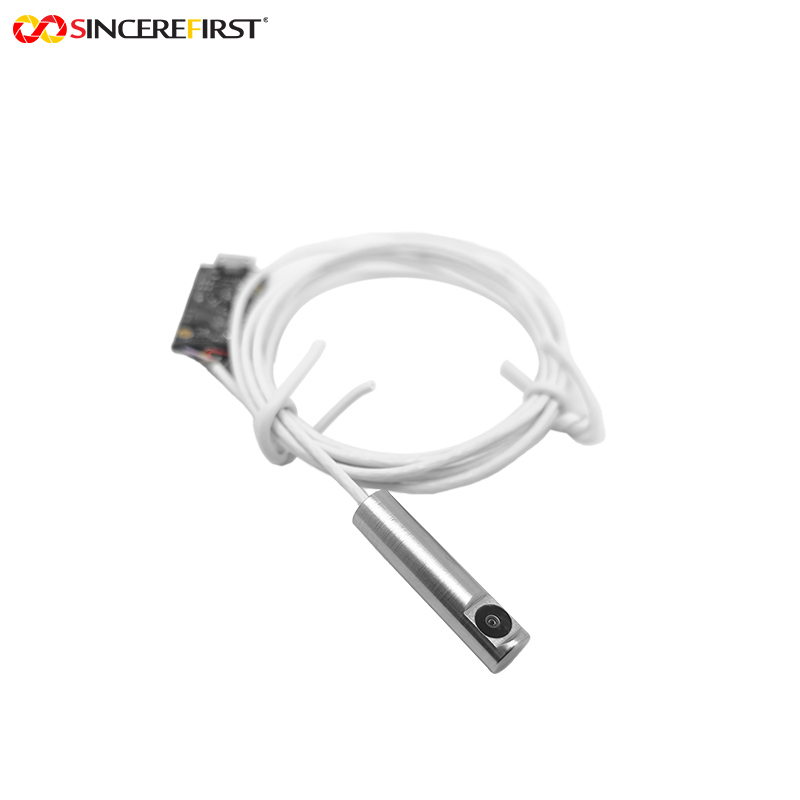

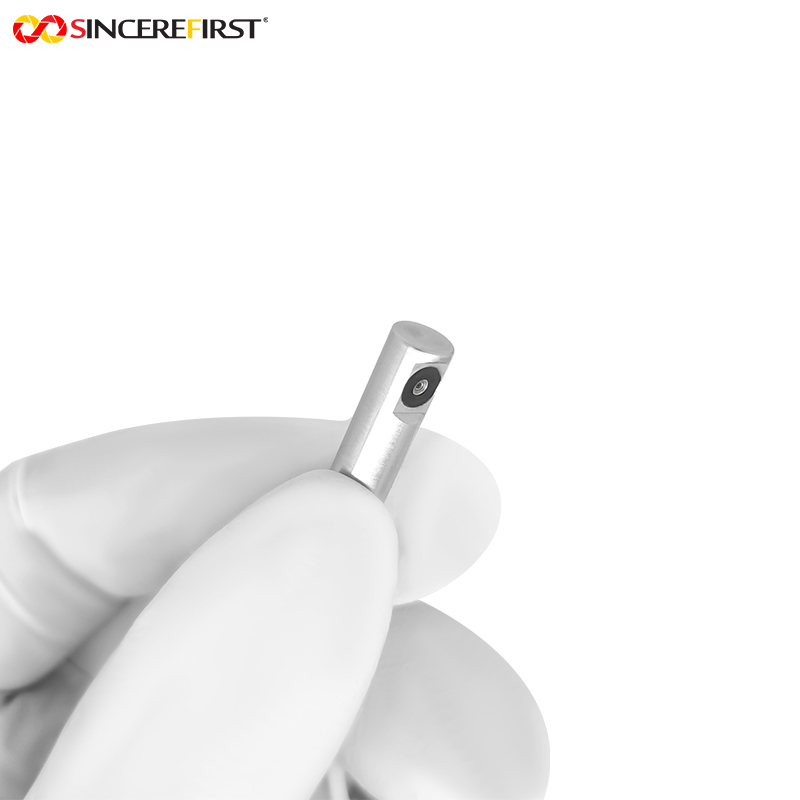

IP67 720P Sensor OV9734 UVC USB 2.0 Endoscope Camera Module
Product Description:
- This is an IP67 720P Sensor OV9734 UVC USB 2.0 Endoscope Camera Module, equipped with the OmniVision OV9734 CMOS color image sensor. It features 1MP pixel resolution, supports 720 resolution and a maximum frame rate of 30FPS. The sensor size is 1/4 inch, with a pixel size of 1.75μm x 1.75μm. It is compatible with YUV and MJPEG output formats, adapting to diverse data transmission requirements. In terms of optical performance, the module is fitted with an F4.0 aperture lens, boasting a field of view of 95° diagonal (D), 85° horizontal (H), and 43.5° vertical (V). Combined with a 1.08mm focal length and a depth of field ranging from 10mm to 100mm, along with the side-view imaging design, it enables wide-range sidewall observation at close range. With TV distortion < -10% and manual focusing function, it can accurately capture details. Structurally, it adopts a separated design and connects to the DSP board via bonding wires, facilitating flexible integration into complex equipment. The lens is covered with a steel shell with a diameter of 6mm and a length of 25mm; the slim design allows easy access to narrow spaces. Moreover, it supports IP67 dust and water resistance rating, capable of withstanding dust and short-term water immersion. The lens is integrated with 4 0402 LED beads for supplementary lighting. It features a USB2.0 interface and supports the UVC protocol, compatible with mainstream operating systems to achieve plug-and-play functionality. The entire module is manufactured using SMT process and AA (Active Alignment) manufacturing process, and has passed international certifications and tests including CE, FCC, RoHS, and REACH, ensuring reliable quality.
-
Features:
- Comprehensive Protection: The IP67 protection rating ensures stable operation in humid and dusty environments. Combined with the 6mm steel shell housing, it offers excellent sealing performance and mechanical strength.
- Precise Optical Performance: The combination of a 1.08mm ultra-short focal length and a 95° wide field of view enables dead-angle-free side-view observation within the range of 10-100mm. The 1.75μm large pixels ensure rich image details and low noise.
- Efficient Adaptability: The USB2.0 interface plus UVC protocol support plug-and-play across multiple systems, reducing integration and development costs. The dual output formats (YUV & MJPEG) adapt to different data processing scenarios, providing wider applicability.
- Reliable Quality Assurance: The SMT process and AA manufacturing process ensure high-precision alignment between the lens and the sensor, resulting in strong imaging consistency. International certifications such as CE and FCC cover multiple dimensions including electromagnetic compatibility and environmental protection, meeting access standards of most global markets.

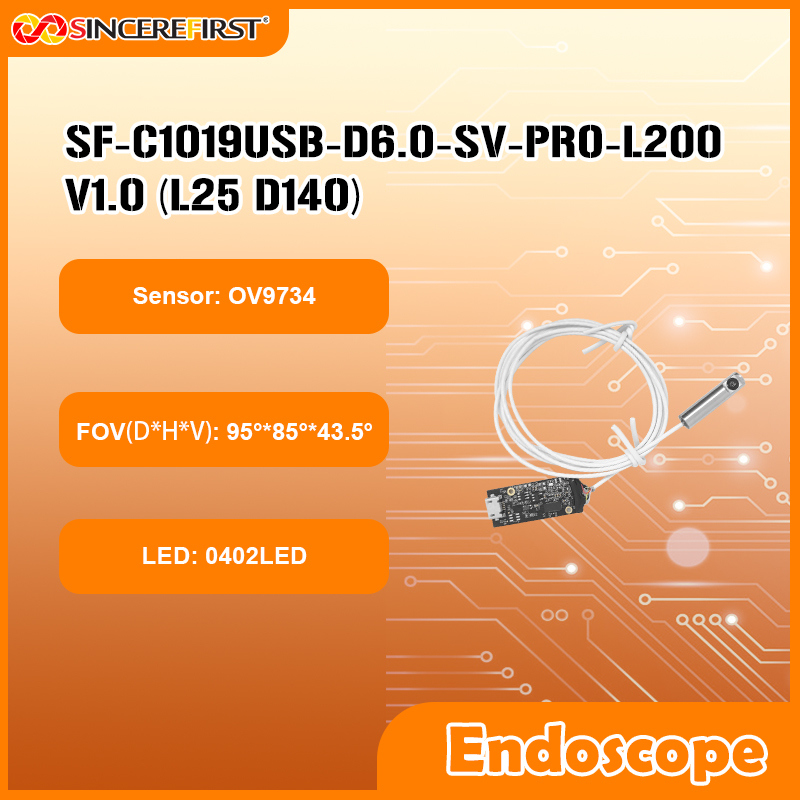

Technical Parameters:
| Product Name |
LED Endoscope Camera Module with Steel Shell
|
|
Sensor
|
OV9734 CMOS Sensor
|
| Resolution |
12080x720 |
|
FOV
|
D95°*H85°*V43.5°
|
|
F.NO
|
4.0 |
|

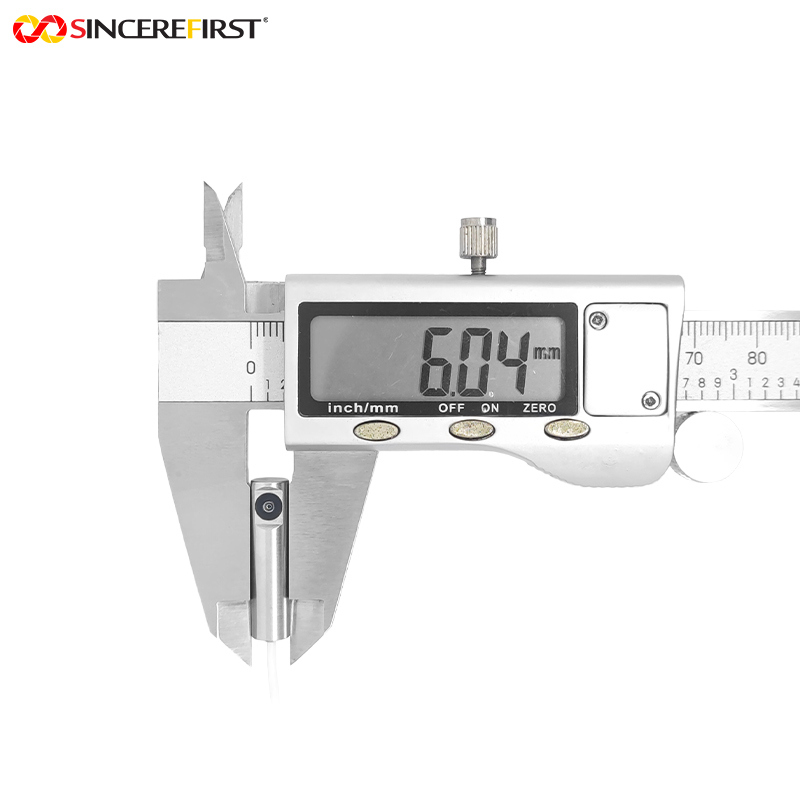

Diameter
|
6mm
|
|
EFL
|
1.08mm
|
|
Interface
|
USB 5Pin, USB2.0 |
|
TV Distortion
|
<-10%
|
|
Certification
|
CE, FCC, REACH, ISO |
Applications:
- Industrial Pipeline Maintenance: Suitable for inspecting the inner walls of metal/plastic pipelines. It can resist residual liquids or dust in pipelines, quickly detect defects such as rust and cracks, and adapt to the observation of pipelines with different diameters.
- Electronic Equipment Maintenance: Used for inspecting the motherboards and interface slots of precision equipment such as mobile phones and computers. It can penetrate into equipment gaps, clearly observe subtle structures like solder joints and connectors, and be integrated into maintenance tools.
- Mechanical Cavity Inspection: Adapted for observing cavities in construction machinery hydraulic chambers and automobile gearboxes under outdoor/dusty environments. It can resist oil contamination and dust, and inspect inner wall wear or seal conditions in dark environments.
- Underwater Small Equipment Inspection: Used for short-term observation of diving equipment interfaces and small underwater pipelines. It maintains normal operation in shallow water environments and can quickly determine whether the equipment has leaks or foreign object blockages.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
