New CMOS Sensor OCHFA20 Medical Industrial Endoscope Camera Module
Product Description:
This is the new CMOS sensor OCHFA20 medical industrial endoscope camera module. Relying on the precise matching of full-dimensional parameters, it builds core capabilities of "high-definition imaging + flexible deployment + miniaturized adaptation", making it an excellent choice for scenarios that require penetration into narrow spaces and pursuit of detail capture. At the core, the module is equipped with the OmniVision OCHFA20 CMOS color image sensor, featuring 0.5MP effective pixels and capable of stably outputting 720×720 resolution images. Combined with the 720P@30FPS frame rate specification, dynamic images are free of motion blur and have true color reproduction. The ultra-small 1/18-inch sensor size and 1.008 μm×1.008 μm pixel specifications not only ensure light-sensing efficiency but also lay the foundation for device miniaturization. Matched with an ultra-fine lens diameter of only 1.5mm, it can easily penetrate narrow areas such as gaps in precision instruments and tiny cavities. The 120° ultra-wide field of view, combined with the manual focus function, not only enables wide-range scene coverage but also allows precise focusing on local details, avoiding observation blind spots and blurriness.

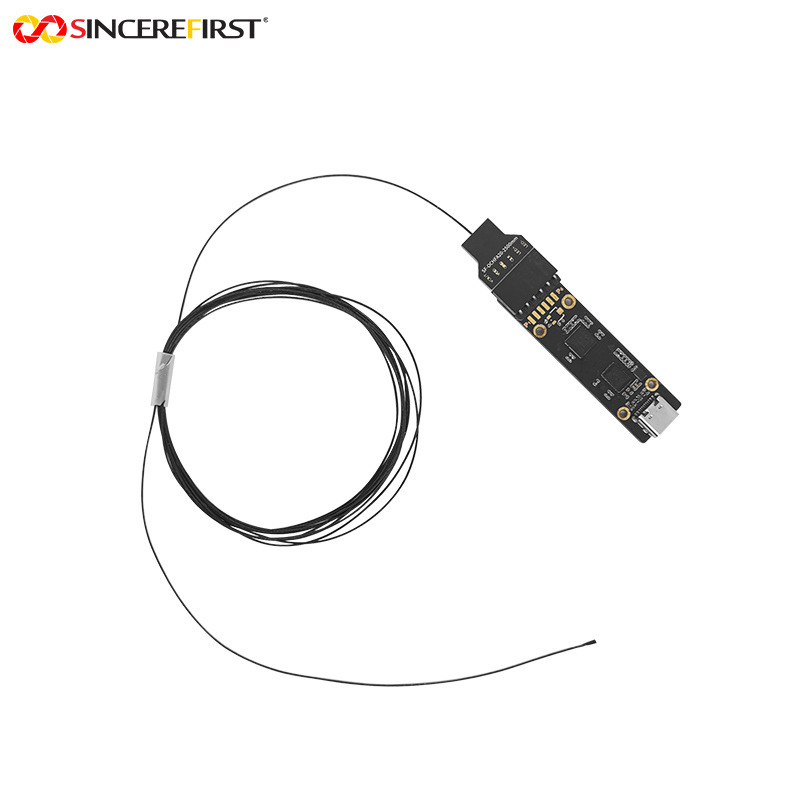

In terms of structural design, a Separated solution is adopted: it establishes a stable connection with the DSP board via a USB 6PIN header, then outputs signals through a Type-C interface. It supports USB 2.0 transfer speed and UVC protocol, and is compatible with mainstream operating systems such as Windows, Mac, and Linux without the need for additional drivers, adapting to various devices including computers and portable detection terminals. In the production process, SMT (Surface Mount Technology) and AA (Active Alignment) processes are used to ensure the consistency and imaging stability of mass-produced products. Moreover, it has passed multiple international testing certifications such as CE, FCC, RoHS, and Reach, with compliance and reliability meeting the usage requirements of multiple global regions.
Features:
- Strong Imaging Detail and Scene Adaptability: 0.5MP pixels + 720×720 resolution ensure clear details; the 720P@30FPS frame rate adapts to dynamic observation; manual focus allows flexible focusing according to target distance, meeting both wide-area scanning and local magnification needs.

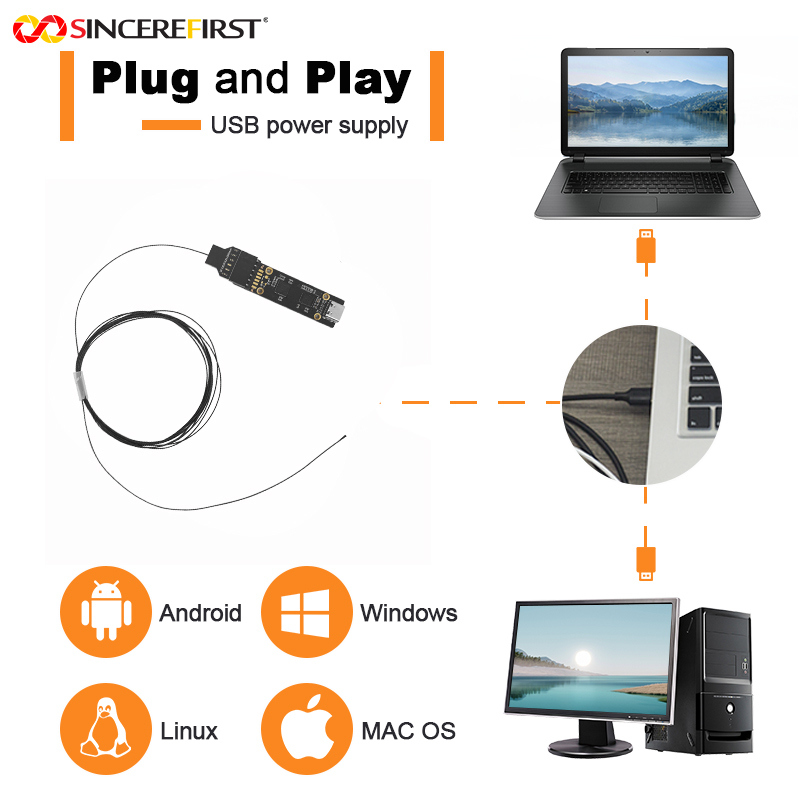

- Flexible and Efficient Deployment & Maintenance: The Separated design enables independent arrangement of the camera end and DSP board, simplifying the installation process in complex equipment; the USB 6PIN + Type-C dual-interface combined with UVC protocol realizes plug-and-play functionality; faulty modules can be replaced individually during later maintenance, reducing costs.
- Balanced Miniaturization and Structural Reliability: The 1.5mm lens diameter + 1/18-inch sensor size meets the operational needs in narrow spaces; SMT technology and AA process ensure the module has a stable structure, withstanding regular vibrations and environmental interference to extend service life.
- Global Compliance and Wide System Compatibility: It has obtained multiple international certifications, enabling access to markets in different countries and regions; it is compatible with mainstream operating systems without the need for customized drivers, adapting to various terminal devices and reducing cross-platform usage barriers.
Technical Parameters:
| Product Name |
CMOS Medical Endoscope Camera Module
|
|
Sensor
|
OCHFA20 CMOS Sensor
|
| Resolution |
720x720 |
|
FOV
|
120°
|
|
Sensor Size
|
1/18 Inch |
|
Diameter
|
1.5mm
|
|
Max Frame Rate
|
30FPS
|
|
Interface
|
Type-C USB2.0 |
|
Warranty
|
10 Years
|
|
Certification
|
CE, FCC, REACH, ISO, RoHS |
Applications:
- After-sales Maintenance of Precision Instruments: Suitable for the maintenance of industrial robot joints and the interior of micro-motors. The 1.5mm lens can penetrate gaps in equipment, and 720P high-definition imaging + manual focus can clearly identify issues such as gear wear and poor circuit contact, helping to quickly locate faults.
- Special Security Hidden Danger Inspection: Used for inspection in enclosed spaces such as subway tunnels and substation equipment cabins. The 120° wide field of view enables rapid area coverage; the Separated design facilitates probe placement in complex environments; the Type-C interface connects to portable terminals for real-time observation, timely detecting hidden dangers such as aging circuits and foreign object accumulation.
- Microscopic Monitoring in Agricultural Plant Protection: Matched with plant protection equipment for observing diseases on the back of crop leaves and inside fruits. The color sensor restores the true form of plant diseases and pests; the 1.008μm pixels capture tiny disease spots; compatibility with mobile devices facilitates on-site recording and analysis in fields.
- Micro-detection at Archaeological Sites: Used for detecting gaps on the surface of cultural relics and the internal structure of pottery. The 1.5mm lens avoids contact damage to cultural relics; manual focus can clearly present decorative details or internal residues; compliance certifications ensure the safe use of the device in different archaeological scenarios.
- Maintenance of High-end Household Equipment: Suitable for detecting the interior of water purifier filters and coffee machine pipelines. The plug-and-play feature lowers the operation threshold; 720×720 resolution allows intuitive observation of dirt accumulation; the ultra-fine lens penetrates into the internal channels of equipment, enabling detection without disassembly.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
