OV2312 is a 2-megapixel RGB-IR global shutter image sensor that provides a dual-mode sensor that fuses human and machine vision capabilities, allowing designers to address both trends with a single camera (e.g., driver state monitoring (DSM) and video conferencing). It delivers motion-artifact-free images at high resolutions of 1600 x 1300 at 60 fps and 1280 x 720 at 90 fps. It is the automotive industry’s first and smallest-in-its-class 2MP, RGB-IR global shutter image sensor. It has advanced ASIL functional safety, leading near-infrared light performance and low power consumption; and facilitate the lowest total system cost.
1. Panoramic Coverage: Utilizing a specialized fisheye lens, a single module achieves 166°×149° ultra-wide-angle coverage, replacing multiple standard cameras to deliver panoramic surveillance without blind spots. This significantly reduces hardware and installation complexity.
2. High-Speed Precision: Equipped with a global shutter sensor, it captures fast-moving scenes without distortion. Combined with a high-speed MIPI interface, it ensures low-latency image data transmission, meeting demands for dynamic scenes and real-time processing.
3. Efficient Balance: The 2MP resolution strikes a balance between detail, cost, power consumption, and bandwidth. Paired with a large aperture design, it delivers a cost-effective panoramic vision solution for embedded and mobile devices.

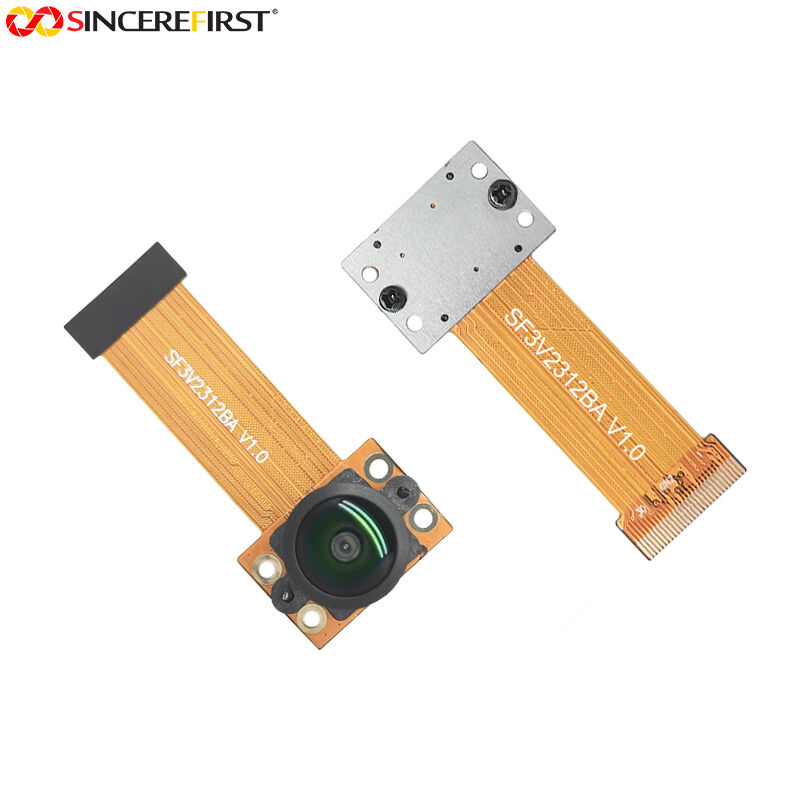

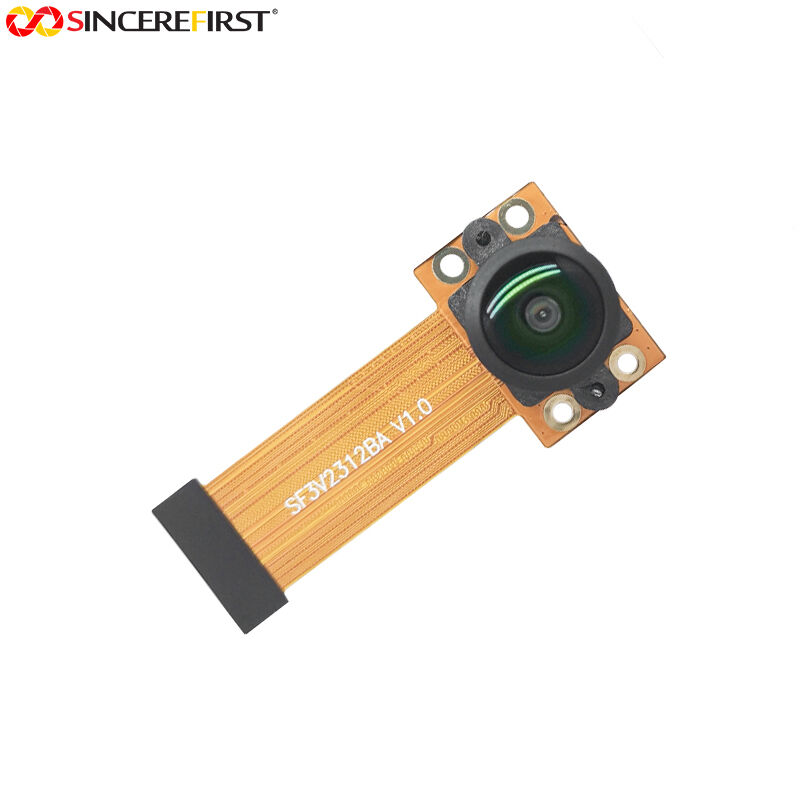

| Product Name | 1.96mm MIPI Camera Moudle |
| Focusing Range | 45cm~Infinity |
| Lens Type | 1/2.9 |
| Series |
MIPI Camera Module |
| FOV(H*V) | 166°*149°*90 |
| TV Distortion | ＜-30% |
| Sensor | OV2312 |
| Output | 10 -bit RGB -Ir RAW |
| AVDD | 2.8V |
| DVDD | 1.2V |
Medical
Industrial
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
