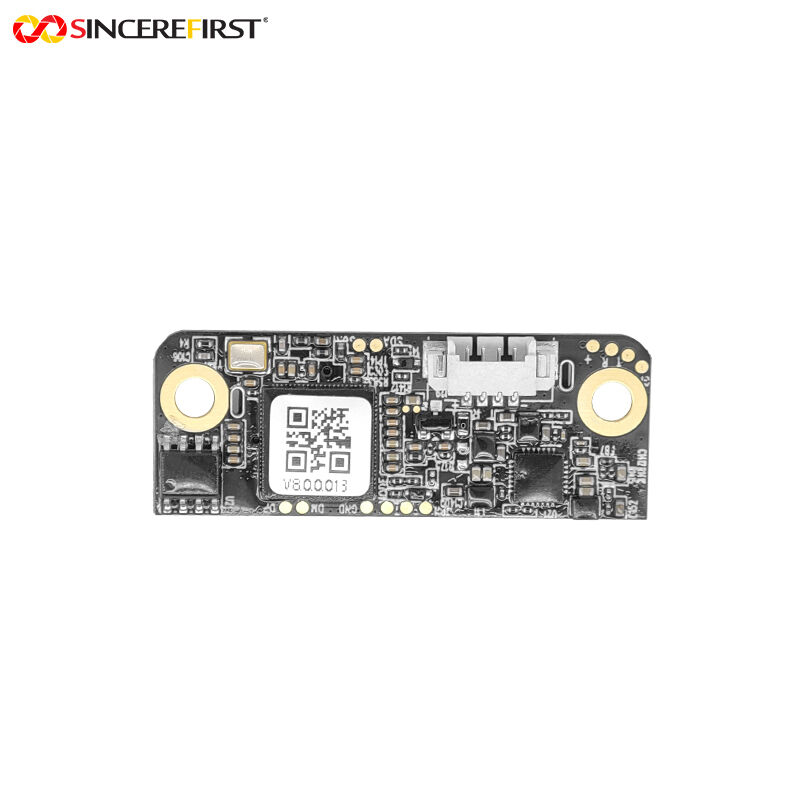

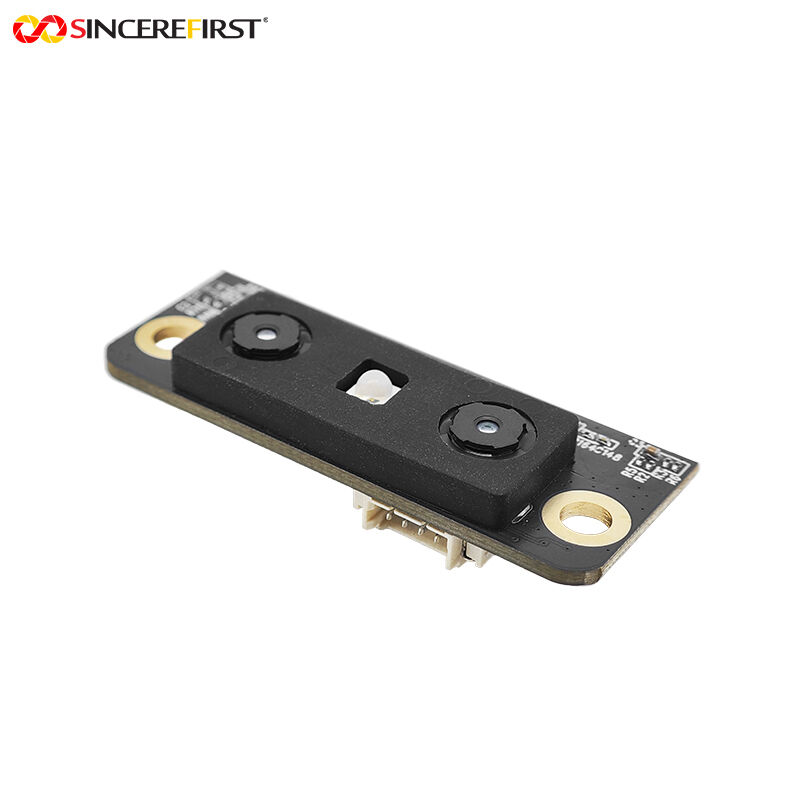

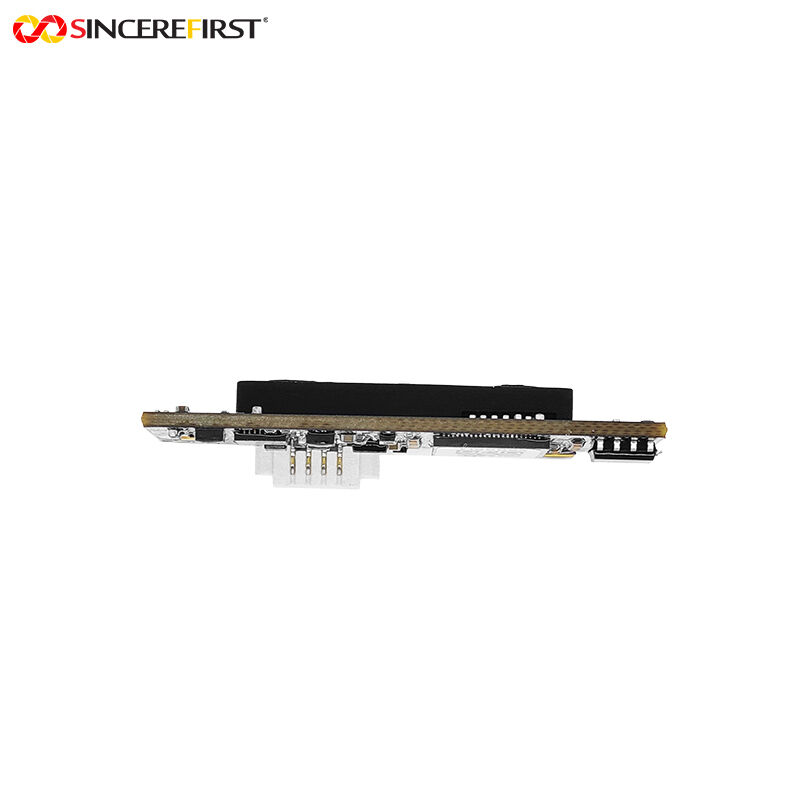

This product employs an integrated dual-lens infrared camera solution, featuring a fully self-developed dual-lens live facial recognition algorithm optimized for smart door lock applications. The module delivers 2MP high-definition imaging (1600×1200 resolution) with dual-view coverage: RGB View: Diagonal 115°, Horizontal 96°, Vertical 77°—comprehensively capturing faces and surroundings IR View: Diagonal 84°, Horizontal 74°, Vertical 58°—enhancing low-light and backlight recognition.Featuring USB plug-and-play functionality, it delivers financial-grade security protection with millisecond-level recognition response. Combining ultra-low power consumption with all-weather adaptability, it operates stably under intense light, low light, and complex lighting conditions while supporting a wide range of heights and body sizes. Its compact dual-camera co-substrate design ensures a small footprint, making it compatible with various smart door locks and embedded security devices.
| Product Name | Face Recognition Camera Module |

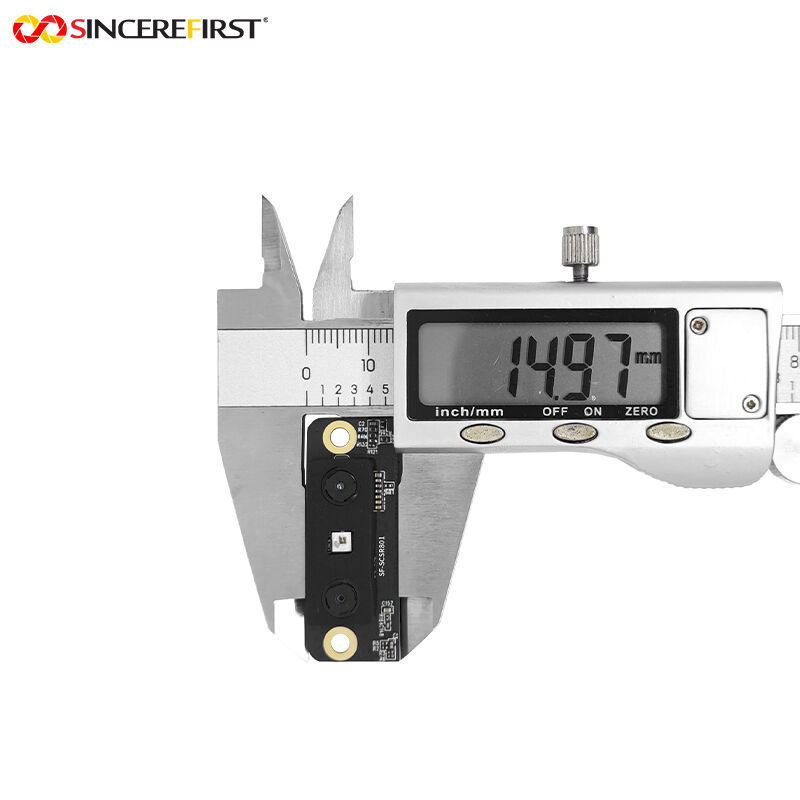

Module Size | 40.0*15.0*8.3mm |
IR Resolution | 1600*1200 |
Face Storage | 100 ID |
False Rejection Rate | <1% |
Working Humidity | 4.5V-14V |
Power | <3.5W |
Average Current | 180mA@5V |
Applications | Access Control, Door Locks, Safe Deposit Boxes |
Brand Name | SINEREFIRST |
Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.
