2MP 1080P GC2755 USB2.0 UVC OTG Plug and Play Endoscope Camera Module

2MP 1080P GC2755 USB2.0 UVC OTG Plug and Play Endoscope Camera Module.

Product Description:

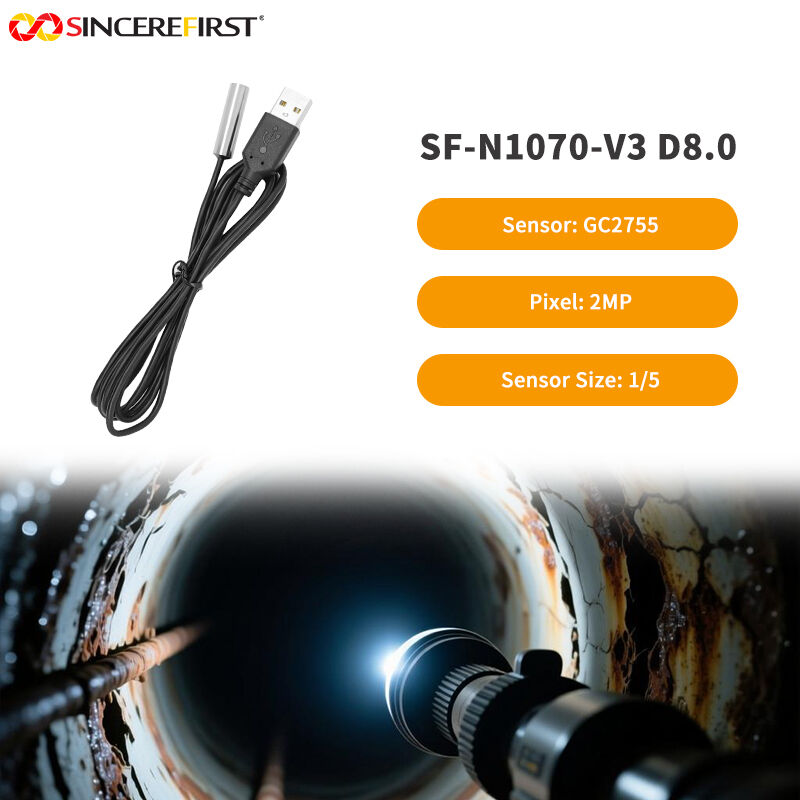

This 2MP 1080P GC2755 USB2.0 UVC OTG Plug and Play Endoscope Camera Module,is a high-definition endoscope camera module designed for close-range observation within confined spaces. Built around the GC2755 sensor, it features a 1/5-inch optical format and 1.6μm pixel size, delivering full HD 1920×1080 output within a compact structure. With a fixed focus range of 25–40mm and an 80° field of view, it is specifically optimized for macro scenarios, making it suitable for industrial endoscopy, precision component inspection, electronic parts quality control, and portable medical-aided observation applications.The module transmits video via a USB 2.0 high-speed interface, fully compliant with the UVC protocol for plug-and-play operation on mainstream operating systems without additional drivers. It also supports OTG functionality, allowing direct connection to embedded devices or mobile terminals with USB host capability to form a standalone portable inspection system.To address low-light environments, the module integrates six 0603-packaged LED fill lights with an operating current of 100–120mA. Combined with an electronic rolling shutter, programmable automatic exposure (AEC), and automatic white balance (AWB), it ensures imaging stability while maintaining controlled power consumption. Reliability has been verified through high/low-temperature storage, thermal shock, vibration, and drop tests.The module is defined as an “open-source camera,” typically referring to its driver or control code being accessible to developers. This supports secondary development of the image processing pipeline, parameter adjustment, or data format customization to meet specific application requirements.In terms of mechanical design, key dimensions (such as 25.4±0.3mm, 28±0.1mm) and structural details like the use of black sealing adhesive are optimized for compact installation within narrow cavities (e.g., endoscope tubes) and to prevent light leakage, ensuring reliable integration in space-limited environments.

Features:

1. High-Definition Macro Imaging: Dedicated optical design (25-40mm focus range/80° field of view) captures 1080P HD details within a compact structure.

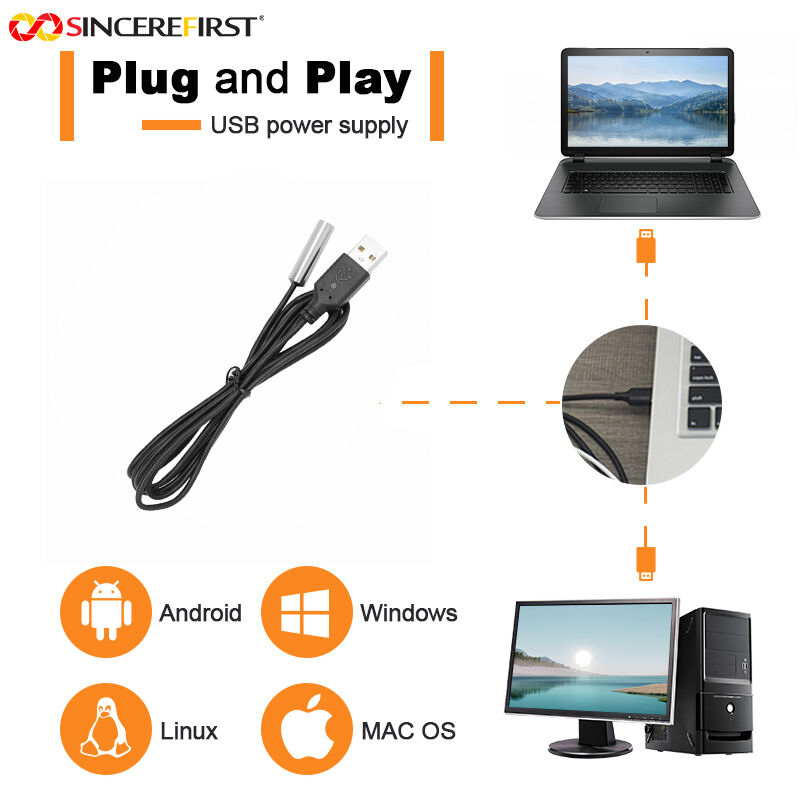

2. Plug-and-Play Compatibility: Full platform driver-free support (UVC protocol) enables direct connection to computers or mobile devices (OTG functionality) for seamless integration.

3. Low-Light Adaptability: Integrated 6 LED fill lights paired with low-power design (100-120mA) ensure stable imaging in dim environments.

4. Flexible Secondary Development: Open architecture supports custom functionality to meet specialized needs in industrial inspection, medical observation, and other professional scenarios.

Technical Parameters:

Applications:

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
