This is the micro MIPI 48MP SONY IMX586 image sensor auto focus camera module, featuring a combination of a 1/2-inch large sensor and a 0.8μm single pixel size, along with an F1.79 large aperture lens, achieving an ultra-high resolution of 48MP at a focal length of 4.71mm. Through the Quad Bayer four-pixel synthesis technology, a 12MP clear image with equivalent 1.6μm large pixels can be output, significantly improving the performance of low-light shooting. Its optical structure provides DFOV79° and HFOV67°, with distortion control < -1%. The depth of field range covers from 10cm to infinity, and it is combined with a VCM motor to achieve fast autofocus. The module adopts a 12.3mm×12.3mm ultra-thin FPC package and supports high-definition video recording through the MIPI interface. It features both high resolution and motion capture capabilities, making it suitable for integration into multi-camera systems of smartphones, AR devices, and wearable products with limited space.

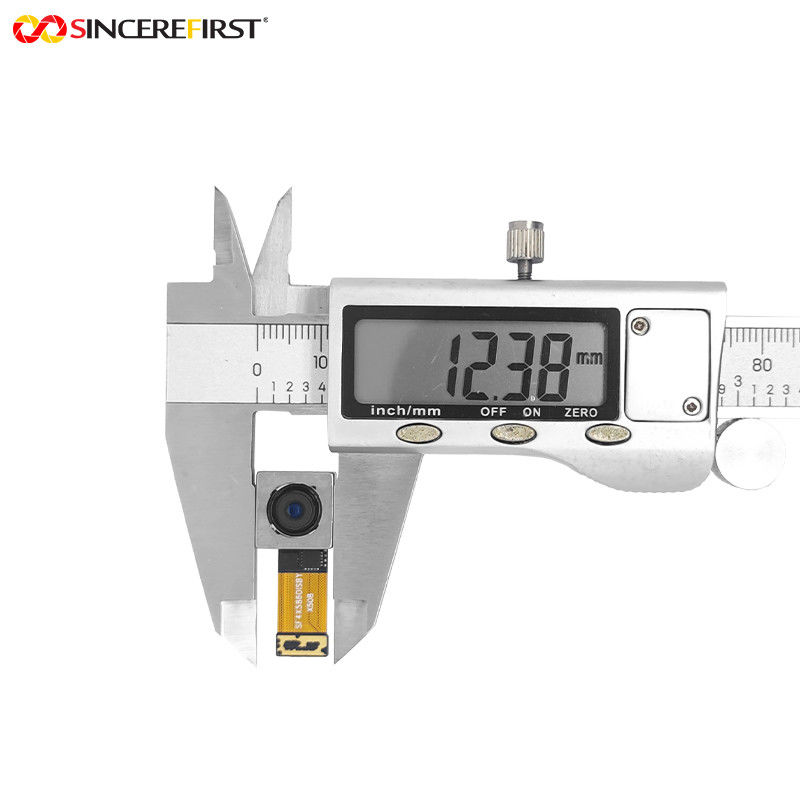

4. Compact and Thin Package : The module is in a 12.3mm×12.3mm ultra-thin FPC package, which is compact and easy to integrate, especially suitable for multi-camera layouts in space-constrained mobile devices.
5. Large Aperture and Optical Optimization : Equipped with an F1.79 large aperture lens to increase light intake, combined with a 1/2-inch large sensor and a minimum pixel size of 0.8μm to optimize light collection efficiency, ensuring high saturation signal output and dynamic range improvement.
6. Outstanding Low-Light Performance : Through Quad Bayer quad-pixel synthesis technology, adjacent pixels are combined in low light to produce 12MP images equivalent to 1.6μm large pixels, significantly improving sensitivity and signal-to-noise ratio, reducing noise and increasing brightness, suitable for night or low-light scenarios.
7. Ultra-high Resolution imaging : With a 48MP pixel sensor, it supports output images at a resolution of 8000×6000, capturing more details than conventional sensors to meet the requirements of high-definition shooting.
| Product Name |
Micro 48MP Color Sensor Camera Module |
|
Sensor |
IMX586 CMOS Sensor |
| Piexl | 48MP |
|
F.NO |
1.79 |
|
Output Interface: |
MIPI |
|
Sensor Size |
1/2 Inch |
|
Keywords |
CMOS Camera Module |
|
Warranty |
10 Years |
|
Focusing Range |
10cm~Infinity |
|
Brand Name |
SINCEREFIRST |
Live Streaming Equipment: Adapted for handheld gimbal cameras, it enables live streaming via MIPI CSI-2 interface, with high frame rates capturing dynamic dance movements.
Smart Home Applications: Integrated into door lock peephole modules, the 10cm minimum focus distance delivers clear facial imaging of visitors. Low-power design supports 24/7 standby operation.
Automotive Vision Systems: Deployed in electronic mirrors or surround-view systems, the DFOV79° with <-1% distortion reproduces authentic distance perception. The VCM achieves rapid focus compensation during rainy/foggy conditions.
Smart Retail: As a vision sensor for self-checkout terminals, the 48MP resolution enables accurate identification of barcodes and packaging details, while the F1.79 aperture ensures recognition reliability in low-light conditions.
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
Our products are sold all over the world, you can rest assured.
