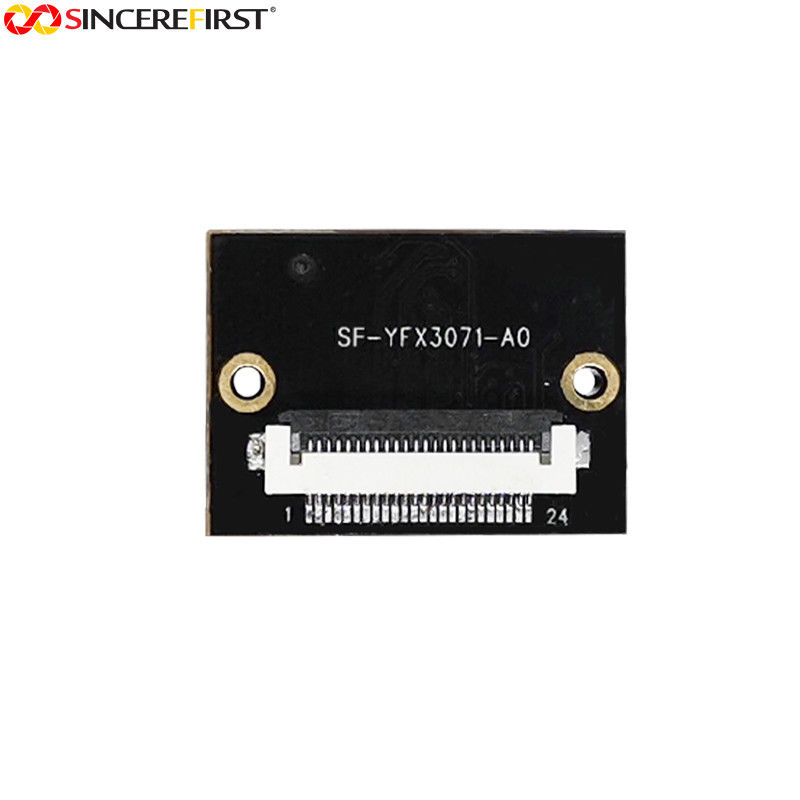

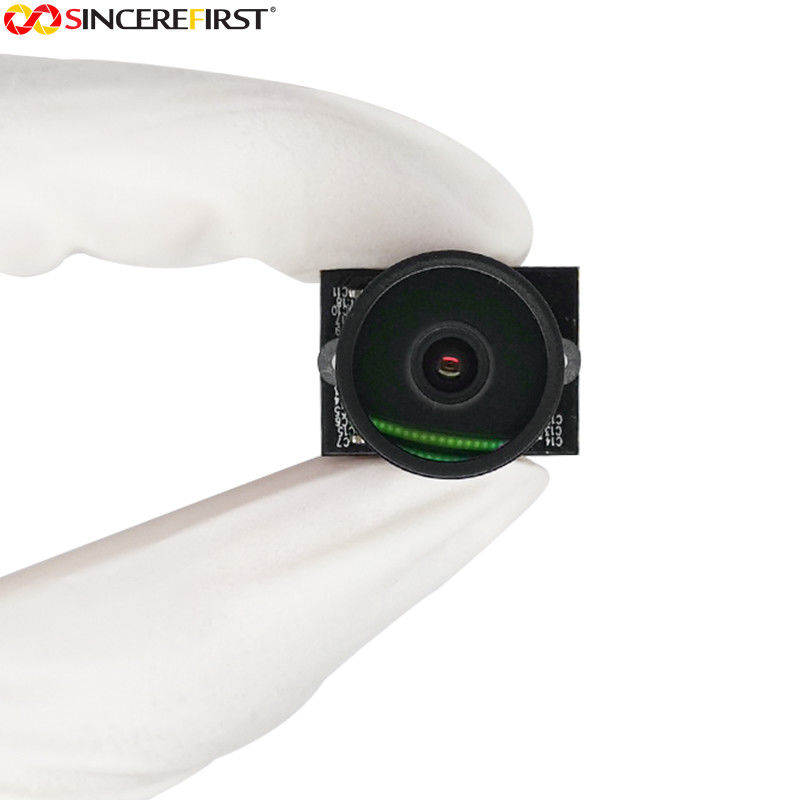

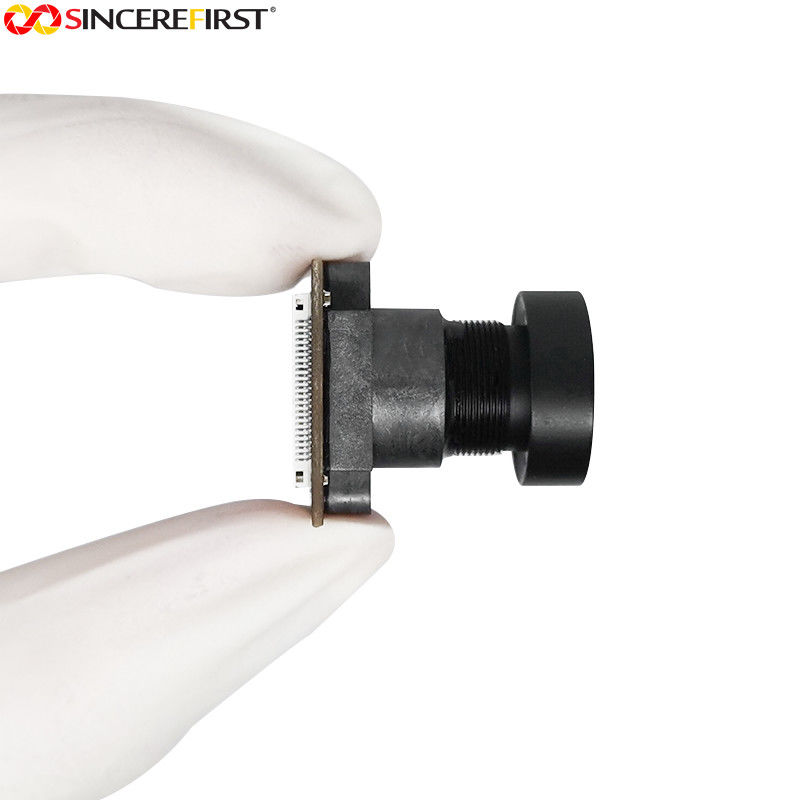

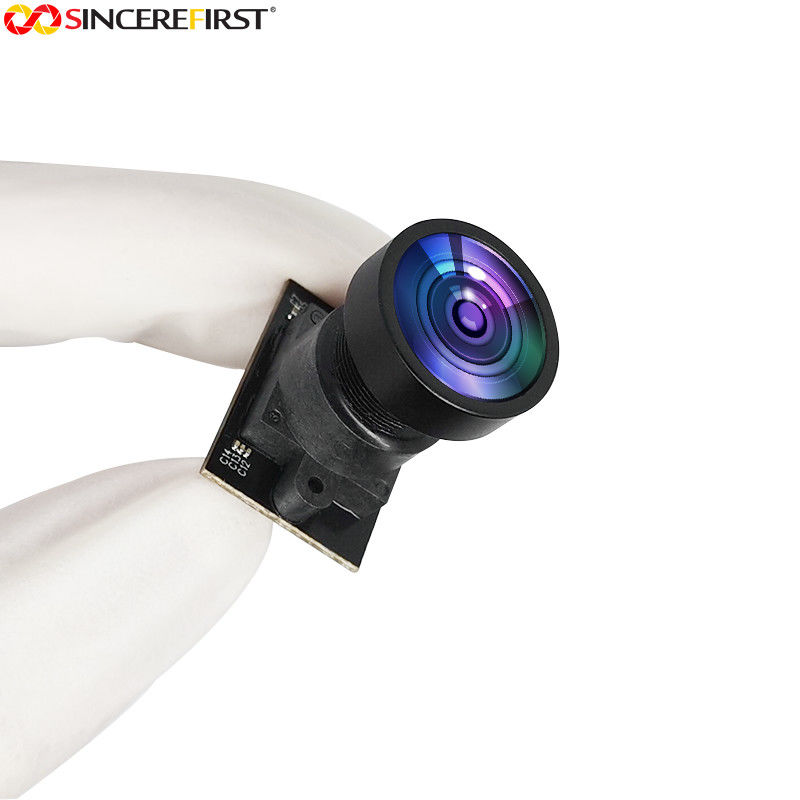

Low Illumination 2MP Sony IMX307 CMOS Image Sensor Camera Module
Specificaitons
| Sensor | 1/2.8’’ SONY IMX307 CMOS |
| Pixel | 2 Mega Pixel |
| View Angle | 140°(D)/110°(H) |
| DOVDD | 1.8V |
| DVDD | 1.2V |
| AVDD | 2.9V |
| Data Storage Options | Full HD, Cloud |
| F.NO | 2.0 |
| Place of Origin | Guangdong |
| Focus | Fixed focus |
Description
This is our new camera module development, it is 2MP resolution (1920x1080) with SONY IMX307 CMOS sensor, image quality is very stable and top. It has excellent low illumination proformance, and you can see things clear under weak light or even no light.
Features
◆programmable controls: frame rate, mirror and flip, cropping, and windowing
◆supports 2x2 color binning function
◆supports output formats: 12-bit/10-bit RAW RGB
◆SCCB control interface for register programming
◆supports MIPI 2-lane serial output interface
◆supports DVP 12-bit output interface
◆supports image sizes:1920 x 1080 @ 30 fps
◆supports automatic black level calibration
◆supports multi-camera synchronous function
◆Supports I/O switching
Low voltage LVDS(150m Vp-p)serial(2 ch /4 chswitching) DDR output
CSI-2 serial data output(2 Lane/4 LaneRAW10/RAW12 output)
◆Recommended exit pupil distance:-30 mm to - ∞
Applicaitons
Surveillance cameras
FA cameras
Industrial cameras
Our products are sold all over the world, you can rest assured.
